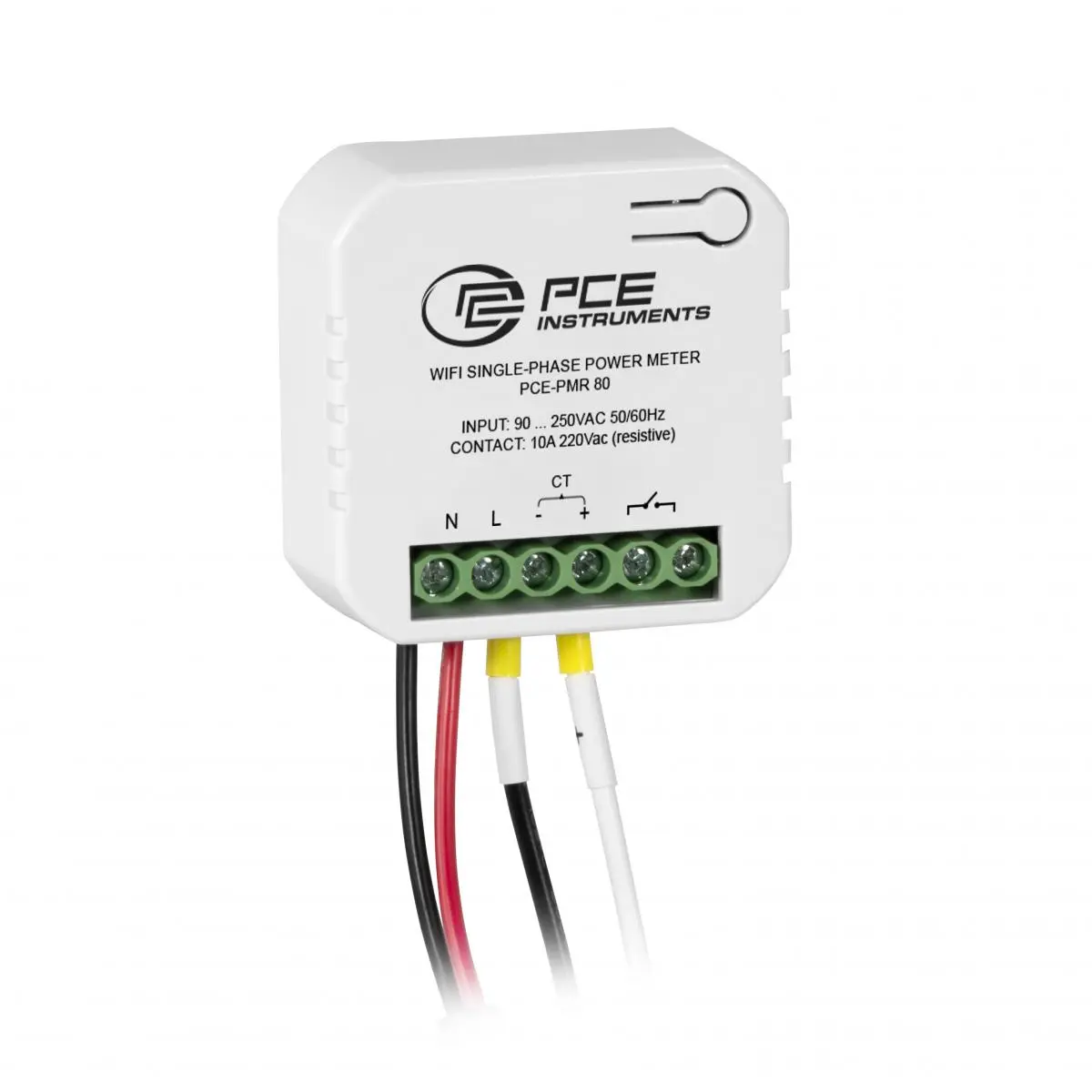

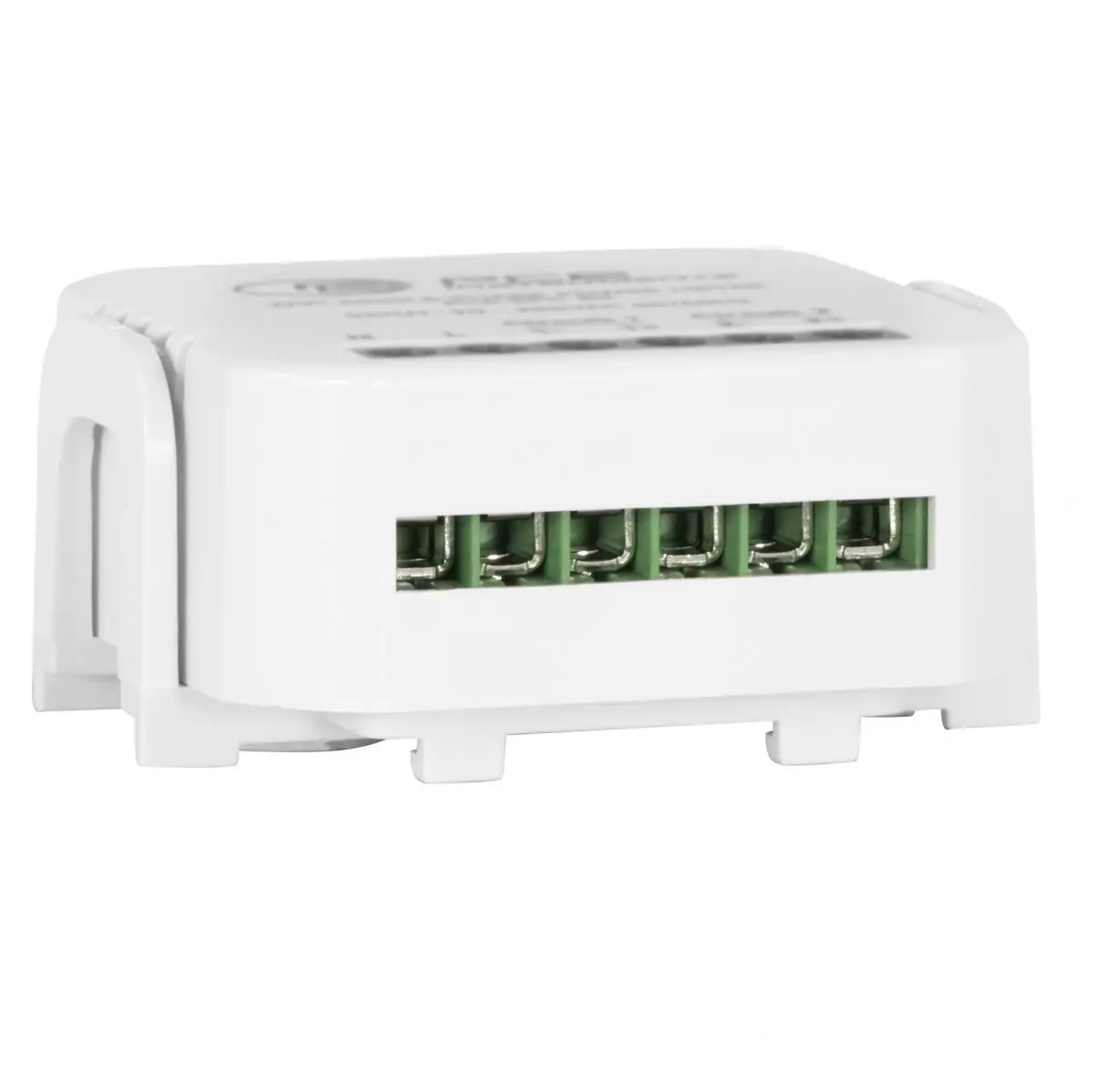

The Data Logger / Data Logging Instrument is used for the precise measurement and monitoring of energy consumption in electrical systems, particularly in households, commercial premises, and small industrial applications. It is suitable for analysing circuits and optimising energy consumption in real time.

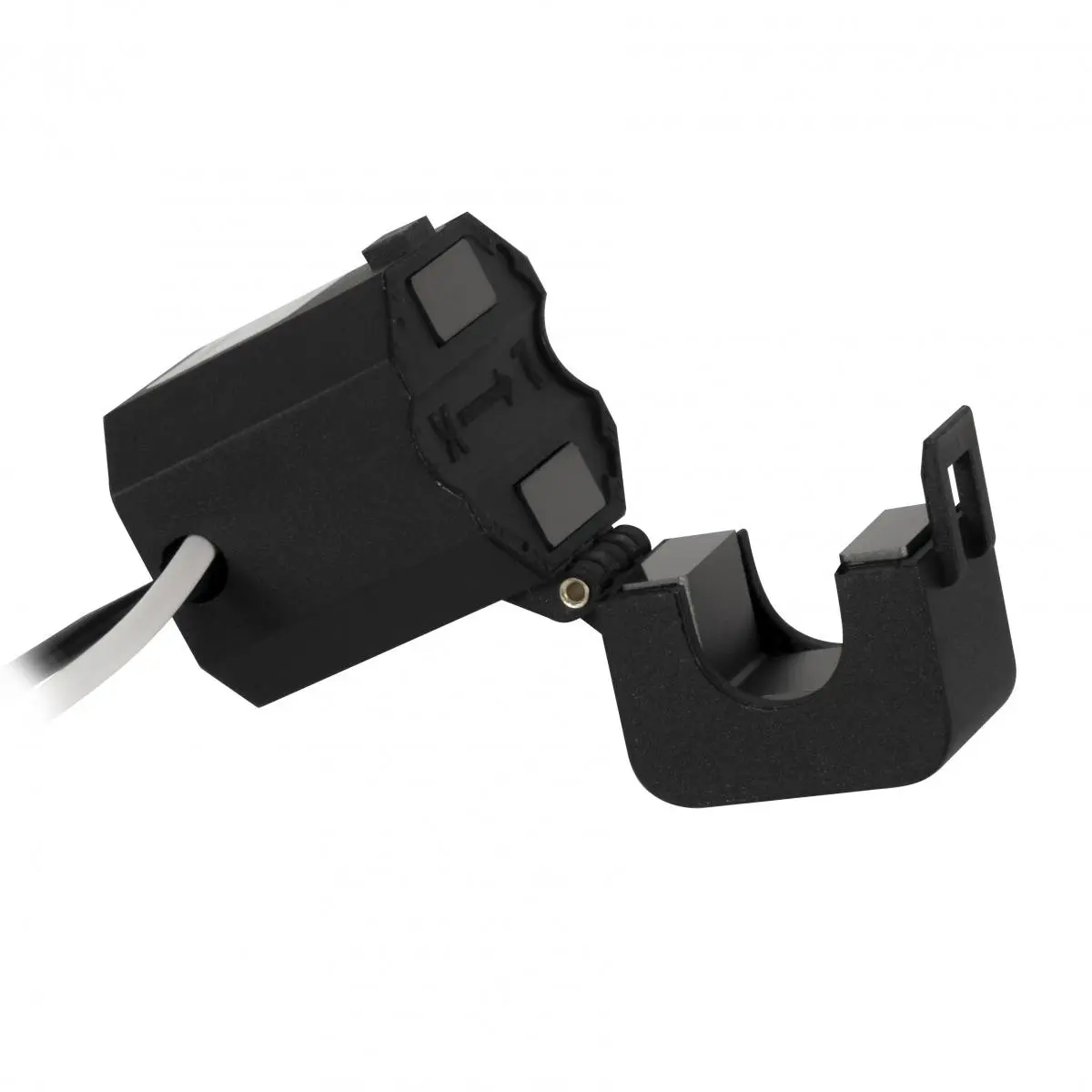

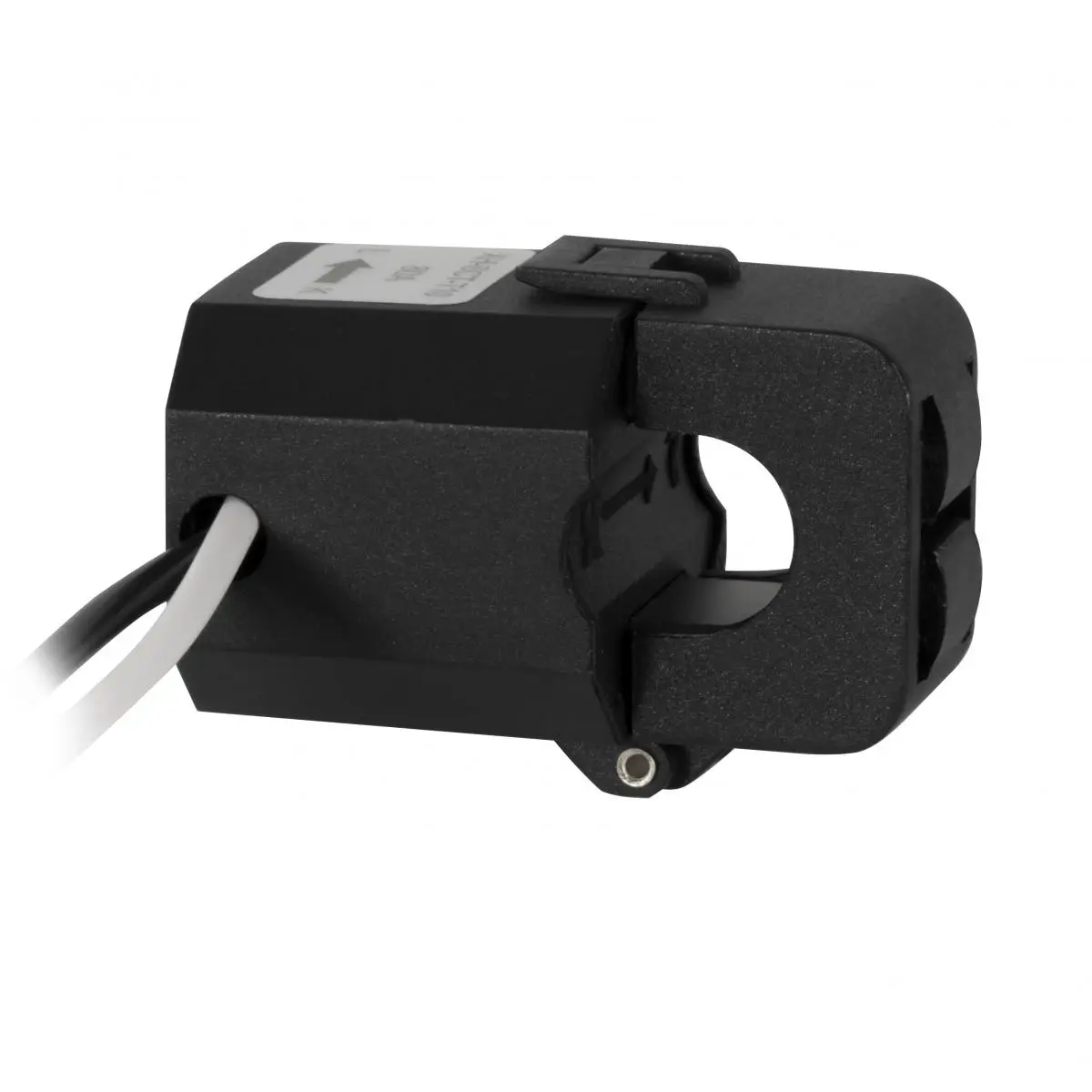

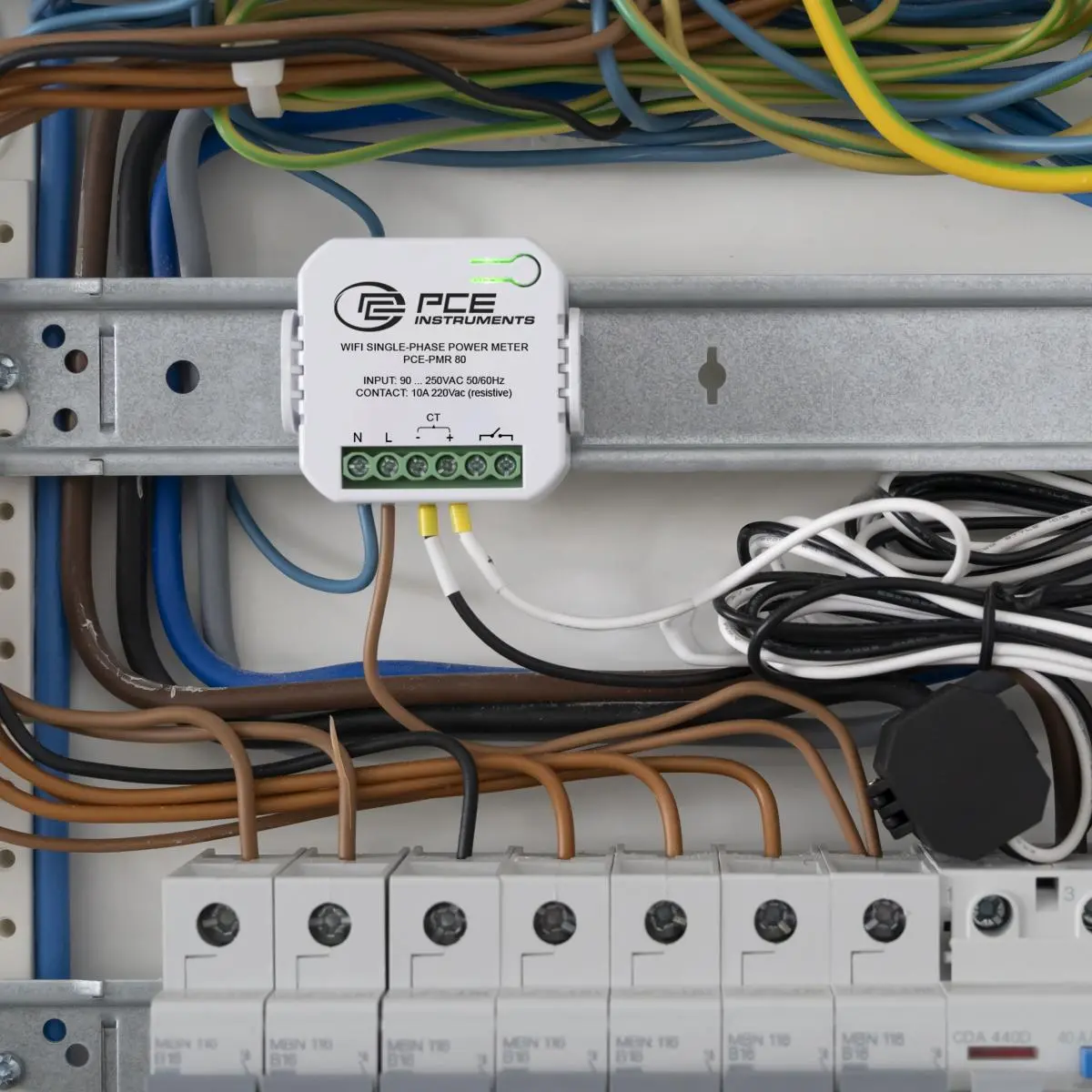

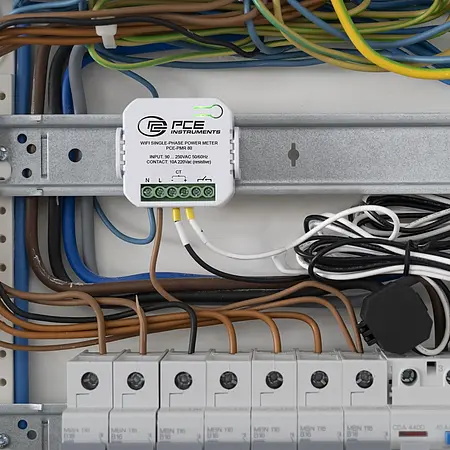

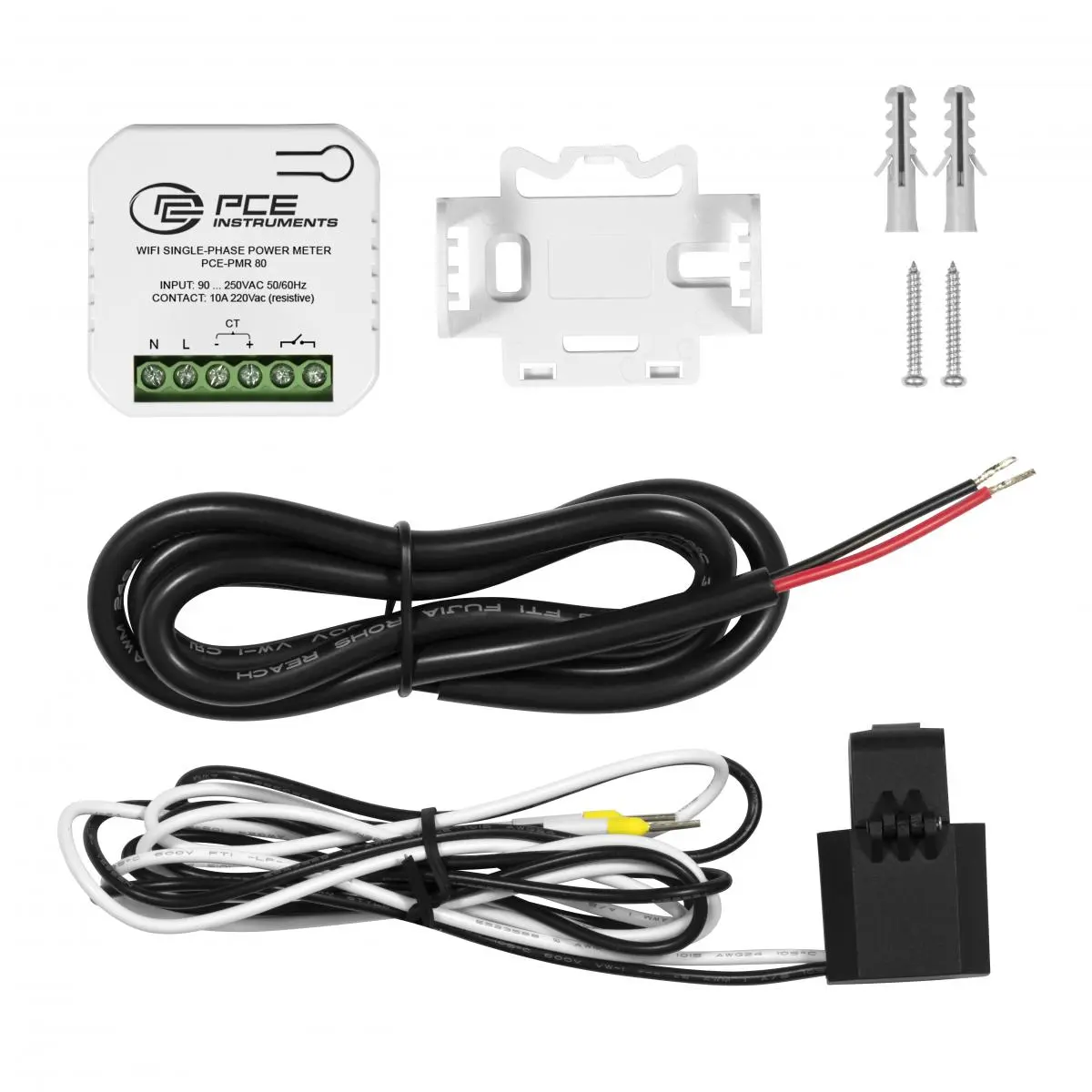

The Data Logger / Data Logging Instrument operates with an 80 A split-core current transformer that covers a current measuring range up to 80 A. Current measurement is contact-free via the current transformers, with the conductors to be measured fed through the openings of the transformers. Voltage measurement is carried out via the device supply voltage. Based on the recorded current and voltage values, the device calculates the current power and energy consumption and displays these values clearly. Installation is quick and easy in the control cabinet on the DIN rail.

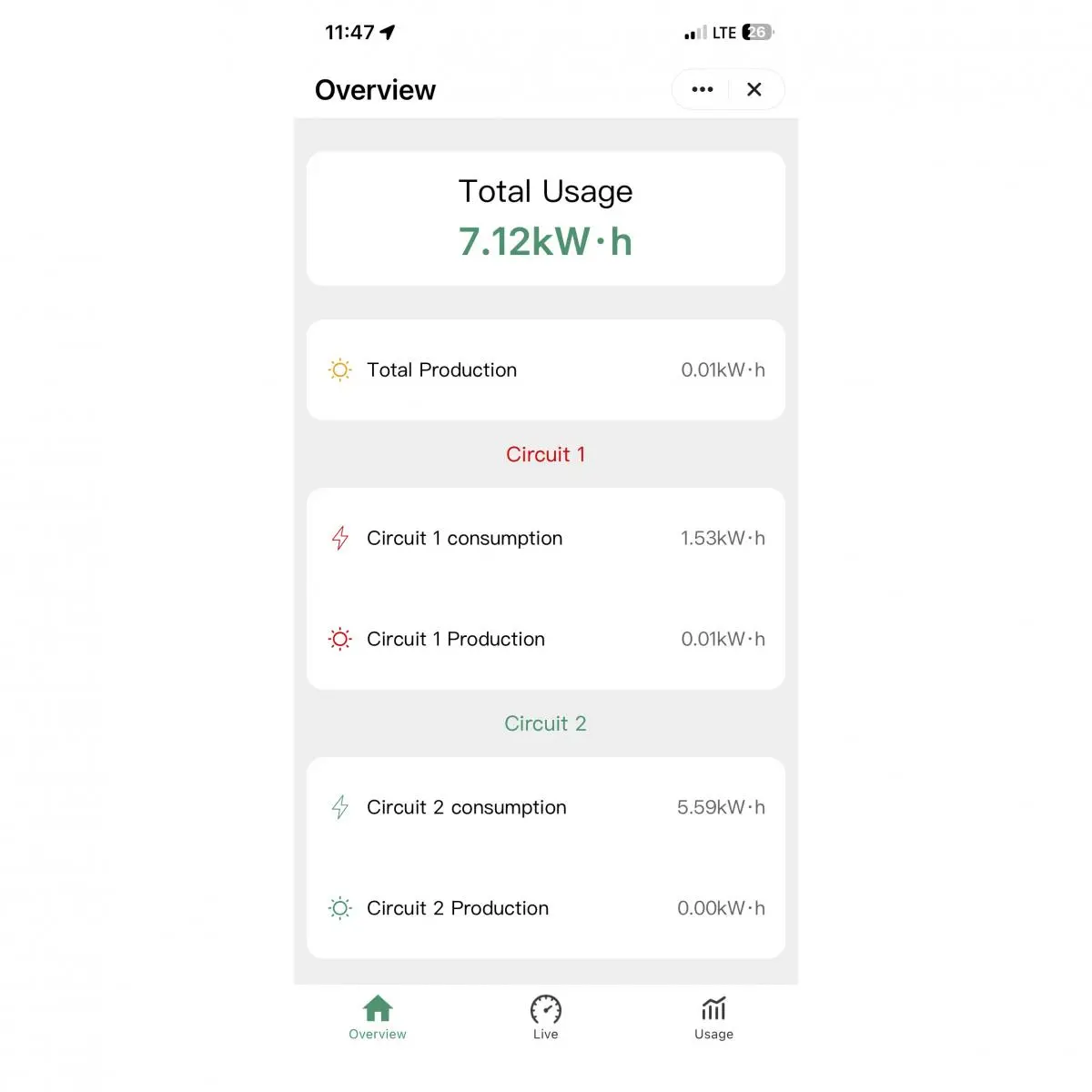

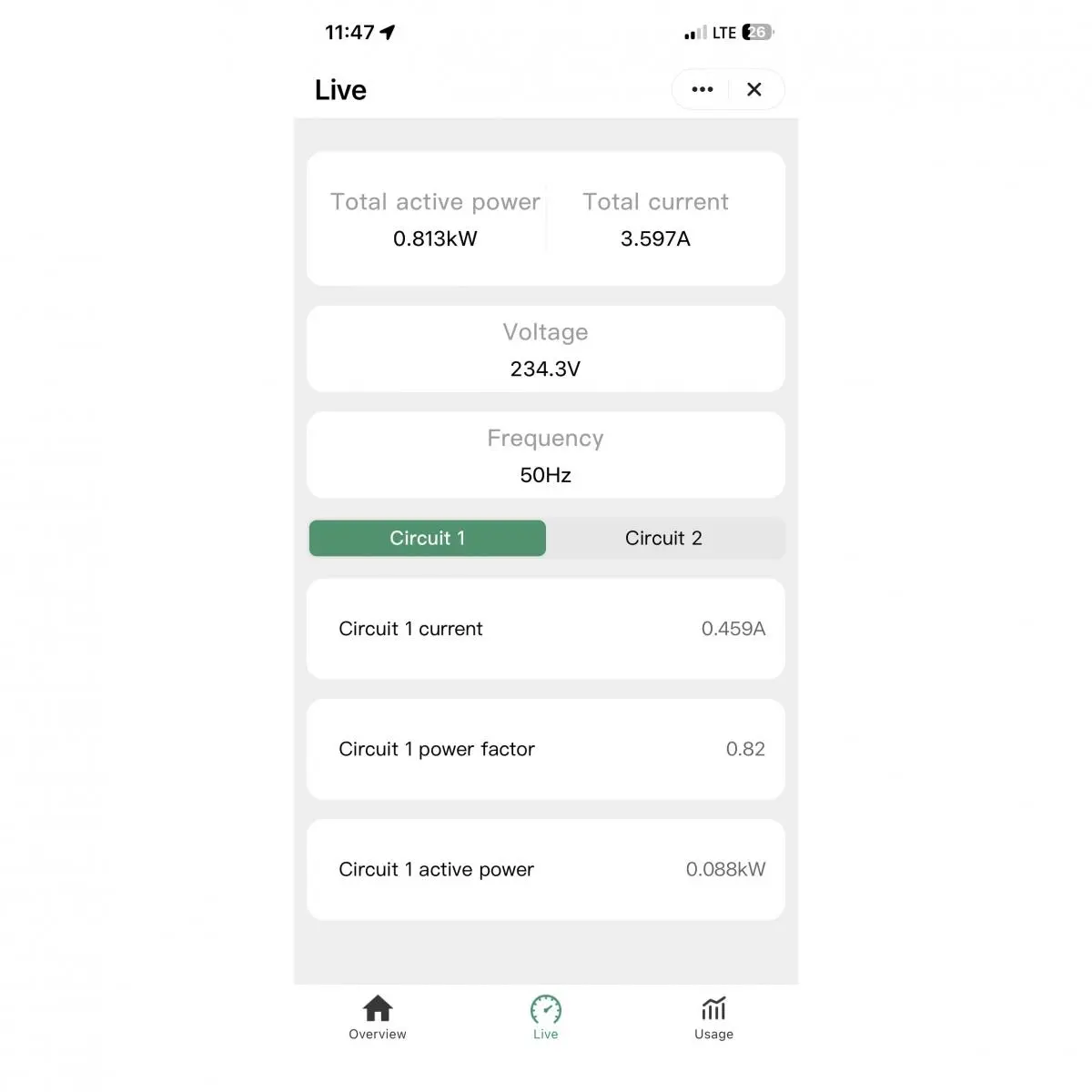

The recorded measurement data is transmitted by the Data Logger / Data Logging Instrument via Wi-Fi (2.4 GHz) to an app (Tuya / Smart Life) and displayed there in real time. In addition, the data is stored in the app or the associated Tuya system and can be analyzed and exported there as historical consumption values by hour, day, month or year. The device itself does not store any long-term trend data internally, but transmits the measured values to the app or cloud for storage and evaluation. Measurement values are updated at regular intervals of approx. 15 seconds.

Thanks to smart home integration, the device can be integrated into existing Tuya systems and monitored remotely. The Data Logger / Data Logging Instrument is suitable for homeowners, electricians, energy consultants and commercial users who want to monitor, analyze and optimize their electricity consumption over the long term.
