Conductivity Meter / Conductivity Tester PCE-CM 41

Conductivity Meter / Conductivity Tester PCE-CM 41 [zoom]
Conductivity Meter / Conductivity Tester PCE-CM 41

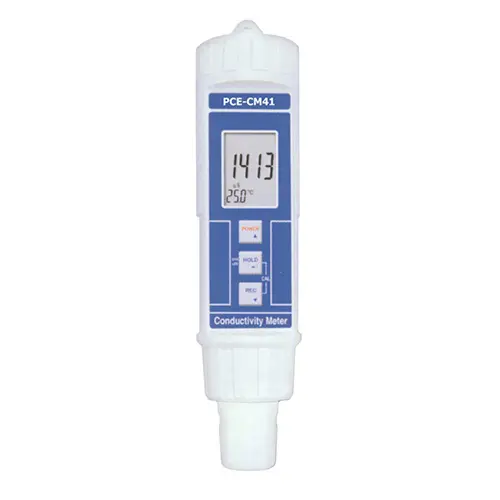

Conductivity Meter / Conductivity Tester Frontal

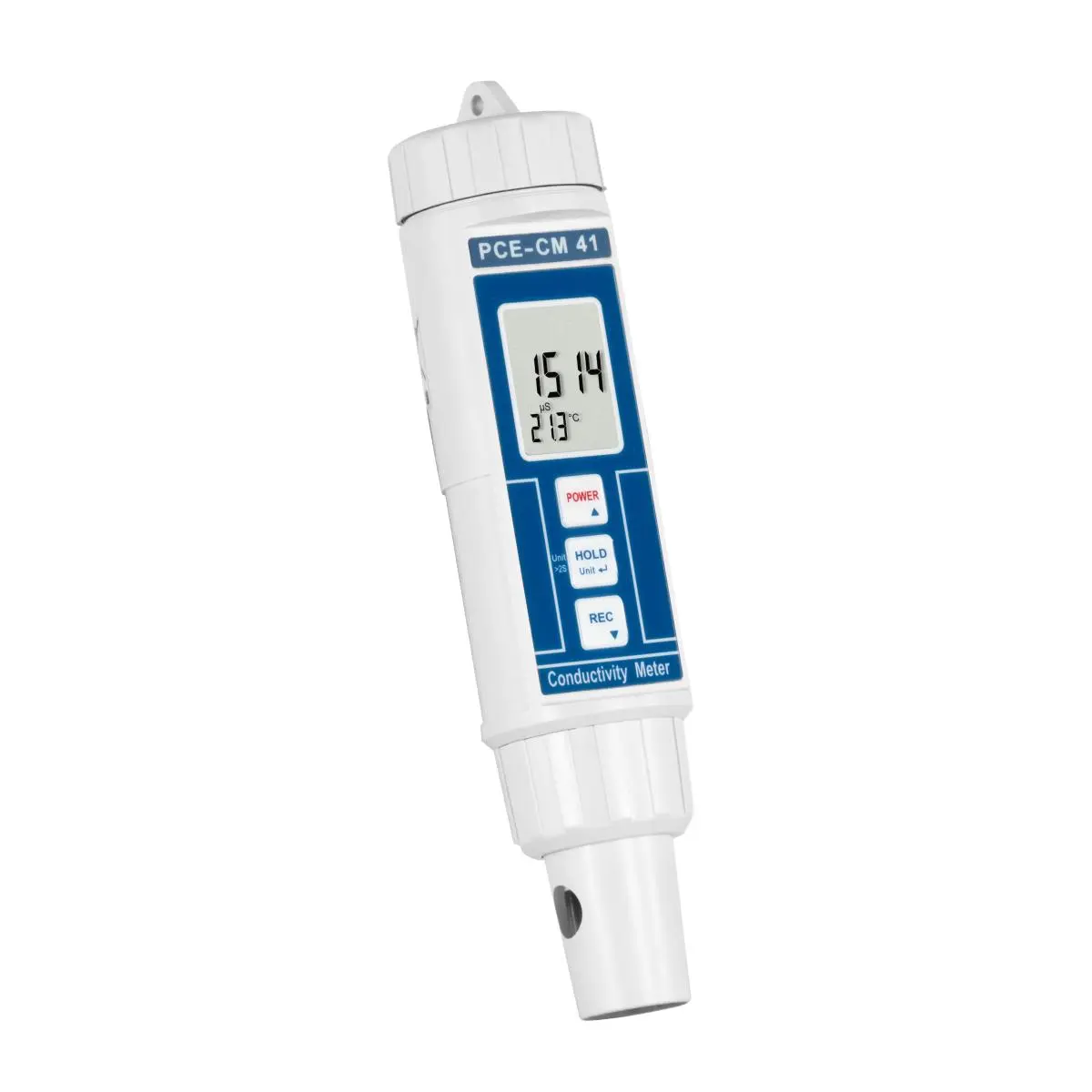

Conductivity Meter / Conductivity Tester Side view

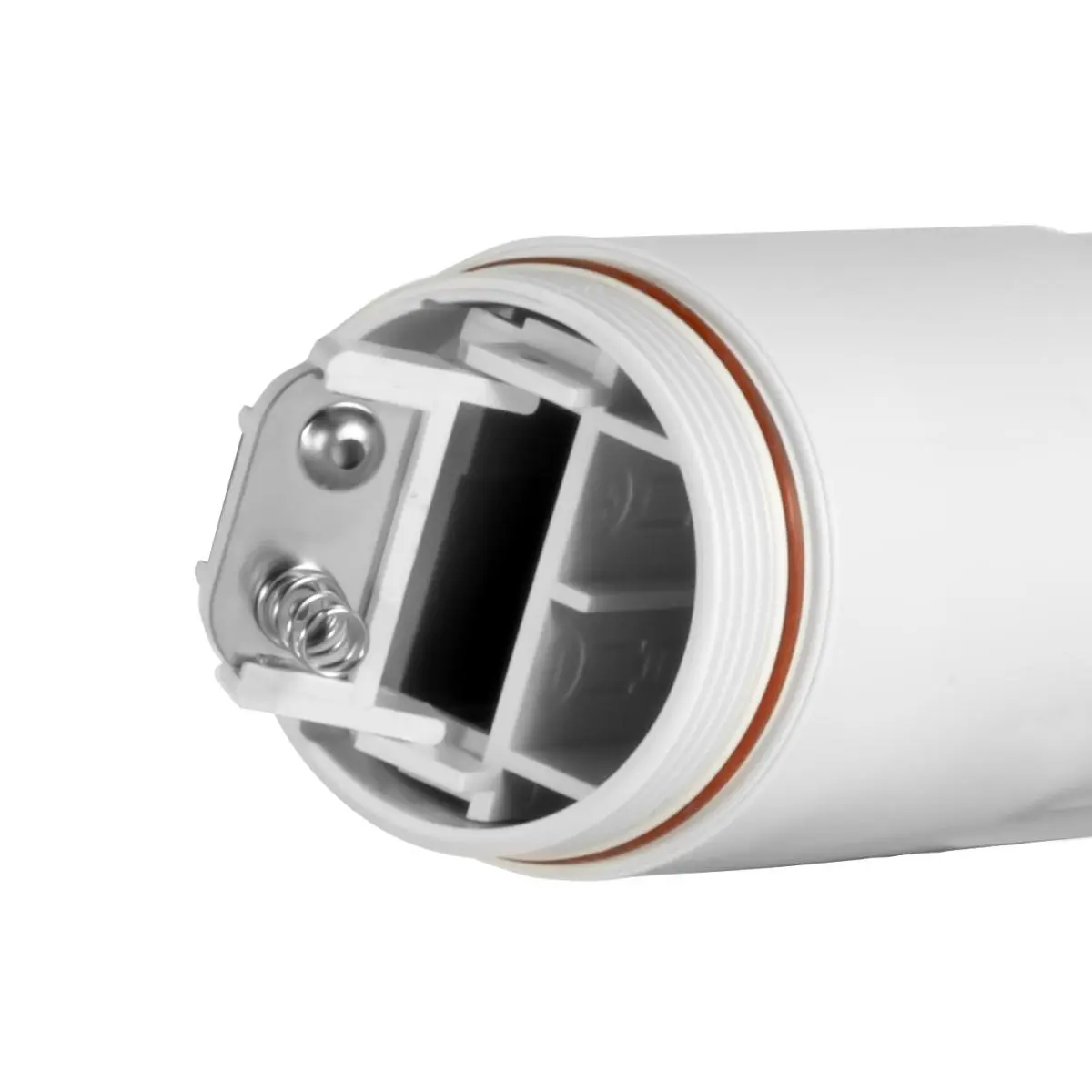

Conductivity Meter / Conductivity Tester Battery compartment

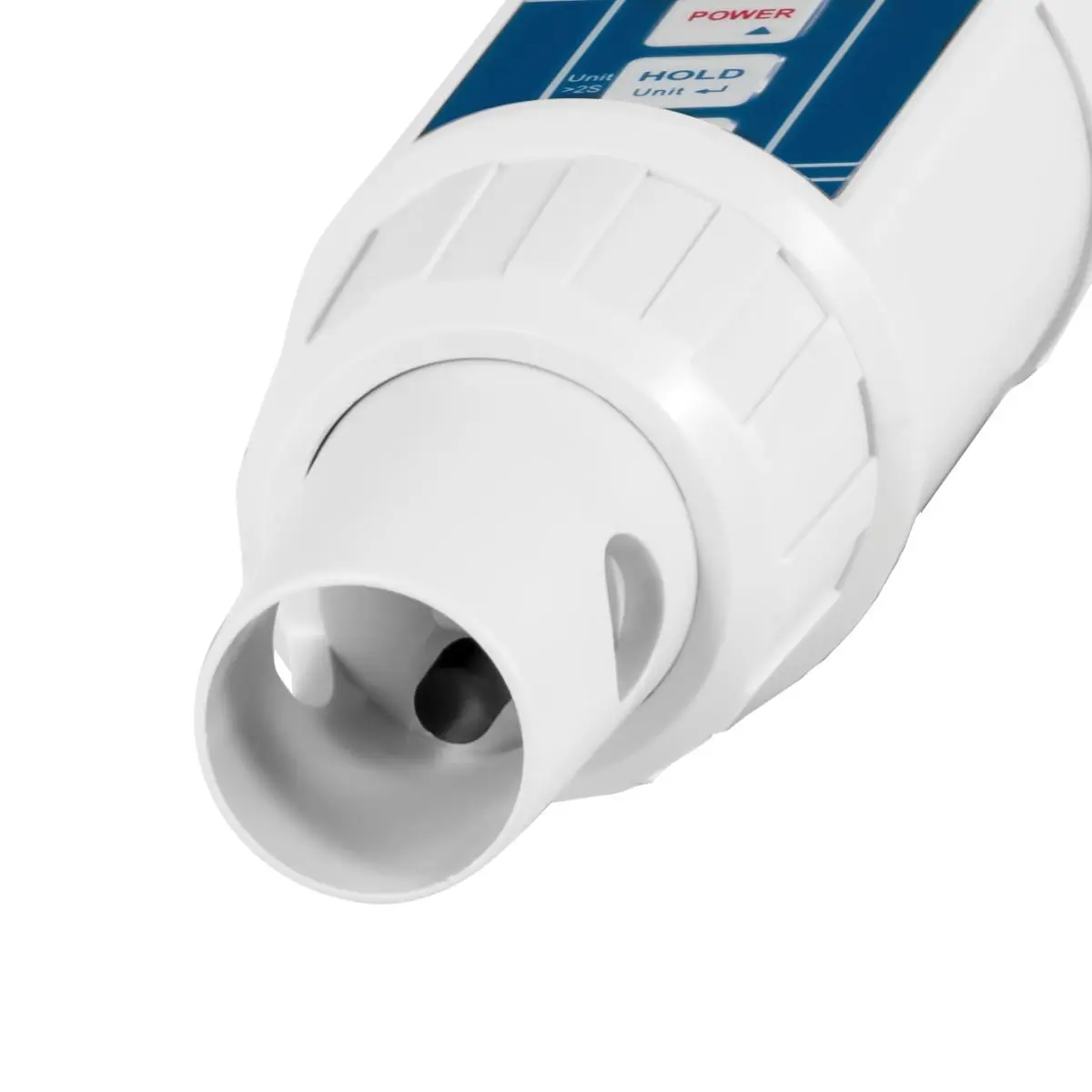

Conductivity Meter / Conductivity Tester Sensor

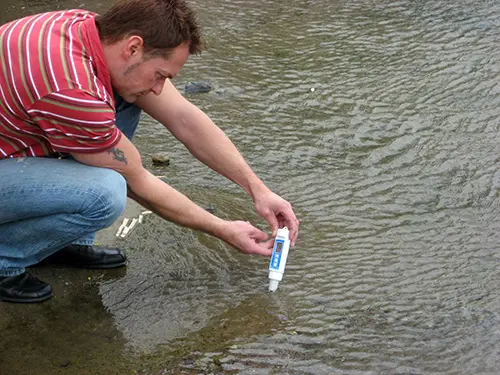

Conductivity Meter / Conductivity Tester Application picture
Conductivity Meter / Conductivity Tester Application picture

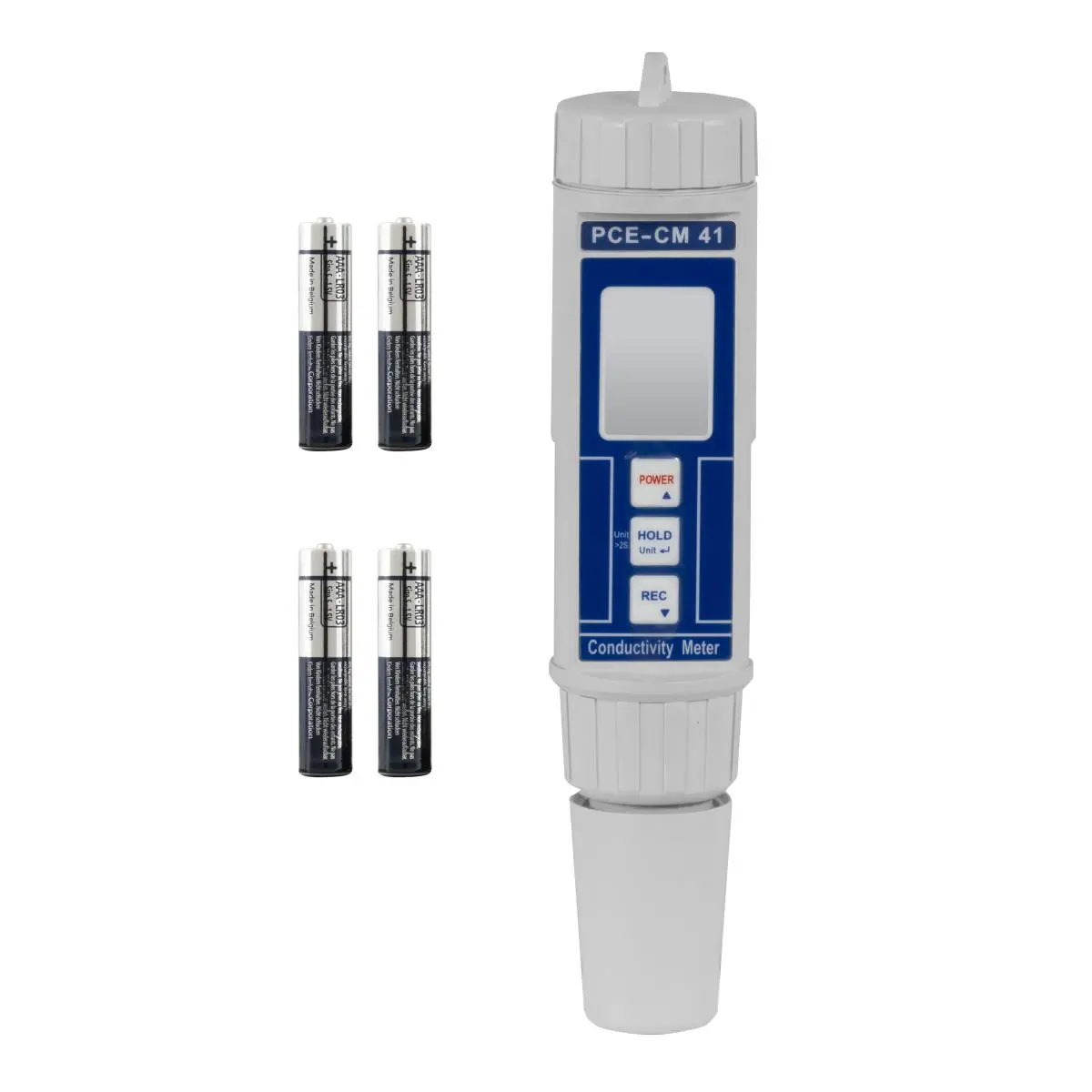

Conductivity Meter / Conductivity Tester Delivery scope

Conductivity Meter PCE-CM 41

Order no.: PCE-CM 41
GTIN (EAN): 4250348700612
£ 163.00
£ 195.60
price ex. (VAT / delivery)
:
4250348700612
PCE-CM 41
Delivery time:1-2 working days
Liquids

Accessory

Description

Conductivity meter for EC and TDS (amount of salts and dissolved solid materials)

With the conductivity meter PCE-CM 41 it is possible to measure conductivity value, the amount of all the solid material or dissolved salts  (TDS - Total Dissolved Solids) and the temperature. The conductivity meter PCE-CM 41 is very easy to carry everywhere thanks to its small size. The water resistant enclosure protects properly the electronics (it also protects against dust). The measurement of EC and TDS conductivity has an automatic temperature compensation. The conductivity meter PCE-CM 41 has a wide field of application and can be used in the industry, fish farming, horticulture and others.

Highlights

- Two measurement ranges for a high accuracy.
- Measures conductivity, TDS value and temperature (3 devices in one)
- TDS factor can be selected
- Auto shut-off: to protect battery life.
- Temperature in ºC of °F
- Water resistant (IP 67)

Specification

Conductivity
Measuring range  0 ... 2000 µS
Resolution  1 µS
Accuracy  ±(3% FS +1 Digit)

Conductivity
Measuring range  2 ... 20 mS
Resolution  0,01 mS
Accuracy  ±(3% FS +1 Digit)

TDS
Measuring range  0 ... 1320 ppm
Resolution  1 ppm
Accuracy  ±(3% FS +1 Digit)

TDS
Measuring range  1320 ... 13200 ppm
Resolution  10 ppm
Accuracy  ±(3% FS +1 Digit)

Temperature
Measuring range  0 ... 60 °C
Resolution  0,1 °C
Accuracy  ±0.8 °C

Temperature
Measuring range  32 ... 140 °F
Resolution  0,1 °F
Accuracy  1.5°F

General technical data
Measuring functions  MIN, MAX, HOLD
Temperature compensation  Automatic temperature compensation from 0-60°C ( 32-140°F)
Display type  LCD
Display size  1,3 Inch
Automatic power-off  10 min
Menu language  English, English (GB)
Protection class (device)  IP67
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 60 °C , 0 ... 80 % RH
Storage conditions  0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  200 x 40 x 40 mm
Weight  124 g

Delivery Scope

1 x Conductivity Meter / Conductivity Tester PCE-CM 41
4 x batteries
1 x user's manual
