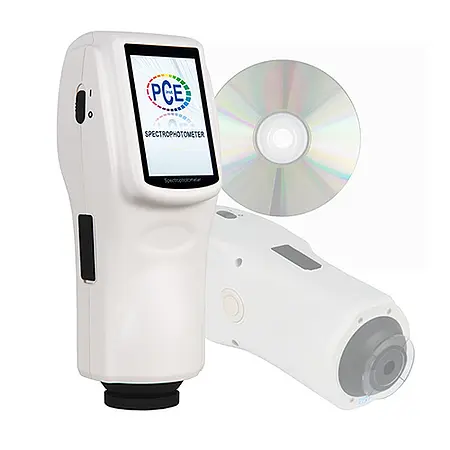

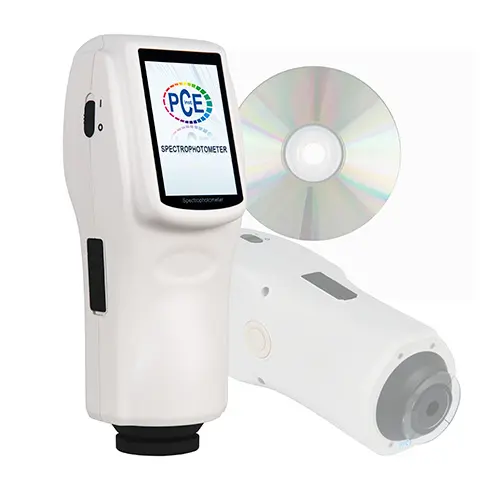

Color Meter PCE-CSM 8

Color Meter PCE-CSM 8 [zoom]
Color Meter PCE-CSM 8
Color Meter PCE-CSM 8 Reflectance Curve

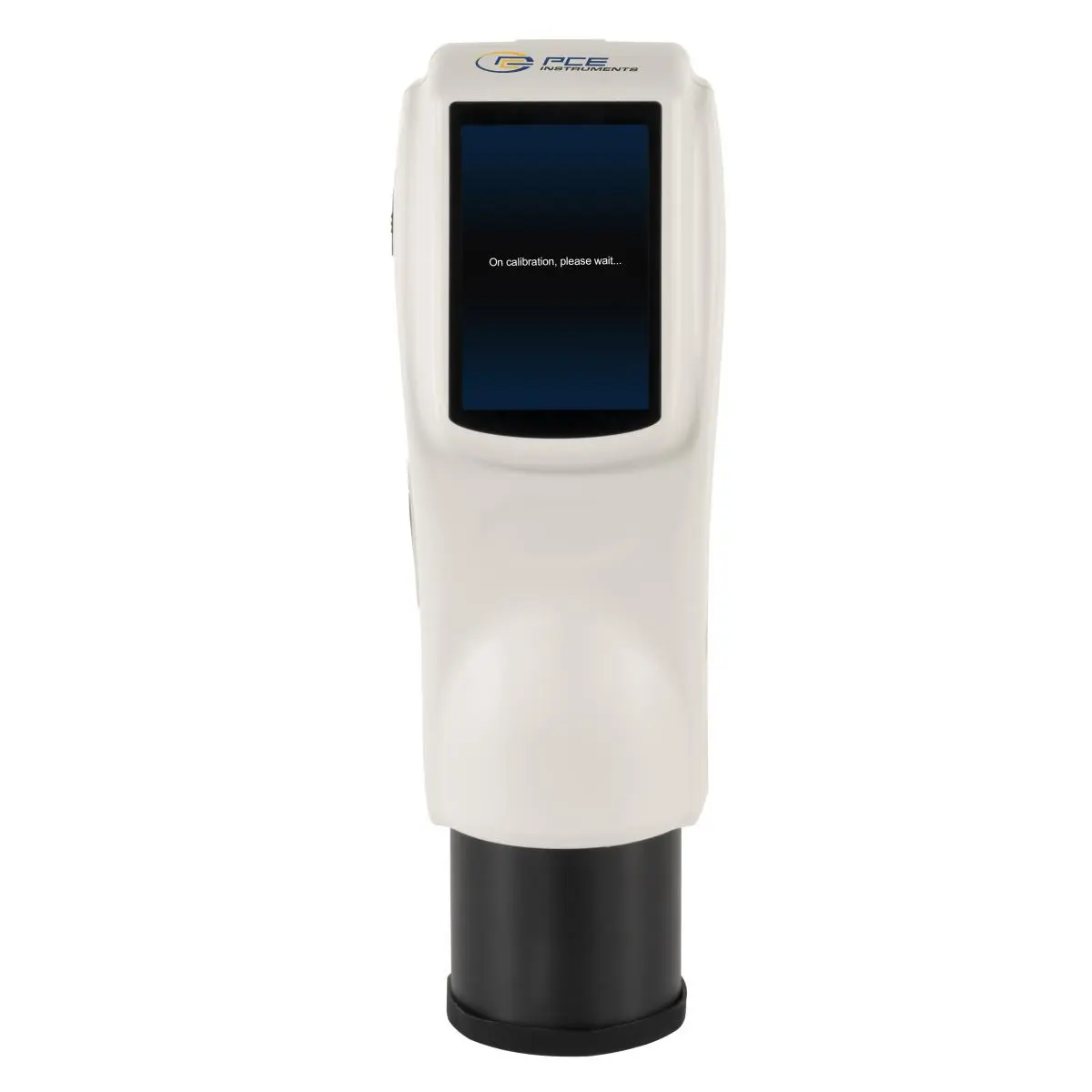

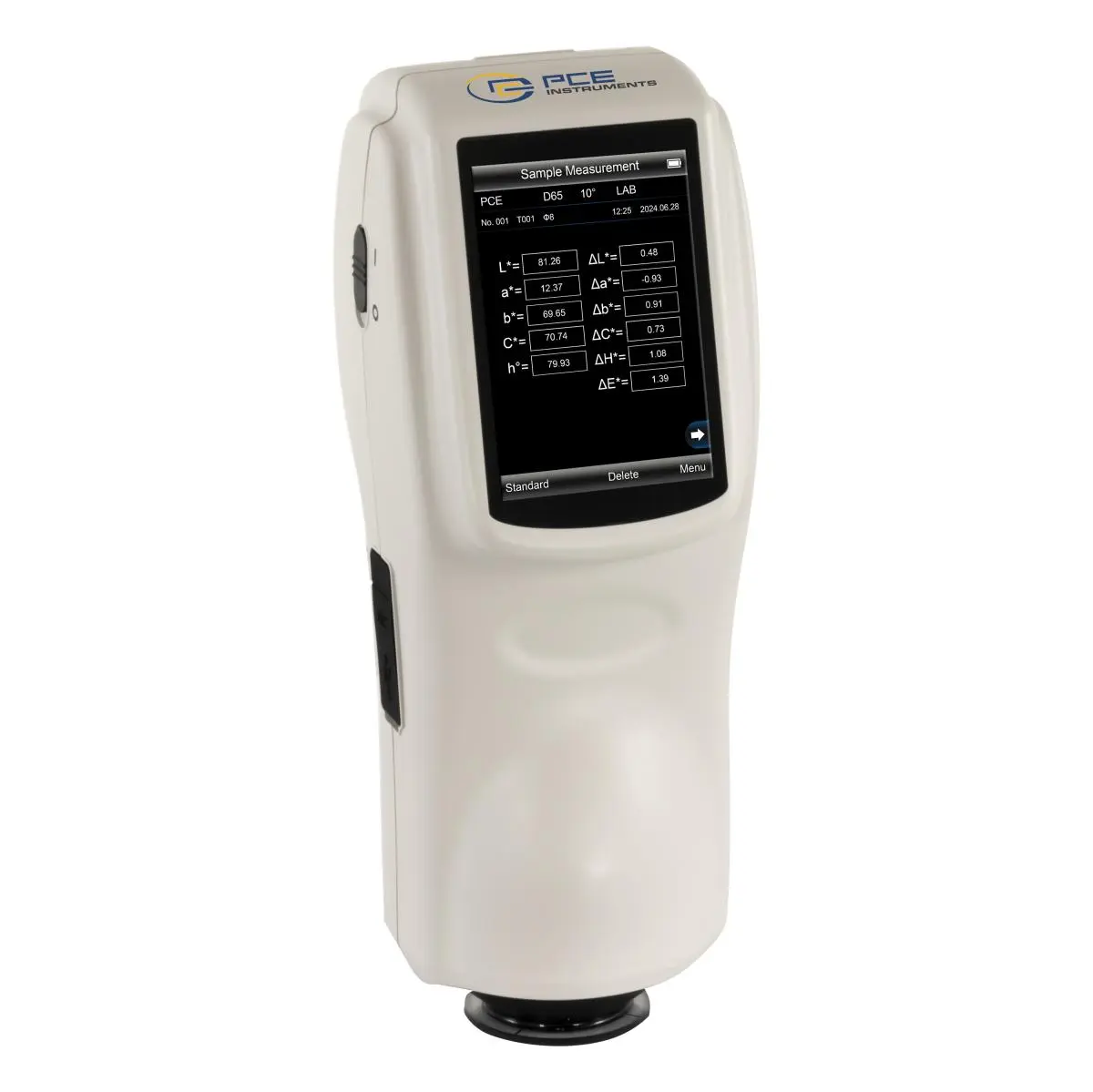

Color Meter PCE-CSM 8 Display

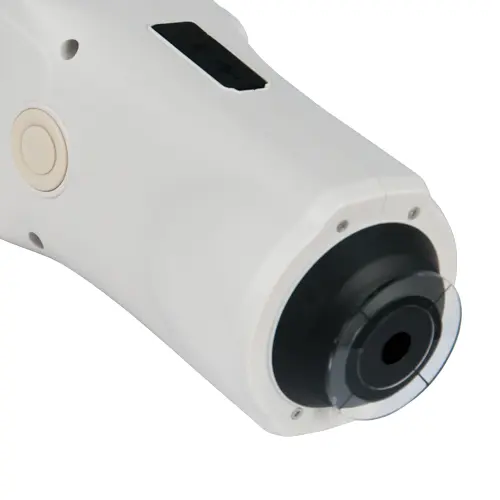

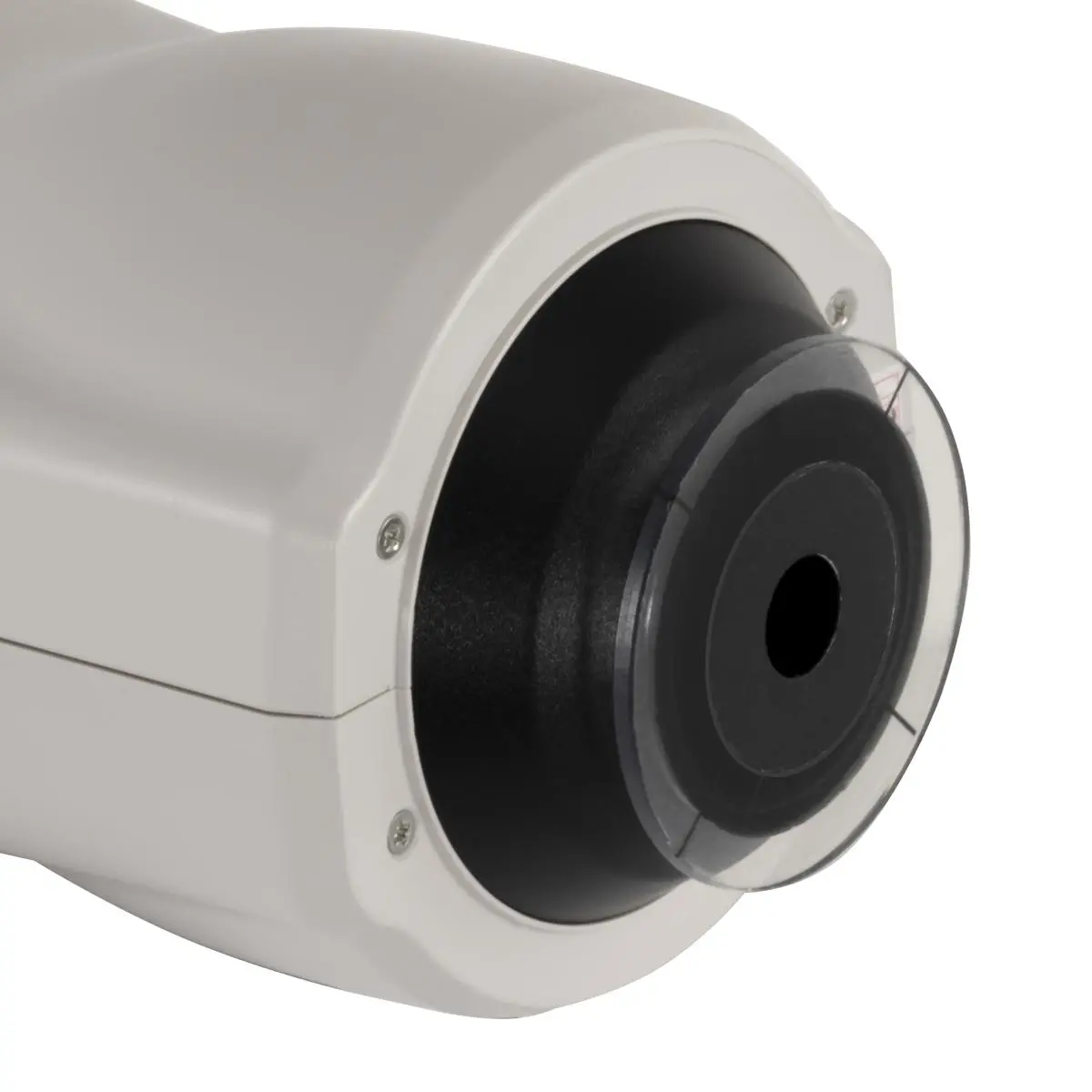

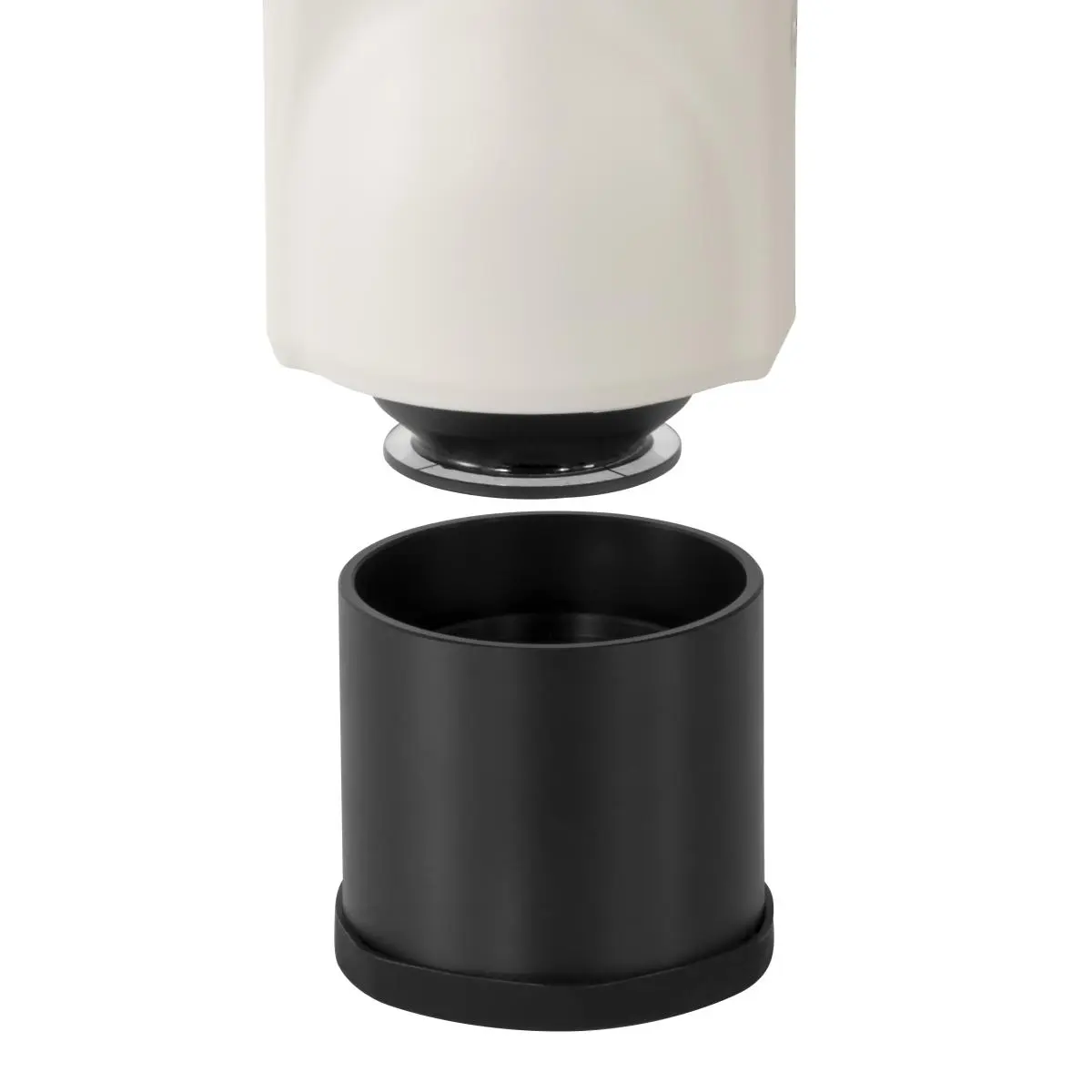

Color Meter PCE-CSM 8 Aperture

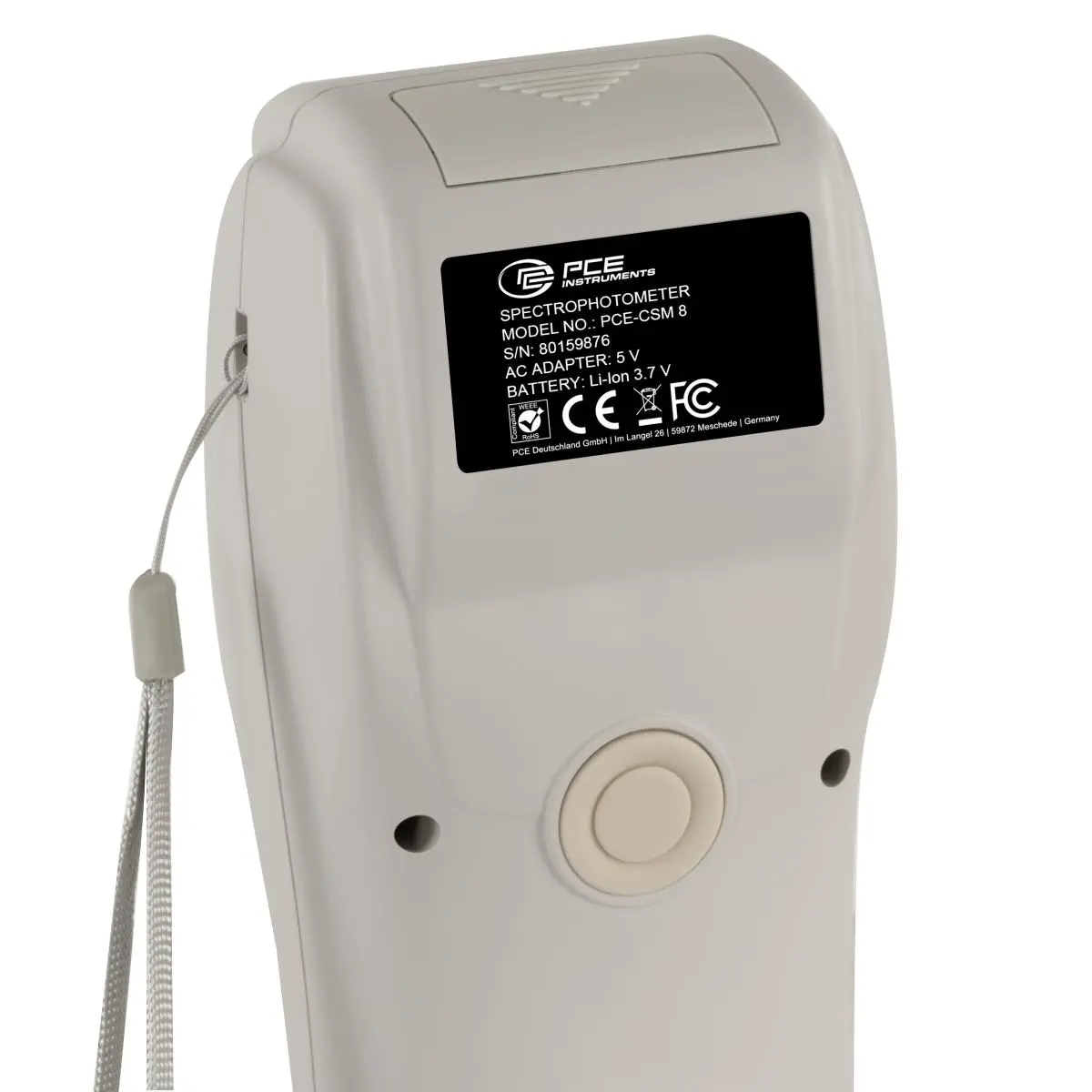

Color Meter PCE-CSM 8 Bottom View
Color Meter PCE-CSM 8 Interface

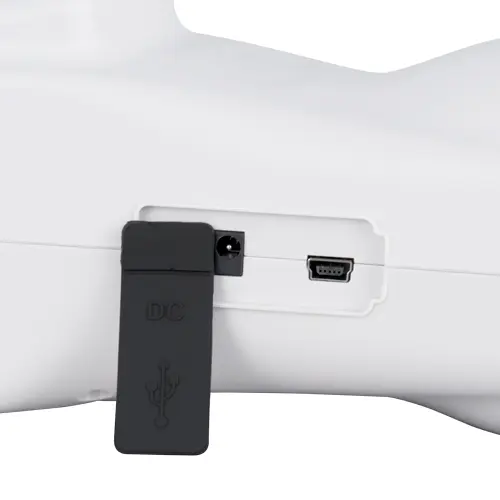

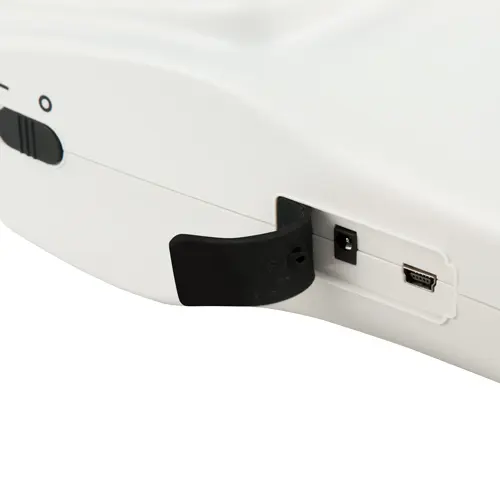

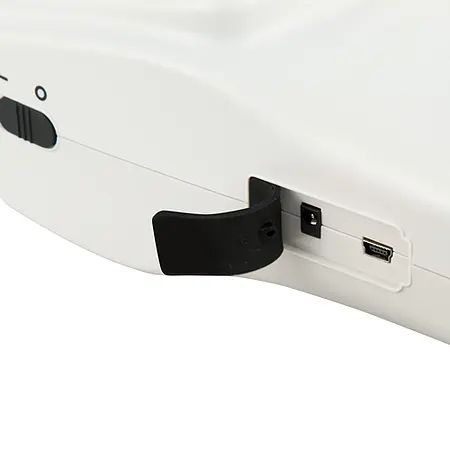

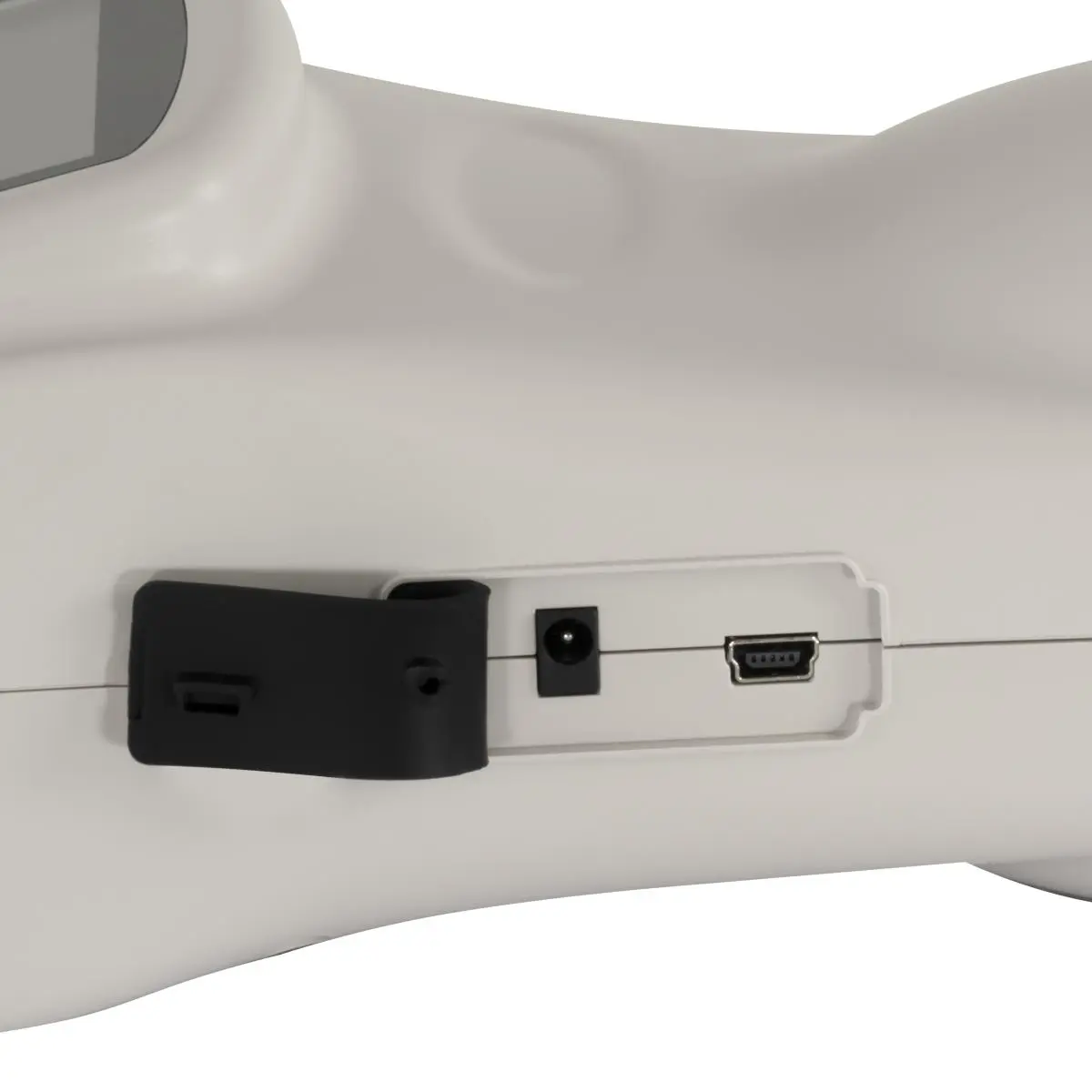

Color Meter PCE-CSM 8 Ports
Color Meter PCE-CSM 8 Application

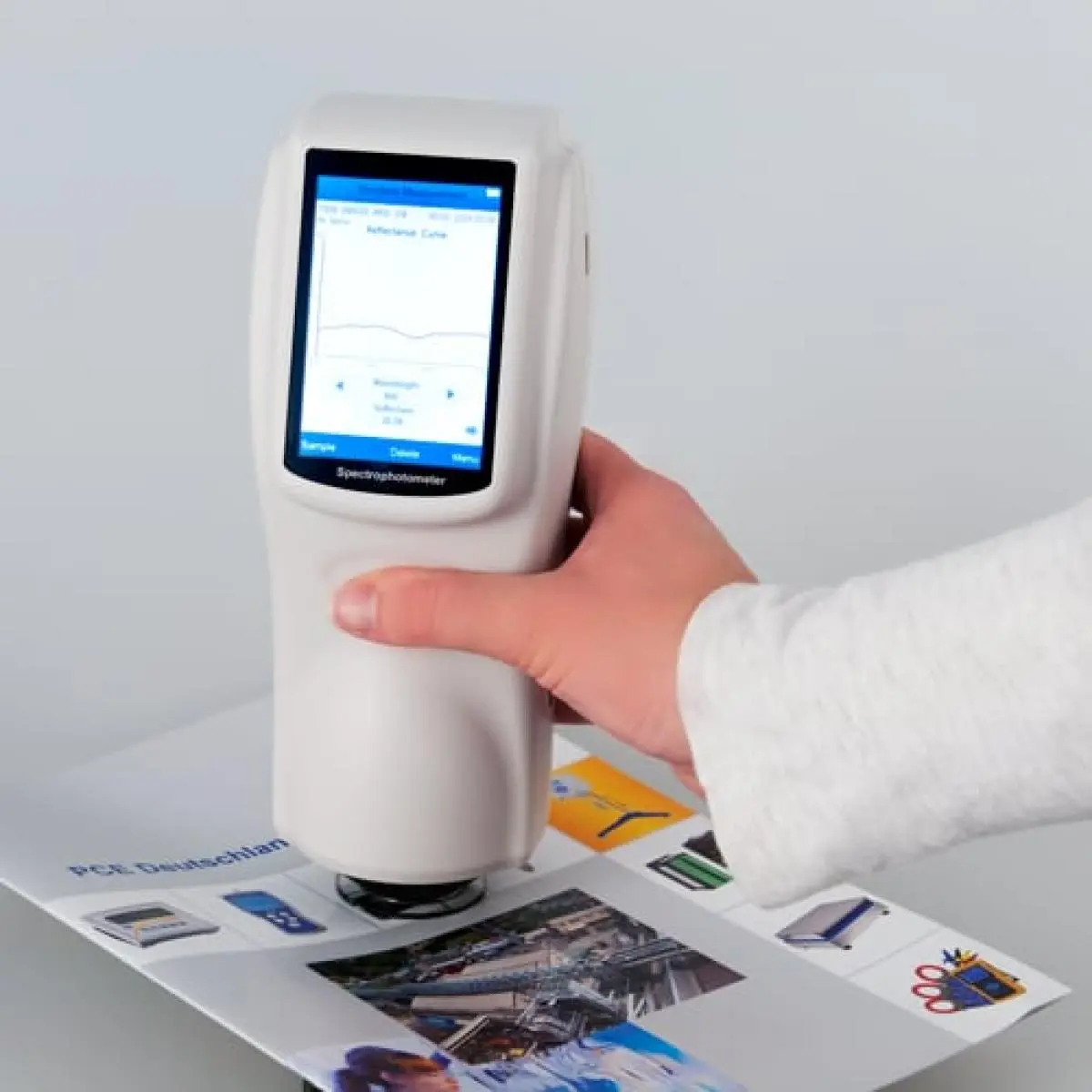

Color Meter PCE-CSM 8 in Use
Color Meter PCE-CSM 8 Example

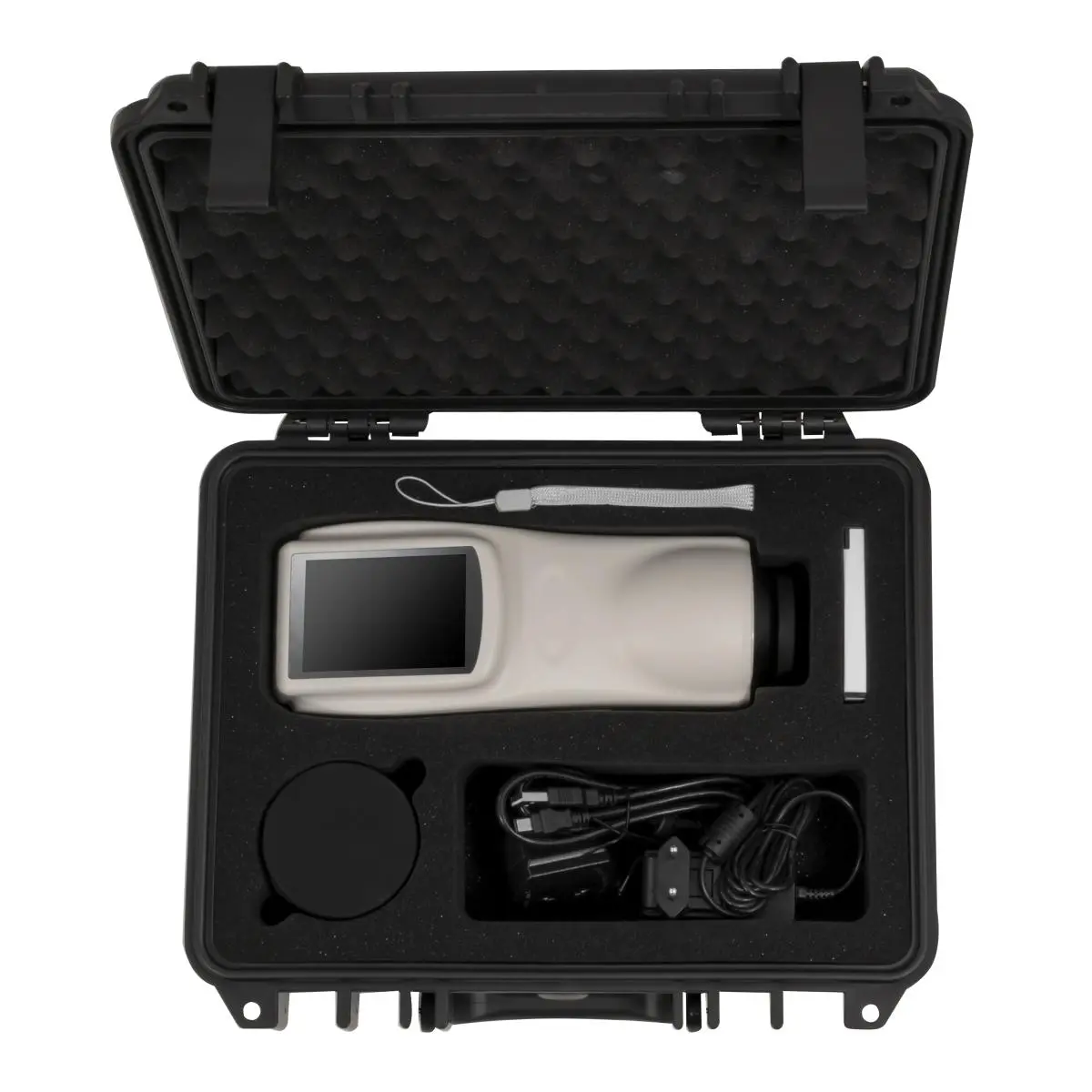

Color Meter PCE-CSM 8 Case
Color Meter PCE-CSM 8 Case Exterior

Color Meter PCE-CSM 8

Order no.: PCE-CSM 8
GTIN (EAN):
£ 4,410.00
£ 5,292.00
price ex. (VAT / delivery)
PCE-CSM 8
Delivery time:1-2 working days
Handheld / Desktop
Internal Sensor
Yes
Yes

Accessory

Description

Color meter PCE-CSM 8 for quality control
PC software included / Li-ion battery / different color spaces / black and white calibration
determination of reference values and samples / white calibration / 3.5" touch screen

The color meter and spectrophotometer PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the color meter, you can choose between different color spaces (CIE LAB, XYZ, Yxy, LCh, and LUV) and 45/0 optics angle. After a measurement with the color meter, the reading can be used as a named reference value while other readings can be recorded as a sample and later be compared to the reference value easily for Pass/Fail determination.

In addition to the individual color space coordinates, the deviation between the reading (delta E) is also displayed. When using the color meter, it is possible to store up to 1000 reference values and up to 10,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE LAB, XYZ, Yxy, LCh, and LUV
- SCI and SCE (specular excluded)
- 3.5" touch screen display
- 13 light source options
- white and black calibration
- 1000 alphanumeric reference values and up to 10,000 sample values memory
- WI, YI, TI, Mt, Color Stain, Color Fastness, SCI and SCE option (specular included and excluded)
- Measuring aperture of 8 mm and 45°/0° illumination/viewing angle
- rechargeable lithium-ion battery
- high accuracy with Delta E*ab 0.04
- incl. PC software

Specification

Measuring geometry 45/0 according to CIE No. 15, GB/T3978
Integrating sphere Ø 58 mm
Sensor Silicon photoelectric diode
Wavelength range 400 ... 700 nm (10 nm pitch)
Measuring aperture Ø 8 mm
Color spaces CIE LAB, XYZ, Yxy, LCh, and LUV
Color index ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(h)
Chromacity data WI (ASTM E313 CIE/ISO, AATCC, Hunter)
YI (ASTM D1925, ASTM E313)
TI (ASTM E313, CIE/ISO)
Metamerism Index Mt
color stain, color fastness
Observation angle 2° / 10°
Light source D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light source device combined LED
Life of light source 5 years, > 1.6 million measurements
Data on display Spectral value/graph
colorimetric value
color difference (value/graph)
PASS/FAIL result
color offset
color simulation
Min. time between 2 measurements 1.5 seconds
Repeatability Standard deviation within ΔE*ab 0.04
Average of 30 measurements of standard white plate
Error between equipment ΔE*ab 0.2
Display 3.5" TFT touch screen
Interface USB / RS232
Storage 1,000 alphanumeric reference values, 15,000 samples
Power supply Rechargeable lithium-ion battery
Operating conditions 0 ... +40 °C / 32 ... 104°F
0 ... 85 % RH
Storage conditions -20 ... +50 °C / -4 ... 122 °F
Dimensions 90 x 77 x 230 mm / 3.5 x 3.03 x 9.05 in
Weight 600 g / 21.1 oz

Delivery Scope

1 x Colorimeter PCE-CSM 8
1 x Aluminium carrying case
1 x AC adapter
1 x Lithium-ion battery

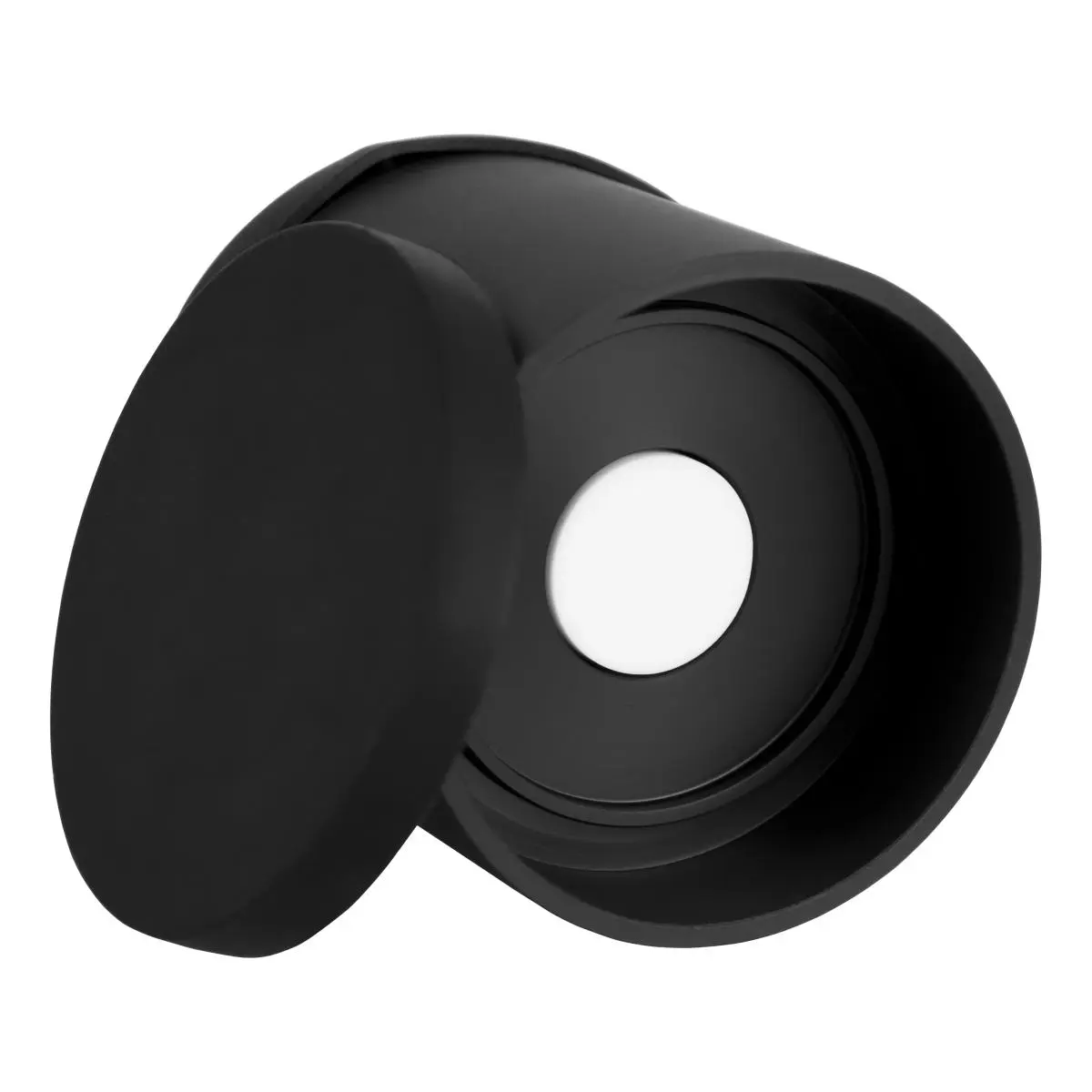

1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
