Sensor FM200-SU-SE-65-300 for sliding roofs, window lifters, tailgates

Name: Sensor FM200-SU-SE-65-300 for sliding roofs, window lifters, tailgates
Brand: Drive Test
SKU: 6105064
Price: 1420 GBP
Availability: InStock

Order no.: FM200-SU-SE-65-300

GTIN (EAN): 4260650210112

Description

Sensor FM200-SU-SE-65-300 for sliding roofs, window lifters, tailgates

- Sensor 65 N/mm, 300 N max.

Highlights

- Support of relevant standards: 2000/4 EC, US standard FMVSS 118

- Precise measurements thanks to frictionless guidance and platform load cell

- Robust design

- Flexible customisation - made possible by a wide range of available force application options: Customised adaptations also available from Drive Test

Specification

Force
Measuring range	0 ... 300 N
Resolution	1 N
Accuracy	±3 N or 3 % of Rd

General technical data
Stiffness	65 N/mm
Gap width	4 mm
Protection class (device)	IP43
Operating conditions	-10 ... 40 °C , 0 ... 90 % RH
Storage conditions	-40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	240 x 85 x 60 mm
Weight	1300 g

Delivery Scope

1 x Closing Force Measuring Device / Closing Force Transducer FM200-SU-SE-65-300

1 x ISO-calibration certificate

without display unit

Downloads

Datasheet

Closing Force Measuring Device / Closing Force Transducer FM200-SU-SE-65-300

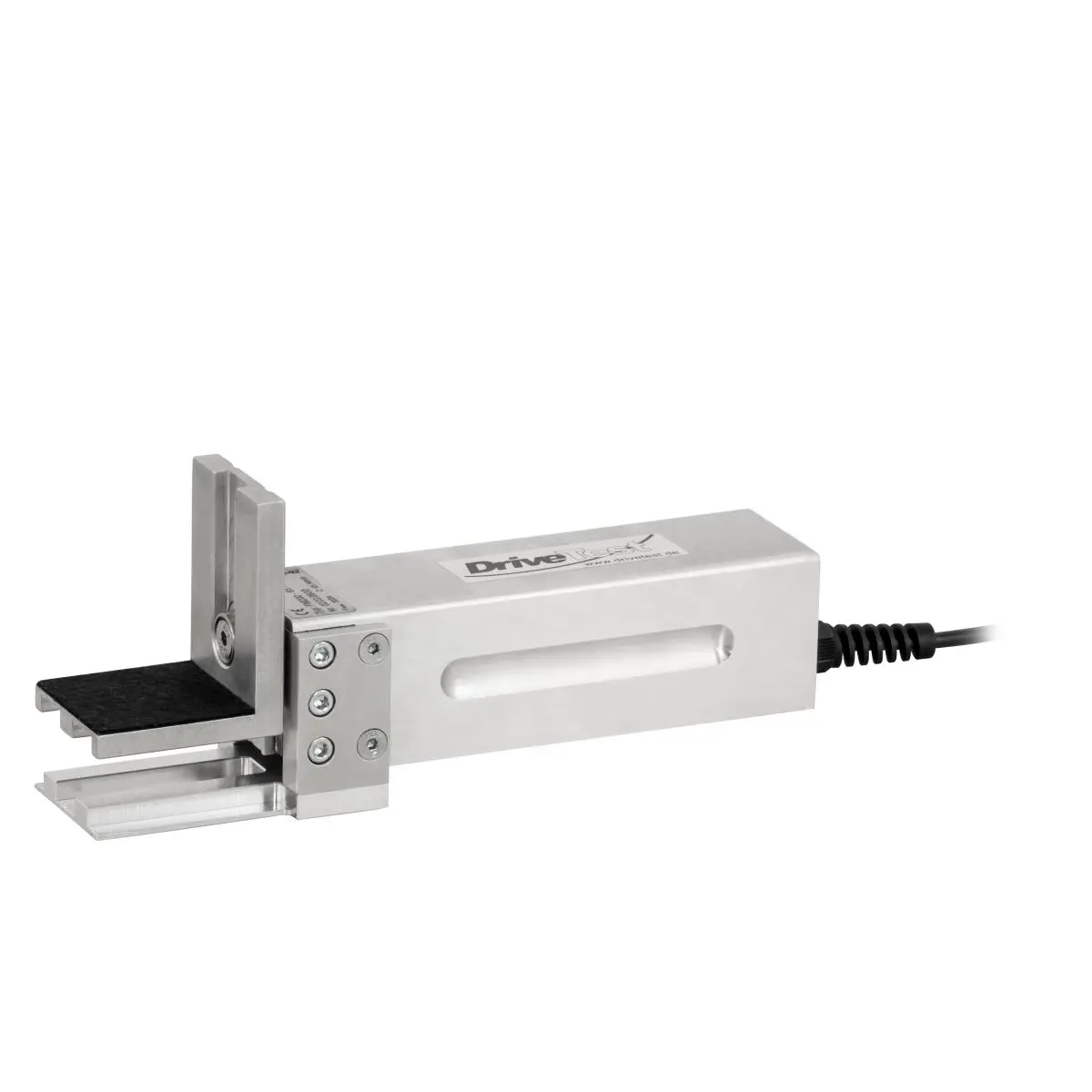

Closing Force Measuring Device / Closing Force Transducer Frontal

Closing Force Measuring Device / Closing Force Transducer Sensor

Closing Force Measuring Device / Closing Force Transducer Rear side

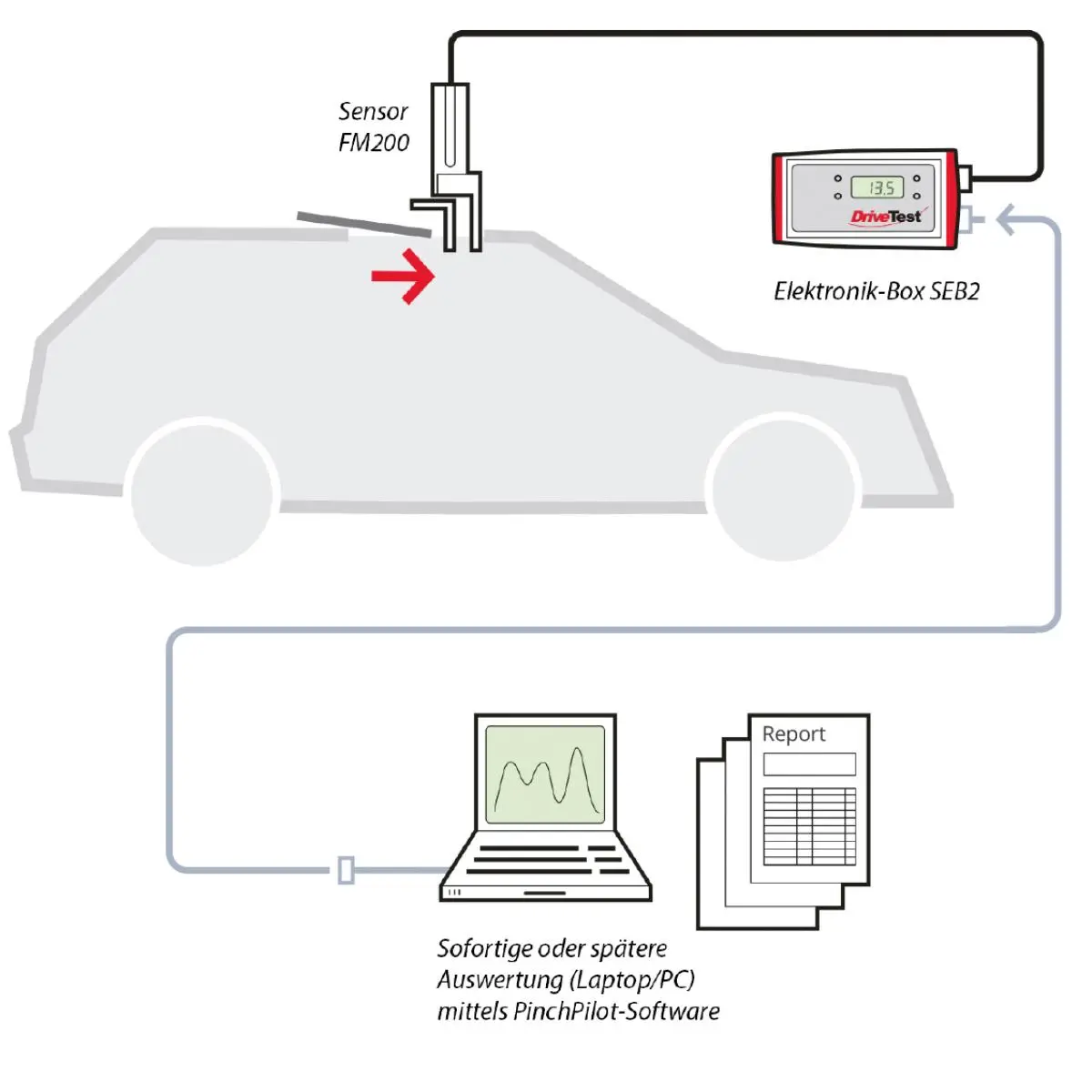

Closing Force Measuring Device / Closing Force Transducer Application picture
