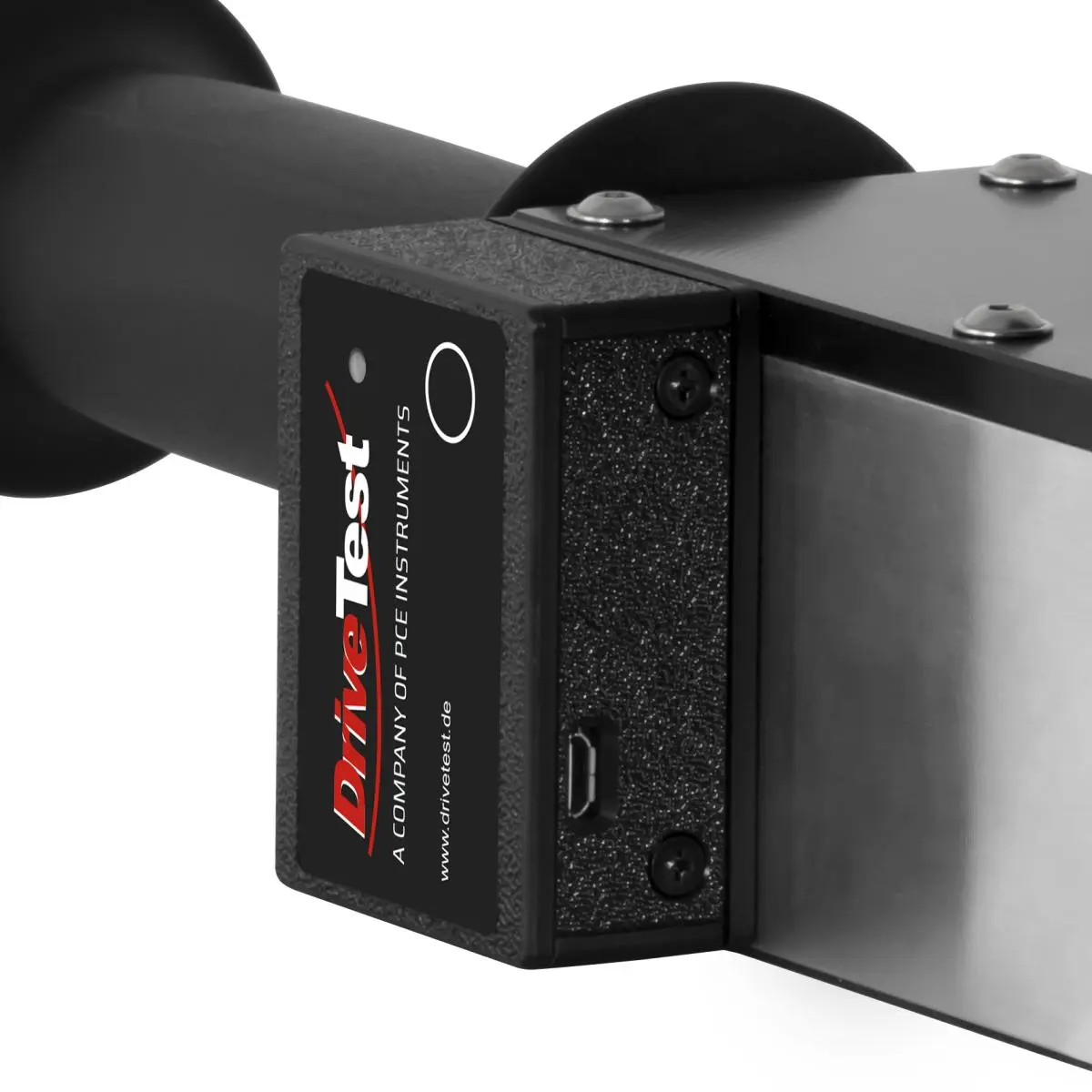

Closing Force Measuring Device / Closing Force Transducer Connections
Closing Force Measuring Device / Closing Force Transducer Sensor
Closing Force Measuring Device / Closing Force Transducer Tripod connection

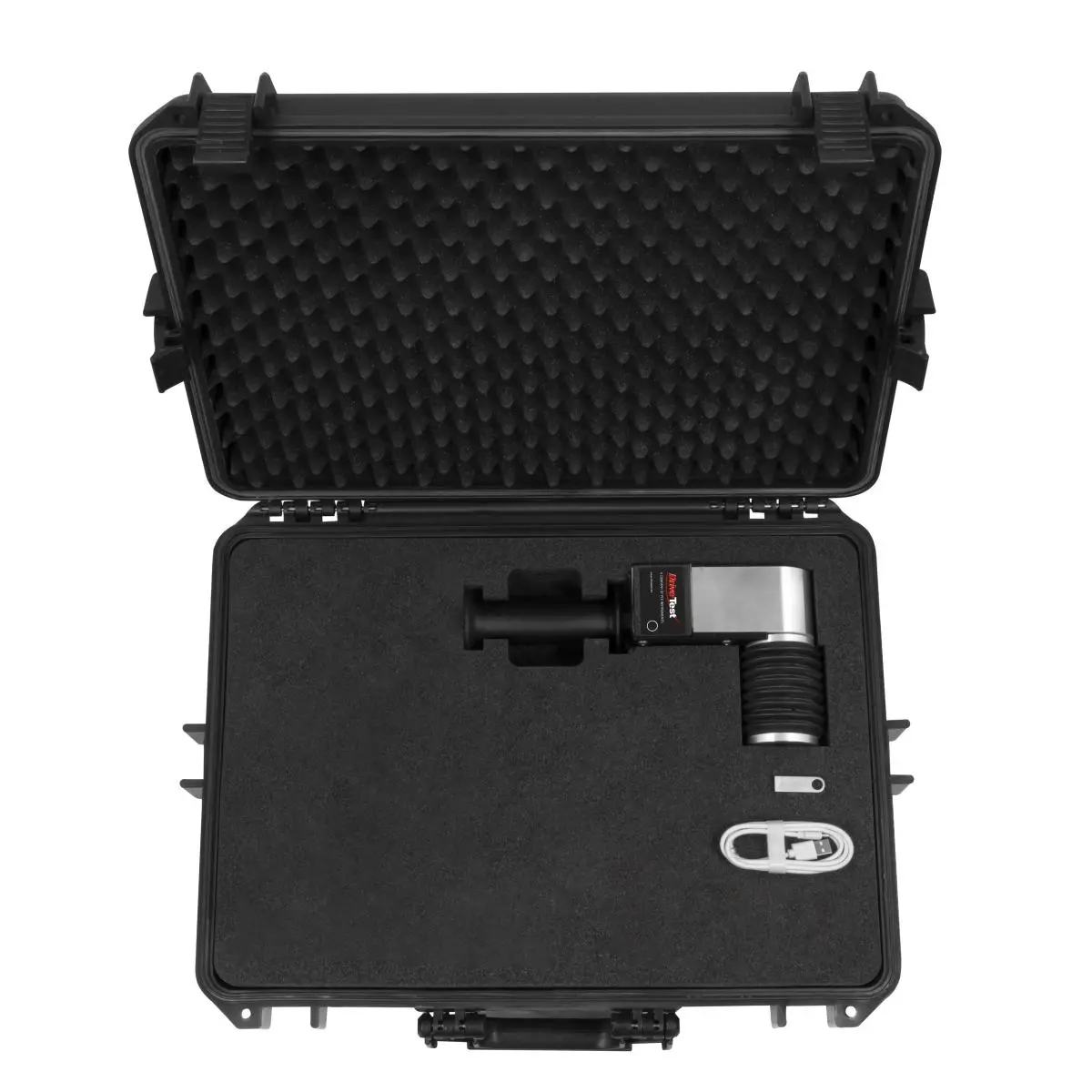

Closing Force Measuring Device / Closing Force Transducer Delivery scope

Closing Force Transducer FM300 BT for elevator doors, machine protection devices

Order no.: FM300BT-SY-25-750
GTIN (EAN): 4260650210938
£ 1,415.00
£ 1,698.00
price ex. (VAT / delivery)
:
4260650210938
FM300BT-SY-25-750
Delivery time:1-2 working days

Accessory

Description

Closing force transducer
Wireless closing force measurement system for automatic elevator doors and machine protection devices

The closing force transducer from Drive Test is a wireless, electronic closing force measuring device for automatic elevator doors and machine guards. With the FM 300 BT, Drive Test delivers a further development of the tried and tested FM 300 measuring device. It combines the well-known robust design for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Highlights

- Easy to use – implements experience from years of use
- Extensive customer service - in-house calibration service and software
updates ensure the
- Use of current guidelines
- Immediate evaluation - according to selected guidelines and standards
- Process reliability - integrated test instructions ensure that the
measurement is in line with the guidelines
- Large temperature working range
- Language selection - Available in DE/ EN/ ES/ FR/ IT/ CN
- Support of relevant standards - EN 81-1, EN 81-2, EN 81-20:2014, EN
81-50:2015, EN 14120
(shown in software)
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - housing made of high-strength material for a long service
life in tough applications
- Wireless - no more annoying cables
- Measuring point identification - via QR and barcodes (integrated solution)

Specification

Force
Measuring range  0 ... 750 N
Resolution  1 N
Accuracy  ±3 N or 3 % of Rd

General technical data
Interface  RS232, Bluetooth
Stiffness  25 N/mm
Gap width  145 mm
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP43
Power supply  3.7V / 700 mAh
Capacity  700 mAh
Performance  2,59 Wh
Operating conditions  -10 ... 40 °C , 0 ... 90 % RH
Storage conditions  -40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H x ø )  280 x 145 x 82 x 58 mm
Weight  1700 g

Delivery Scope

1 x Closing force transducer FM300 BT
1 x App Force Meter available for download
1 x Software PinchPilot (USB stick)
1 x PC connection cable (USB)
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
