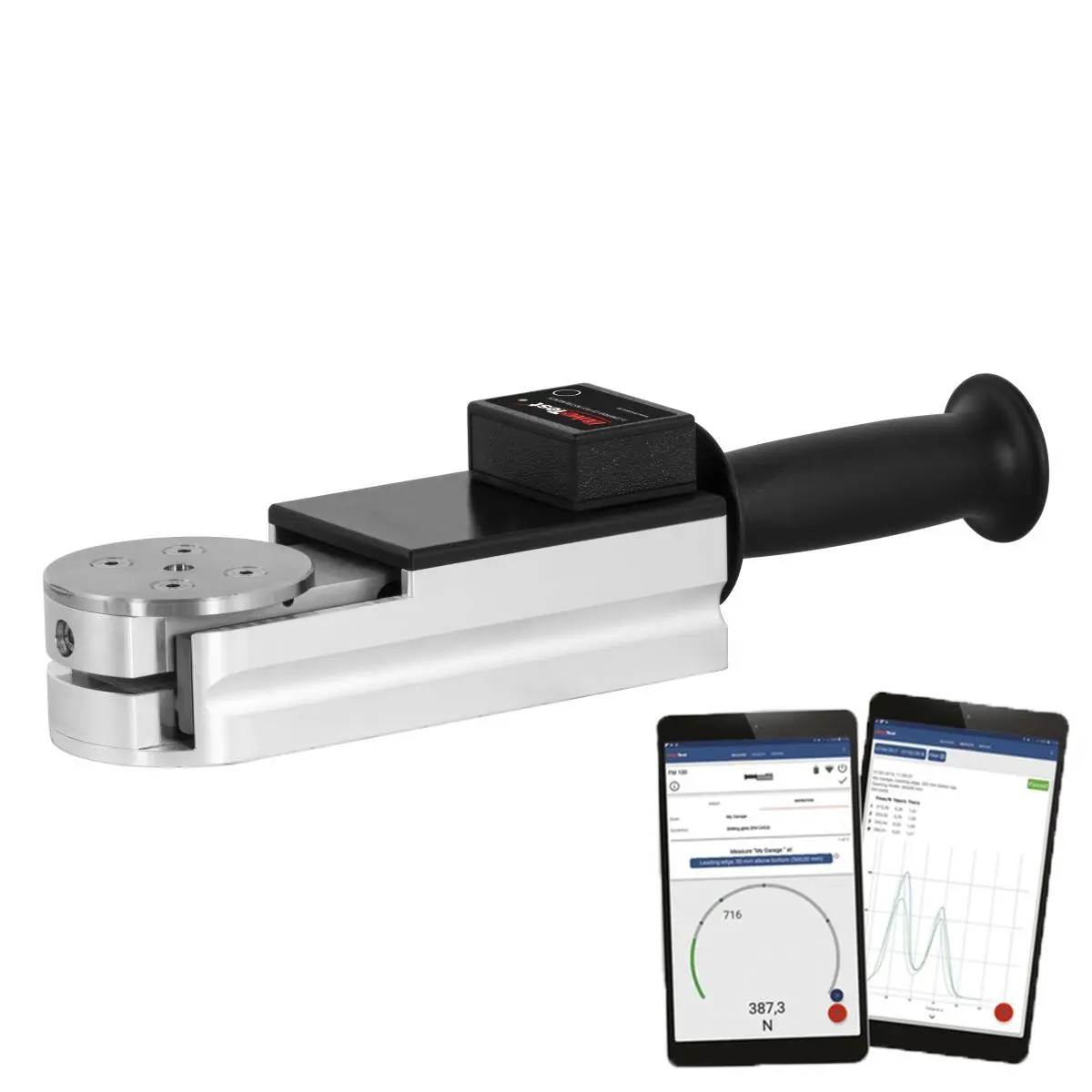

Closing Force Measuring Device / Closing Force Transducer [zoom]
Closing Force Measuring Device / Closing Force Transducer

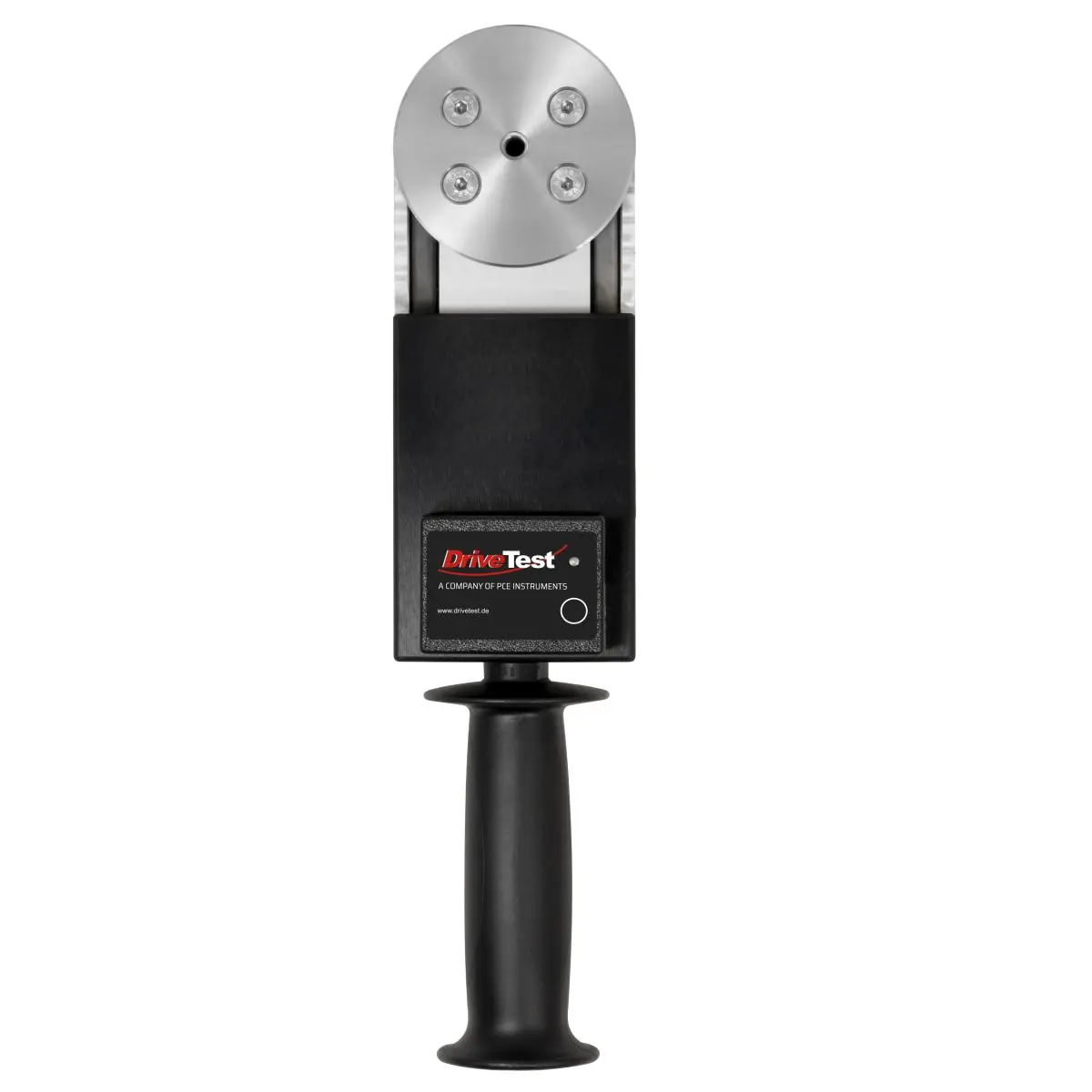

Closing Force Measuring Device / Closing Force Transducer Frontal

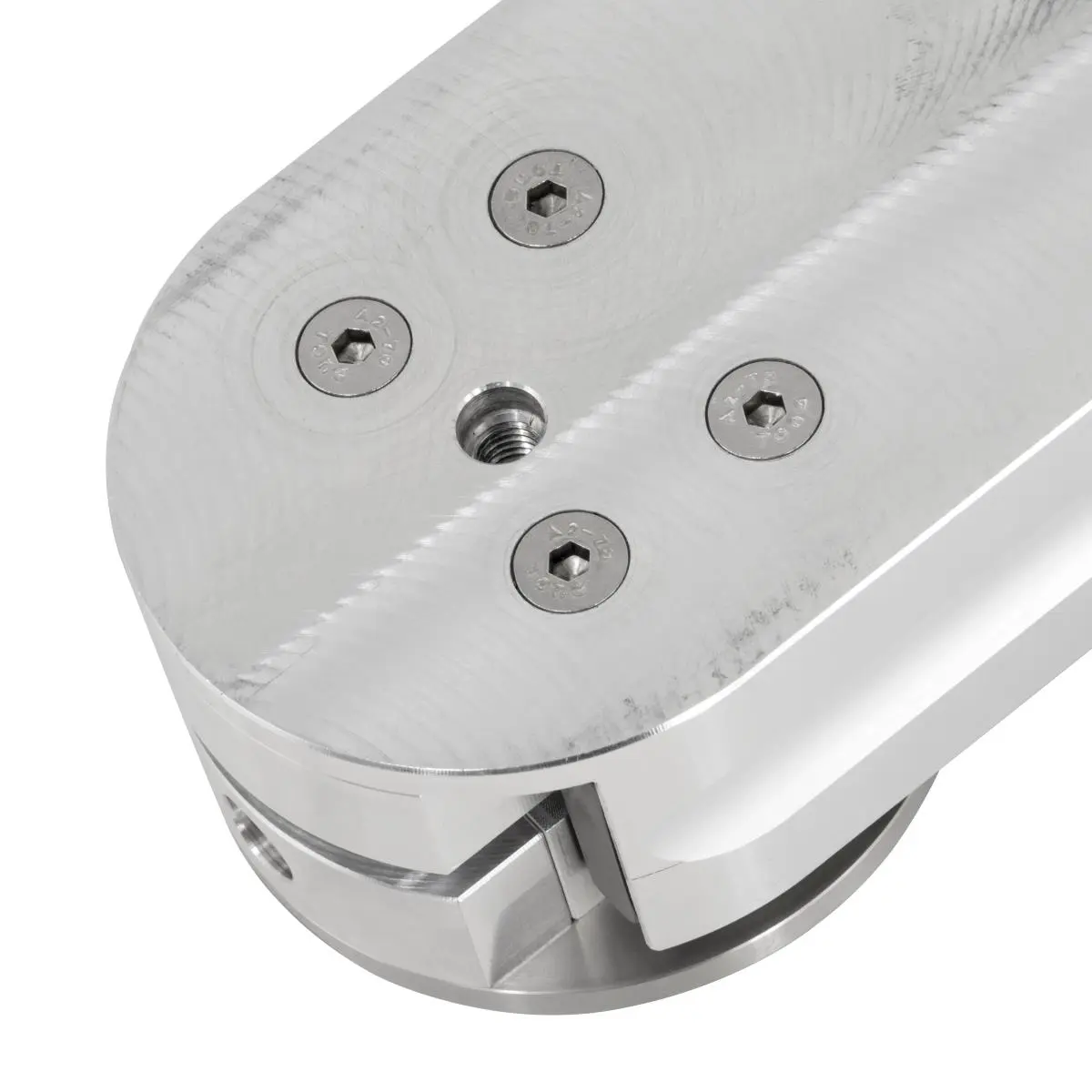

Closing Force Measuring Device / Closing Force Transducer Rear side

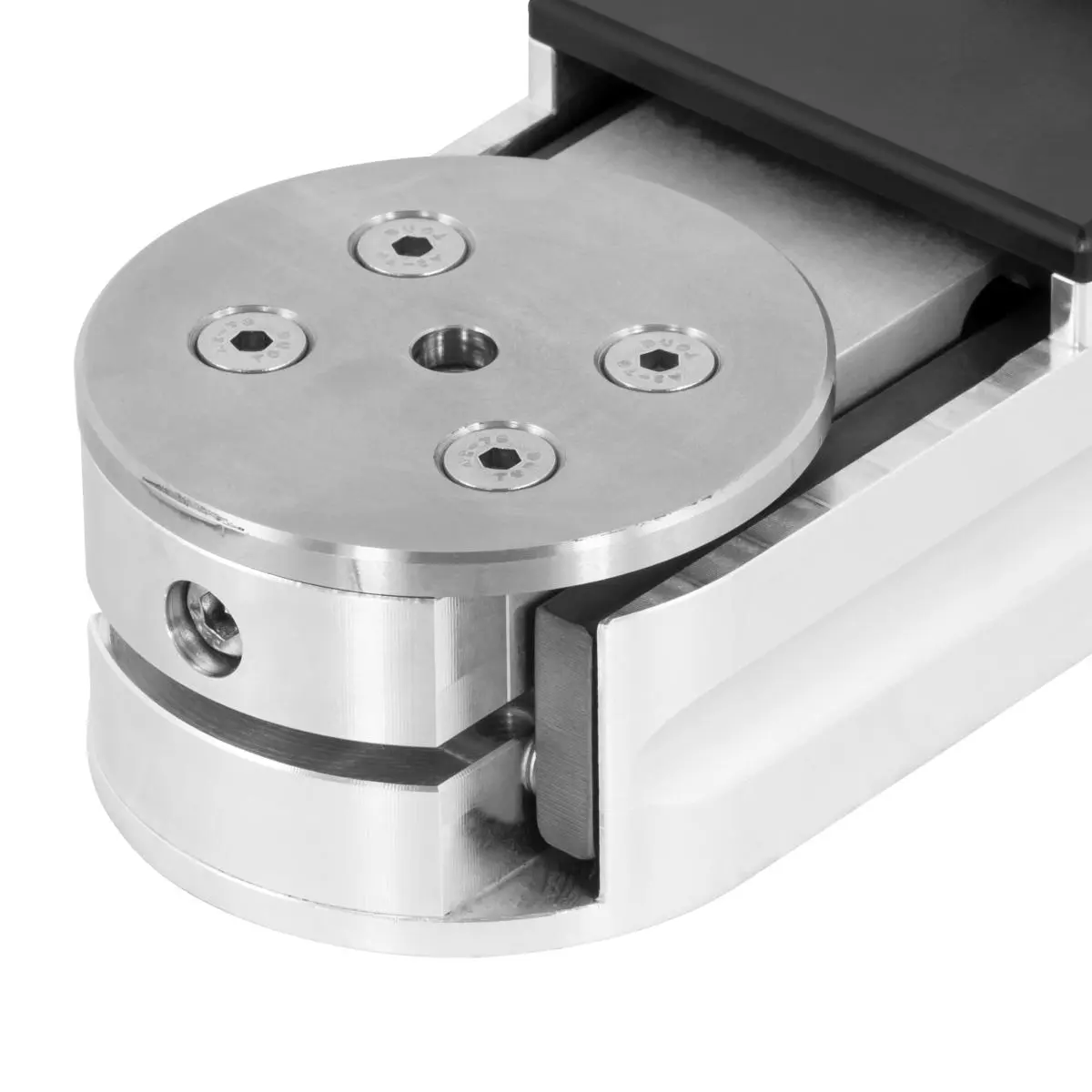

Closing Force Measuring Device / Closing Force Transducer Sensor

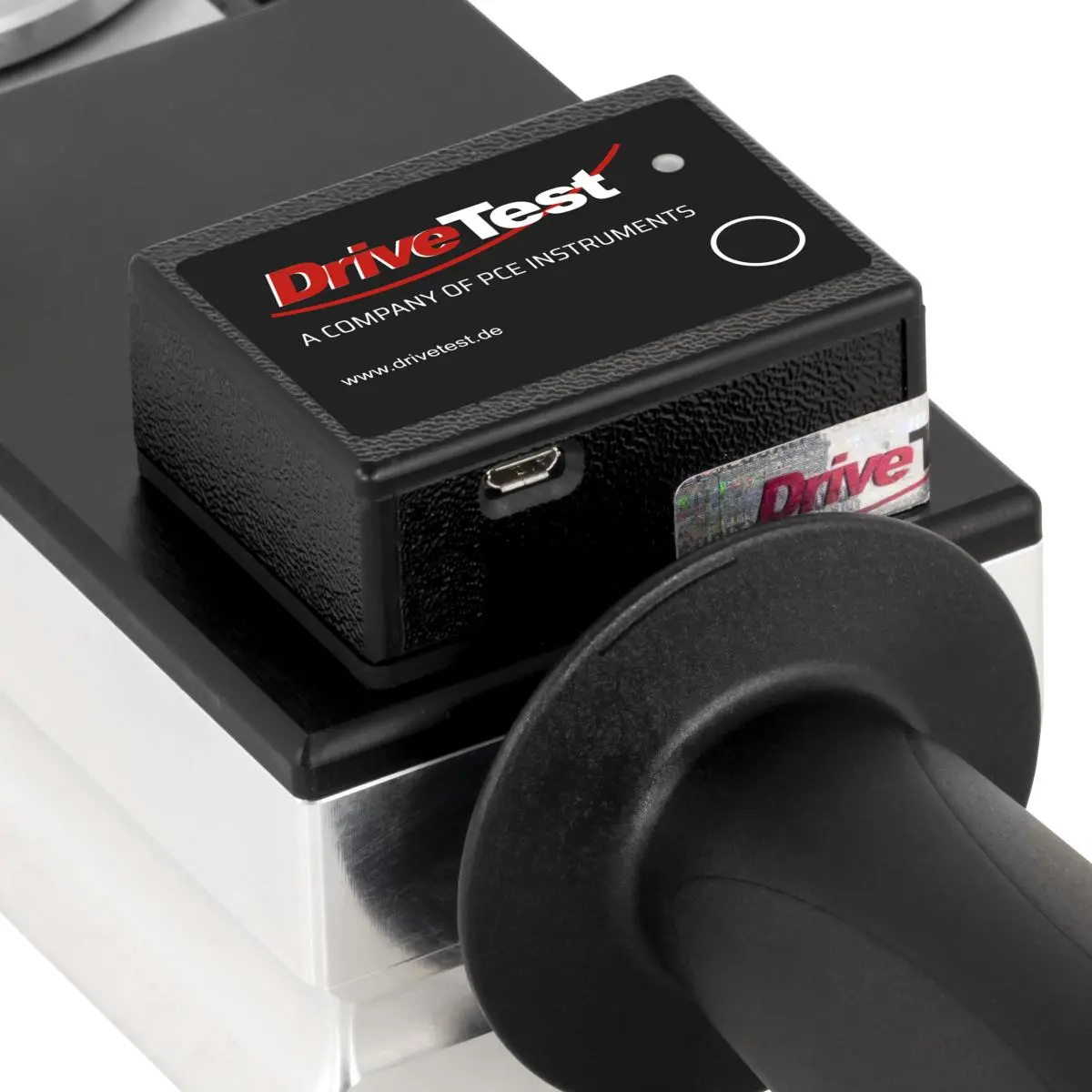

Closing Force Measuring Device / Closing Force Transducer Connections
Closing Force Measuring Device / Closing Force Transducer Delivery scope

Closing Force Measuring Device FM100-BT for Doors and Gates

Order no.: FM100BT-SY-500-2000
GTIN (EAN): 4260650210037
£ 1,113.00
£ 1,335.60
price ex. (VAT / delivery)
:
4260650210037
FM100BT-SY-500-2000
Delivery time:1-2 working days

Accessory

Description

Closing force measuring device
Wireless closing force measurement system for doors and gates

The closing force measuring device is a wireless, electronic measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections.
A further development of the well-established FM 100 closing force measuring device is supplied with the closing force measuring device. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Highlights

- Easy to use – implements experience from years of use
- Extensive customer service - in-house calibration service and software
updates ensure the use of current guidelines
- Immediate evaluation - according to selected guidelines and standards
- Process reliability - integrated test instructions ensure that the
measurement is in line with the guidelines
- Large temperature working range
- Language selection - Available in DE/ EN/ ES/ FR/IT/ CN
- Support of relevant standards - user guidance and evaluation according to EN
12453:2017, EN
60335-2, DIN V 18650, ASR A1.7, DHF TS 011:2016 etc.
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - housing made of high-strength material for a long service
life in tough applications
- Wireless - no more annoying cables
- Measuring point identification - via QR and barcodes (integrated solution)
- Upgrade option – for existing devices

Specification

Force
Measuring range  0 ... 2000 N
Resolution  1 N
Accuracy  ±3 N or 3 % of Rd

General technical data
Interface  Micro-USB, Bluetooth
Standard(s)  EN 14752:2015
Standard(s) additional information  - EN 81-1 2000-4-EG
- FMVSS118
- APTA PR-M-S-18-10
- ASME A17.1 2000
- DIN EN 14752:2005
- 2001-85-EG / ECE R. 107 §35 e (5) StVZO (German Road Traffic Licensing Regulations)
- EN14120 DIN 18650-1
- DIN EN 12453
- DIN EN 16005
- DIN EN 60335-2-103
- ASR A1.7
- ECE R-21
- prEN 12650-1
Stiffness  500 N/mm
Gap width  50 mm
Menu language  English, German
Protection class (device)  IP43
Power supply  3.7V / 700 mAh
Connector type  Euro plug
Capacity  700 mAh
Performance  2,59 Wh
Operating conditions  -10 ... 50 °C , 0 ... 90 % RH
Storage conditions  -40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H x ø )  210 x 80 x 50 x 80 mm
Weight  2100 g

Delivery Scope

1 x Closing force measuring device FM100-BT
1 x App Force Meter available for download
1 x Software PinchPilot (USB stick)
1 x USB cable
1 x Manual
1 x ISO calibration certificate
1 x Transport case with foam insert
