Clamp Meter PCE-PA 8000

Order no.: PCE-PA 8000
Topseller
£ 1,060.00
£ 1,272.00
4250348707109
PCE-PA 8000
price ex. (VAT / delivery)
Delivery time: 1-2 working days

PCE-PA 8000 Clamp Meter
real time measurement with registration in the SD card / Integrated timer and calendar to record data / Active, apparent, and reactive power

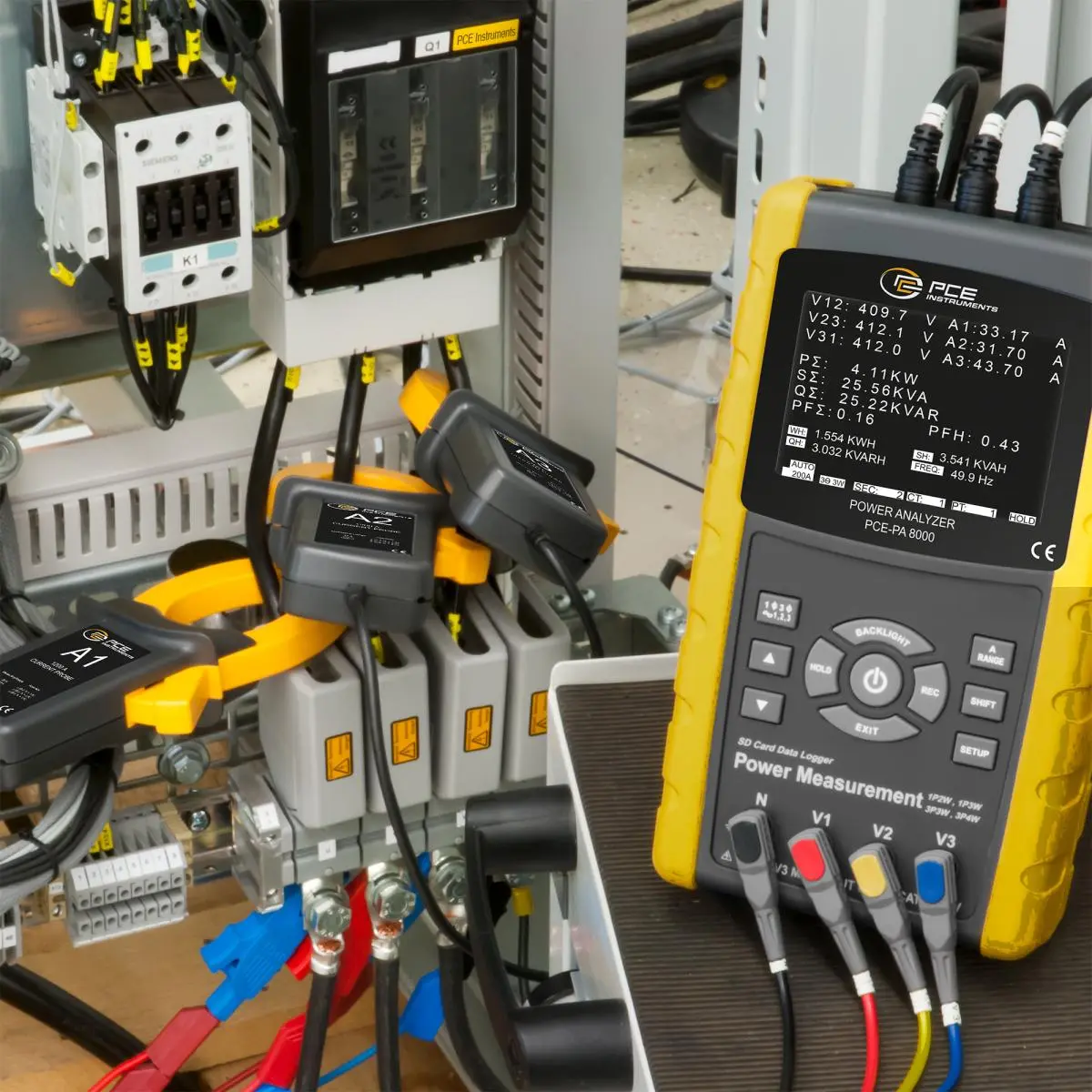

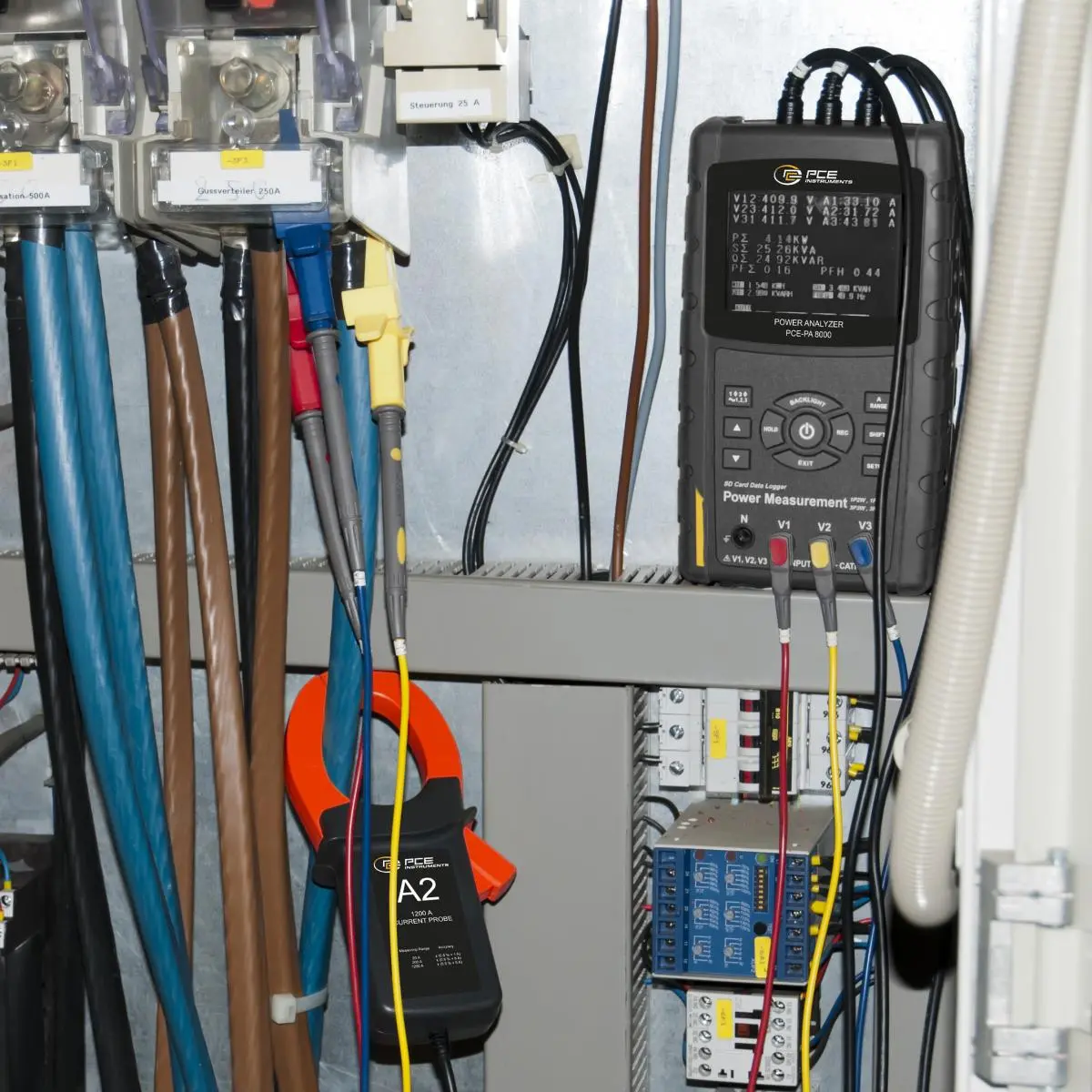

The PCE-PA 8000 Clamp Meter is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 Clamp Meter you will be able to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of our Clamp Meter to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 Clamp Meter can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 Clamp Meter can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power.


- Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
- Measures effective real value of current and voltage
- Measures active, apparent, and reactive power
- Power Factor (PF), phase angle (Φ)
- Measures voltage up to 600 V
- Measures current up to 1200 A
- It meets the IEC 1010 and CAT III 600 V standards
- Integrated timer and calendar to record data
- Measured values are recorded in the included SD card
- Data is stored in Excel format for further study
- Data can be transferred to a PC through data cable
- Large 3.7 in / 94 mm LCD display


Technical Specifications
Voltage (AC V)
Measurement range Resolution Accuracy
10 V ... 600 V (phase to neutral) 0.1 V ±(0.5 % + 0.5 V)
10 V ... 600 V (phase to neutral)
Current (AC A)
Measurement range Resolution Accuracy
20 A 0.001 A (< 10 A)
0.01 A (≥ 10 A)
±(0.5 % + 0.1 V)
200 A 0.01 A (< 100 A)
0.1 A (≥ 100 A)
±(0.5 % + 0.5 A)
1200 A 0.1 A (< 1000 A)
1 A (≥ 1000 A)
±(0.5 A + 5 A)
Active power
Measurement range Resolution Accuracy
0 KW ... 9.999 KW 0.001 KW ±(1 % + 0.008 KW)
10 KW ... 99.99 KW 0.01 KW ±(1 % + 0.008 KW)
100 KW ... 999.9 KW 0.1 KW ±(1 % + 0.8 KW)
1 MW ... 9.999 MW 0.001 MW ±(1 % + 0.008 MW)
Apparent power
Measurement range Resolution Accuracy
0 KVA ... 9.999 KVA 0.001 KVA ±(1 % + 0.008 KVA)
10 KVA ... 99.99 KVA 0.01 KVA ±(1 % + 0.08 KVA)
100 KVA ... 999.9 KVA 0.1 KVA ±(1 % + 0.8 KVA)
1 MVA ... 9.999 MVA 0.001 MVA ±(1 % + 0.008 MVA)
Reactive power
Measurement range Resolution Accuracy
0 KVAR ... 9.999 KVAR 0.001 KVAR ±(1 % + 0.008 KVAR)
10 KVAR ... 99.99 KVAR 0.01 KVAR ±(1 % + 0.08 KVAR)
100 KVAR ... 999.9 KVAR 0.1 KVAR ±(1 % + 0.8 KVAR)
1 MVAR ... 9.999 MVAR 0.001 MVAR ±(1 % + 0.008 MVAR)
Active energy
Measurement range Resolution Accuracy
0 KWh ... 9.999 KWh 0.001 KWh ±(1 % + 0.008 KWh)
10 KWh ... 99.99 KWh 0.01 KWh ±(1 % + 0.08 KWh)
100 KWh ... 999.9 KWh 0.1 KWh ±(1 % + 0.8 KWh)
1 MWh... 9.999 MWh 0.001 MWh ±(1 % + 0.008 MWh)
Apparent energy
Measurement range Resolution Accuracy
0 KVAh ... 9.999 KVAh 0.001 KVAh ±(2 % + 0.008 KVAh)
10 KVAh ... 99.99 KVAh 0.01 KVAh ±(2 % + 0.08 KVAh)
100 KVAh ... 999.9 KVAh 0.1 KVAh ±(2 % + 0.8 KVAh)
1 MVAh... 9.999 MVAh 0.001 MVAh ±(2 % + 0.008 MVAh)
Reactive energy
Measurement range Resolution Accuracy
0 KVARh ... 9.999 KVARh 0.001 KVARh ±(2 % + 0.008 KVARh)
10 KVARh ... 99.99 KVARh 0.01 KVARh ±(2 % + 0.08 KVARh)
100 KVARh ... 999.9 KVARh 0.1 KVARh ±(2 % + 0.8 KVARh)
1 MVARh... 9.999 MVARh 0.001 MVARh ±(2 % + 0.008 MVARh)
Power factor
Measurement range Resolution Accuracy
0 ... 1 0.01 ±0.04
Phase angle
Measurement range Resolution Accuracy
-180º ... 180º 0.1º ±1º
Frequency
Measurement range Resolution Accuracy
45 Hz ... 65 Hz 0.1 Hz 0.1 Hz
General specifications
Display 3.7 in / 94.0 mm LCD (320 x 240 pixels) with LED backlight
Electrical properties AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency
Voltage ranges 10 V ... 600 V AC, automatic range selection
Security / Standards IEC1010CAT III 600V
AC V input resistance 10 MΩ
Operation frequency of current clamps 40 Hz ... 1 kHz
Tested operation frequency of current clamps 45 Hz ... 65 Hz
Overload protection AC V / 720 V rms
AC A 1300 A with current clips
Memory SD card up to 16 GB
Measurement display rate 1 second
Data logger SD
Measurement sample rate 2 seconds... 7200 seconds
Data output USB or RS-232, depending on the connection cable
Operating temperature 0º C ... 50º C / 32° F ... 122° F
Operating humidity < 80 % H.r.
Power 8 x 1.5 V AA batteries / mains component
Input current Meter: 300 mA DC
Clamp: 34 mA DC
Max. diameter 50 mm / 1.9 in
Weight Meter: 948 g / 33.4 oz (with batteries)
Clip: 467 g / 16.4 oz (with cable)
Dimensions Meter: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
Clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
Jaw: 86 mm / 3.3 in (exterior)

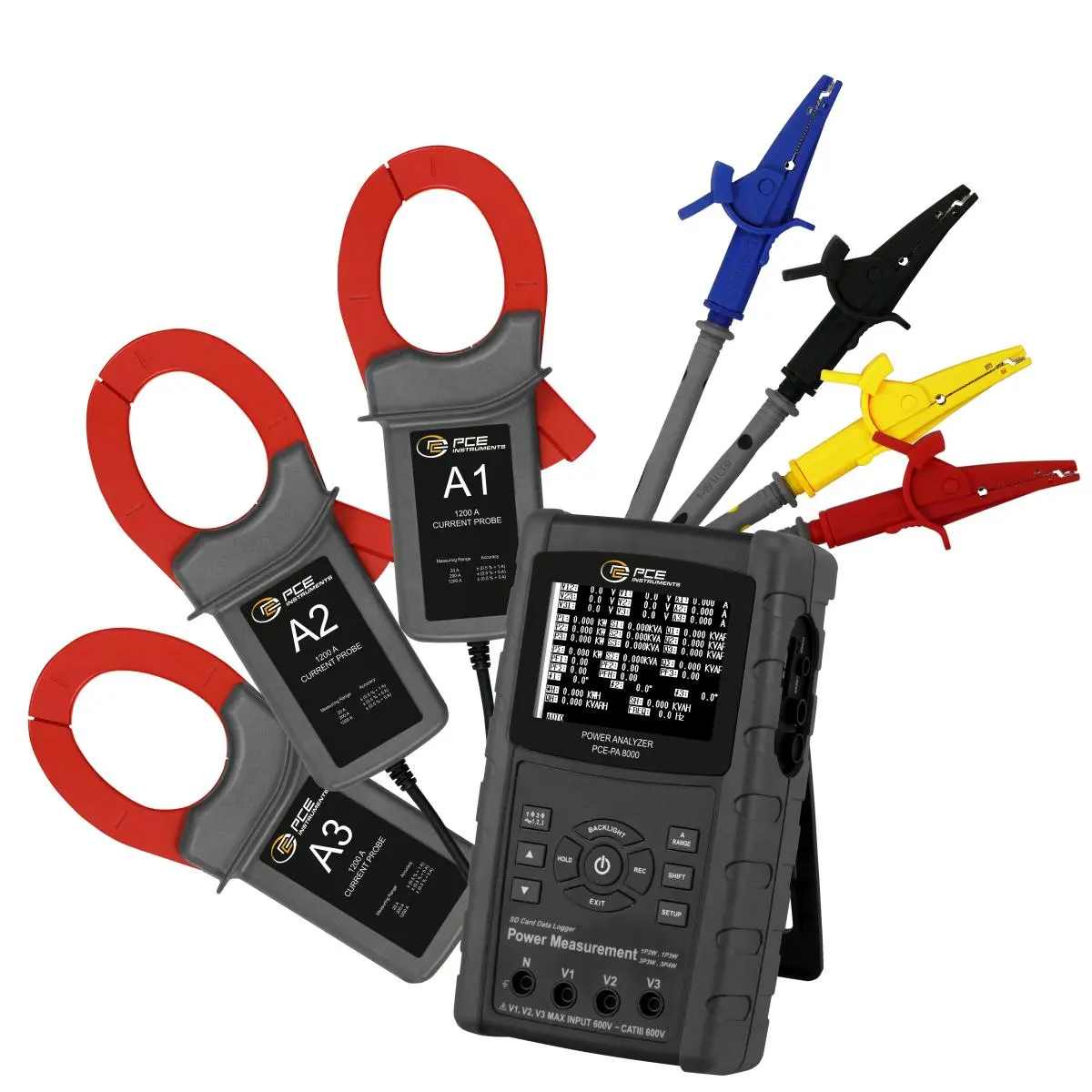

1 x PCE-PA 8000 Clamp Meter
3 x Current clamps
4 x Test cables
4 x Alligator clips
1 x 2 GB SD card
1 x 9 V DC mains component
8 x Batteries 1.5 V AA
1 x Carrying case
