Clamp Meter PCE-DC3-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC3-ICA
ISO Calibration
£ 166.00
£ 199.20
4250348700698
PCE-DC3-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

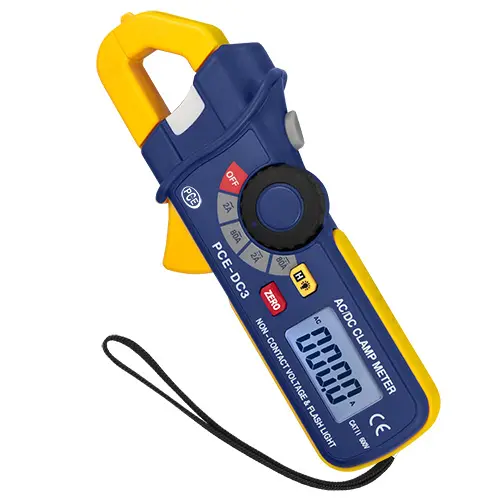

Digital Clamp Meter 2/80 Amp; AC/DC (of high accuracy) incl. ISO Calibration Certificate

The Digital Clamp Meter has been developed to determine indirectly, the the AC/DC currents with high accuracy. A non-contact digital clamp meter and a torch to illuminate the area being measured, have been integrated into this device. The small size of this  Digital Clamp Meter, makes it possible to use in small spaces with limited access. The large illuminated display of this Digital Clamp Meter guarantees clear readings in dark places such as in distribution boards. The non-contact digital multimeter will help you when exposed to potential risk and to locate with precision, break points in cables within distribution boards, etc.

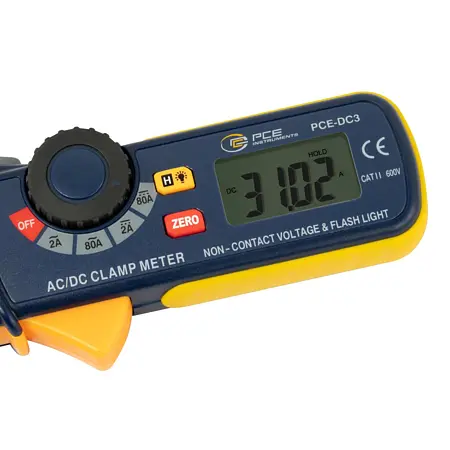

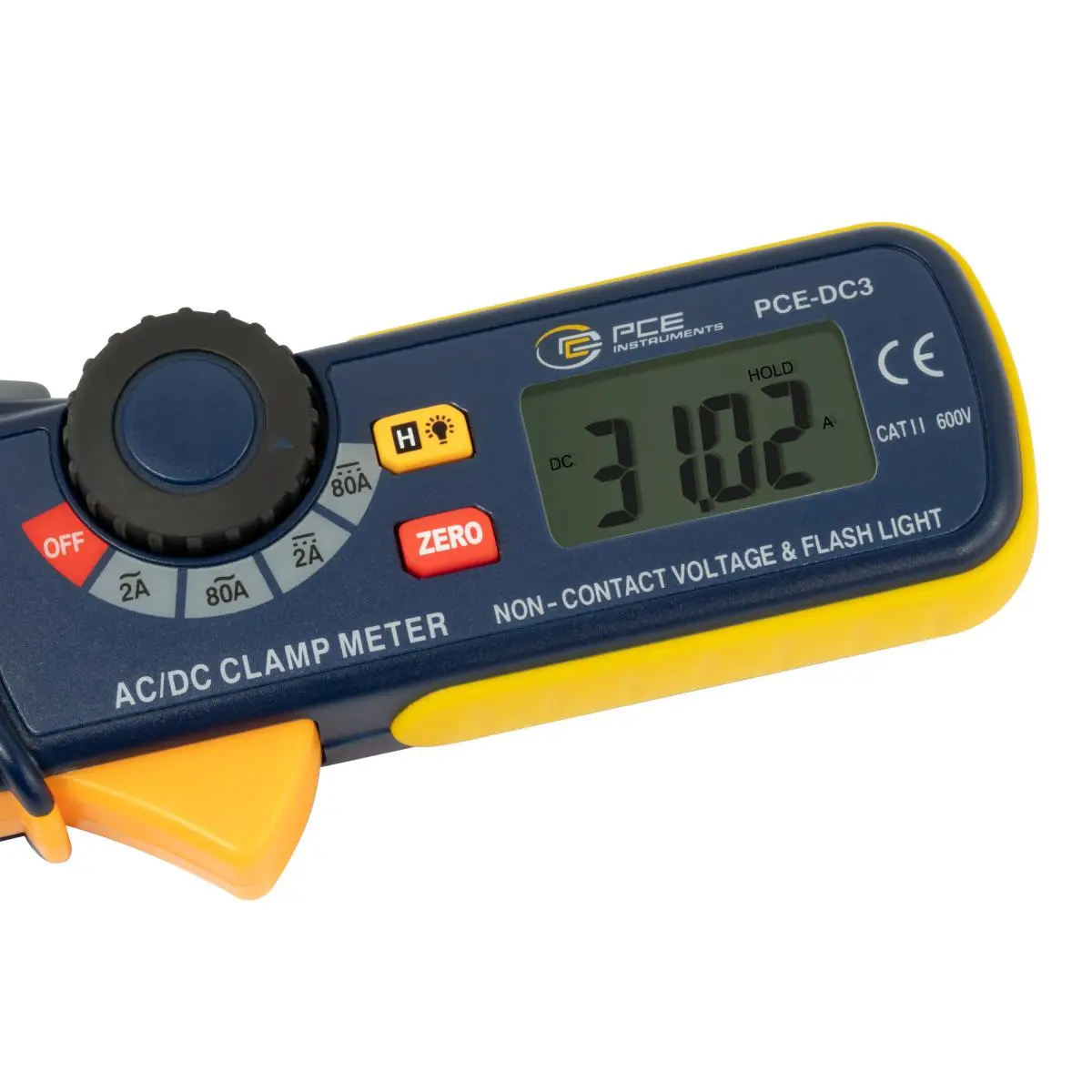

- 4 digit LCD display with backlighting
- AC/DC current measurement up to 80 Amps
- Save function
- DCA zero rest function
- Current tester, non-contact

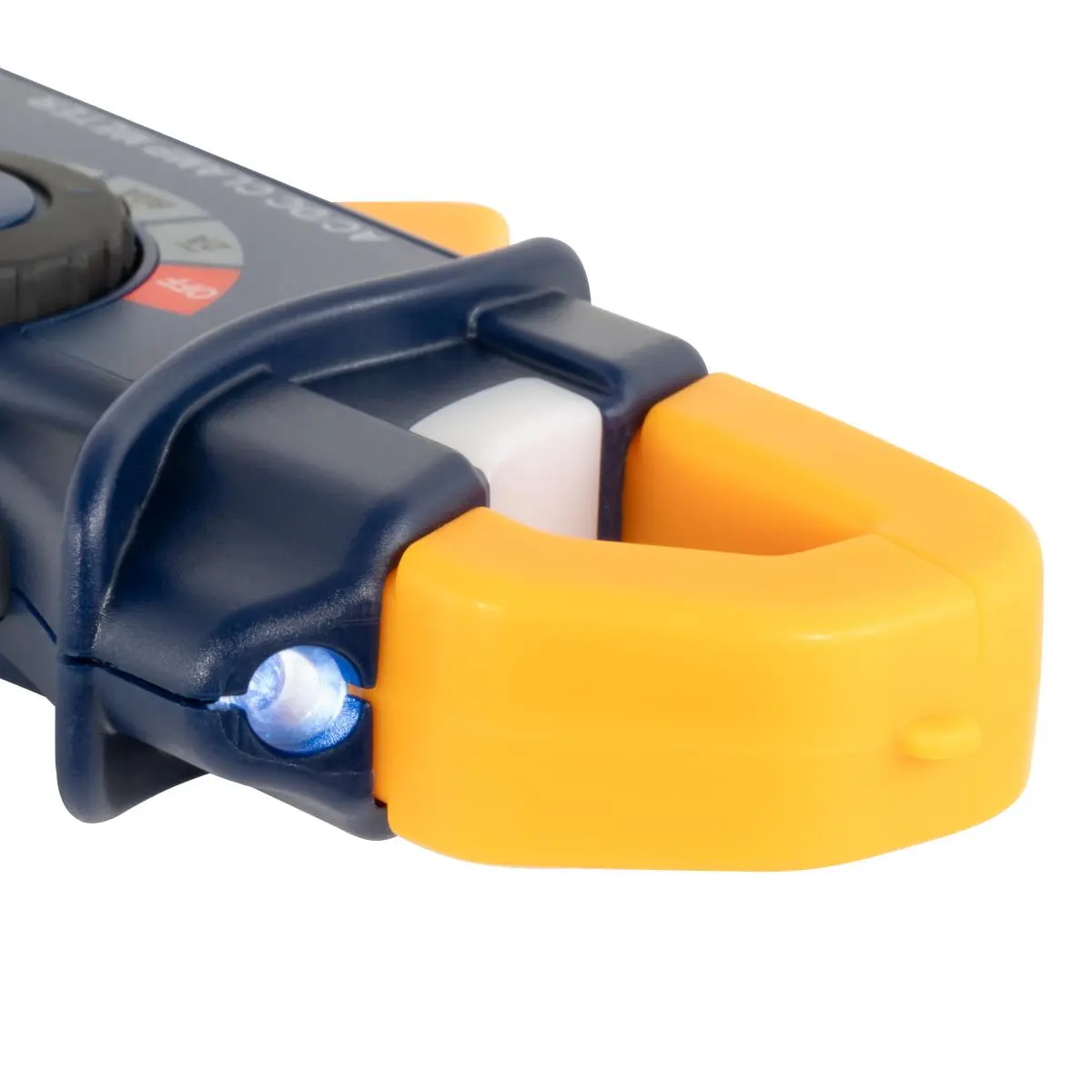

- Integrated light to illuminate measured area
- Automatic range selection
- Automatic disconnect

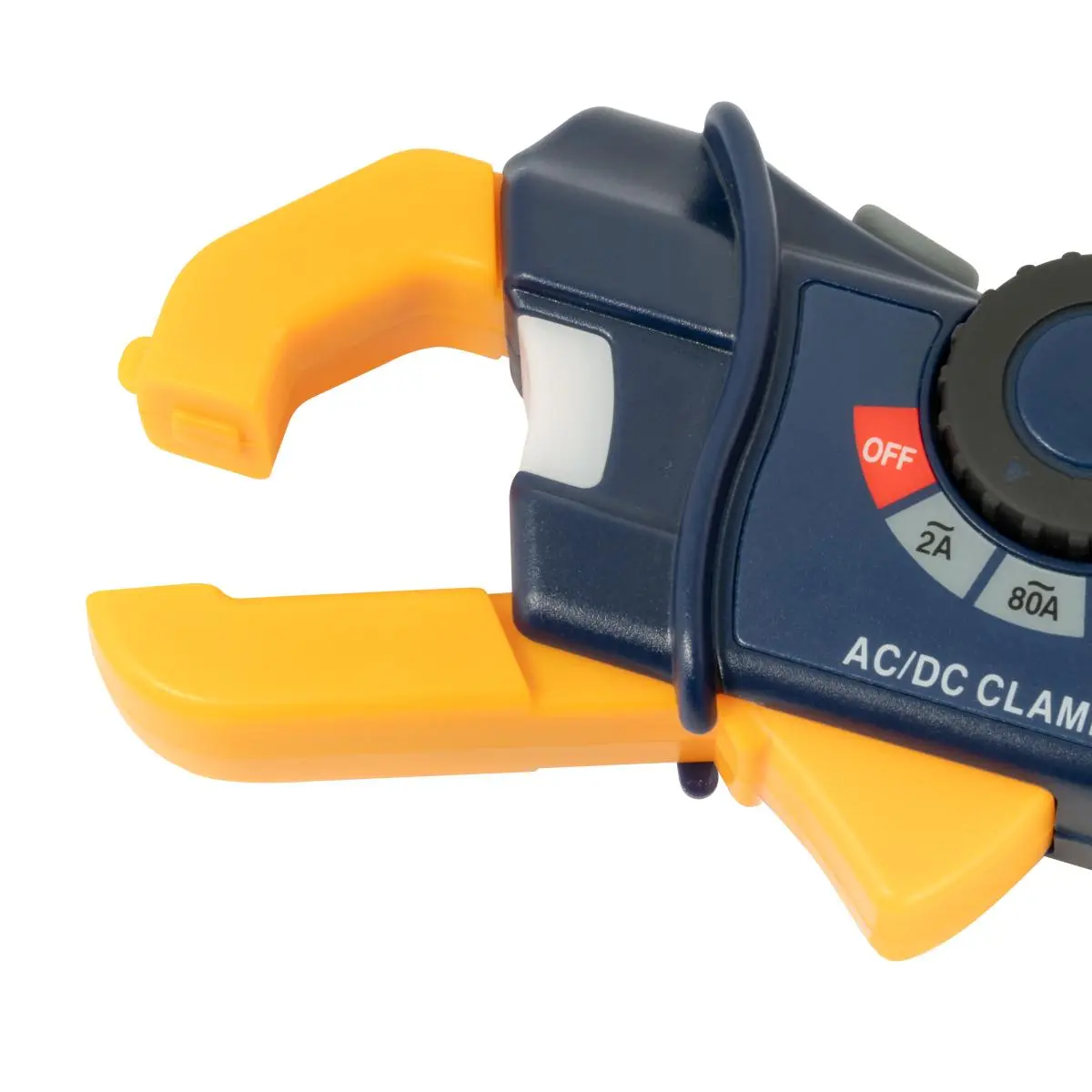

- Clamp diameter: 18 mm / .7 in

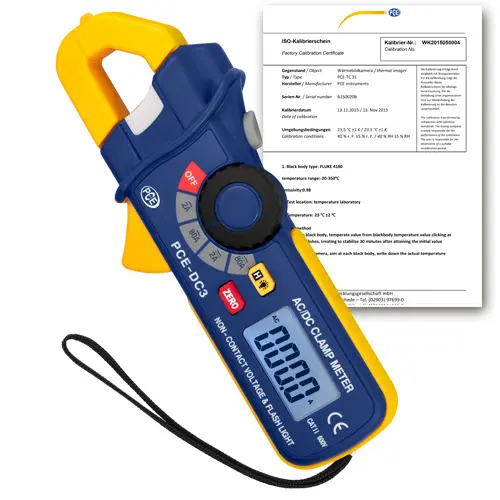

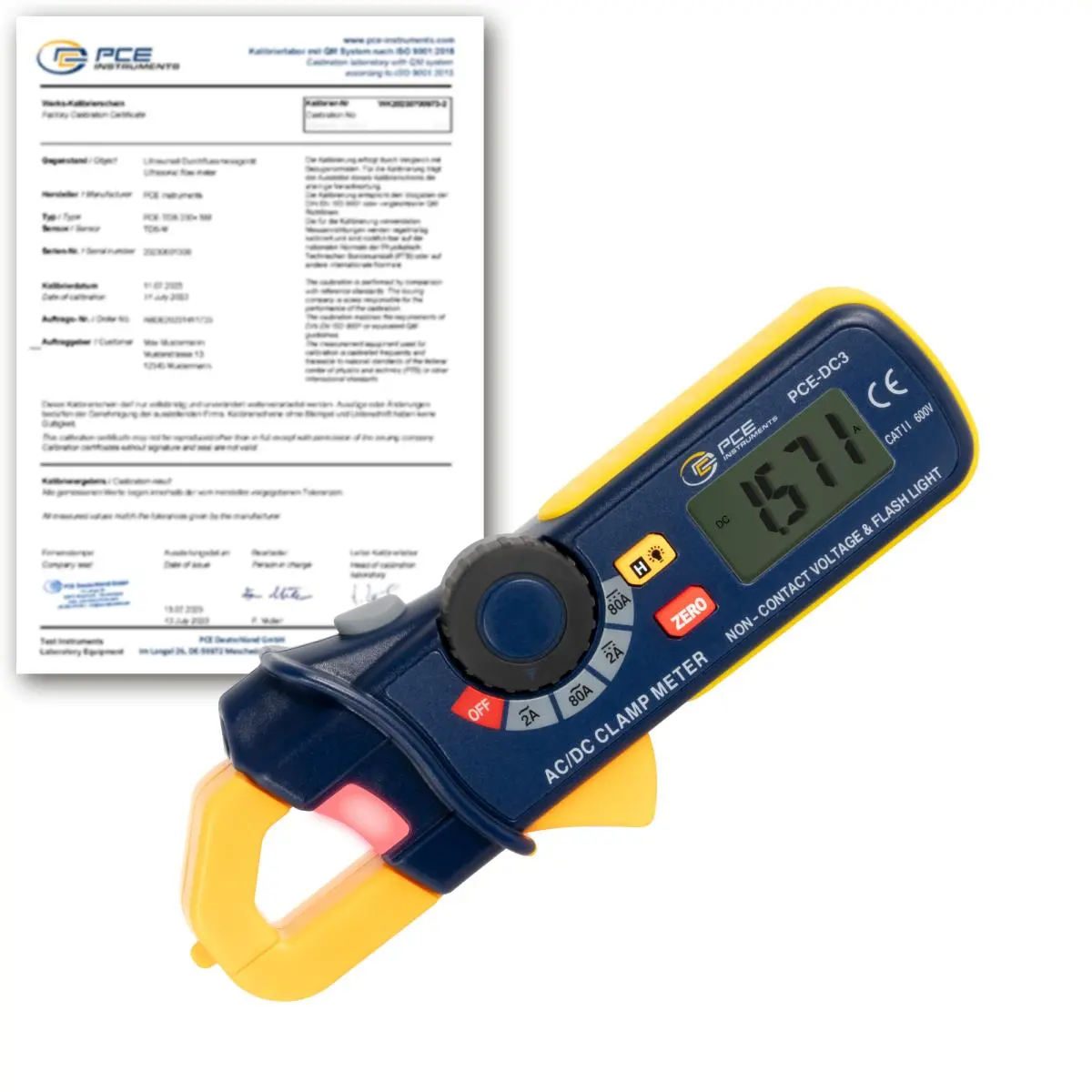

- Incl. ISO Calibration Certificate


AC current
(50 / 60 Hz)
Range / Resolution / Accuracy
2 A  / 1-mA / ± 2.8% + 10 dgt
80 A / 100-mA / ± 3.0% + 8 dgt
DC current Range / Resolution / Accuracy
2 A / 1-mA / ± 3.0% + 10 dgt
80 A / 100-mA / ± 3.0% + 8 dgt
AC overload protection
(Non-contact)
100V AC up to 600V AC 50 / 60 Hz
Flashlight illumination White LED
Conductor diameter 18 mm / 0.7 in maximum
Display 3 2/3 digit LCD display with backlighting
Power 2 - 1.5V AAA batteries
Casing PVC
Dimensions 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in
Weight 175 g / < 1 lb
Standards EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V

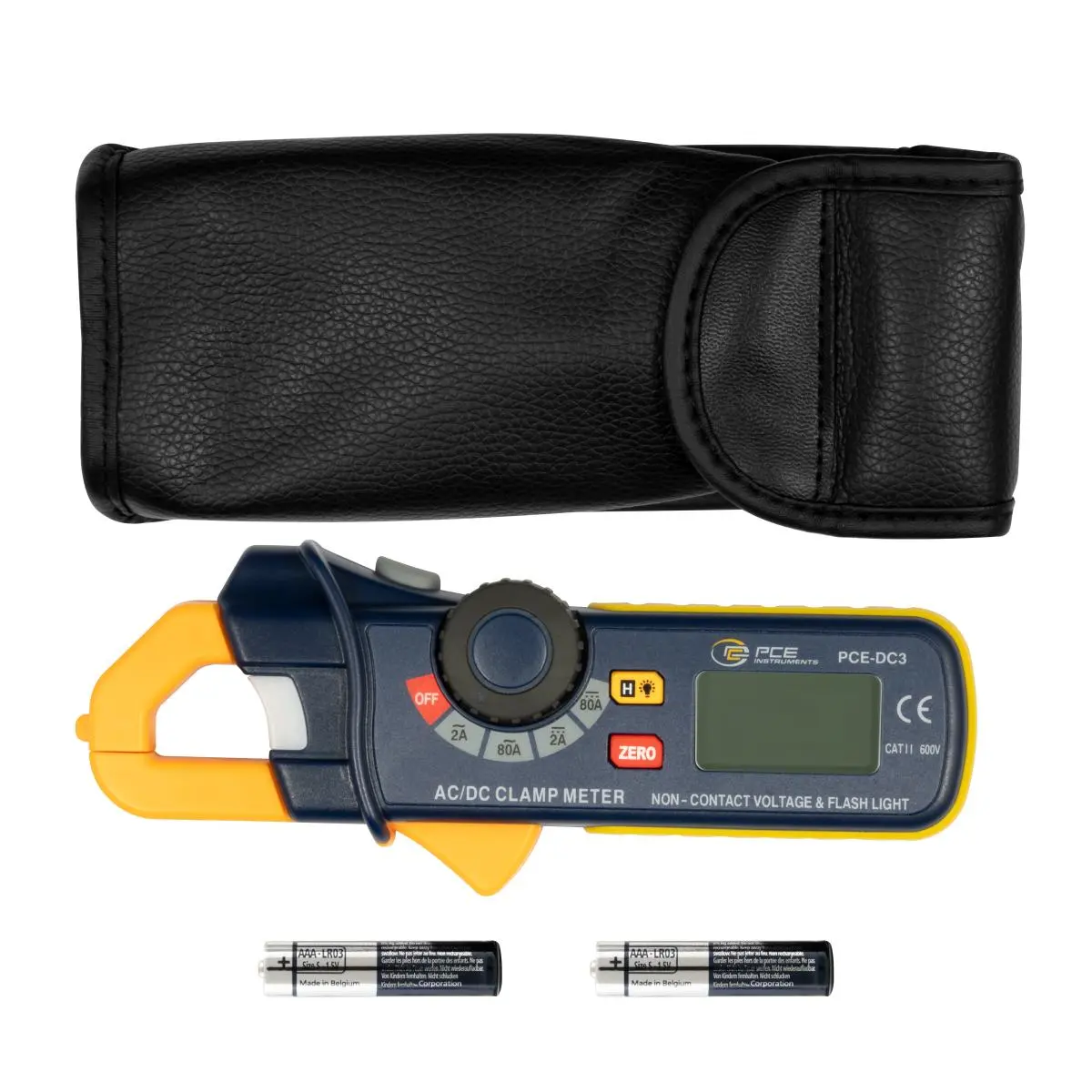

1 x Clamp Meter PCE-DC 3
1 x Case
2 x Batteries
1 x User's manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
