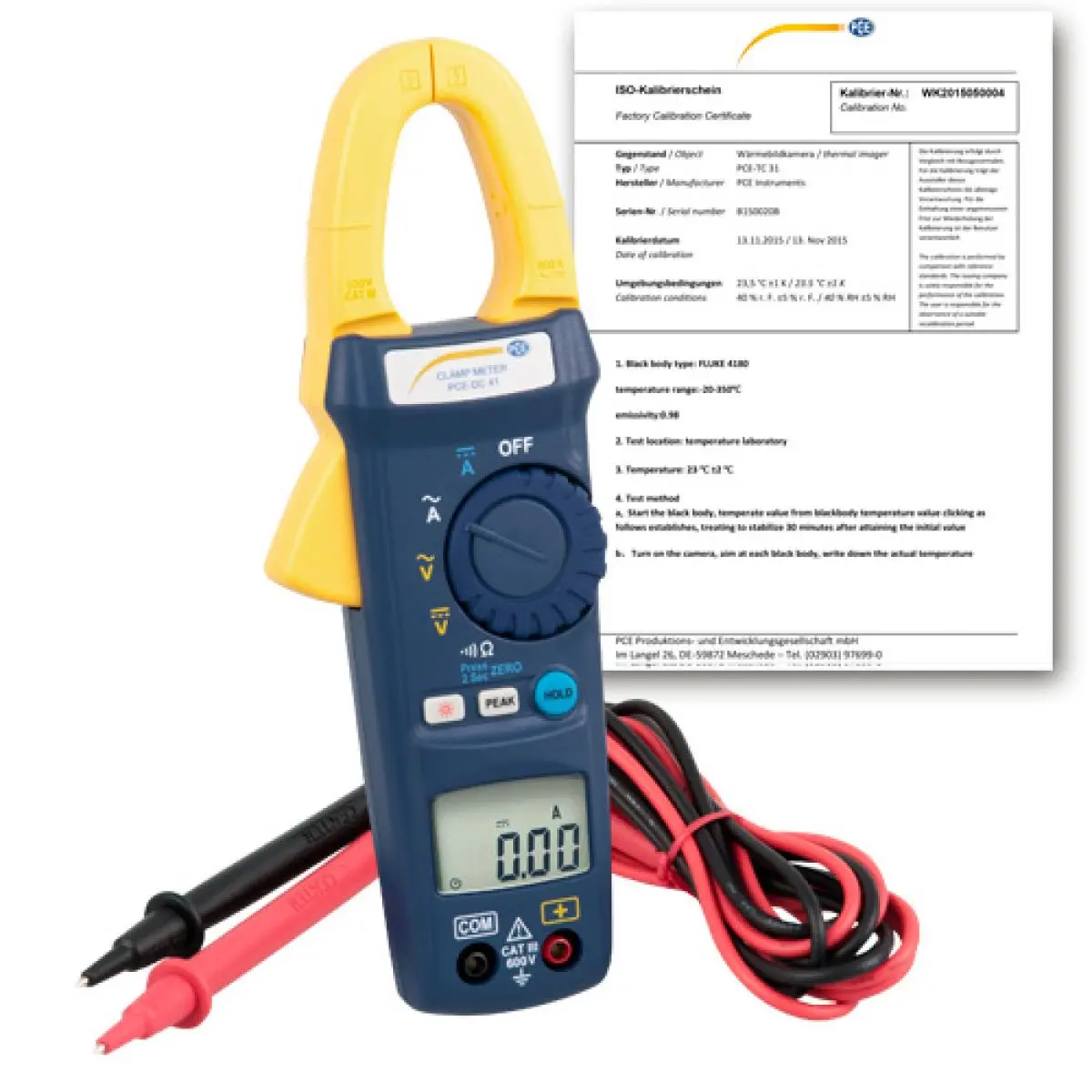

Clamp Meter PCE-DC 41-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC 41-ICA
ISO Calibration
£ 209.00
£ 250.80
4250348714831
PCE-DC 41-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days
Clamp Meter PCE-DC 41-ICA incl. ISO Calibration Certificat
Voltage metering up to 600 V / Current metering up to 600 A / CAT III 600 V

Electrical resistance metering up to 1000 Ω / Contact-free measuring of electrical conductors



The clamp meter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the clamp meter, or you can use the integrated clamp mechanism. By using the clamp of the clamp meter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the clamp meter.
Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the clamp meter with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.

- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check
- Peak- and data-hold function
- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off
- Incl. ISO Calibration Certificate

Technical specifications
Direct voltage

Range Resolution Accuracy
Input impedance: 1 MΩ 600 V 0.1 V ± 1 % + 2 digits
Direct voltage (peak model)
Input impedance: 1 MΩ 600 V
0.0 ... 0.01 in
0.1 V
0.0 ... 0.01 in
± 1.5 % + 8 digits
0.0 ... 0.01 in
Alternating voltage
Input Impedance: 1 MΩ 600 V 0.1 V ± 1.2 % ± 5 digits
(50 ... 500 Hz)
Alternating voltage (peak model)
Input impedance: 1 MΩ 600 V 0.1 V ± 1.7 % + 10 digits
Direct current

60 A
600 A
0.01 A
0.1 A
± 2 % + 5 digits
Direct current (peak model)

600 A 0.1 A ± 2.5 % + 8 digits
Alternating current

60 A
600 A
0.01 A
0.1 A
±2 % + 5 digits (50...60 Hz)
±3 % + 5 digits (60...500 Hz)
Alternating current (peak model)

600 A 0.01 A ±2.5 % + 10 digits
Electrical resistance

1000 Ω 0.1 Ω ± 1 % + 2 digits

Continuinty check
Buzzer function
<40 Ω

General specifications
Display 4-digit LCD
maximum reading: 6200
Sampling rate 3 times/s
Power supply 2 x 1.5 V AAA batteries
Batter life 50 hours (without buzzer backlight function)
Auto Power off After 30 minutes of inactivity
Operating conditions 0.0°C ... 40°C / < 70 % RH
0.0°F ... 104°F
Storage conditions -10°C ... 60°C / < 80 % RH
14°F ... 140°F
Maximum clamp opening        Ø 25 mm / Ø 0.1 in
Dimensions 210 mm x 62 mm x 36 mm /
8.26 in x 2.44 in x 1.41 in
Weight 273 g / < 1 lb with batteries

1 x Clamp Meter PCE-DC 41
1 x Measuring leads
1 x Batteries
1 x Carrying case
1 x Instruction Manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
