The Clamp Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This Clamp Meter also measures such parameters as voltage, current, frequency, harmonics and power as well as indicating, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. It can have up to 3 clips attached at the same time. In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler set up (1 phase / 2 conductores) it can save up to 52,400 readings, split into 85 groups. All this makes the Clamp Meter the ideal instrument for taking measurements over long durations. Measurement values obtained can be sent to a computer and be processed with the analysis software which comes included. The device comes with everything needed to be measuring and analysing from the moment the device arrives. Although the Clamp Meter comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered separately with the device or when a recalibration is required.
- Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
- Measures effective real value (V 123 and I 123)
- Measures active power (W, KW, MW, GW)
- Measures apparent and reactive power (KVA, KVAR)
- Power Factor (PF), phase angle (Φ)
- Measures energy and work (Wh, KWh, KVARh, PFh)
- Measures current from 0.1 mA to 3000 A, allowing for the reserve power of a factory to be determined
- Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors])
- CT conditions (1 to 600) and PT (1 to 3000) are programmable
- Indicates current wave forms and voltage overlap.
- 512 KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings using the system of 3 phases / 4 conductors
- Indicates wave forms, efficiency parameters, and harmonic distortion
- Backlit LCD with dot matrix
- Average power (AD in W, KW, MW)
- Maximum power (MD in W, KW, MW) with the programmable period
- Analysis of harmonic distortion up to a curvature of 99
- Indication of up to 50º form of harmonic wave
- Indication of the wave form with maximum value (1024 readings / period)
- Analysis of absolute distortion (%THD-F)
- Diagram of graphic equilibrium with parameters of a 3 phase system
- Detects up to 28 transistors (time and cycles) with a programmable threshold (%)
- Relation of 3 phases of voltage or asymmetrical current (VUR)
- Factor of 3 phases of voltage and asymmetrical current (d0%, d2%)
- USB port (optically insulated)
- Integrated timer and calendar to record data
- Maximum diameter of the electrical conductor for the amp clamp: the PCE-6801 ~30 mm / 1.2 in, PCE-6802 ~55 mm / 2.2 in, PCE-3007 ~170 mm / 6.7 in
| AC voltage | |
| Measuring range up to | 20 ... 500 V |
| Accuracy | ±0.5% ±5 digits |
| Alternating current AC | |
| Measuring range up to | 0,04 ... 1 A |
| Accuracy | ±0.5% ±0.05 A |
| Overload | Overload protection AC 200 A |
| Phase angle | |
| Measuring range up to | -180 ... +180 ° |
| Accuracy | ±1° |
| Power factor | |
| Measuring range up to | 0 ... 1 |
| Accuracy | ±0.04 |
| Frequency | |
| Measuring range up to | 45 ... 65 Hz |
| Resolution | 0,1 Hz |
| Accuracy | 0.1 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Frequency | 50 ... 60 Hz |
| Display Typ | LCD with illumination |
| Display size | 4,9 Inch |
| Storage medium | Internal memory |
| Storage capacity | 52420 Values |
| Storage interval from | 2 s |
| Storage interval until | 3000 min. |
| Data interface | RS232, USB |
| Norm(en) | IEC 61010 |
| Maximum cable diameter | 170 mm |
| Safety standard | CAT III 600 V |
| Menu language | English (US) |
| Power supply | 12V |
| Connector type | Device Europlug |
| Battery/battery | 8 x 1,5 V AA Battery (1,5V) , Alkali-Manganese |
| Battery capacity | 3000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 75 %RH |
| Storage conditions | -20 ... 60 °C , 0 ... 75 %RH |
| Dimensions ( L x W x H ) | 257 x 155 x 57 mm |
| Other dimensions | Current clamp PCE-3007 130 x 80 x 43 mm |
| Weight | 1160 g |
| Other weights | Current clamp PCE-3007 410g |

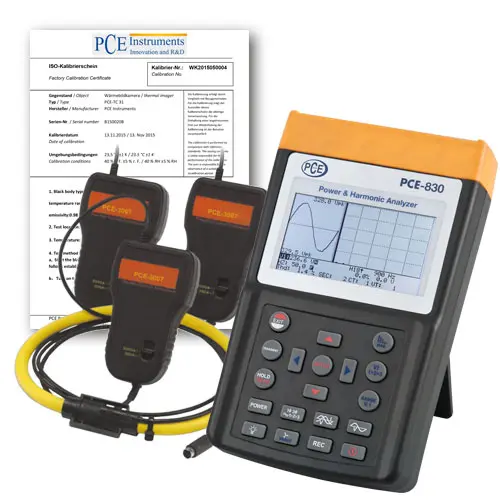

1 x PCE-830-3 Clamp Meter
3 x PCE-3007 current clamp (3000A)
4 x insulated tap-off clamp
4 x safety measuring cable, each 3 m long
8 x 1.5 V AA batteries
1 x power supply
1 x device bag
1 x USB PC cable
1 x software (English)
1 x operating instructions
1 x ISO calibration certificate
