Order no.: PCE-WMM 50

Carbon Dioxide Meter PCE-WMM 50

£ 435.00
£ 522.00
:
4250348715227
PCE-WMM 50
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

PCE-WMM 50 is a wall-mounted carbon dioxide meter that uses diffusion to monitor carbon dioxide (CO2) gas levels and ambient temperature (ºC / ºF) indoors. This indoor air quality meter features an alarm-activated potential-free contact that can, for example, activate a fan to reduce CO2 gas concentration in the room.

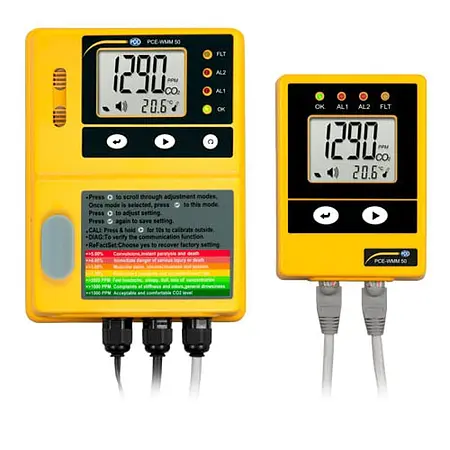

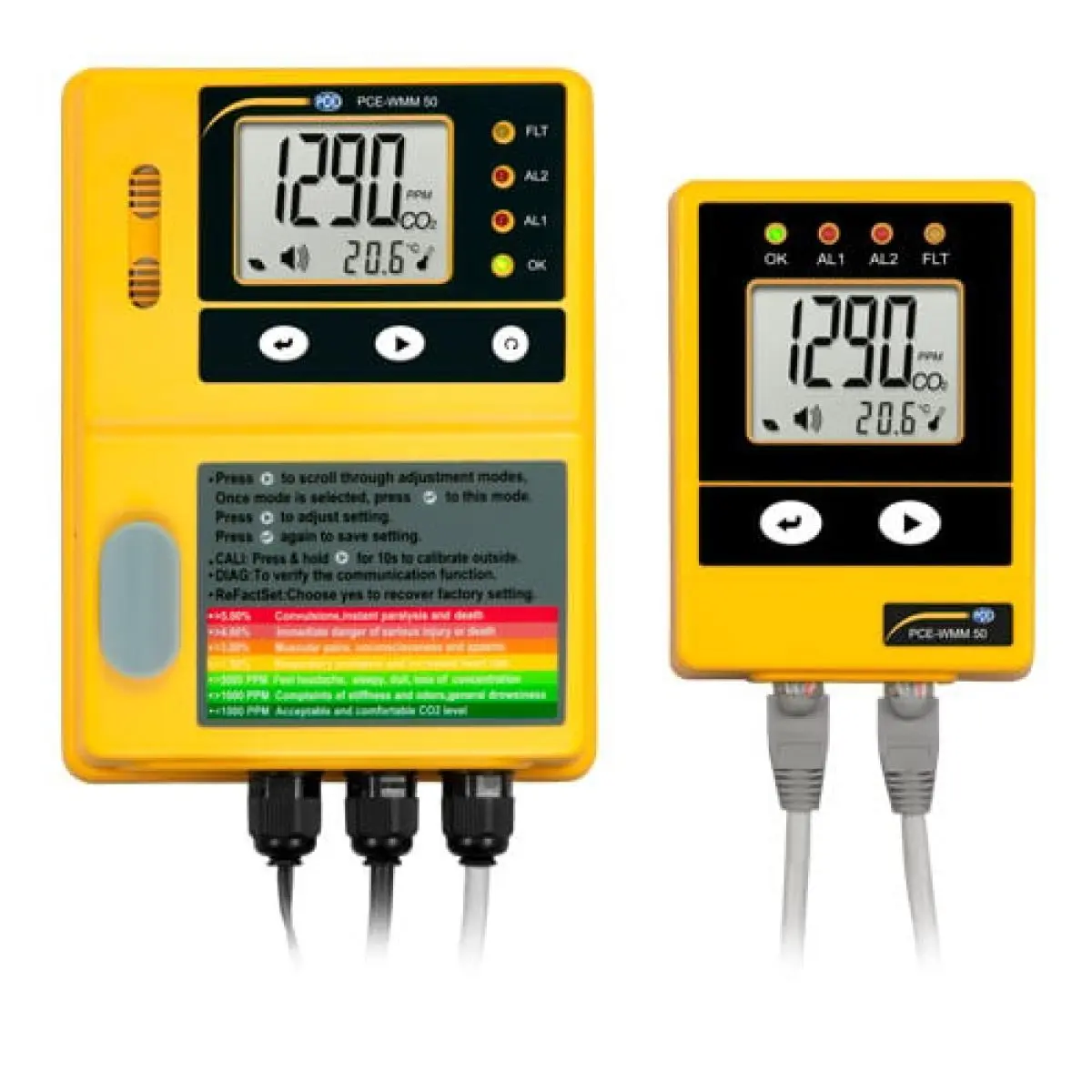

The PCE-WMM 50 alert meter consists of two parts: the sensor unit and the remote display unit. This allows for safe monitoring outside the exposure zone.

By monitoring CO2 concentration, the indoor air quality meter helps protect workers against the health hazards associated with CO2, a colorless and odorless gas used in the food, metal, chemical and waste management industries.

Highlights

- CO2 gas measurement range: 0 ... 50000 ppm
- Temperature measurement range: 0 ... +45 ºC / +32 ... +113 ºF
- IP54-rated enclosure on sensor and remote display units
- 2 adjustable alarm thresholds
- Alarm-activated potential-free contact can, for example, activate a fan to reduce CO2 gas concentration in the room
- 3- to 4-digit remote display (depends on range)
- Audible and visual alarm signals

Specification


Sensor unit
CO2 measurement range0 ... 50,000 ppm (5%) (vol.) NDIR sensor
Temperature (gas / environment)0 ... +45 °C / +32 ... +113 ºF
Supply of gas samplesBy diffusion
Alarm contacts- 1 potential-free change-over contactor to control external devices (NO/NC) by releasing alarm 1
- Switching power: 30 V DC / 250 V AC, max. 2 A
Alarm thresholdsAlarm 1
0.5 / 1 / 1.5 / 2%
Alarm 2
1.5 / 2 / 2.5 / 3 / 3.5 / 4%
Menu itemsFunction test of connection between detection unit and alarm unit, calibration, switch between °C and °F, alarm 1, 2 and factory setting
Display elements- 4-digit digital display for measured gas concentration within range 0... 9999 ppm
- 3-digit digital display for measured gas concentration within range 1... 5 %
- Additional 3-digit digital display for measurement and temperature in °C and °F
- LEDs for operation, alarm 1, 2 and monitoring of voltage supply
Operating elementsReset, menu selection, enter
SafetyContinuous self-surveillance of temperature range, sensor lifetime, unplausible values, EEPROM system, internal data transfer
EnclosureSynthetic, IP54-rated, watersplash proof
DimensionsApprox. 168 x 125 x 47 mm / 6.62 x 4.93 x 1.85" (without connections)
Voltage supply (adapter)100 ... 240 V AC, 50 / 60 Hz

Remote display unit
Temperature (gas / environment)0 ... +45 °C / +32 ... +113 ºF
Menu items- 4-digit digital display for gas concentration within range 0... 9999 ppm
- 3-digit digital display for concentration within range 1... 5%
- Additional digital display to measure temperature in °C and °F
- LEDs for operation, alarm 1, 2 and monitoring of voltage supply
Display elementsFunction test, reset, menu selection, enter, switch between °C and °F
EnclosureAluminum, IP54-rated, watersplash proof
Dimensions118 x 85 x 34 mm / 4.65 x 3.35 x 1.34" (without connections)
Voltage supplyVia data cable to sensor unit

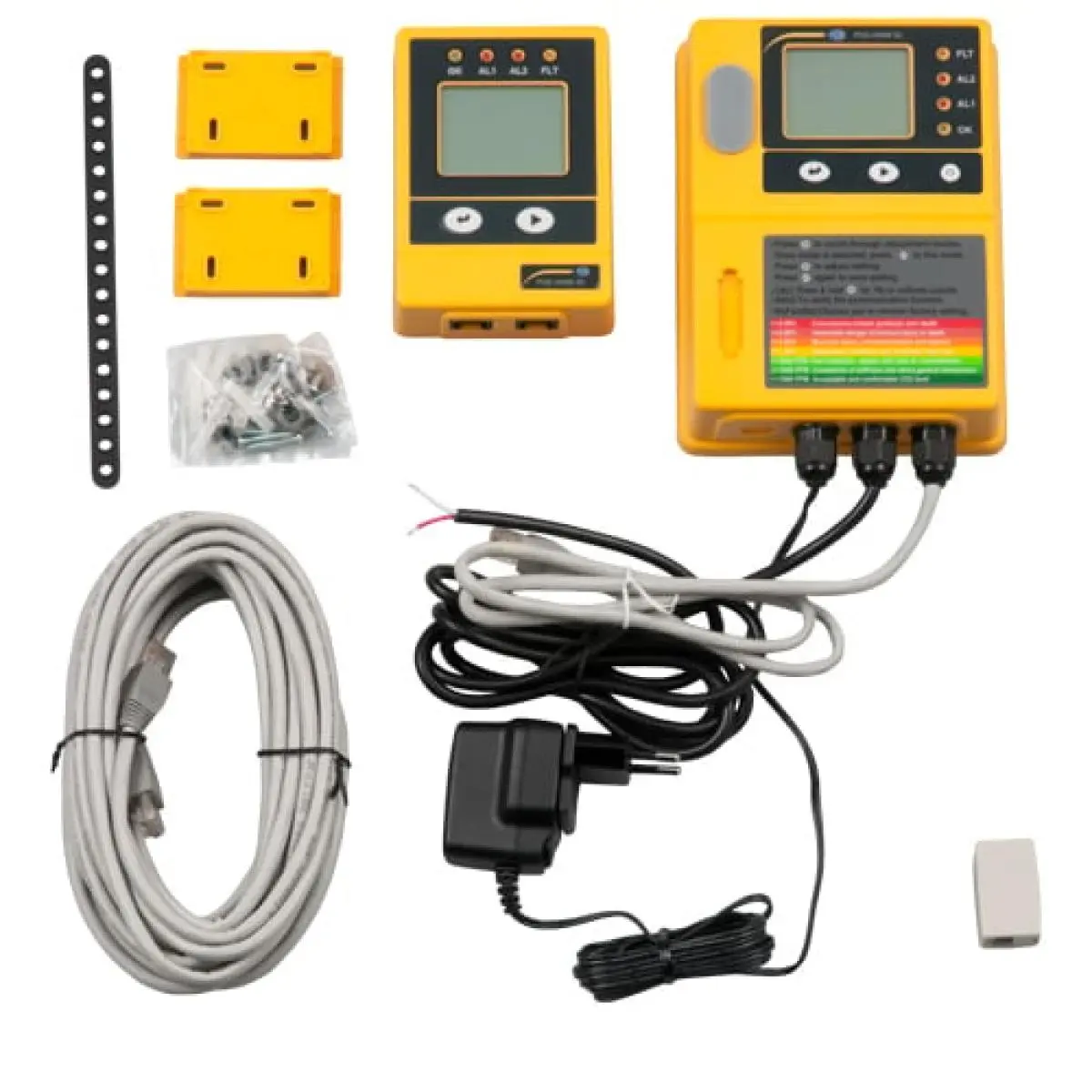

Delivery Scope

1 x PCE-WMM 50 carbon dioxide meter (comprised of sensor unit and remote display unit)
1 x User manual

Downloads

Accessories

Accessories

ISO Calibration Certificate CAL-CO2
£ 108.00

Price excl. VAT &. delivery
2 year Warranty

  • ISO calibration certificate for CO2 measuring devices, often required in companies to comply with DIN ISO 9000.for the parameter CO2N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Test Instruments manufacturer
Remote display PCE-WMM 50-RDU for gas warning system
£ 214.00

Price excl. VAT &. delivery
2 year Warranty

The remote display can be used as a spare part or as an additional warning unit for the PCE-WMM 50. The remote display for the PCE-WMM 50 gas warning system is simply connected via the additional RJ45 socket.

  • Connection via RJ45
  • Up to 3 remote displays can be used
  • Suitable for PCE-WMM 50

Test Instruments manufacturer
