Carbon Dioxide Meter PCE-RCM 03

Carbon Dioxide Meter PCE-RCM 03

Order no.: PCE-RCM 03
GTIN (EAN): 4250348738608
£ 41.00
£ 49.20
price ex. (VAT / delivery)
:
4250348738608
PCE-RCM 03
Delivery time:1-2 working days

Description

Carbon Dioxide Meter / Measures temperature and humidity / Visual and audible alarm / USB-C interface / Battery status indicator / Modern design and compact size

A Carbon Dioxide Meter is an indispensable safety device for detecting dangerous carbon monoxide concentrations indoors. It is used wherever CO can occur - for example in homes with gas boilers or fireplaces, in workshops with running engines and in boats, motorhomes or other enclosed spaces with combustion appliances.

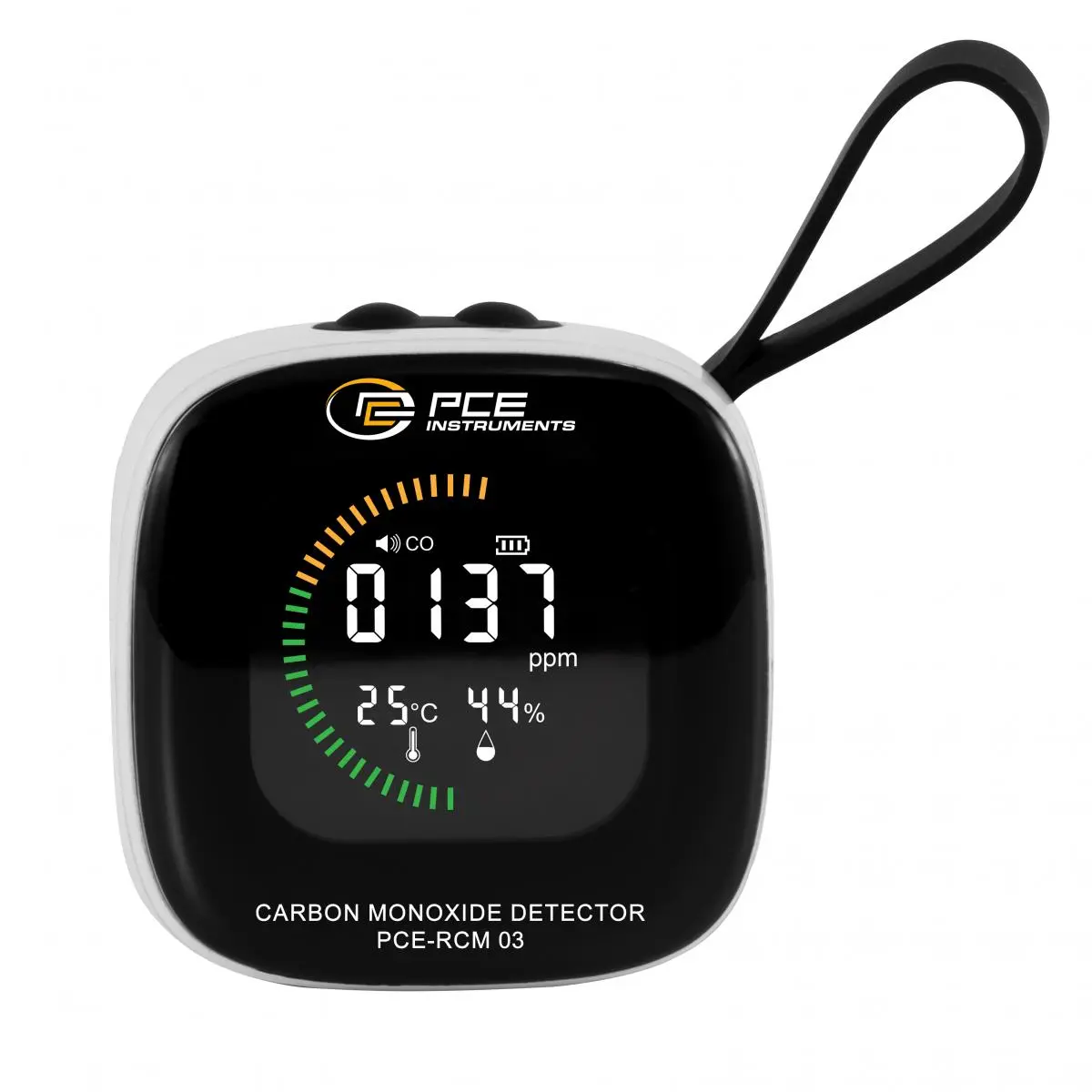

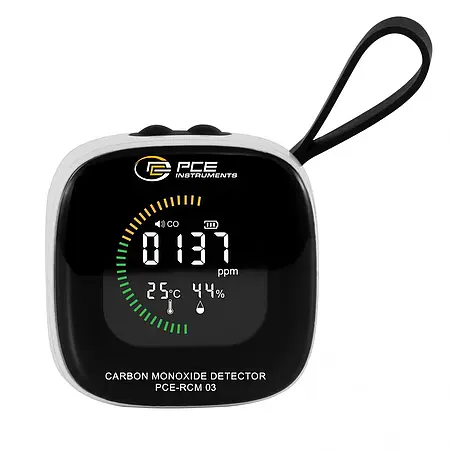

The Carbon Dioxide Meter records CO values in the range from 0 ... 500 ppm with a high resolution of 1 ppm. The Carbon Dioxide Meter also measures relative humidity and temperature, whereby the temperature display can also be switched to Fahrenheit. All measured values are shown on an easy-to-read 2-inch LC display with backlighting.

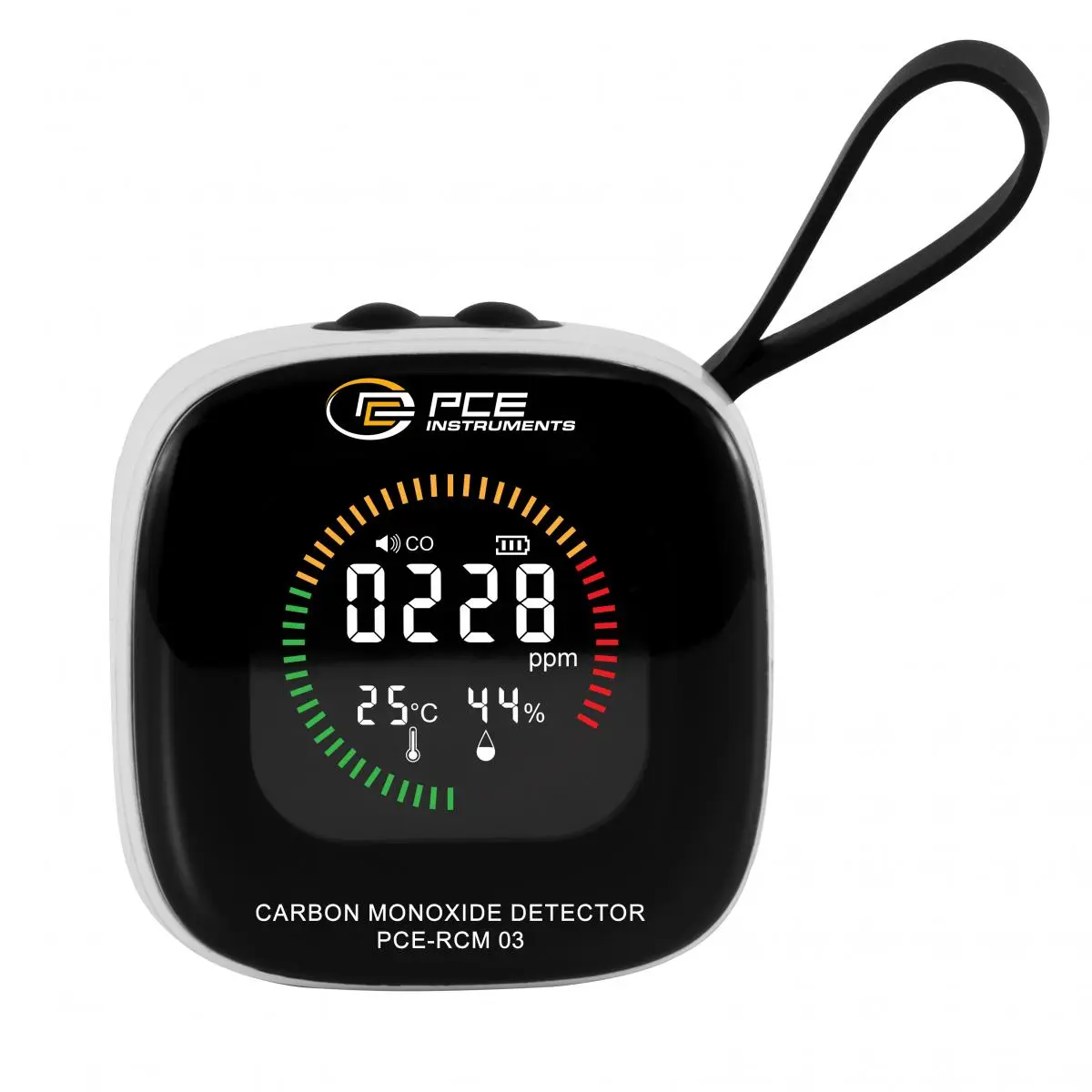

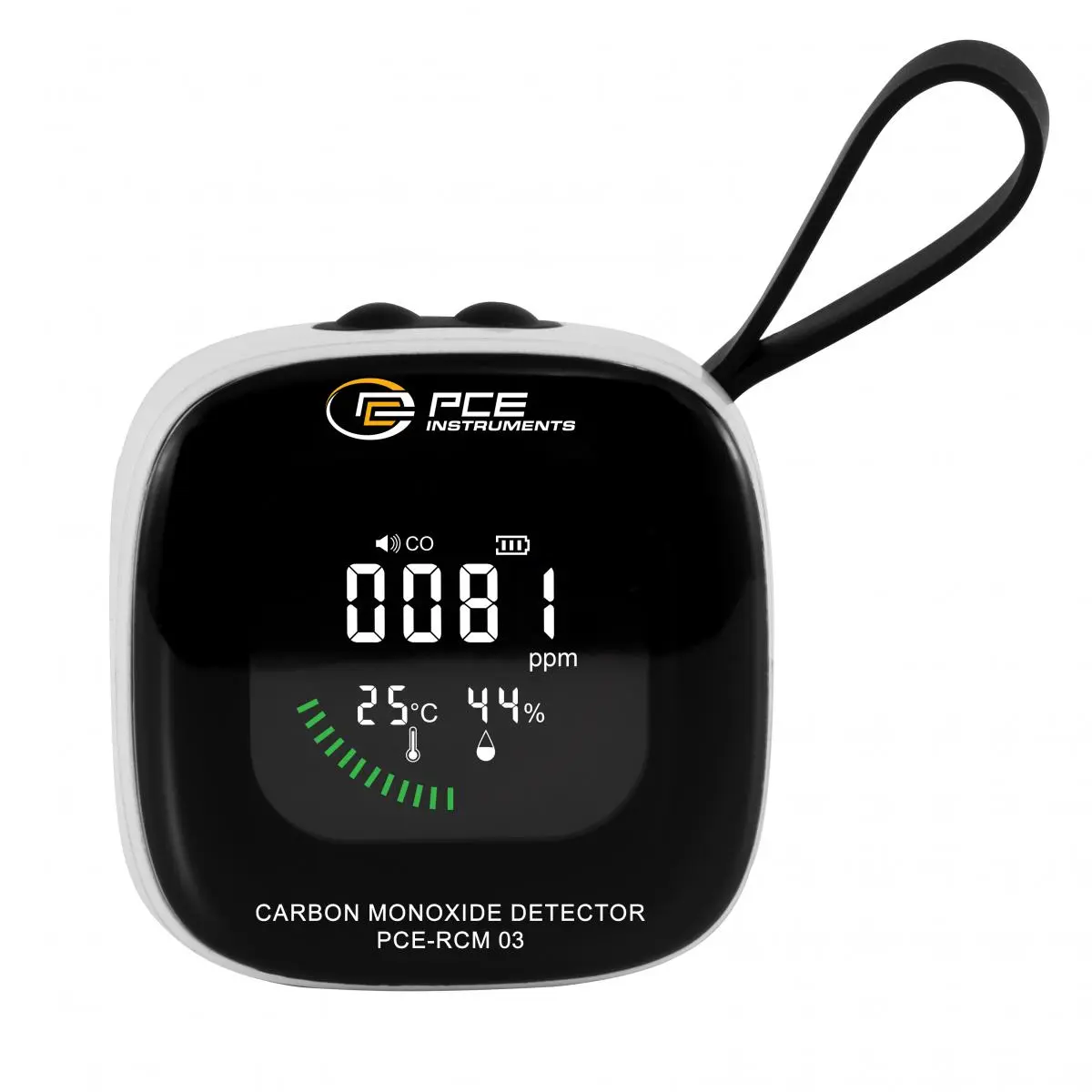

For even more convenience, the Carbon Dioxide Meter has a standby mode that can be activated manually. If no input is made within 60 seconds, the display switches off automatically - but the device remains active. In the event of increased CO values, the Carbon Dioxide Meter warns with a visual and acoustic alarm. This is supported by a traffic light function: green for 0 ... 100 ppm, orange for 101 ... 200 ppm and red for 201 ... 500 ppm. As soon as the limit value of 100 ppm is exceeded, an additional acoustic warning signal sounds to indicate a possible hazard. Thanks to the integrated lithium battery, which is conveniently charged via USB-C, the detector is particularly flexible to use.


Highlights

- Measurement of CO, temperature, humidity
- 2 inch LCD display
- Visual and audible alarm
- Standby mode
- Battery operation

Specification

Relative humidity
Measurement range up to  20 ... 85 %
Resolution  1 %
Accuracy  ±4%

CO
Measurement range up to  0 ... 500 ppm
Resolution  1 ppm
Accuracy  ±10% v.Mw.

Temperature
Measurement range up to  -10 ... +50 °C
Resolution  1 °C
Accuracy  ±1 °C

Temperature
Measurement range up to  14 ... 122 °F
Resolution  1,8 °F
Accuracy  ±1.8 °F

General technical data
Display type  LCD with backlight
Display size  2 Inch
Measuring rate  1,5 s
Interface  USB-C
Operating time  30 h
Alarm  optical, Acoustic
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , lithium
Capacity  800 mAh
Operating conditions  -10 ... 50 °C , 20 ... 85 % RH
Storage conditions  -10 ... 60 °C , 20 ... 85 % RH
Dimensions ( L x W x H )  70 x 70 x 32 mm
Weight  98,5 g

Delivery Scope

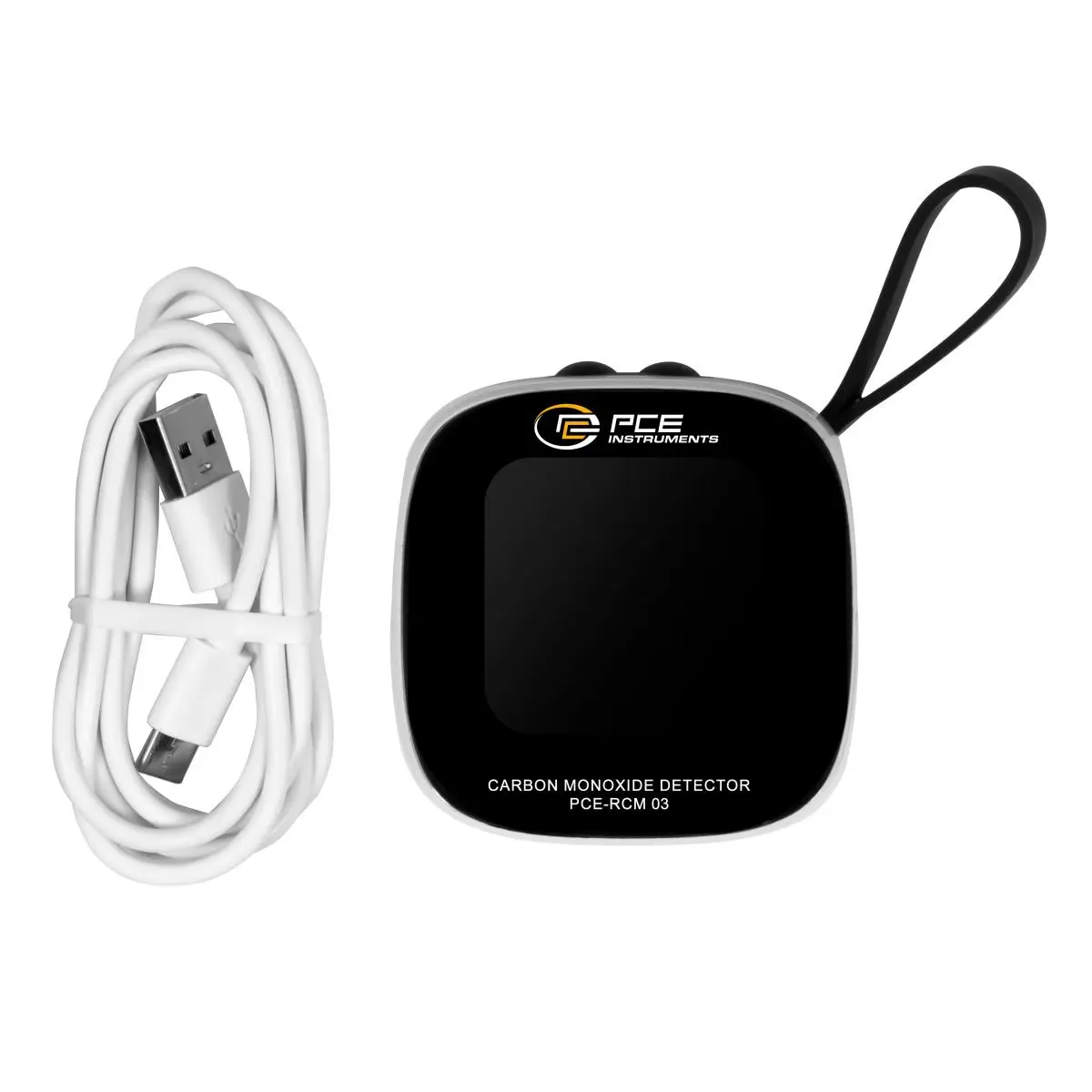

1 x Carbon Dioxide Meter PCE-RCM 03
1 x USB-C charging cable
1 x Operating instructions
