Carbon Dioxide Meter PCE-PQC 35EU Incl. Calibration Certificate

Order no.: PCE-PQC 35EU
ISO Calibration
£ 5,549.00
£ 6,658.80
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

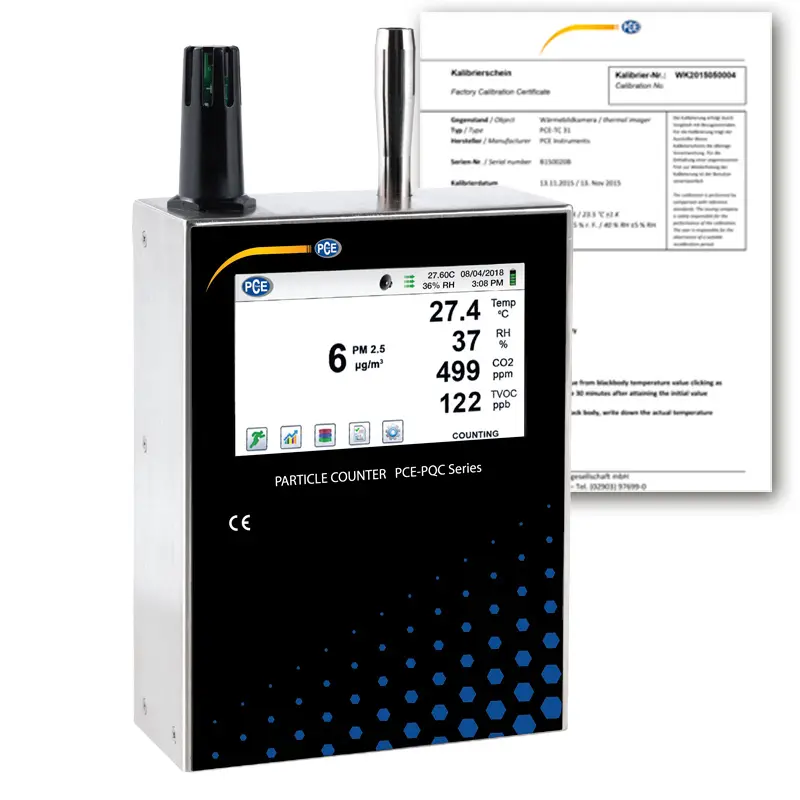

Carbon Dioxide Meter PCE-PQC 35EU incl. calibration certificate
Environmental Particle Counter with CO2 Sensor / PID Sensor / Internal memory / Wall mounting / Large measuring range

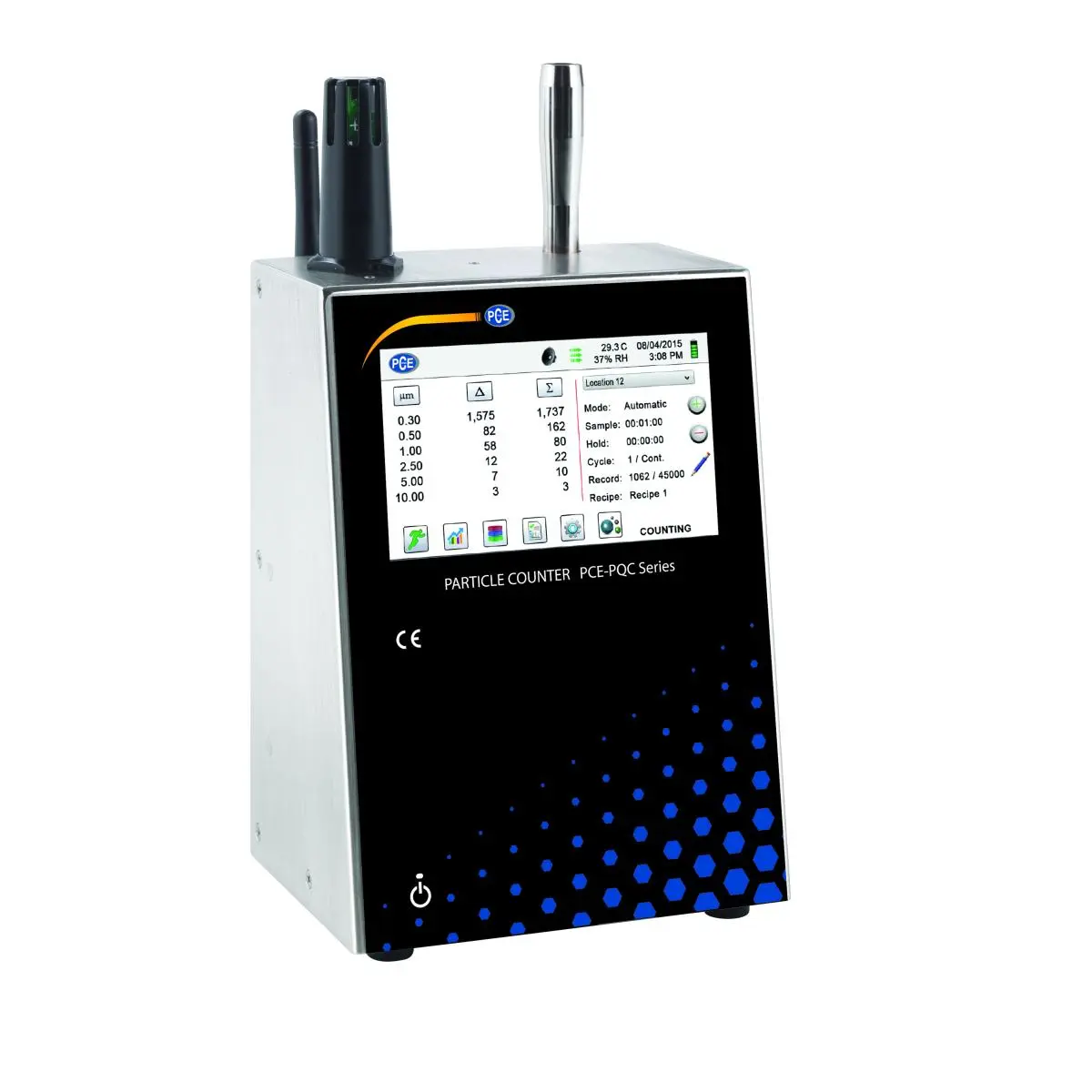

The Carbon Dioxide Meter PCE-PQC 3xEU series is characterized by its small size and easy wall mounting. The stationary installation of the environmental particle counter PCE-PQC 3xEU series ensures high-precision air quality studies. Both available models measure particles (PM), temperature, humidity and CO2. The PCE-PQC 35EU also has a high-quality PID (Photo Ionization Detector) sensor for recording total volatile organic compounds (TVOC).

The environmental particle counters use very powerful electronics to be able to effectively measure the simultaneous displays of PM1.0, PM2.5, PM5 .0, PM10.0 and total particles. These measurements are stored simultaneously with the other built-in sensors in a large memory of 45,000 data records. With a large color touchscreen display, the visual indication of the environmental conditions is easy to see.

- large measuring range up to 25 µm
- CO2 sensor
- PID sensor
- integrated memory
- optional wifi interface available
- compact design
Measuring range 0.3 ... 25 µm
Measuring channel sizes factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Counting efficiency 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Particle mass display PM0,5, PM1,0, PM2,5, PM5,0, PM10 and TPM
Flow rate 2.83 l/min (0.1 ft³/min)
Random loss 10% at 15000000 particles / ft³
Battery operation 10 h
Light source long-life laser diode
Zero count <1 count / 5 min (<2 particles/ft³) according to ISO 21501-4 and JIS
Counting modes automatic, manual, real-time display, cumulative/
  differential, mass concentration
Acoustic alarm adjustable, integrated alarm
Calibration traceable to NIST
Display 4.3" WQVGA color touch display, 480x272 px
Printer external thermal printer
Air intake internal pump with automatic
  flow rate control
Air outlet interner HEPA filter
Battery replaceable Li-Ion battery
Charging time ca. 4 h
Reports ISO 14644-1
  EU GMP appendix 1
  FS 209E
Configuration memory for 50 user-defined configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 13.3 x 10.5 x 21 cm
Weight 1.8 kg
Memory 45000 data records (ring memory) consisting of
  particle counting, temperature and humidity, CO2, places and times

Sample duration 1 s ... 99 h adjustable
Power supply 110 ... 240 V AC 50/60 Hz
Operating conditions +5 ... +40 °C
  up to 95% r.H. not condensing
Storage conditions 0 ... +50 °C
  up to 98% r.H. not condensing
CO2 Sensor
Measuring range 0 ... 5000 ppm
Resolution 1 ppm
Accuracy ±1 % of measuring range

PID Sensor
Measuring range 0 ... 50 ppm
Resolution 0.001 ppm
Accuracy ±1.5 %
Minimum concentration
5 ppb
Response time
<3 sec.

Temp/humidity sensor internal    0 ... +50 °C, 15 ... 90 % r.H.
Resolution 0.5 °C
Accuracy ±0.5 °C, ±2 % r.H.
Interface Ethernet, USB
Optional interface Wifi 802.11 b/g, RS485 or RS232
Number of measuring channels 6
Housing material stainless steel

1 x Carbon Dioxide Meter PCE-PQC 35EU
1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Software for data download
1 x USB cable
1 x Mains power adapter
1 x Calibration certificate according to NIST
1 x User manual
