Carbon Dioxide Meter PCE-PQC 34EU Incl. Calibration Certificate

Order no.: PCE-PQC 34EU

GTIN (EAN): 4250348720580

Accessory

Isokinetic sensor for PCE-PQC series

£ 76.00

Cleaning filter for PCE-PQC series

£ 198.00

PCE-PQC-WIFI Antenna for PCE-PQC series

£ 305.00

Re-Calibration Certificate CAL-PCE-PQC

£ 621.00

Description

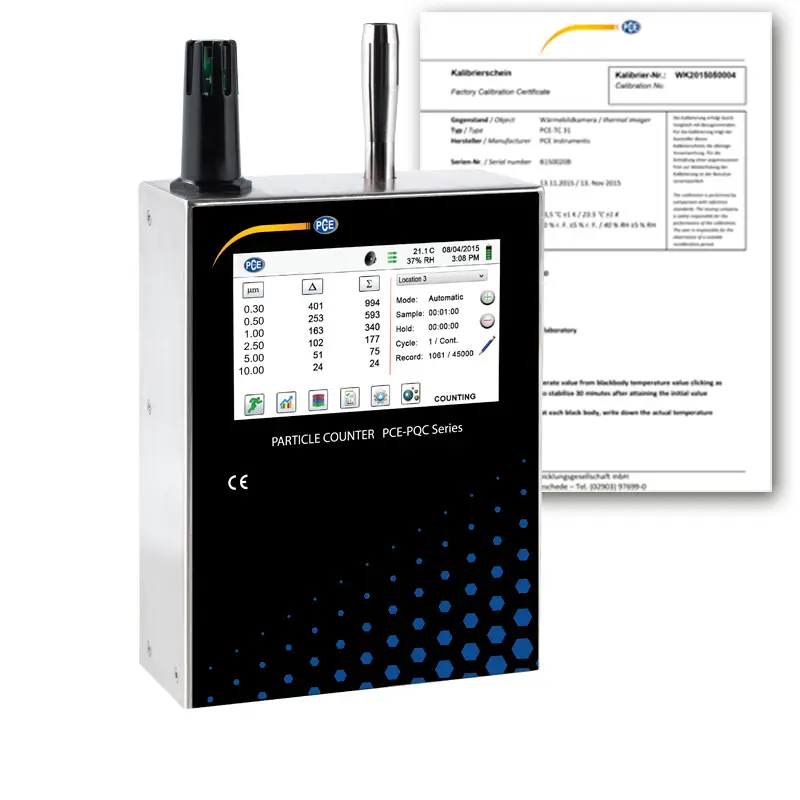

Carbon Dioxide Meter PCE-PQC 34EU incl. calibration certificate
Environmental Particle Counter with CO2 Sensor / Optional PID Sensor / Internal memory / Wall mounting / Large measuring range

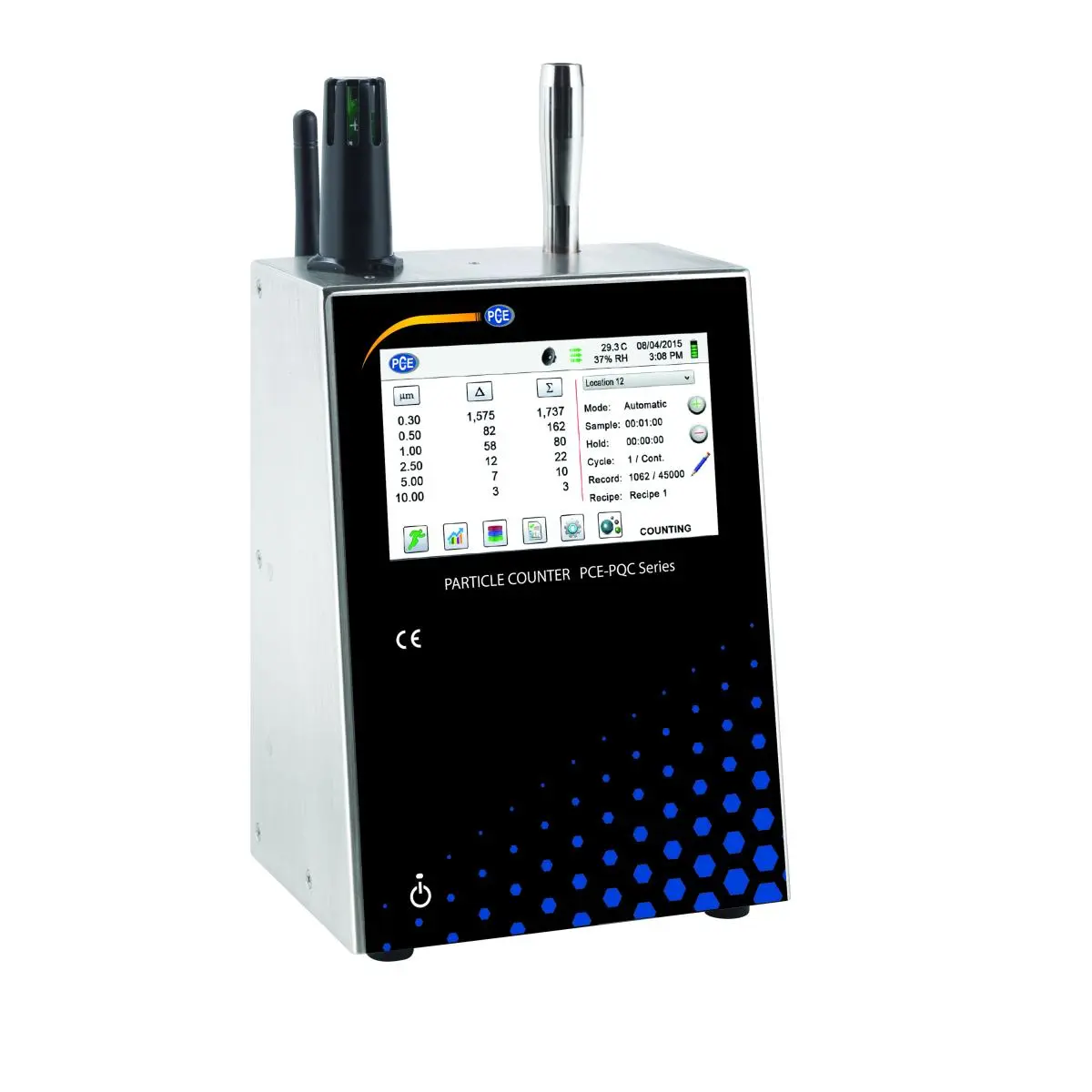

The Carbon Dioxide Meter PCE-PQC 3xEU series is characterized by its small size and easy wall mounting. The stationary installation of the environmental particle counter PCE-PQC 3xEU series ensures high-precision air quality studies. Both available models measure particles (PM), temperature, humidity and CO2. The PCE-PQC 35EU also has a high-quality PID (Photo Ionization Detector) sensor for recording total volatile organic compounds (TVOC).

The environmental particle counters use very powerful electronics to be able to effectively measure the simultaneous displays of PM1.0, PM2.5, PM5 .0, PM10.0 and total particles. These measurements are stored simultaneously with the other built-in sensors in a large memory of 45,000 data records. With a large color touchscreen display, the visual indication of the environmental conditions is easy to see.

Highlights

- large measuring range up to 25 µm

- CO2 sensor

- integrated memory

- optional PID sensor available

- optional wifi interface available

- compact design

Specification

CO²
Measuring range	0 ... 5000 ppm
Resolution	1 ppm
Accuracy	±1 % of range

Particle
Measuring channel sizes	0.3, 0.5, 1.0, 3.0, 5.0, 10
Measuring range	0,3 ... 25 µm
Counting efficiency	50 % at 0.3 µm, 100 % at >0.45 µm according to JIS
Flow volume	2,83 l/min

Relative humidity
Measuring range	15 ... 90 %
Accuracy	±2 % RH

Temperature
Measuring range	0 ... 50 °C
Accuracy	±0.5 °C

General technical data
Display type	Colour touch display
Display size	4,3 in
Storage medium	Internal memory
Storage capacity	45000 Data records
Memory capacity (additional information)	Ring memory consisting of particle count, temperature and humidity, CO2, locations and times
Storage interval from	1 s
Storage interval to	99 min.
Interface	Ethernet, USB
Standard(s)	ISO 21501-4, JIS B9921
Sensor	Temperature
Operating time	10 h
Menu language	English
Power supply	110 ... 240 V AC 50/60 Hz
Connector type	Device-europlug
(Rechargeable) battery	1 x 10,8 V internal , Lithium-ion battery
Capacity	5200 mAh
Operating conditions	5 ... 40 °C , 0 ... 95 % RH
Storage conditions	0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )	133 x 105 x 210 mm
