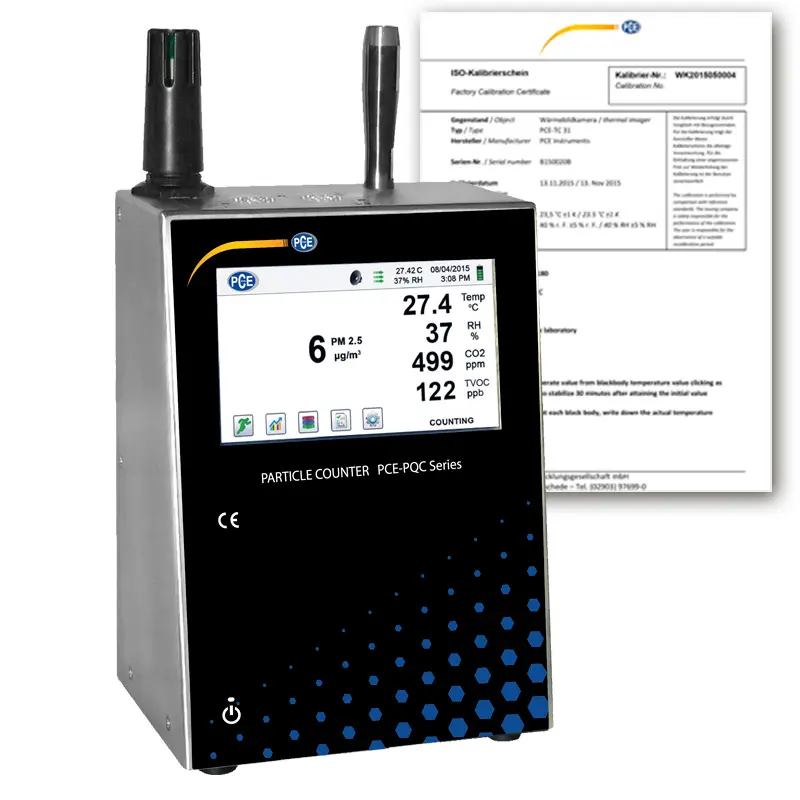

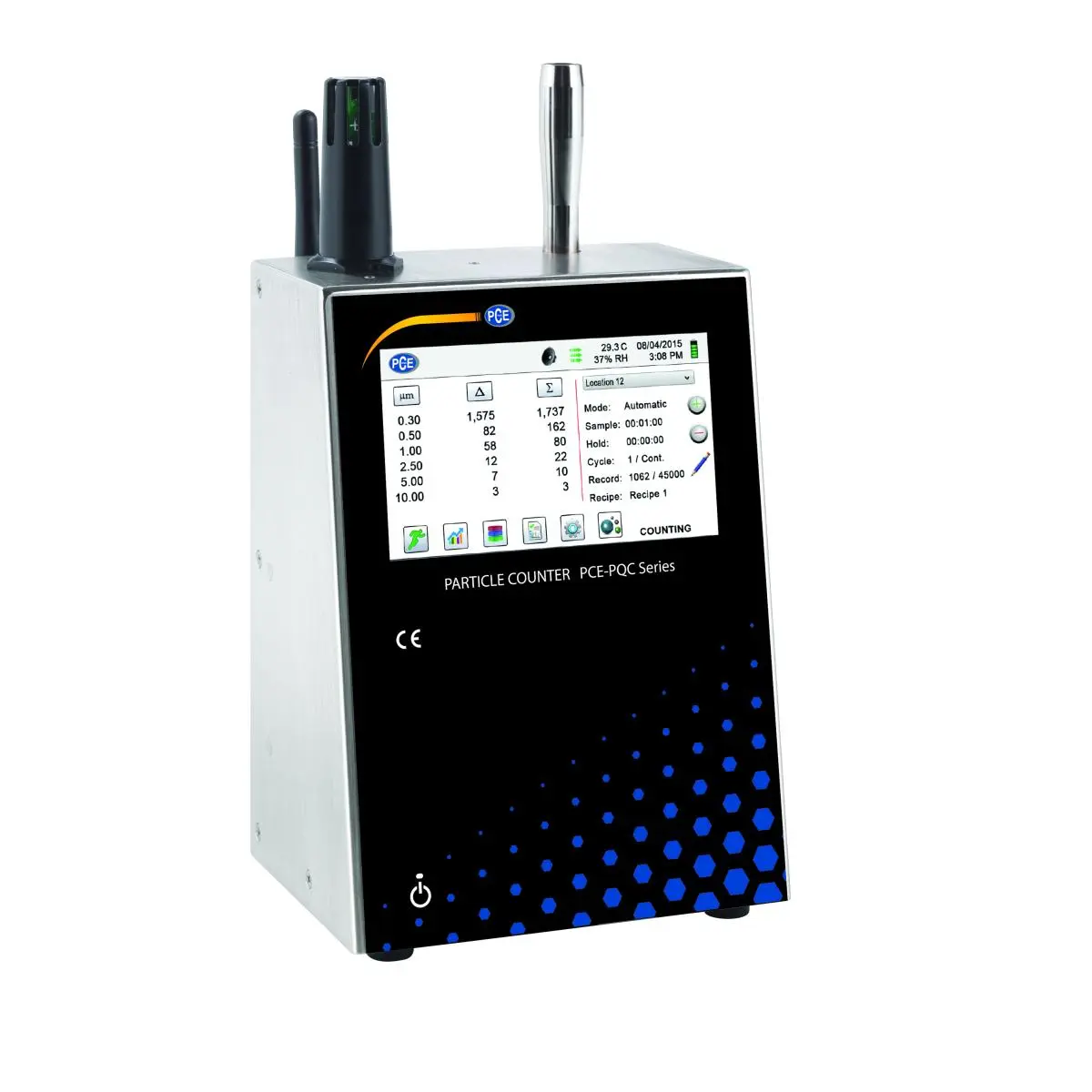

Particle Counter PCE-PQC 23EU Incl. Calibration Certificate

Carbon Dioxide Meter PCE-PQC 23EU Incl. Calibration Certificate

Order no.: PCE-PQC 23EU
GTIN (EAN): 4250348720436
£ 7,876.00
£ 9,451.20
price ex. (VAT / delivery)
:
4250348720436
PCE-PQC 23EU
Delivery time:1-2 working days

Description

Carbon Dioxide Meter PCE-PQC 2xEU series incl. calibration certificate
Incl. CO2 sensor / Large measuring range / PID sensor / 6 measuring channels / Factory calibrated / 2 models available

The Carbon Dioxide Meter of the PCE-PQC 2xEU series measures particle sizes from 0.3 μm to 25 μm with mass concentration and additionally stores the parameters temperature, relative humidity, CO2 and TVOC (PCE-PQC 23EU only). This meter is the most versatile air quality monitor available with advanced power management and the industry's first sleep mode, enabling battery operation for periods that can exceed one month with a single charge. The PCE-PQC 2xEU series can be used as a stand-alone, battery-powered instrument or simply integrated into a building automation and plant monitoring system via Ethernet, USB.

The air quality monitor PCE-PQC 2xEU series can measure not only the measurement of particle sizes and mass concentrations but also the carbon dioxide content in the air. Furthermore, the air temperature and the relative humidity are measured. The air quality monitor PCE-PQC 23EU also has a photoionization detector (PID), which can be used for the measurement of volatile hydrocarbons (VOC's).

Highlights

- CO2 sensor
- PID sensor
- Temperature and humidity measurement
- Ethernet
- USB
- Wifi (optional)
- Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Specification

CO²
Measuring range  0 ... 5000 ppm
Resolution  1 ppm
Accuracy  ±1 % of range

Particle
Measuring channel sizes  0.3, 0.5, 1.0, 3.0, 5.0, 10
Measuring range  0,3 ... 25 µm
Counting efficiency  50 % at 0.3 µm, 100 % at >0.45 µm according to JIS
Flow volume  2,83 l/min

Relative humidity
Measuring range  15 ... 90 %
Accuracy  ±2 % RH

Temperature
Measuring range  0 ... 50 °C
Accuracy  ±0.5 °C

General technical data
Display type  Colour touch display
Display size  4,3 in
Storage medium  Internal memory
Storage capacity  45000 Data records
Memory capacity (additional information)  Ring memory consisting of particle count, temperature and humidity, CO2, (PID)
Storage interval from  1 s
Storage interval to  99 min.
Interface  Ethernet, USB
Standard(s)  ISO 21501-4, JIS B9921
Sensor  Temperature
Response time  3 s
Operating time  10 h
Menu language  English
Power supply  110 ... 240 V AC 50/60 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 10,8 V internal , Lithium-ion battery
Capacity  5200 mAh
Operating conditions  5 ... 40 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )  133 x 105 x 210 mm
Weight  700 g

Delivery Scope

1 x Particle counter PCE-PQC 23EU
1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
