Car Measuring Device PCE-VE 350HR

Car Measuring Device PCE-VE 350HR

Order no.: PCE-VE 350HR
GTIN (EAN): 4250348715746

£ 1,513.00
£ 1,815.60
price ex. (VAT / delivery)
:
4250348715746
PCE-VE 350HR
Delivery time:1-2 working days
Flexible
No
6 mm
1 m
320 x 240 / 640 x 480 pixels
Digital
2-way
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

Car Measuring Device PCE-VE 350HR
Two-way articulating inspection camera, industrial endoscope or videoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

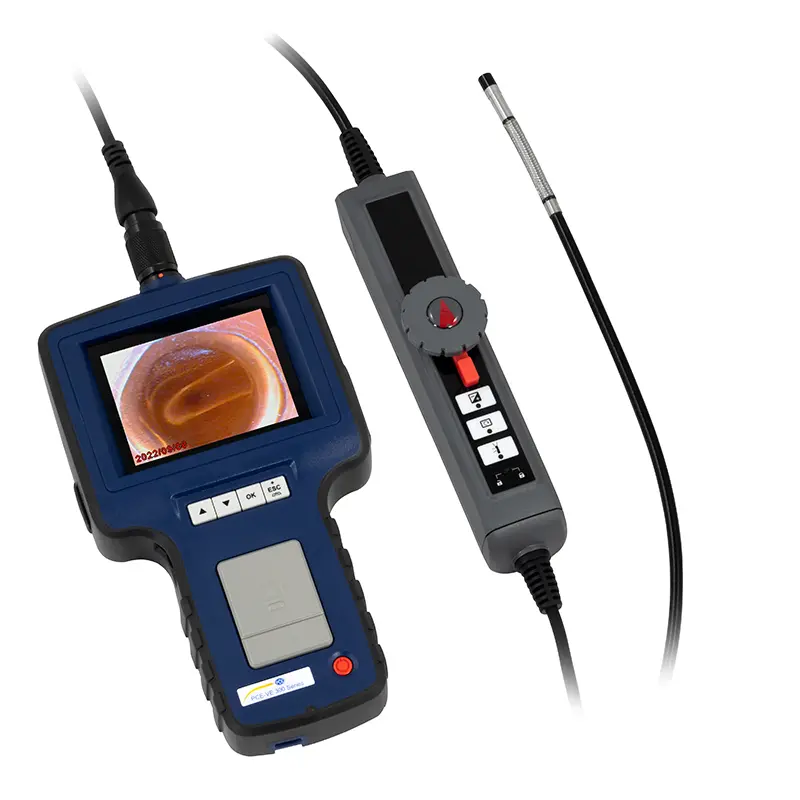

PCE-VE 350HR is a two-way articulating car measuring device, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This car measuring device is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

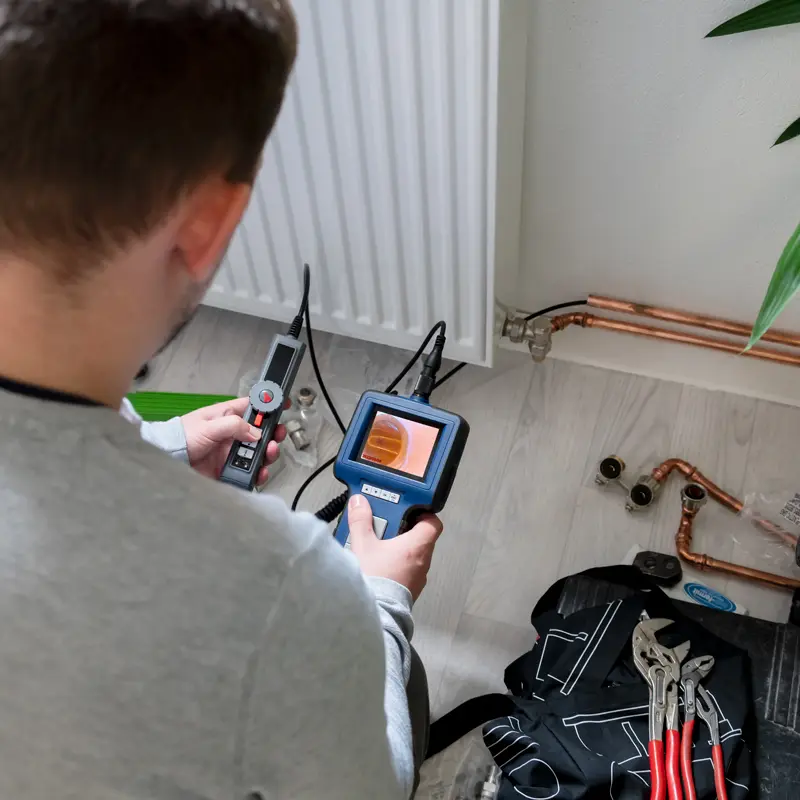

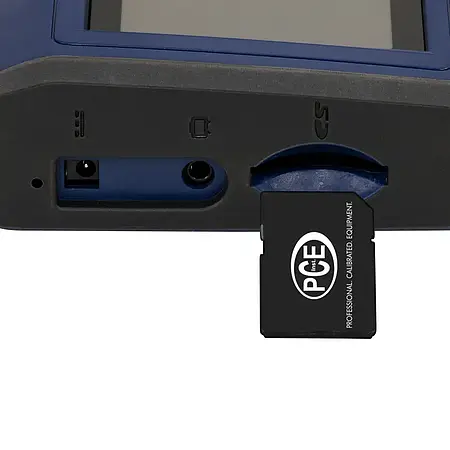

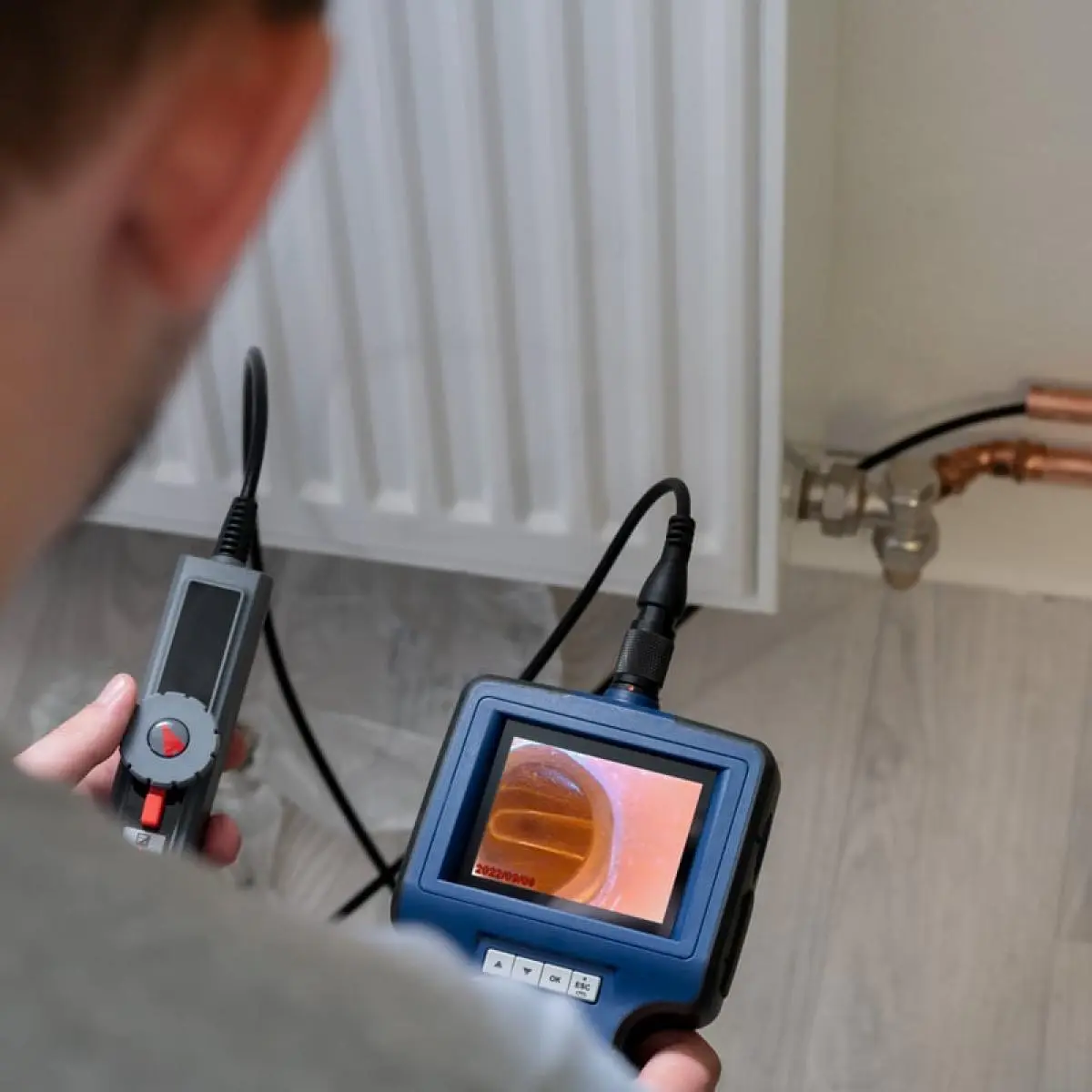

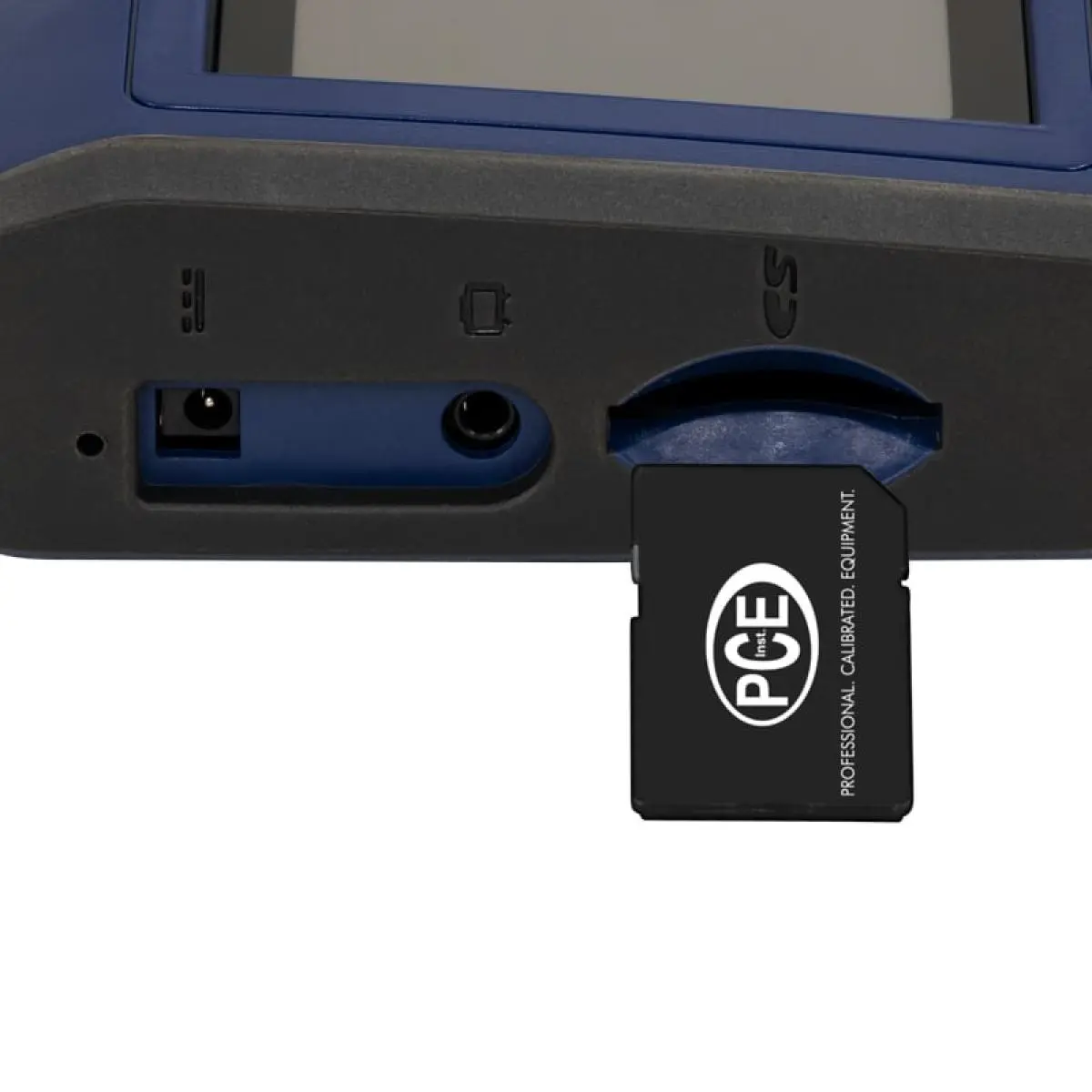

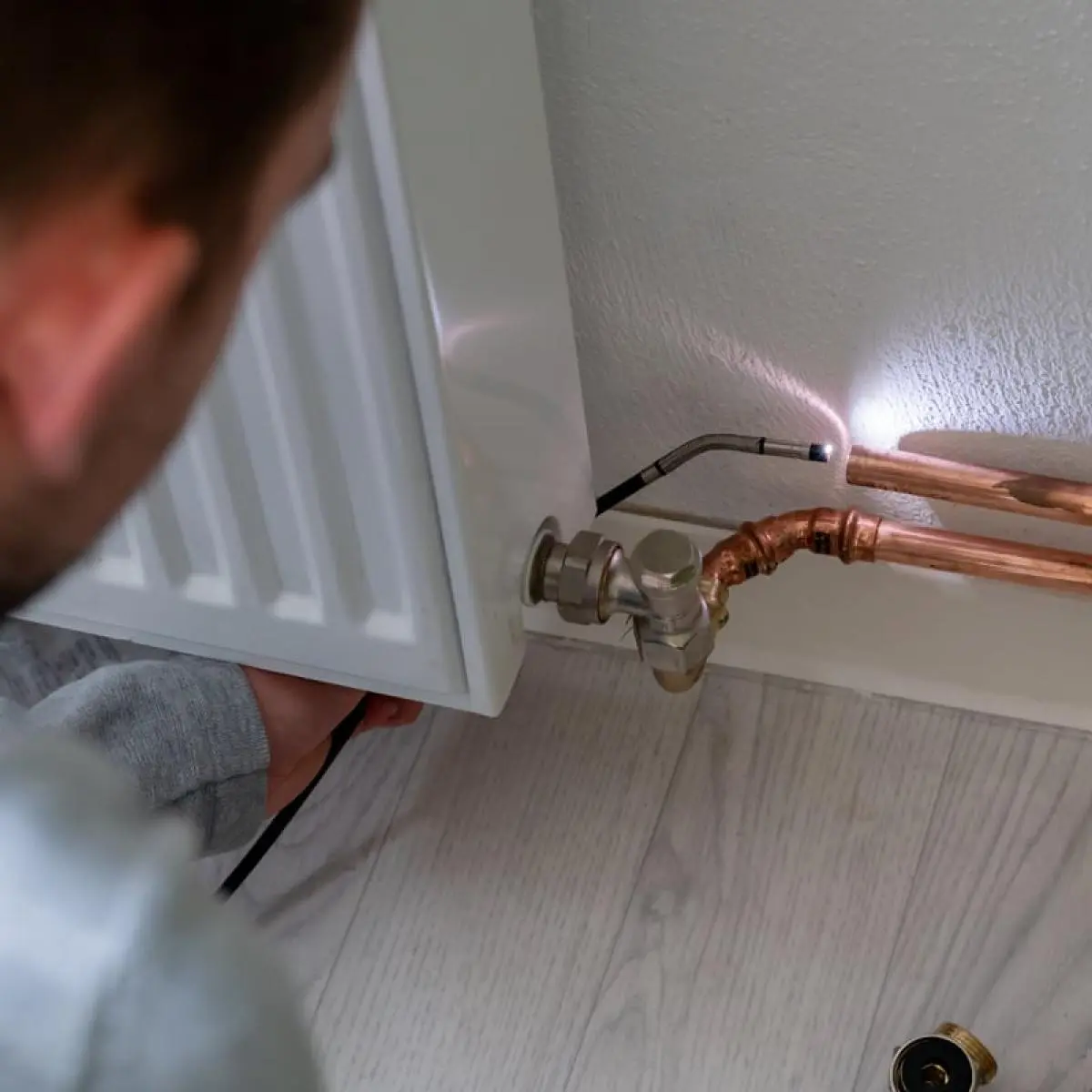

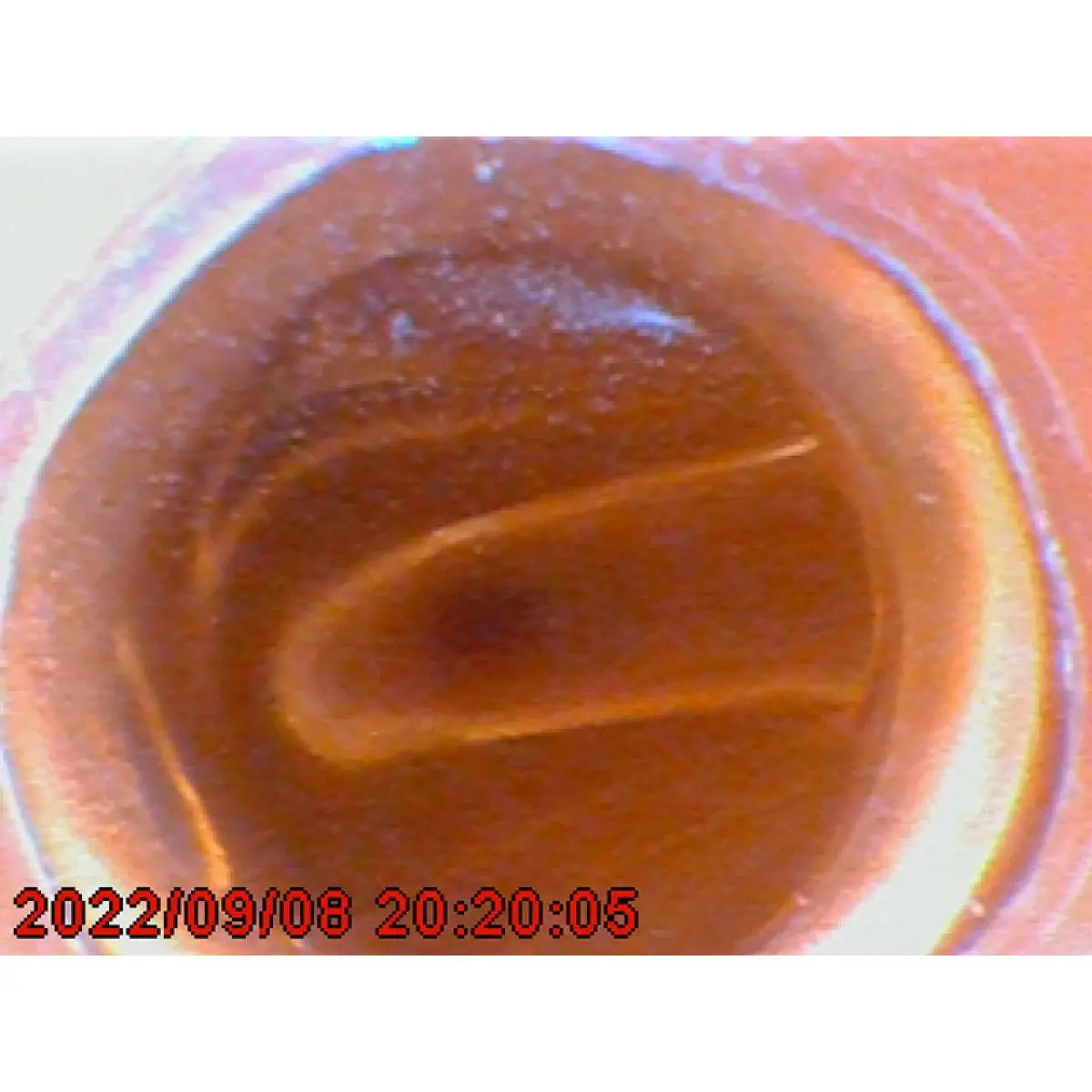

The car measuring device stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 6.0 mm / 0.24 in diameter allow the car measuring device unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this car measuring device useful in a variety of applications.

***Not for medical use***


Highlights

- With boost function: better images in dark surroundings
- Image rotation possible

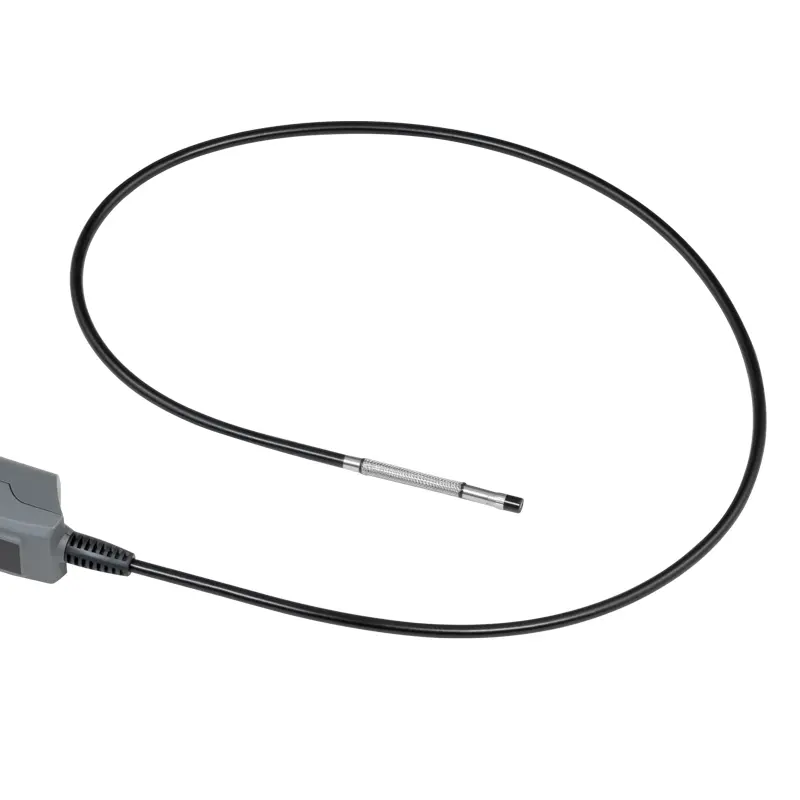

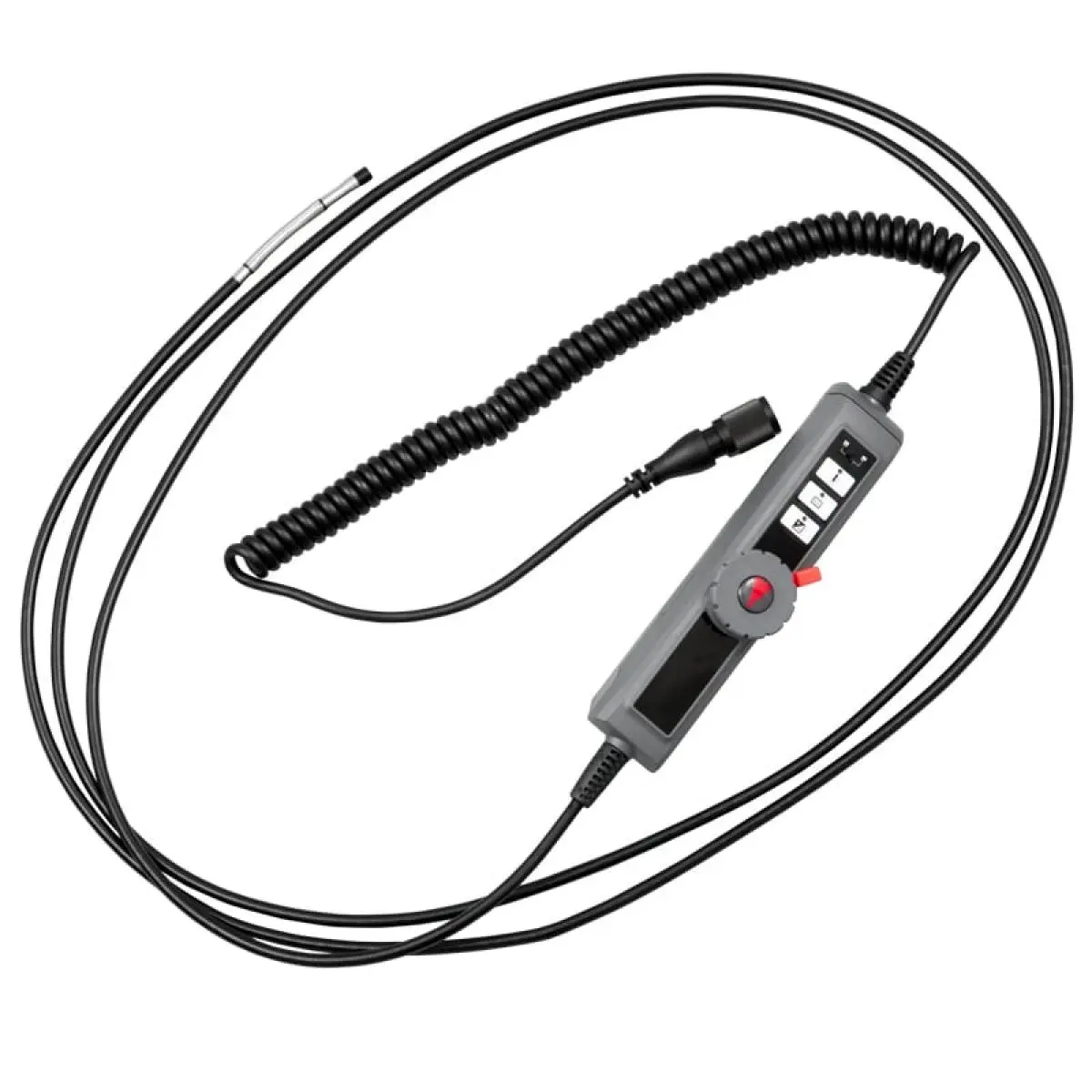

- Flexible 1 m / 3ft 3" cable
- Diameter camera head 6 mm / 0.24"
- Image capture / Photos und Videos
- LED lighting (2 additional side LEDs for better lighting)
- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included

Specification

General technical data
Resolution  Image format: JPEG (640 x 480)
Video format: ASF (320 x 240)
Cable length  1 m
Display type  TFT colour display
Display size  3,5 in
Display refresh rate  30 x per second
Storage medium  SD card
Storage capacity  32 GB
Memory capacity (additional information)  Images and videos can be saved

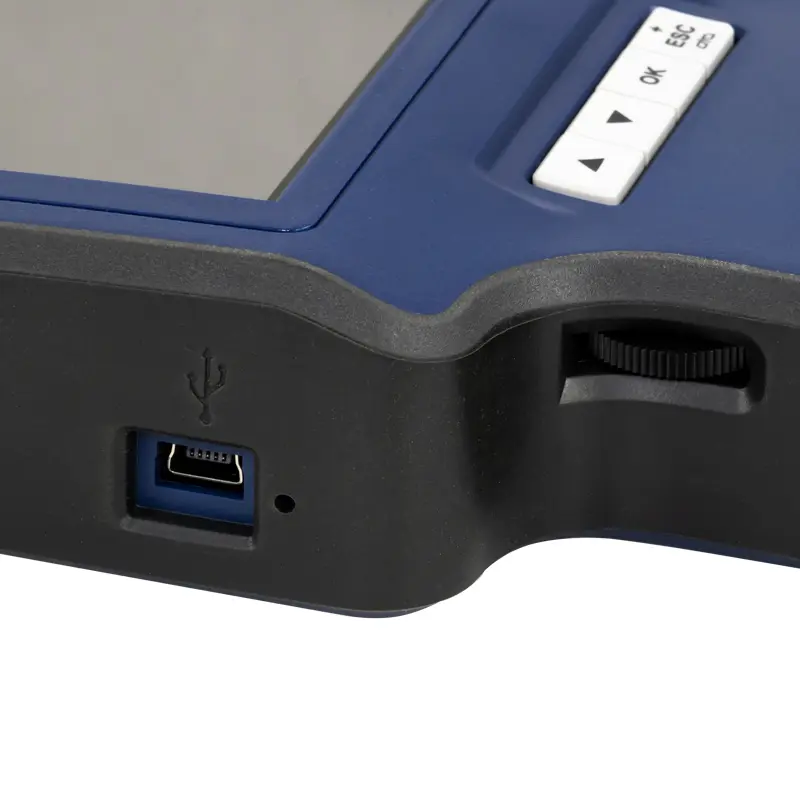

Interface  Mini-USB, AV out, AV in, SD card
Sensor  CMOS
Camera resolution  320 x 240 pixels
Camera orientation  pivoted
Operating time  4 h
Camera head length  23.5 mm
Camera head diameter  6 mm

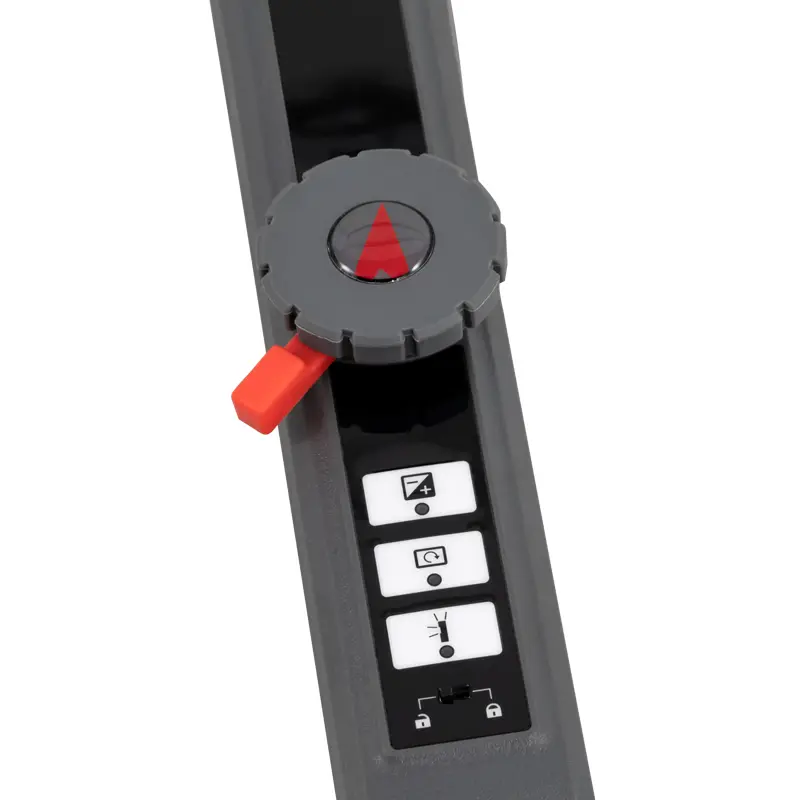

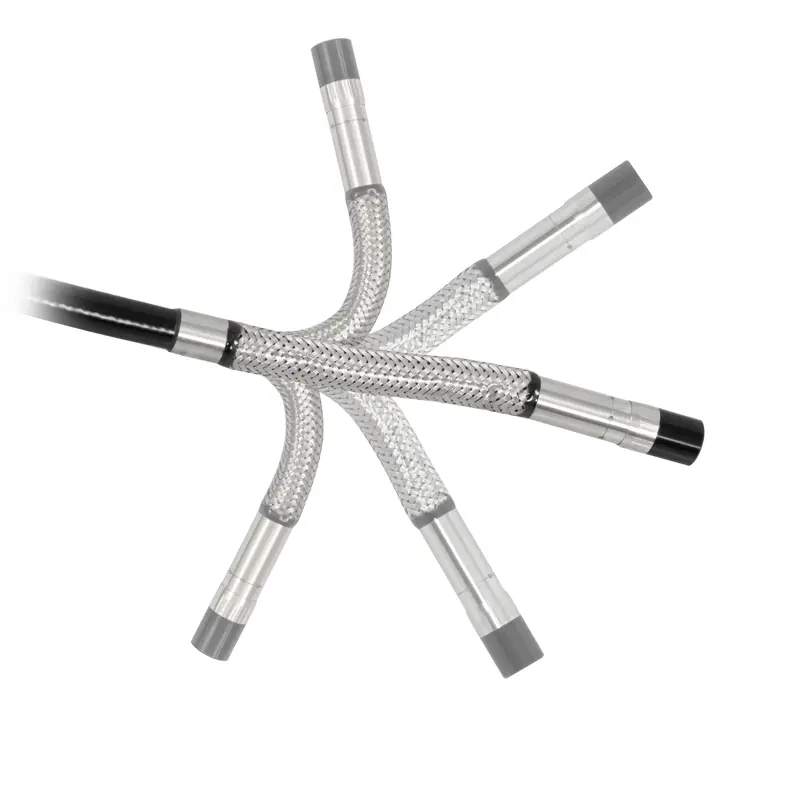

Camera probe movement  2-way, 155°
Field of vision  87,1 °
Depth of field of vision  10 ... 60 mm
Luminous intensity  3 LEDs at the front, 2 LEDs at the side
Menu language  English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian
Protection class (device)  IP52
Power supply  AC 100 ... 240 V | 50/60 Hz
Connector type  Device-europlug
Capacity  2300 mAh
Operating conditions  0 ... 45 °C , 0 ... 95 % RH
Storage conditions  0 ... 45 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  207 x 118 x 37 mm
Weight  390 g

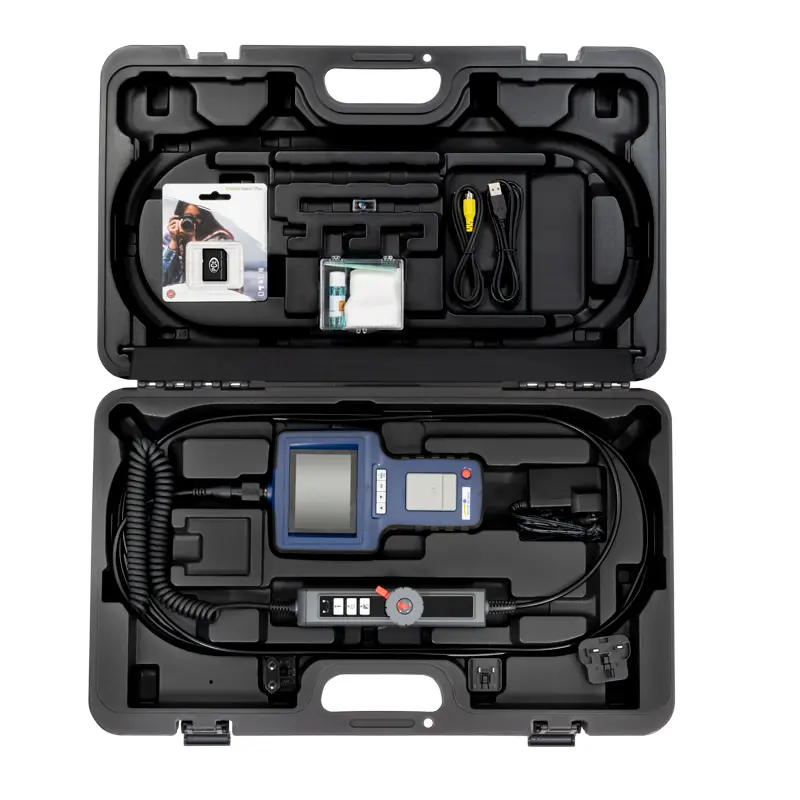

Delivery Scope

1 x Car Measuring Device PCE-VE 350HR
1 x 8GB SD memory card
1 x USB cable
1 x Mains power adapter
1 x Carrying case
1 x User manual
Please note: Not to be used for medical applications!
