£ 154.00

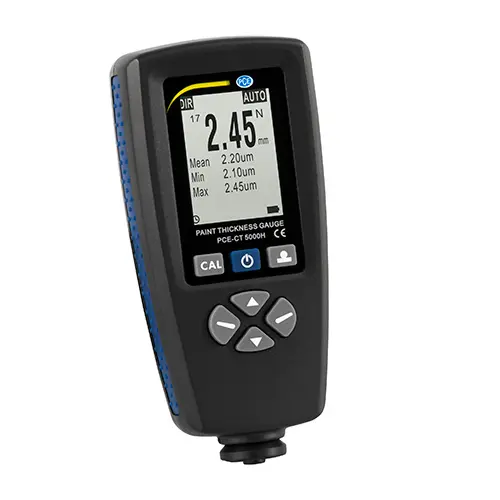

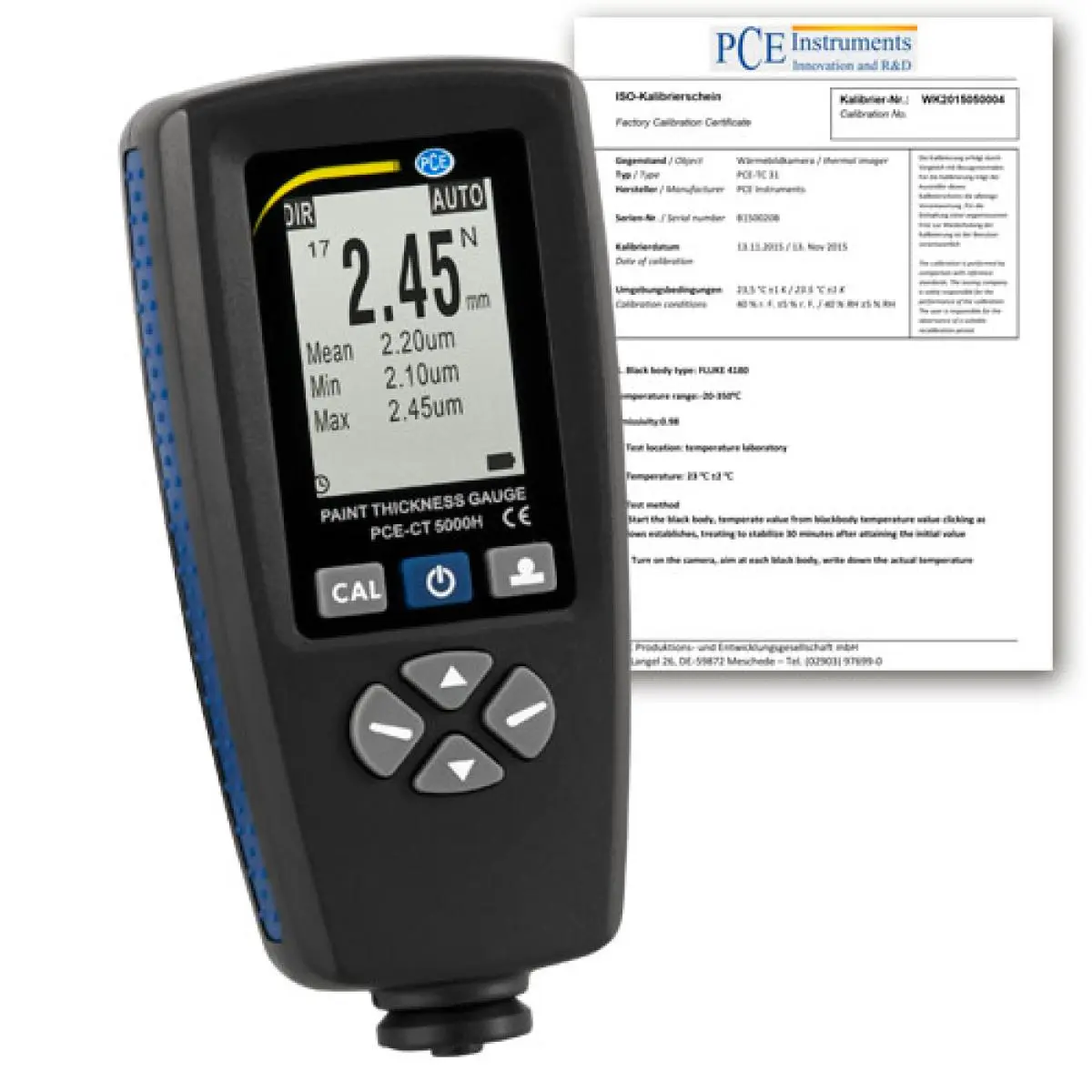

Car Measuring Device PCE-CT 5000H
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous (Type F) and non-ferrous (Type N) metal substrates

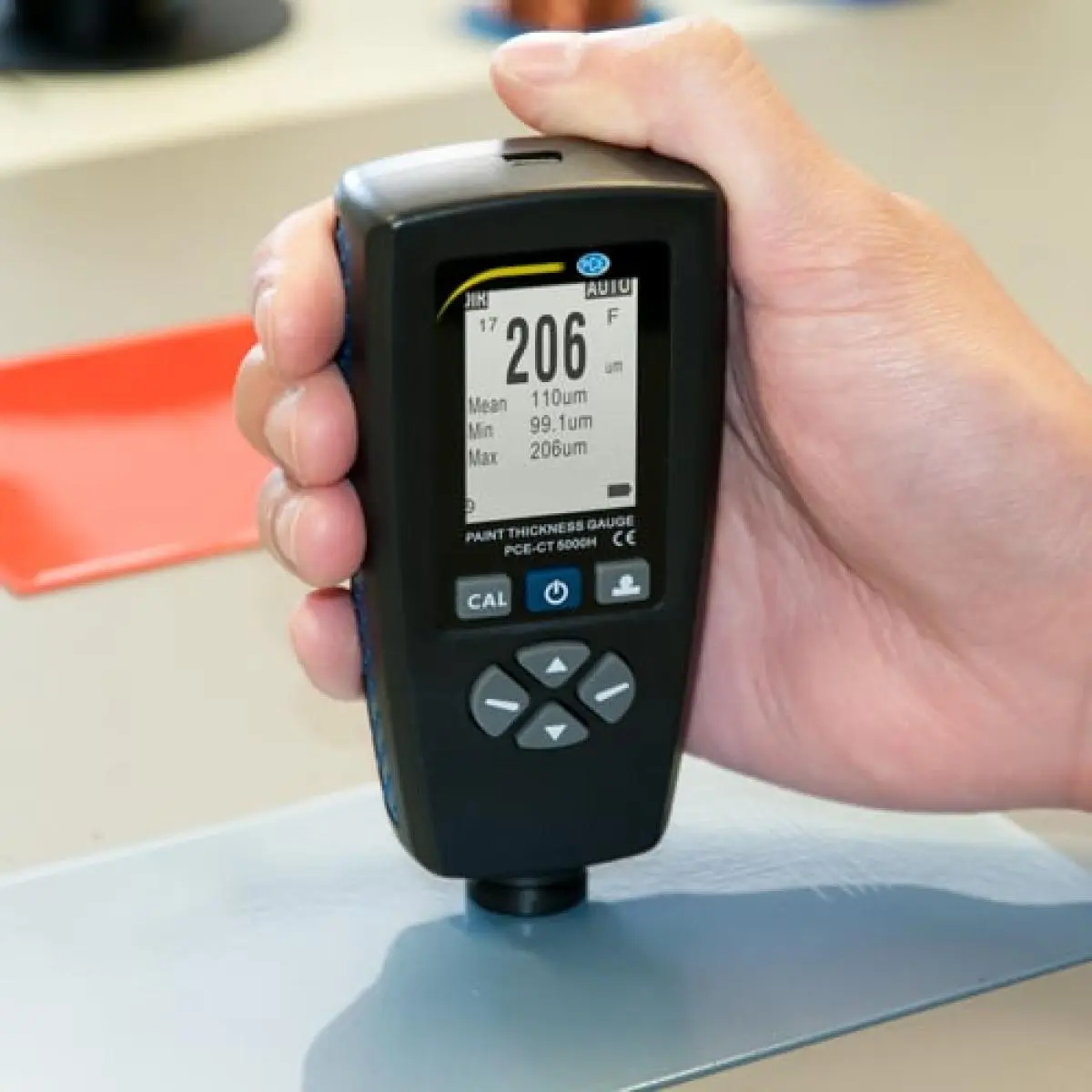

PCE-CT 5000H is a car measuring device used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The car measuring device automatically detects the type of metal to be measured. The car measuring device uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

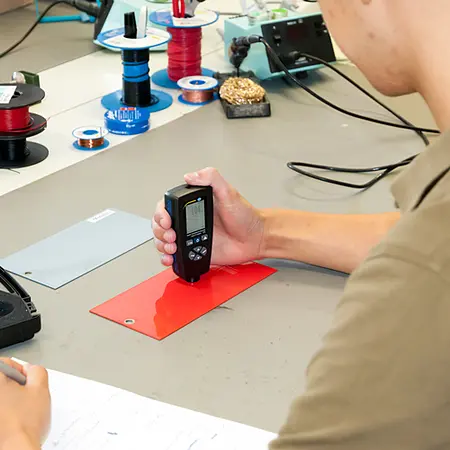

This car measuring device is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the car measuring device to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.
| Layer thickness | |
| Measuring range | 0 ... 99,9 µm |
| Resolution | 0,1 µm |
| Accuracy | ±(2% +1 µm) |
| Layer thickness | |
| Measuring range | 100 ... 999 µm |
| Resolution | 1 µm |
| Accuracy | ±(2% +1 µm) |
| Layer thickness | |
| Measuring range | 1000 ... 5000 µm |
| Resolution | 0,01 µm |
| Accuracy | ±(2% +1 µm) |
| Sensor | |
| Measuring range | 0 ... 3000 mm |
| Battery type | Eddy current mode (NFe) |
| Min. measuring surface | 20 mm |
| Min. layer thickness | 0.05 mm |
| Min. radius of curvature convex | 5 mm |
| Min. radius of curvature concave | 25 mm |
| Sensor | |
| Measuring range | 0 ... 5000 mm |
| Battery type | Magnetic mode (Fe) |
| Min. measuring surface | 20 mm |
| Min. layer thickness | 0.05 mm |
| Min. radius of curvature convex | 5 mm |
| Min. radius of curvature concave | 25 mm |
| General technical data | |

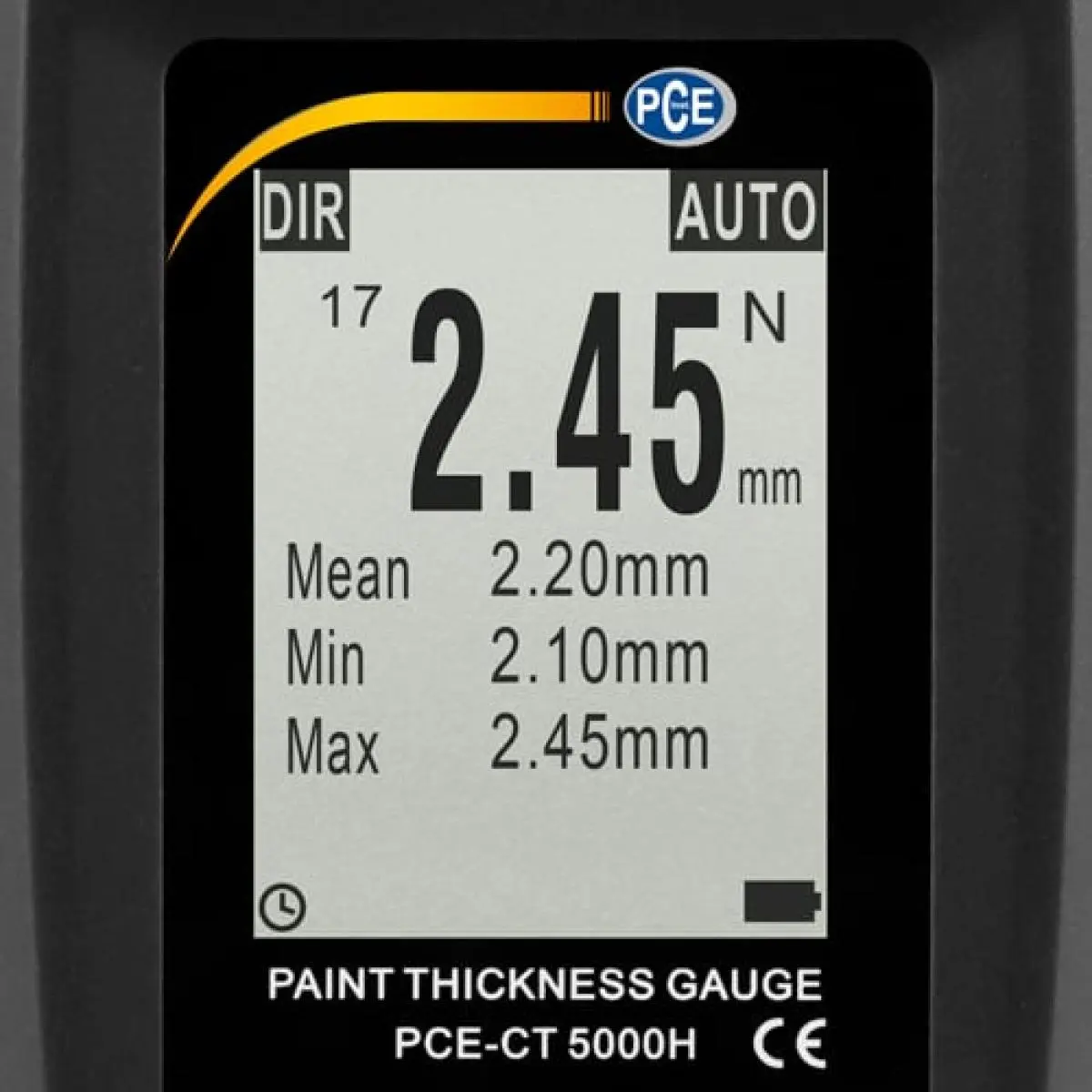

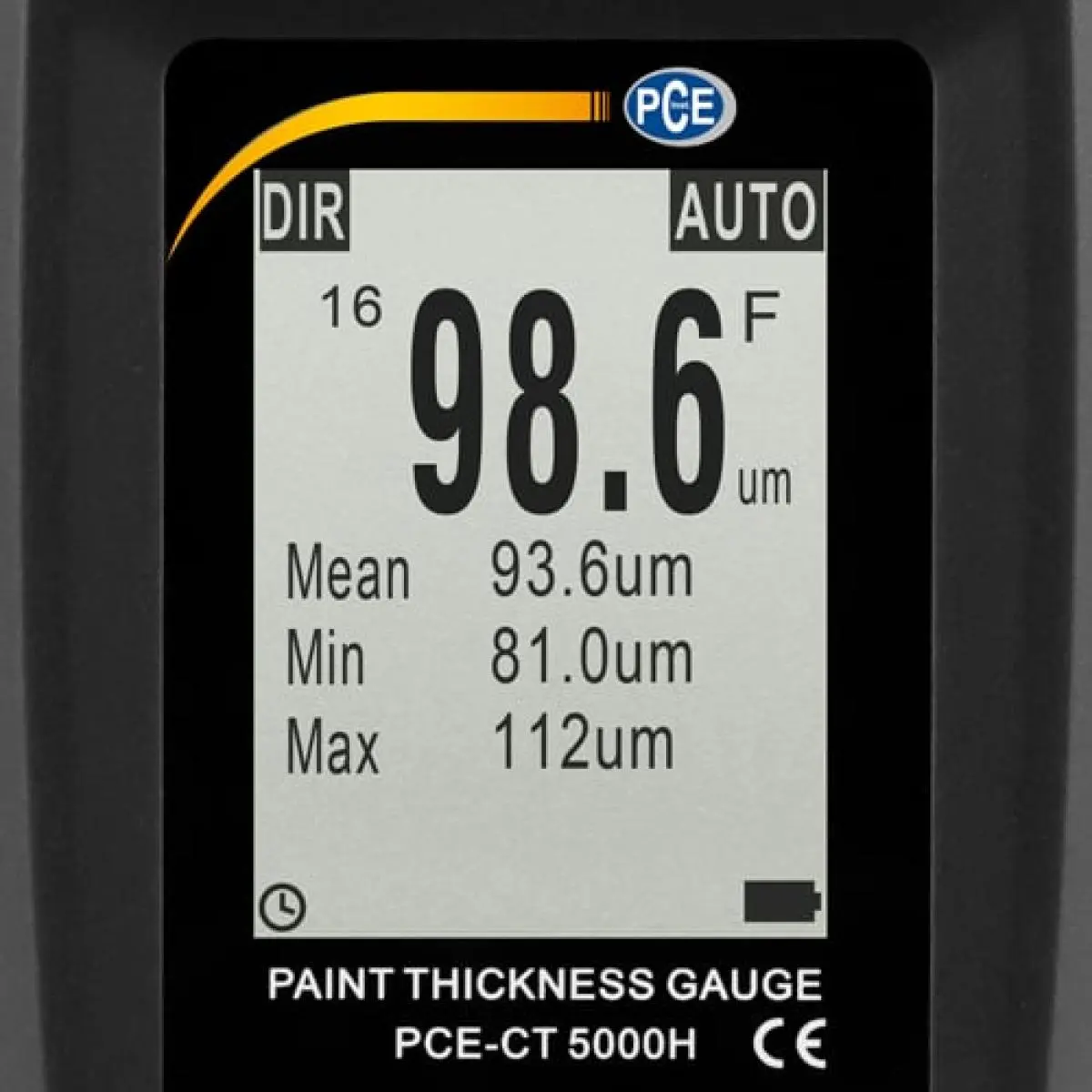

| Measuring functions | MIN, MAX, Average value |
| Units | µm, mm, mils |
| Display type | LCD |
| Display size | 1,6 Inch |
| Display resolution | 128 x 128 |
| Measuring rate | 2 x per second |
| Storage medium | Internal memory |
| Memory information | - Direct measurement: Measurement results are only stored temporarily in RAM and are deleted when the device is switched off; when the RAM is full, the oldest value is is replaced by the latest. - Four data groups (automatic measurement data storage of a maximum of 2000 measured values) are retained when the device is switched off; when the memory is full, the device displays "FL". |
| Interface | Mini-USB |
| Automatic power-off | 3 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Alarm | optical |

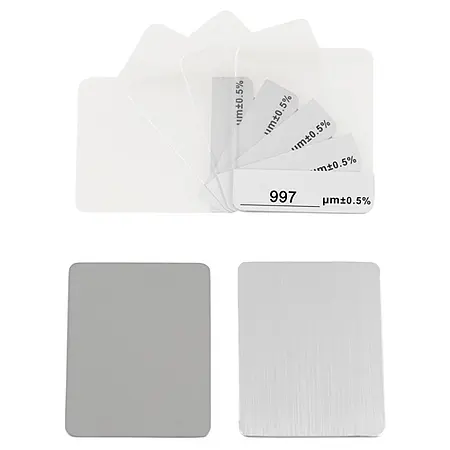

| Calibration | One-point to four-point calibration, zero calibration |
| Alarm settings | 0 ... 5250 µm |
| Menu language | German, English, Russian, Chinese |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 110 x 53 x 24 mm |
| Weight | 74,5 g |
