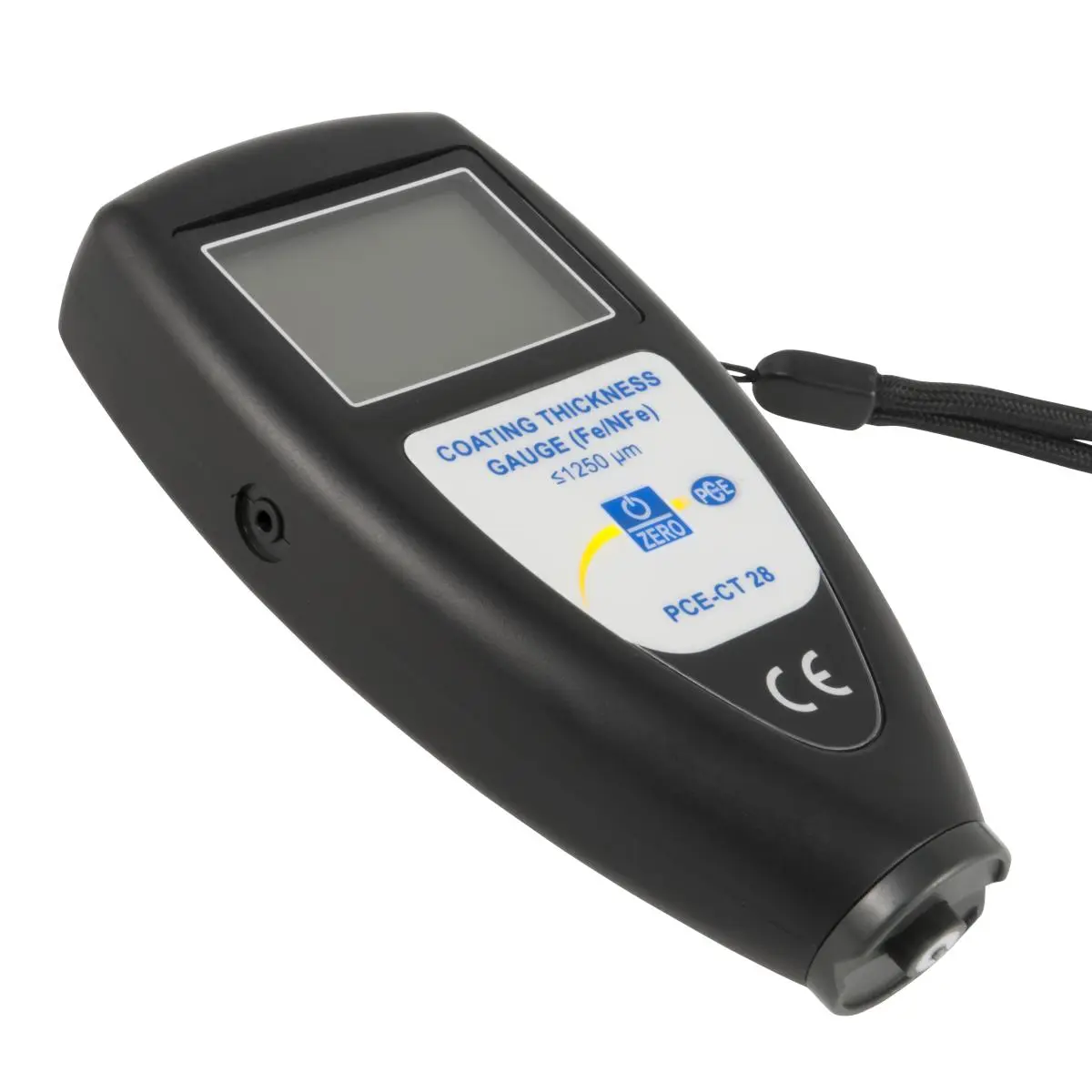

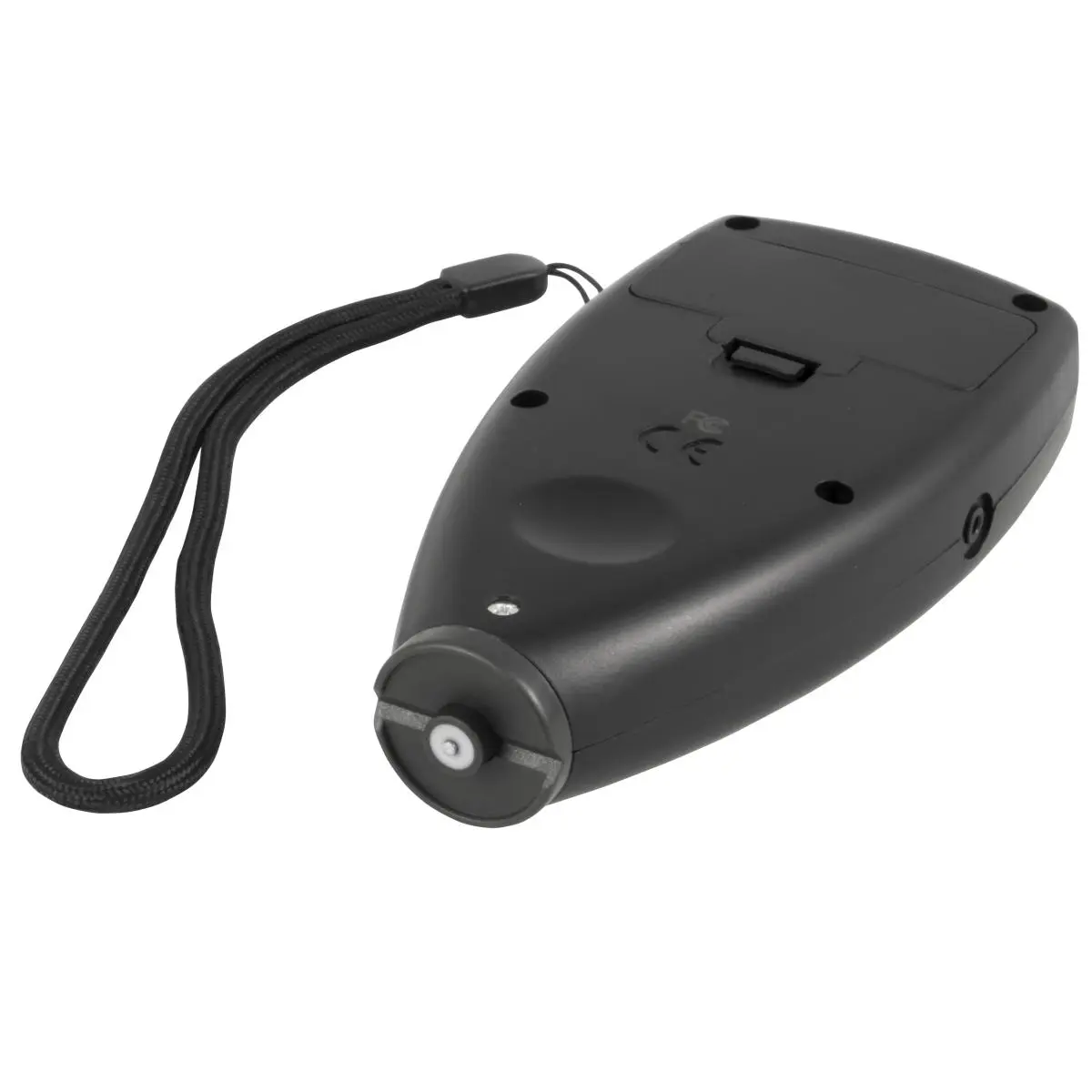

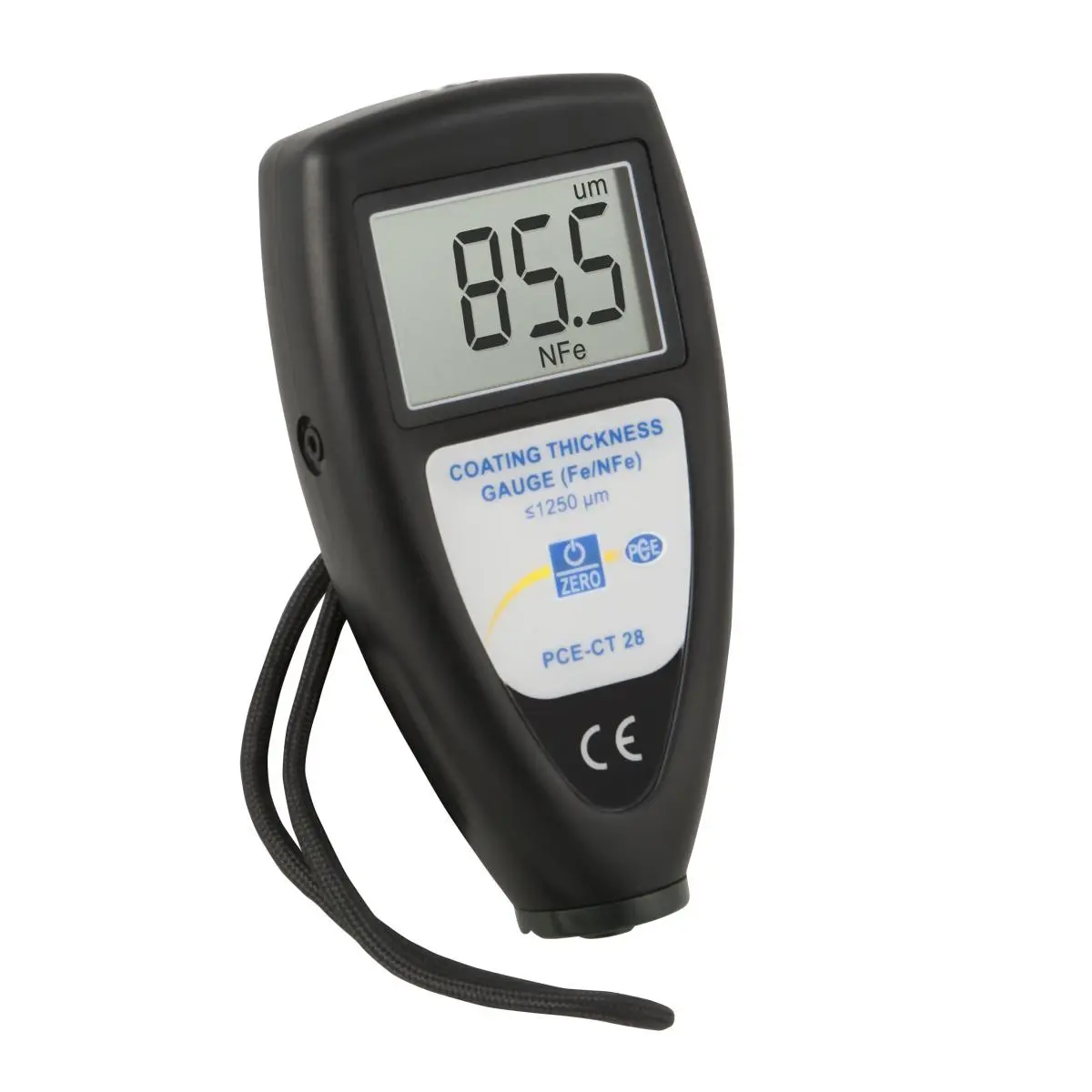

Car Measuring Device PCE-CT 28
Determines thickness of coating on steel or iron (F) / Non-ferrous metals (N) with high range of measurement

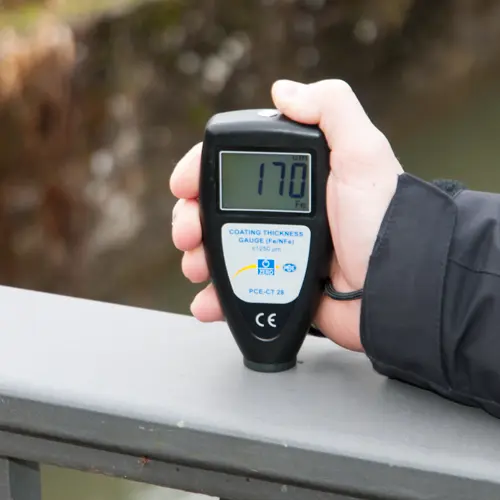

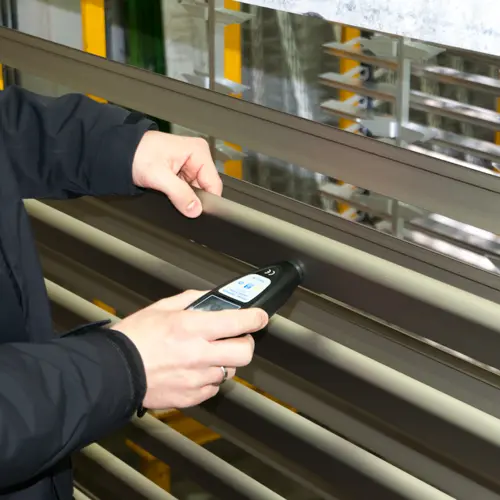

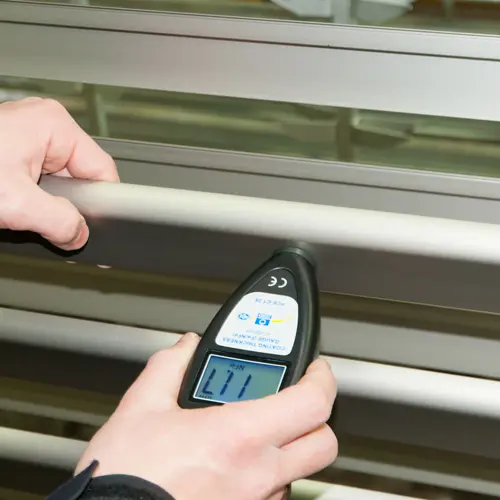

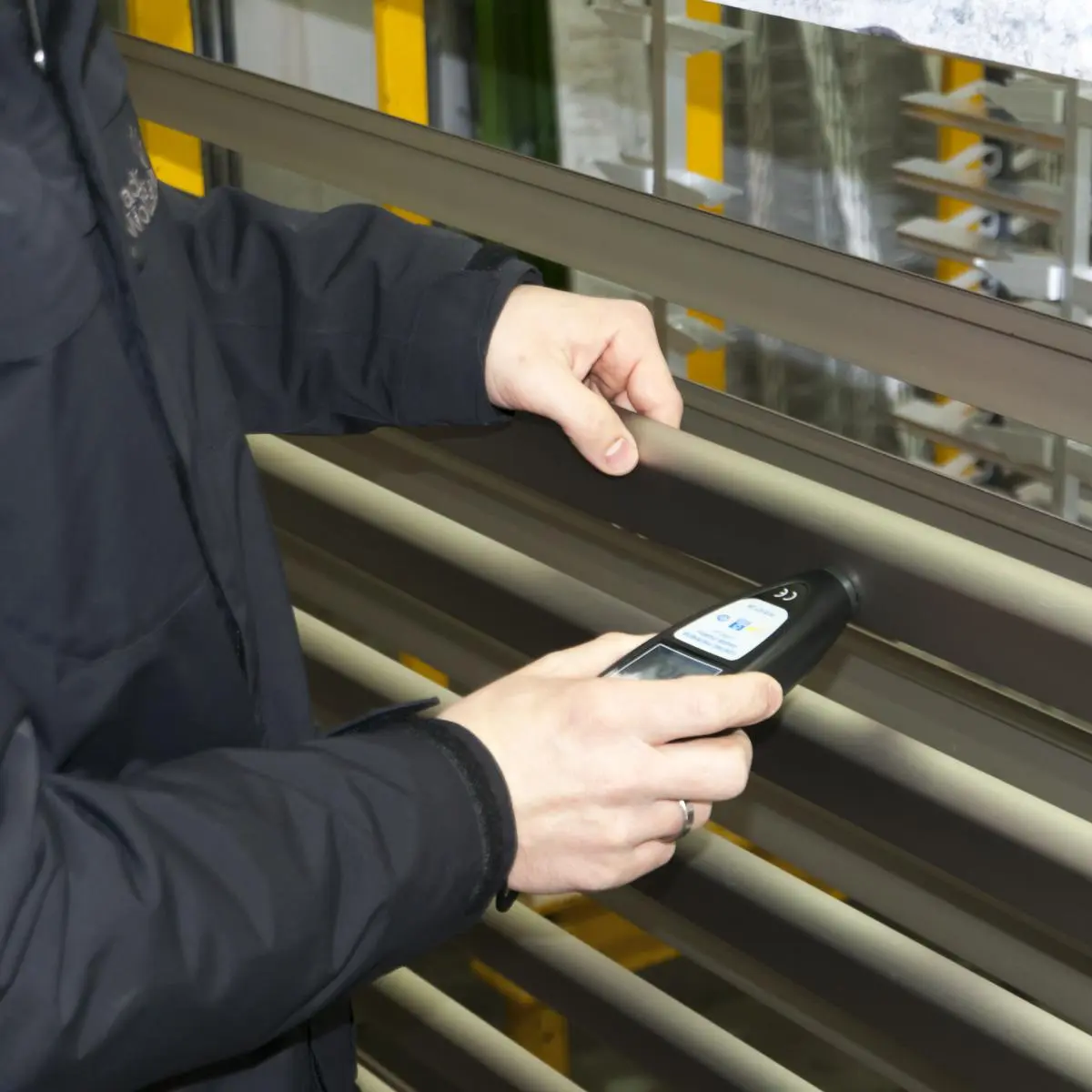

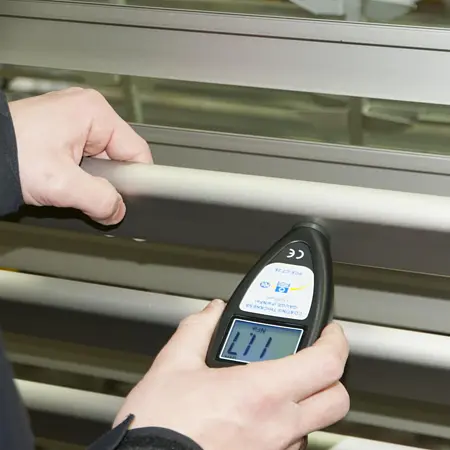

The car measuring device for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous metals without damaging the coating's surface. The car measuring device stands out due to its high range of measurement. This car measuring device works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The car measuring device is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The car measuring device was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the car measuring device is ideal for the naval and metal industries.
| Layer thickness | |
| Measuring range | 0 ... 99,9 µm |
| Resolution | 0,1 µm |
| Accuracy | ±(2 % +2 µm) |
| Layer thickness | |
| Measuring range | 100 ... 1250 µm |
| Resolution | 1 µm |
| Accuracy | ±(2 % +2 µm) |
| Sensor | |
| Battery type | Magnetic mode (Fe), Eddy current mode (NFe) |
| Measurable materials | Fe substrates such as: steel and iron NFe substrates such as: aluminium, brass and copper |
| Min. measuring surface | 6 x 6 mm |
| Min. layer thickness | Fe: 0.3 mm NFe: 0.1 mm |
| Min. radius of curvature convex | 5 mm |
| Min. radius of curvature concave | 60 mm |
| General technical data | |
| Display type | LCD with backlight |
| Display size | 2 Inch |
| Interface | RS232 |
| Automatic power-off | 50 s |
| Number of calibration points | 0 |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 126 x 65 x 25 mm |
| Weight | 96 g |
