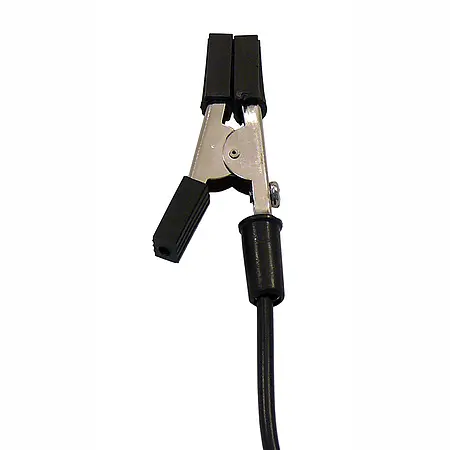

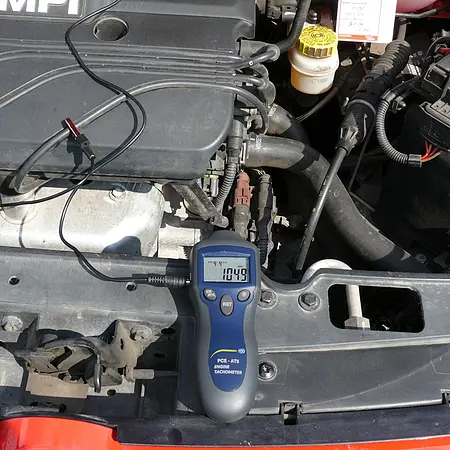

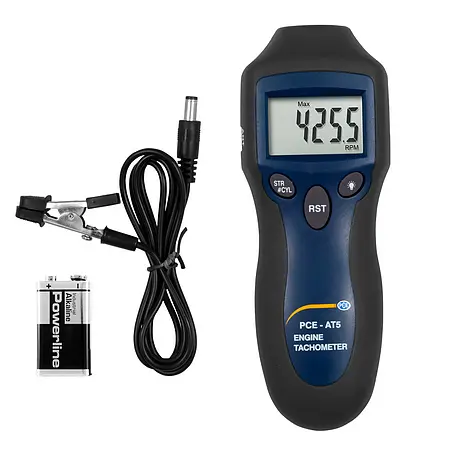

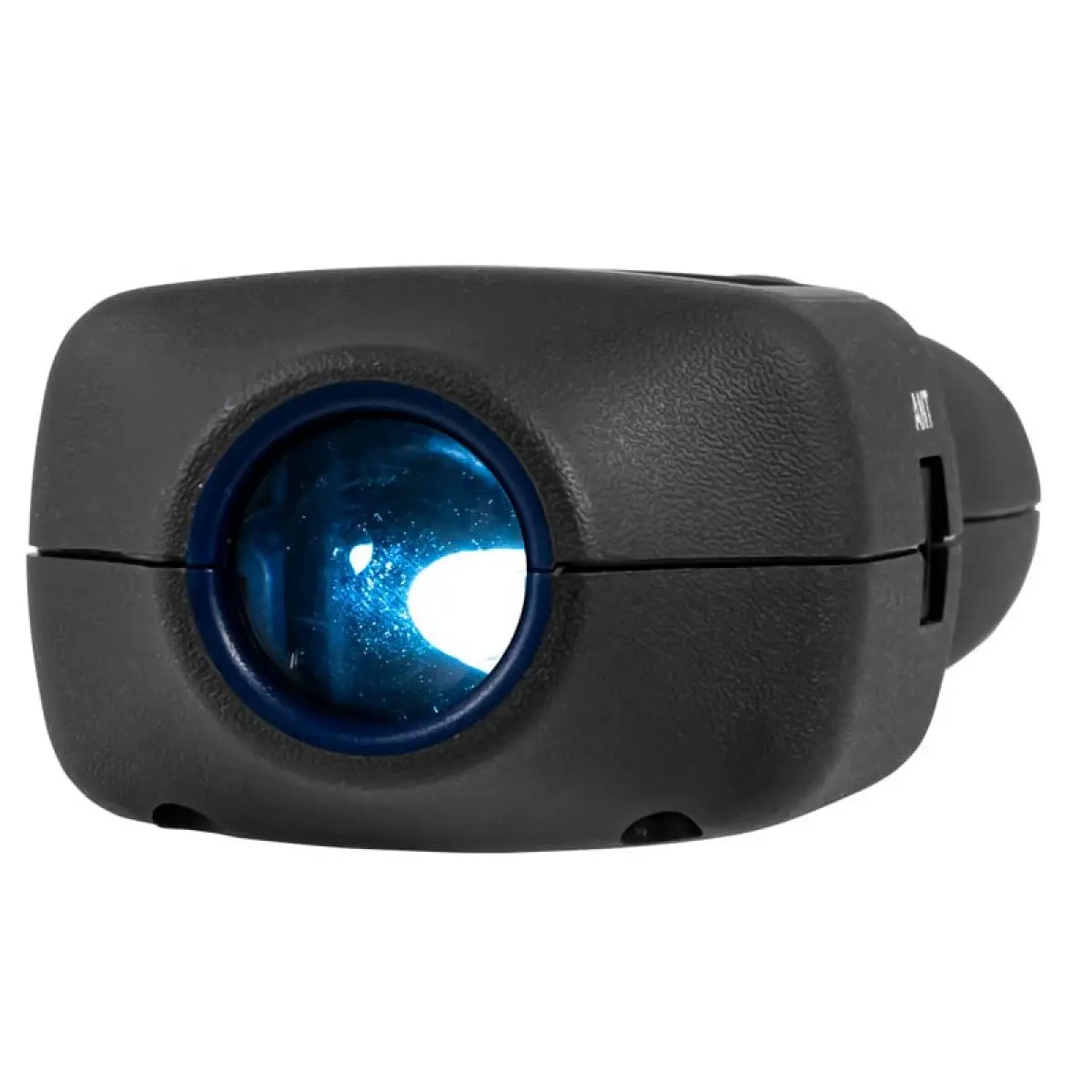

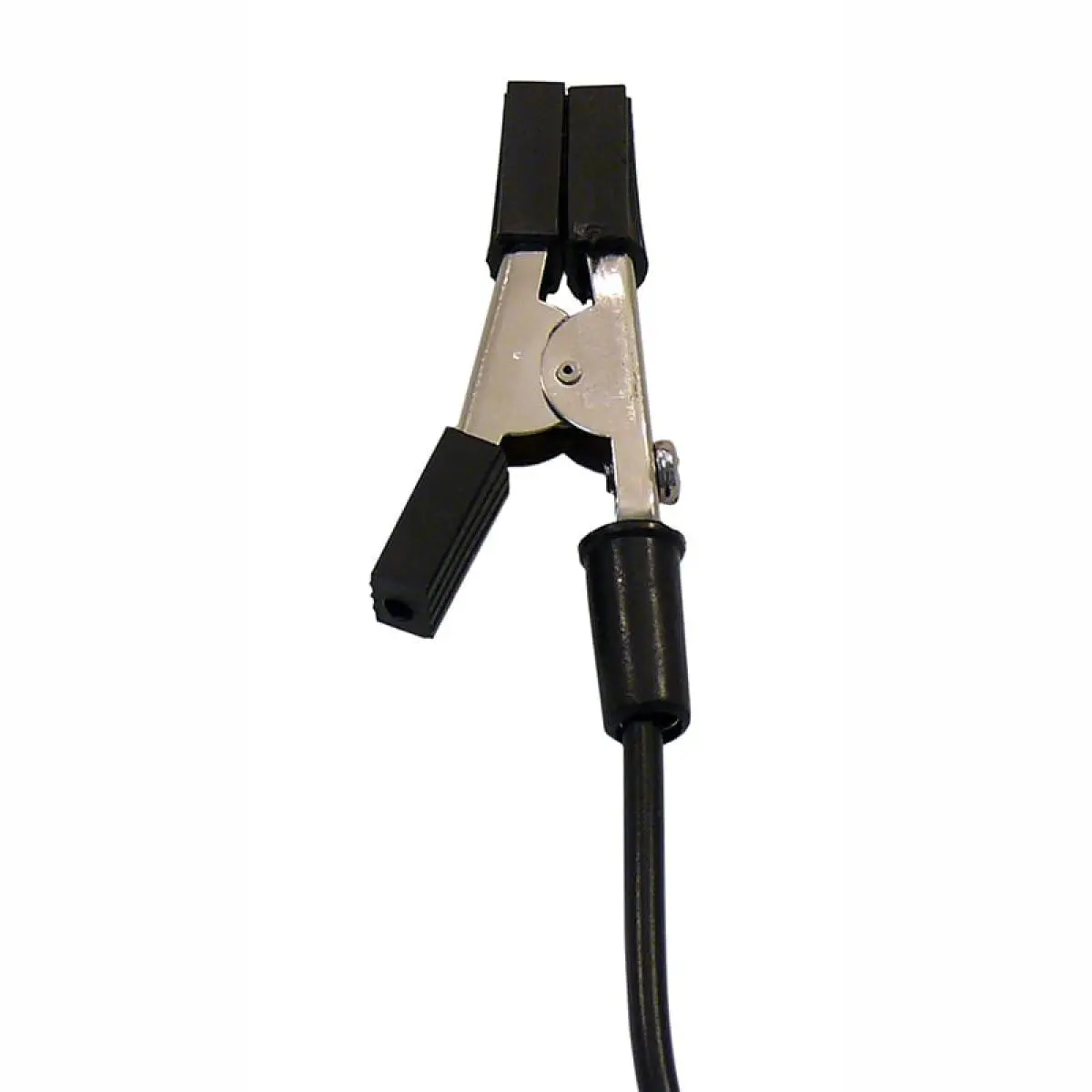

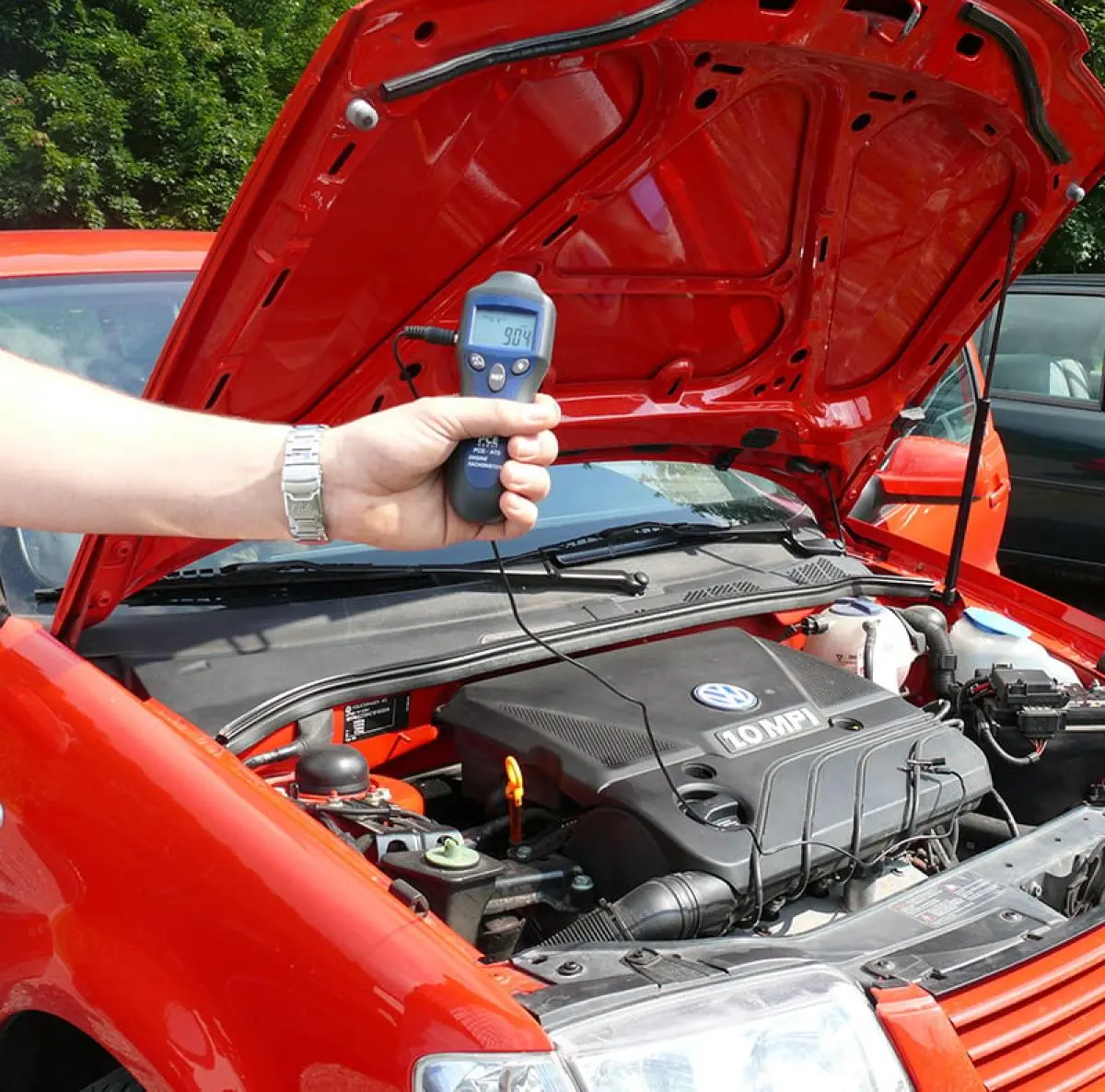

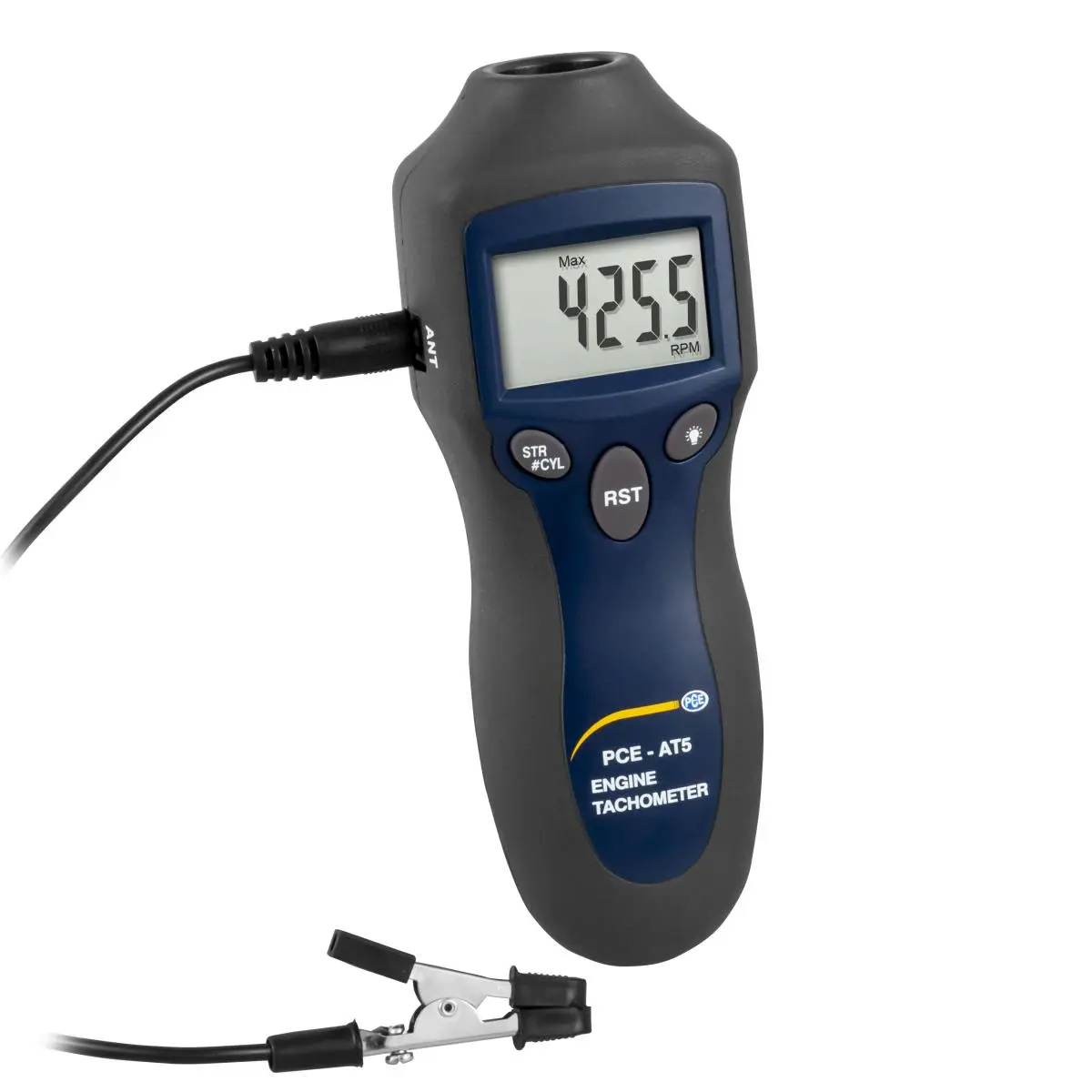

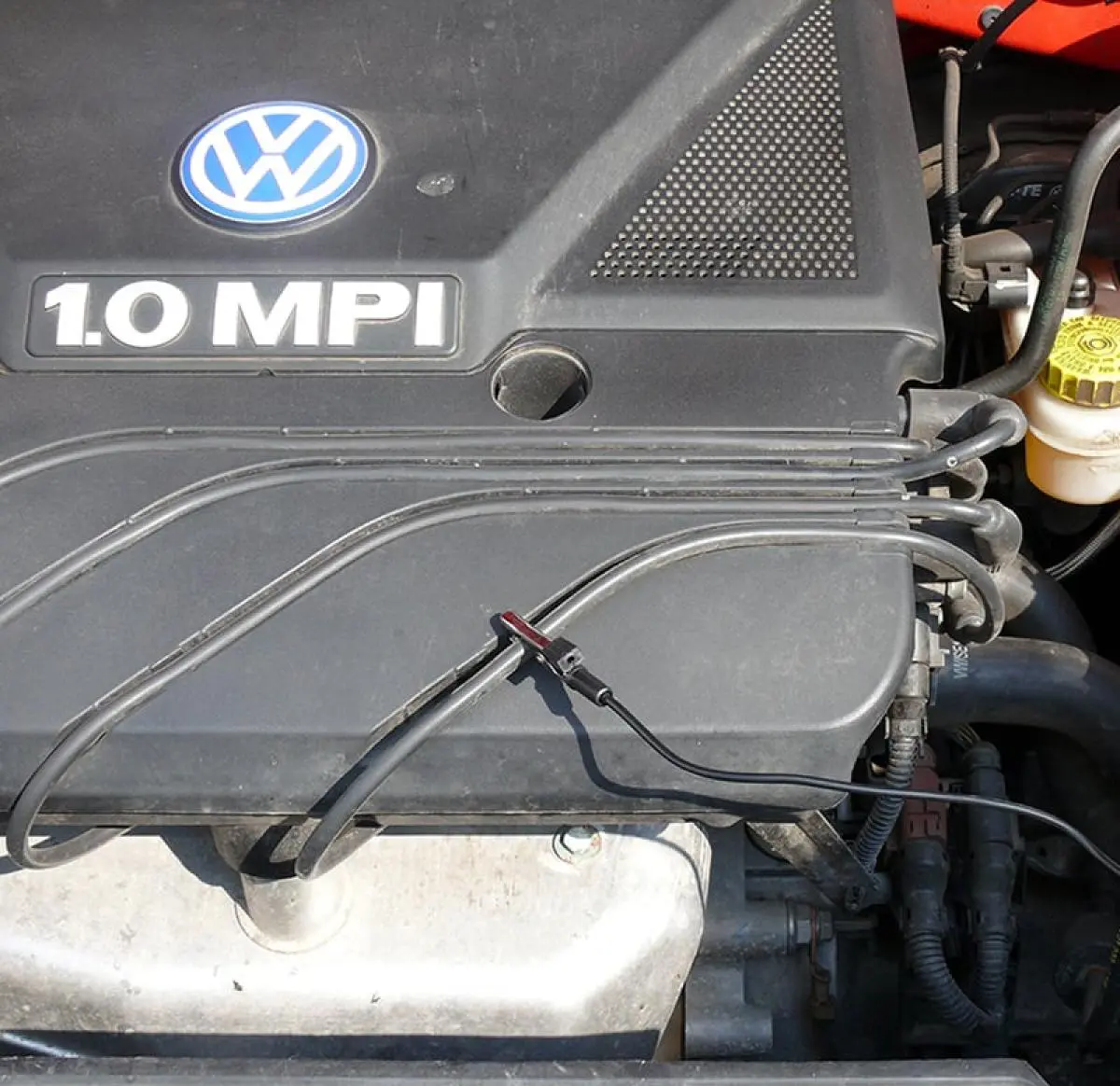

The PCE-AT 5 car measuring device - handheld ignition-tachometer is a portable compact device used to measure revolutions per minute (rpm) in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters. The PCE-AT 5 handheld automotive ignition-tachometer features an easy-to-read, backlit digital LCD display and flashlight functionality for low-light applications. When the inductive clip is placed on the ignition cable, revolutions are measured quickly and easily. Compatible with motorcycles, cars, trucks and more, the PCE-AT 5 rotation meter is a versatile tool for use in garages, repair shops, factories and research and development (R&D) laboratories alike.
| Inductive speed | |
| Measuring range | 100 ... 20000 RPM |
| Resolution | 1 RPM |
| Accuracy | ±10 RPM |
| General technical data | |
| Display type | LCD with backlight |
| Display size | 1,7 Inch |
| Measuring method | Counting pulses |
| Measuring interval | 0,5 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 160 x 58 x 39 mm |
| Weight | 177 g |
