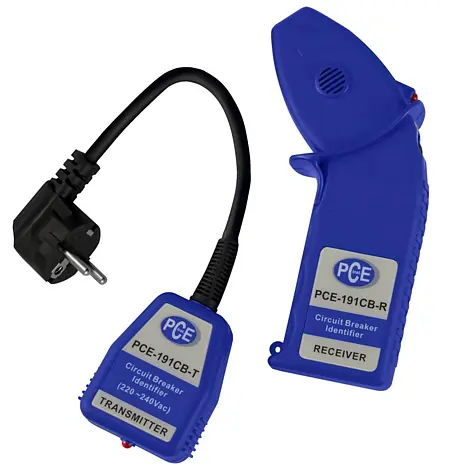

Cable Locator PCE-191 CB

Order no.: PCE-191 CB

GTIN (EAN): 4250348702401

Description

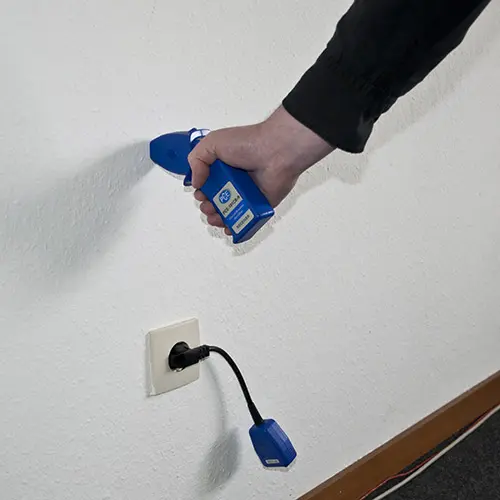

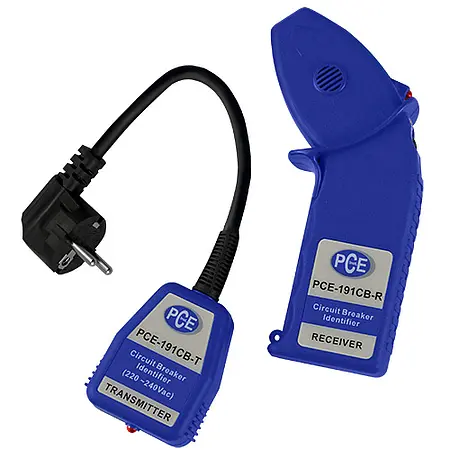

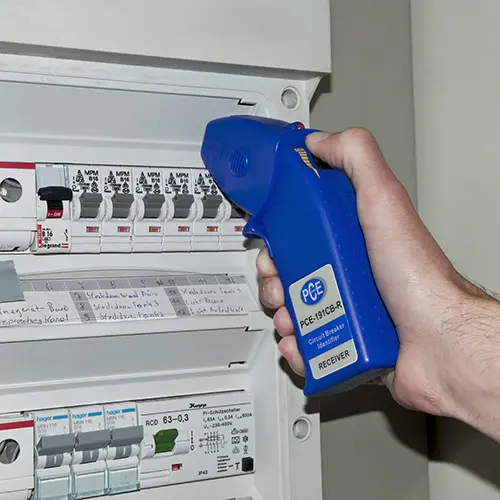

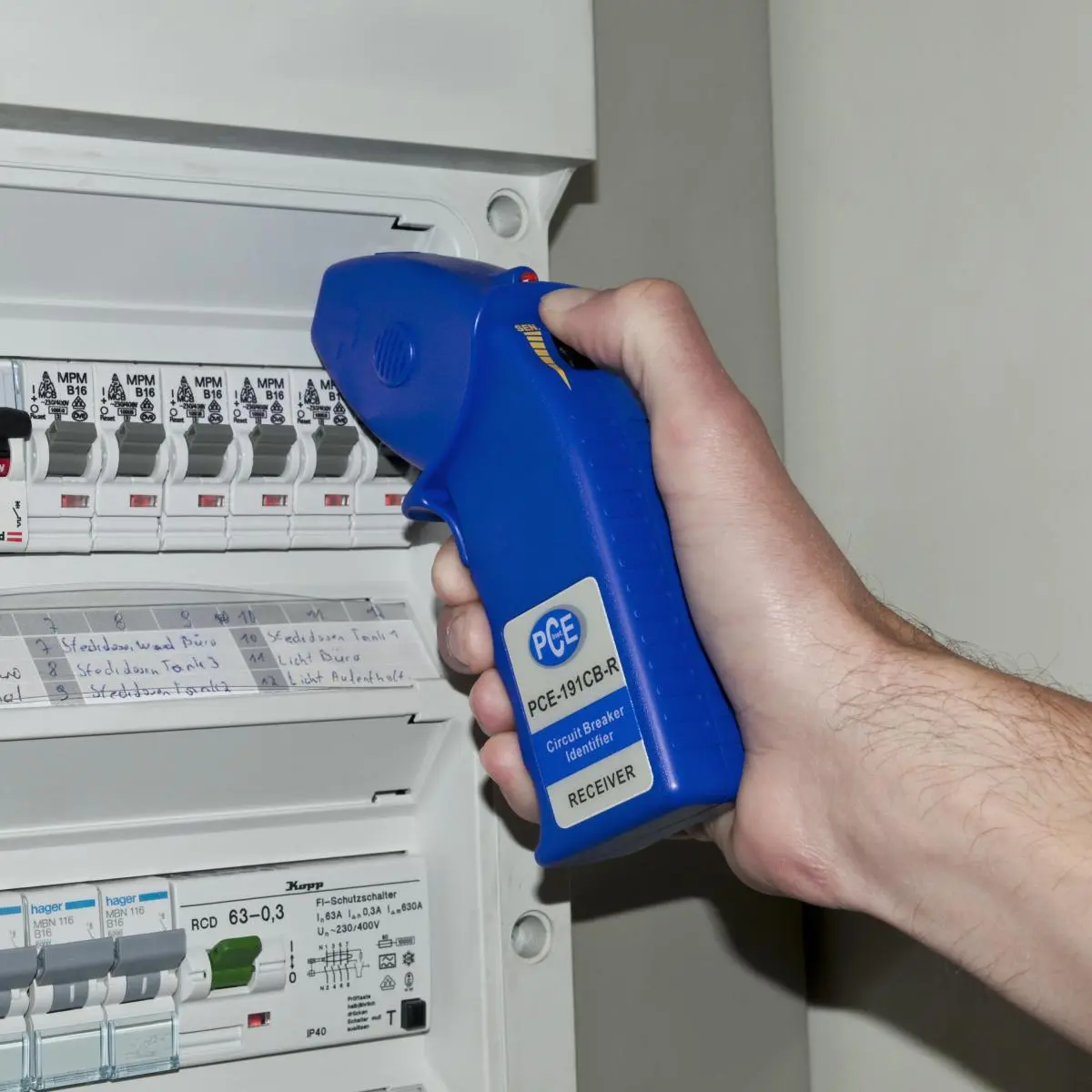

PCE-191 CB is a handheld, portable wire tracer, cable detector or cable fault meter used for locating wires and cables hidden behind walls and insulation. Comprised of a signal transmitter and receiver, this easy-to-use cable locating device emits an acoustic alarm.

Highlights

- Detects live cables and wires (it is not necessary to remove the fuse)

- Compact design

- CE, IEC / EN 61010-1:01 safety ratings

Specification

General technical data
Measuring depth	10 cm
Protection class (device)	IP20
Power supply	220 ... 240V AC \| 50/60 Hz
Connector type	Schuko plug
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 40 °C , 10 ... 90 % RH
Storage conditions	-20 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )	55 x 35 x 165 mm
Other dimensions	Transmitter: - L: 53 W: 28 H: 63 mm - Cable: 185 mm
Weight	110 g
Other weights	Transmitter: 85 g
