Building Moisture Meter / Building Material Moisture Meter PCE-PMI 3

Building Moisture Meter PCE-PMI 3

Order no.: PCE-PMI 3
GTIN (EAN): 4250348722263
£ 231.00
£ 277.20
price ex. (VAT / delivery)
:
4250348722263
PCE-PMI 3
Delivery time:1-2 working days

Description

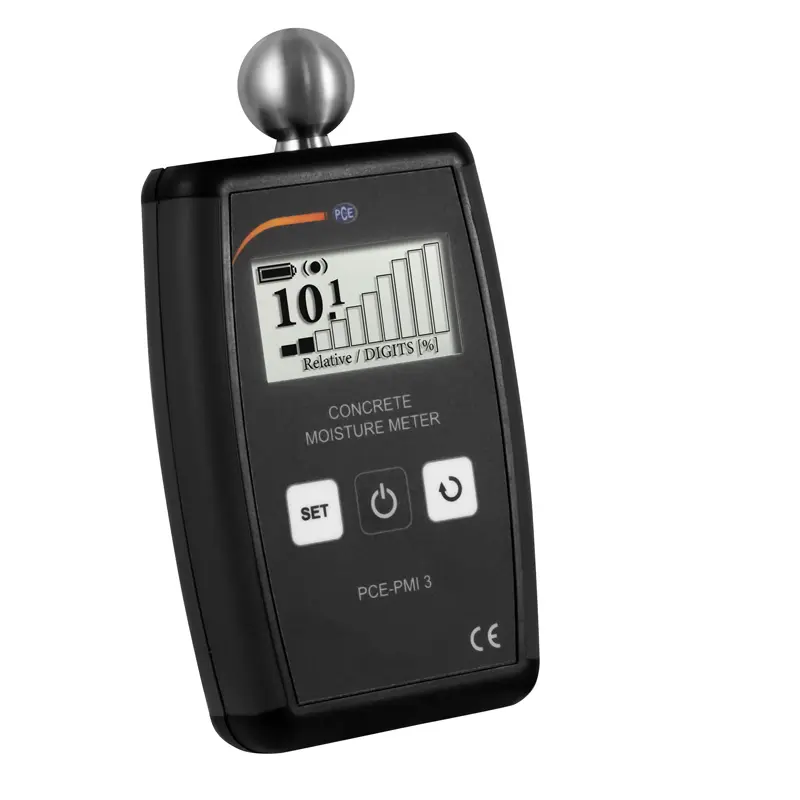

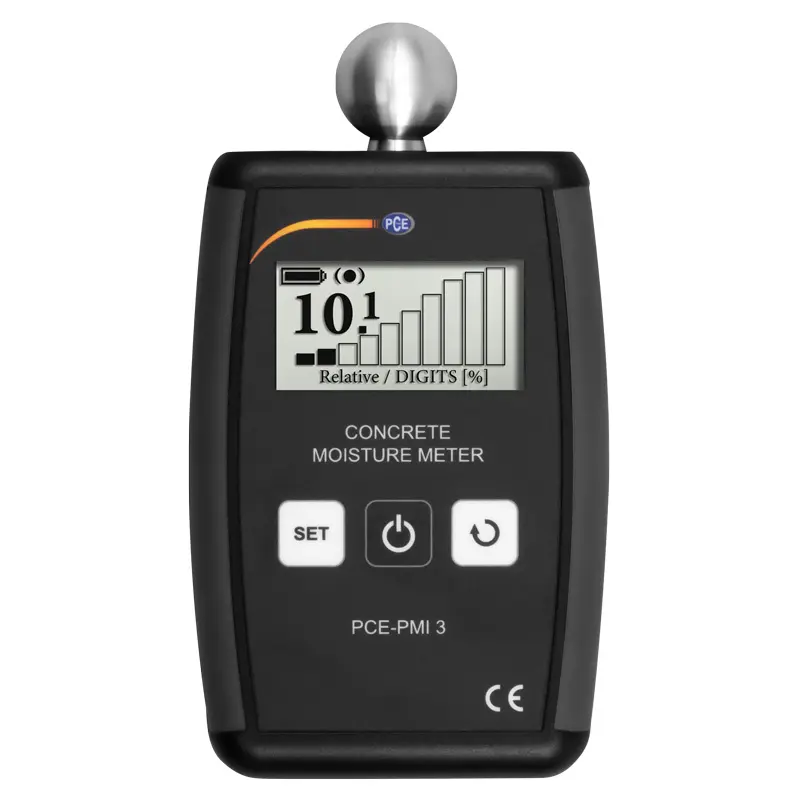

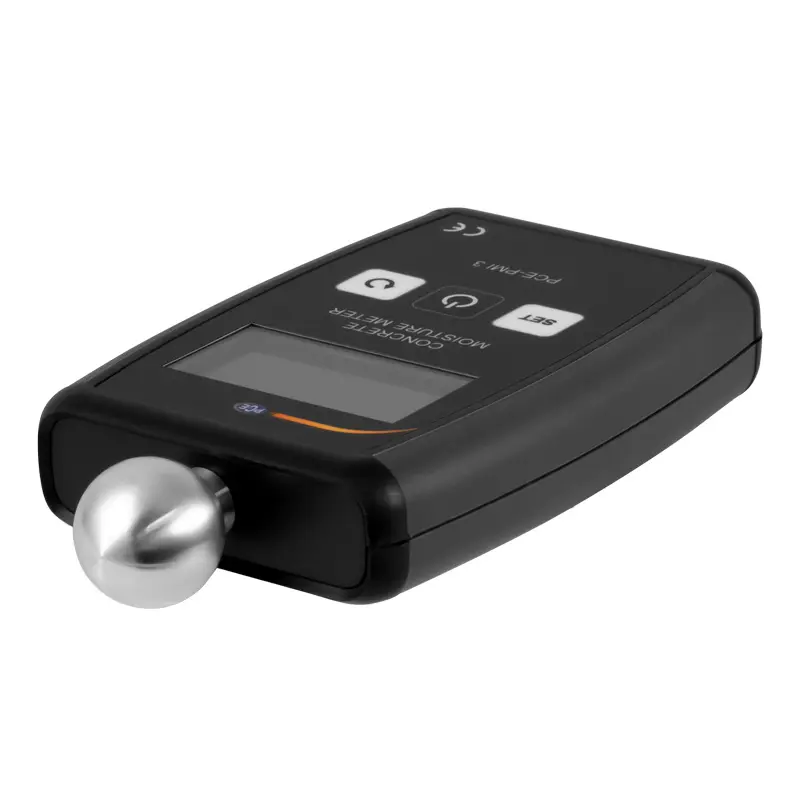

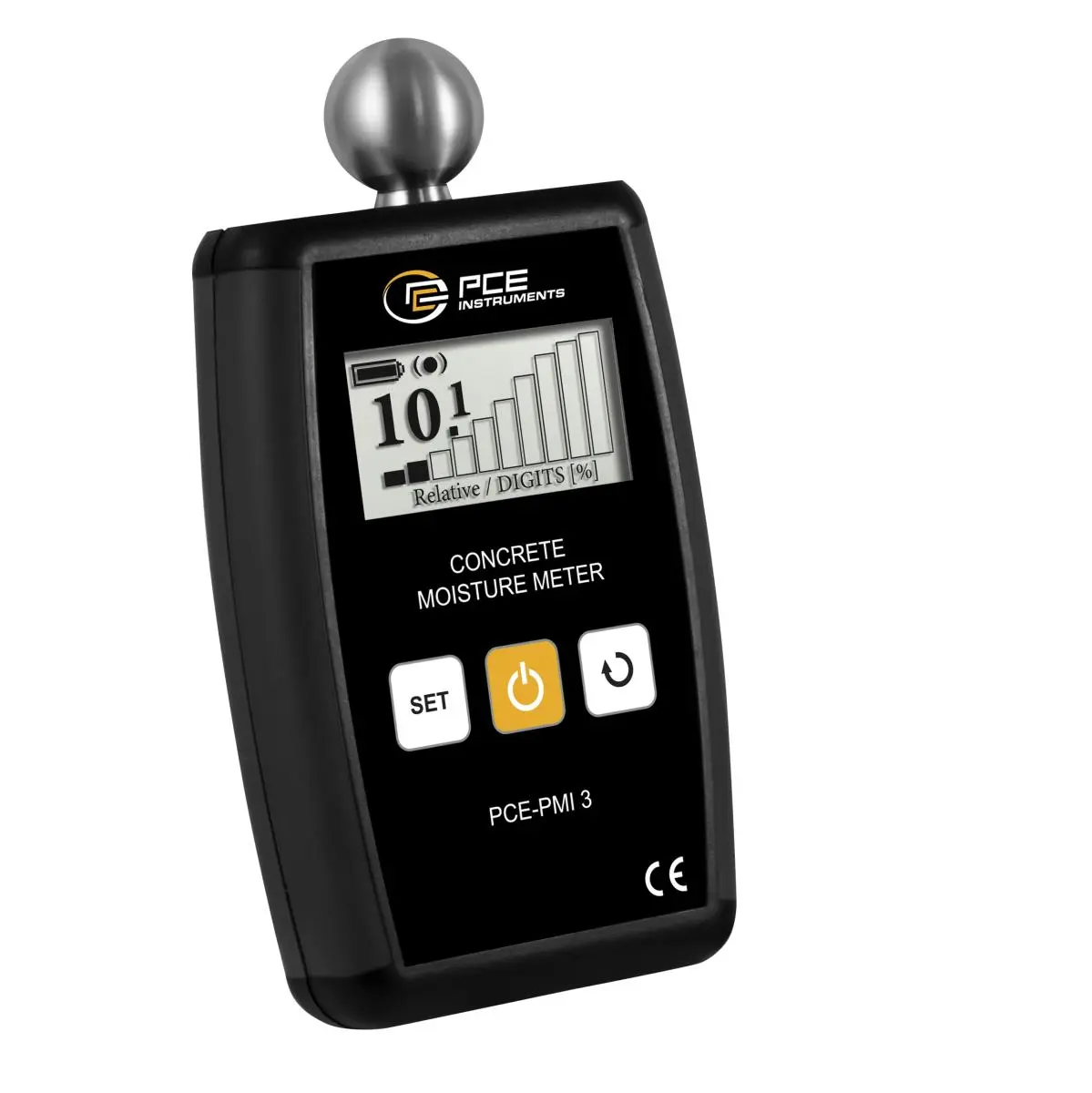

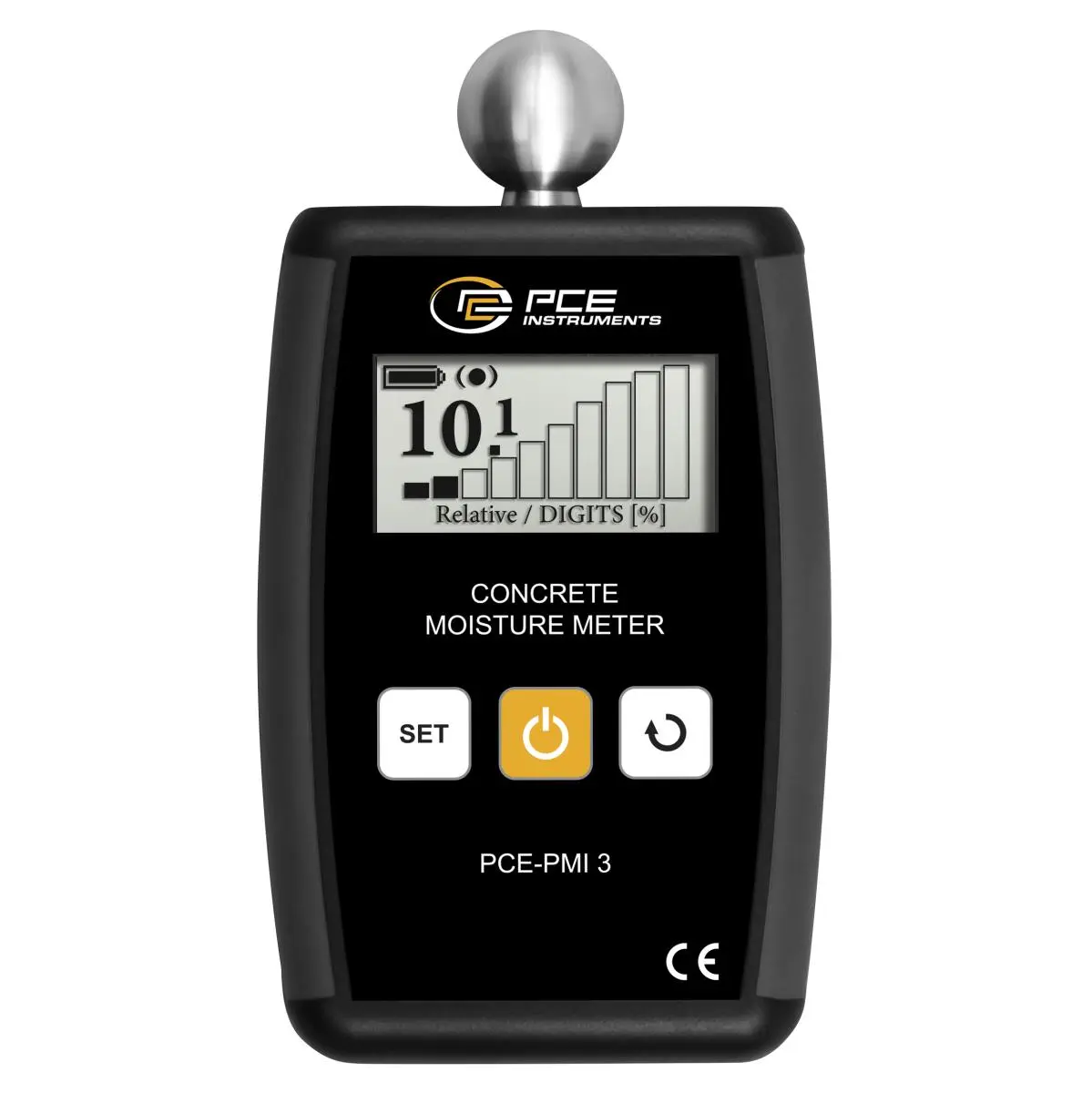

Building Moisture Meter
Moisture meter with different menu languages ​​/ Digitally rotatable display / Automatic shutdown for battery saving / For concrete and wood

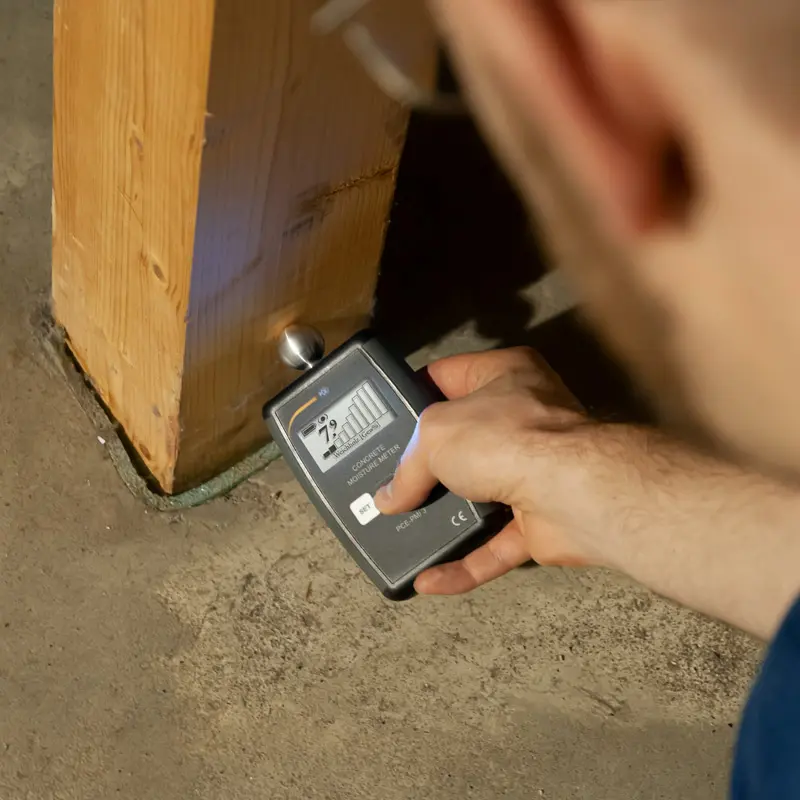

The building moisture meter is a small and reliable measuring instrument for the determination of existing moisture in, for example, concrete and wood. Corresponding scales for measuring moisture are already stored in the library of the building moisture meter. After selecting the scale, the required measurement can be carried out with the building moisture meter. The measurement result is displayed on the building moisture meter both numerically and graphically after a few seconds.

For each scale in the building moisture meter, a separate alarm limit can be stored. As soon as the set alarm limit is exceeded, the building moisture meter will sound an audible alarm. In order to save the inserted batteries with the building moisture meter, the meter shuts itself off after 5 minutes if not used.

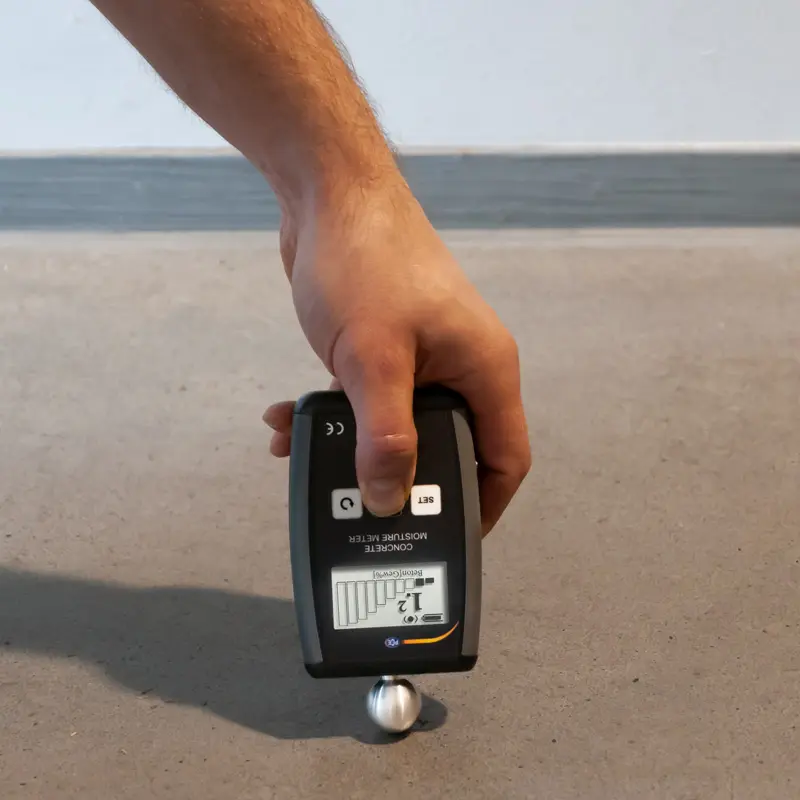

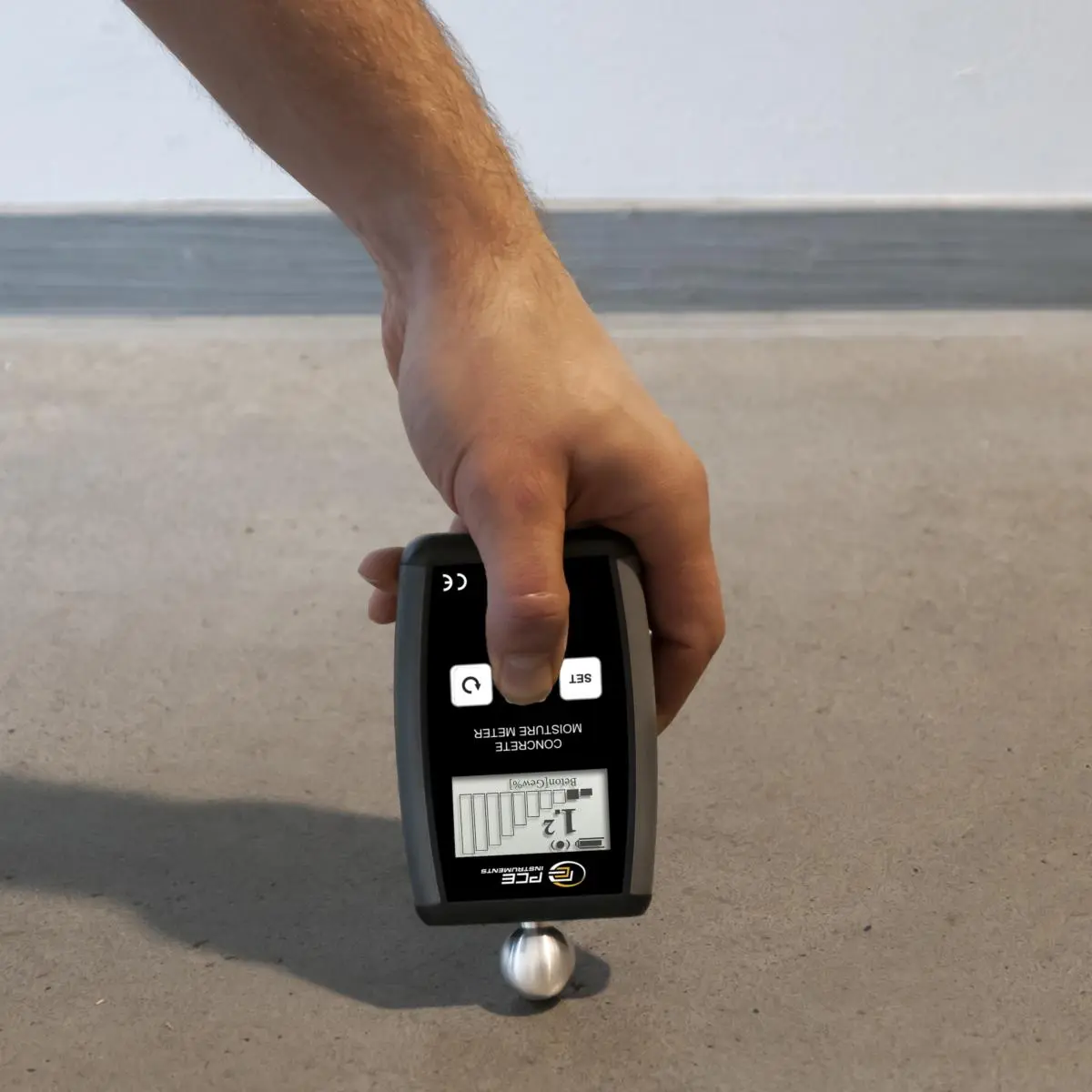

Another special feature of the building moisture meter is the possibility of displaying the calcium carbide method (CM%) for screed. Also in this measurement, the building moisture meter is placed on the surface to be tested. Based on the corresponding scale, the measured value is converted into a CM% value (calcium carbide method). This gives the operator a guideline value via the calcium carbide method.

Highlights

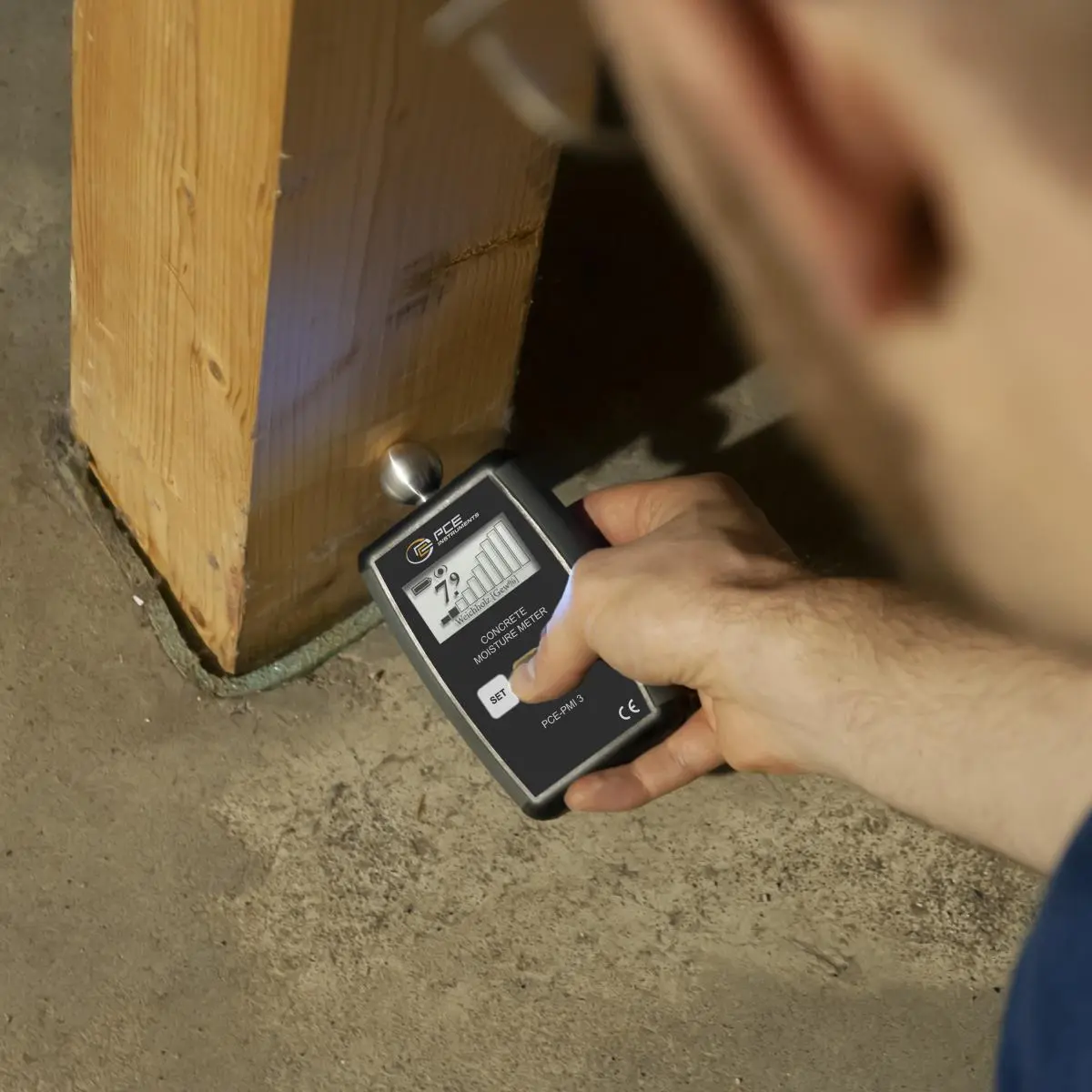

- For measurements on wood and concrete

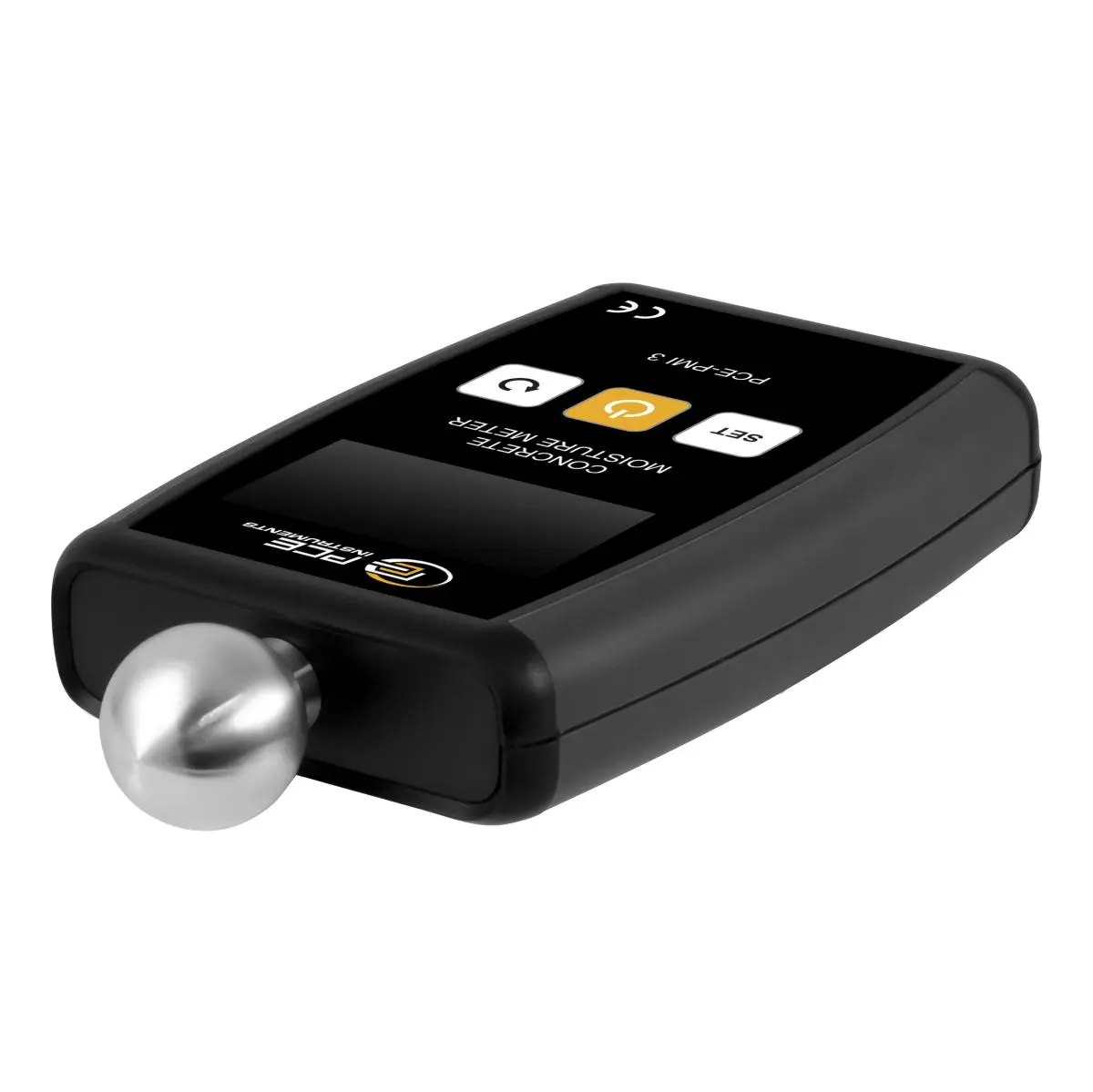

- Ergonomic shape with anti-slip rubber
- Individually adjustable alarm limits
- Numeric and graphical view
- Easy three-button operation
- Automatic shutdown

Specification

Humidity
Material  Anhydrite screed (% by weight)
Measuring range  0 ... 3,5 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Anhydrite screed (CM%)
Measuring range  0 ... 1,5 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (% by weight)
Measuring range  0 ... 4,7 %
Resolution  1,5 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (CM%)
Measuring range  0 ... 3 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Concrete (weight %)
Measuring range  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Gypsum plaster (weight %)
Measuring range  0 ... 10 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Hardwood (weight %)
Measuring range  0 ... 37 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Softwood (weight %)
Measuring range  0 ... 51 %
Resolution  0,1 %
Accuracy  ±0.5%

Relative humidity
Measuring range  0 ... 99,9 %
Resolution  0,1 %
Accuracy  ±0.5%

General technical data
Display type  LCD with backlight
Display size  2,73 Inch
Operating time  20 h
Automatic power-off  5 min
Menu language  English, German, Dutch, Spanish, French
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  5 ... 40 °C , 10 ... 90 % RH
Storage conditions  5 ... 40 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  147 x 89 x 33 mm
Weight  150 g

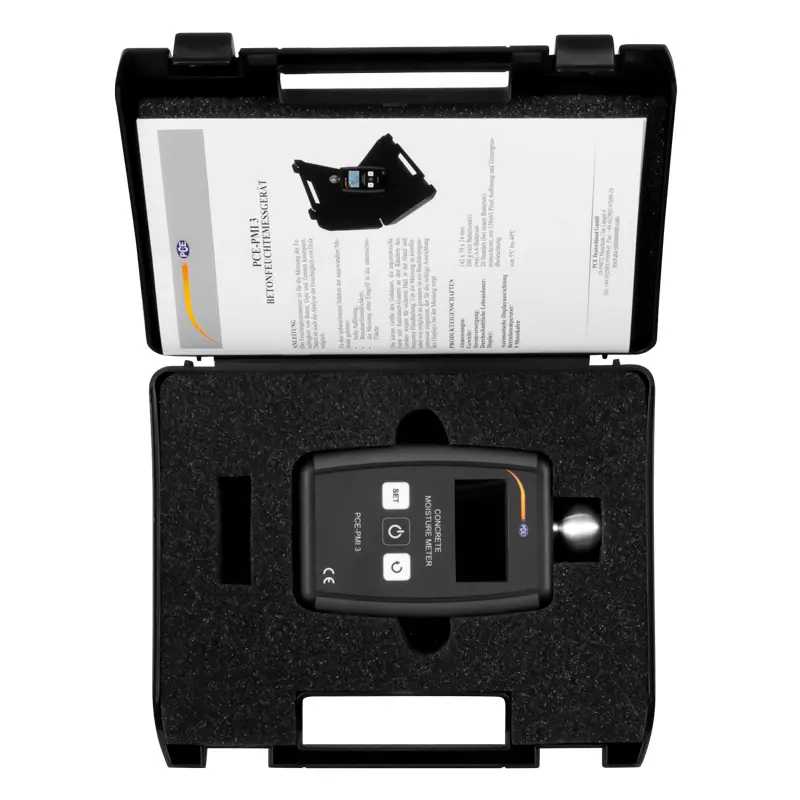

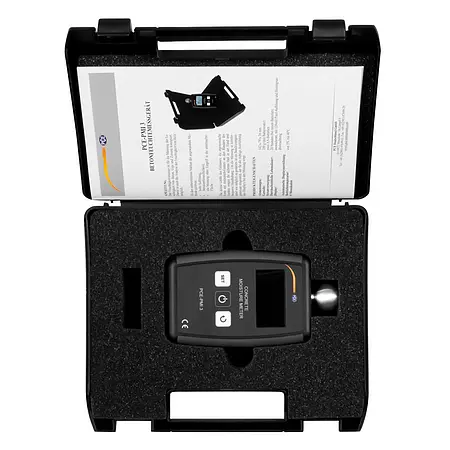

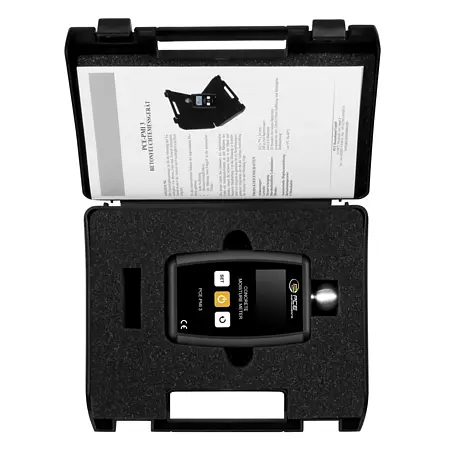

Delivery Scope

1 x Building Moisture Meter / Building Material Moisture Meter PCE-PMI 3
1 x Carrying case
2 x 1.5V AA battery
1 x Operating instructions
