Industrial Borescope PCE-VE 380N

Order no.: PCE-VE 380N

£ 1,237.00
£ 1,484.40
4250348711953
PCE-VE 380N
price ex. (VAT / delivery)
Flexible
No
28 mm
30 m
320 x 240 / 640 x 480 pixels
Digital
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Delivery time: 1-2 working days

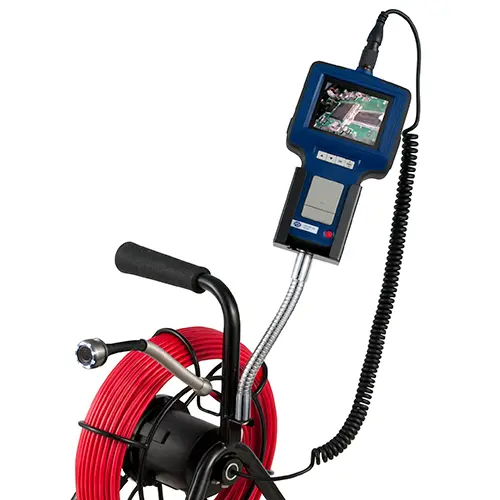

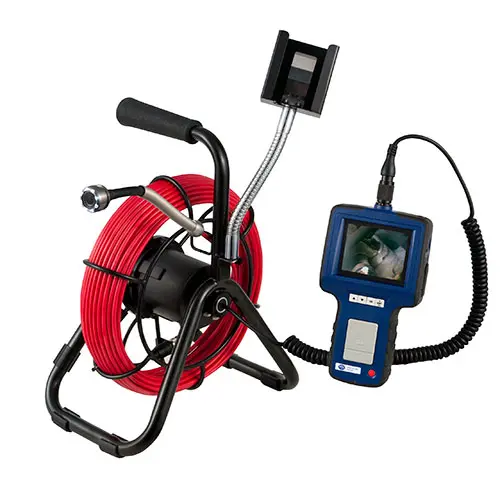

PCE-VE 380N Industrial Borescope
Waterproof downhole video inspection camera or industrial endoscope with 30 m / 98 ft long cable on reel

PCE-VE 380N is an industrial borescope or inspection camera with a handheld monitor that allows you to gain valuable visual insight into the inner workings of machines and other small spaces such as ventilation ducts, drainpipes and downpipes, sewer pipes, chimneys and more.

This semi-flexible / semi-rigid waterproof inspection camera is ideal for a variety of industrial and trade applications. With a sleek 28 mm / 1.11 in diameter waterproof camera head, PCE-VE 380N is a user-friendly inspection scope that can handle bends in pipes with diameters of only 90 mm / 3.54 in. Images and video can be stored directly on the device or on the memory card.



***Not for medical use***

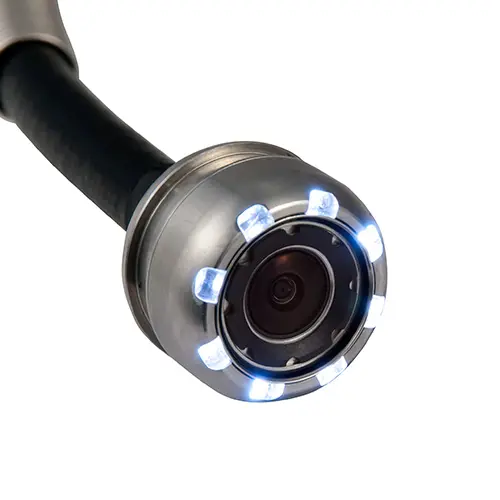

- Camera head with only 28 mm / 1.1" diameter
- Camera head waterproof
- Bright LED lighting
- Includes handset
- Push-pull cable on a reel with 30 m / 98ft 5" length
- Battery operation
- SD memory card
- Supplied in a case complete with centering star

Cable diameter

28 mm / 1.11 in

Cable length

30 m / 98 ft

Depth of field

10 mm … ∞ / 0.4 in to infinity

Field of view

150.8°

Bending radius 90 mm / 3.54 in
Illumination 8 LEDs
Image sensor CMOS / 640 x 480
Picture rate 30 / sec.
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 9.98 kg / 22 lbs
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft

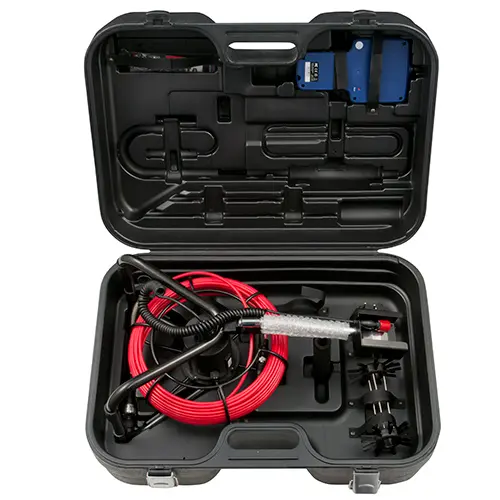

1 x Industrial Borescope PCE-VE 380N
1 x Camera cable on a roll
1 x Centering star
1 x 8GB SD memory card
1 x Carrying case
