Order no.: PCE-WS P

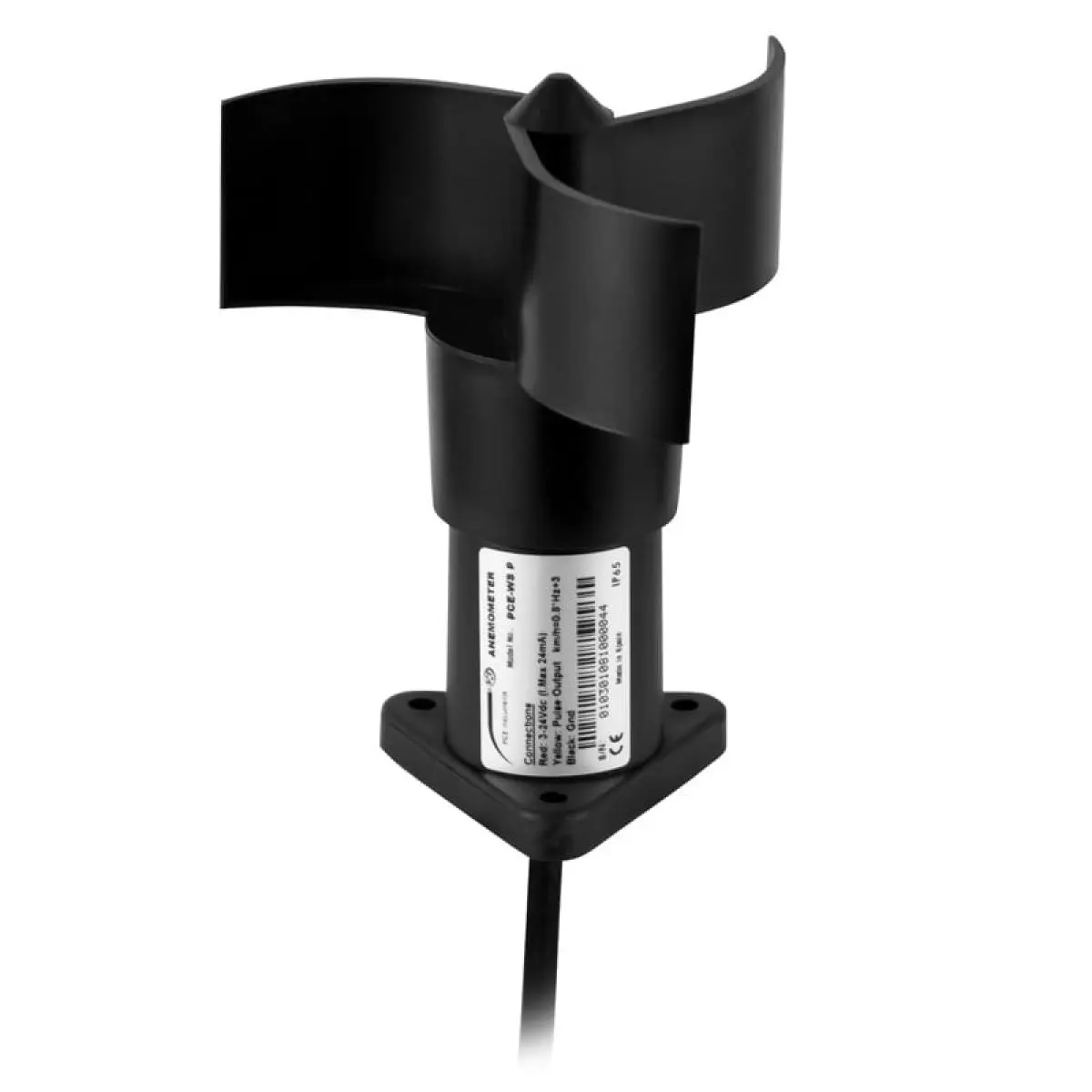

Air Velocity Meter PCE-WS P


£ 102.00
£ 122.40
:
4250348722447
PCE-WS P
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Robust Air Velocity Meter for fixed installation / various output signals /
for wind warning systems, building services and building automation

The Air Velocity Meter impresses with its compact design and various output signals. The Anemometer can be used for applications in warning technology, building automation and home technology. Depending on the Air Velocity Meter, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Air Velocity Meter is designed as a star, so that operation independent of the wind direction is guaranteed.

The Air Velocity Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Air Velocity Meter is also protected to IP65. The design of the Air Velocity Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Air Velocity Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Air Velocity Meter is optionally available.

Highlights

- Robust PA plastic housing
- IP 65 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from≤2.62 ft/s, 0.8 m / s
Outputpulses (reed contact)
Accuracy<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
 > 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage12 ... 30 V DC
Operating temperature range -4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed   180.45 ft/s, 123 mph, 55 m / s
Electrical connection65 ft, 20 m connection cable
Protection classIP65

Delivery Scope

1 x Air Velocity Meter PCE-WS P
1 x instruction manual
