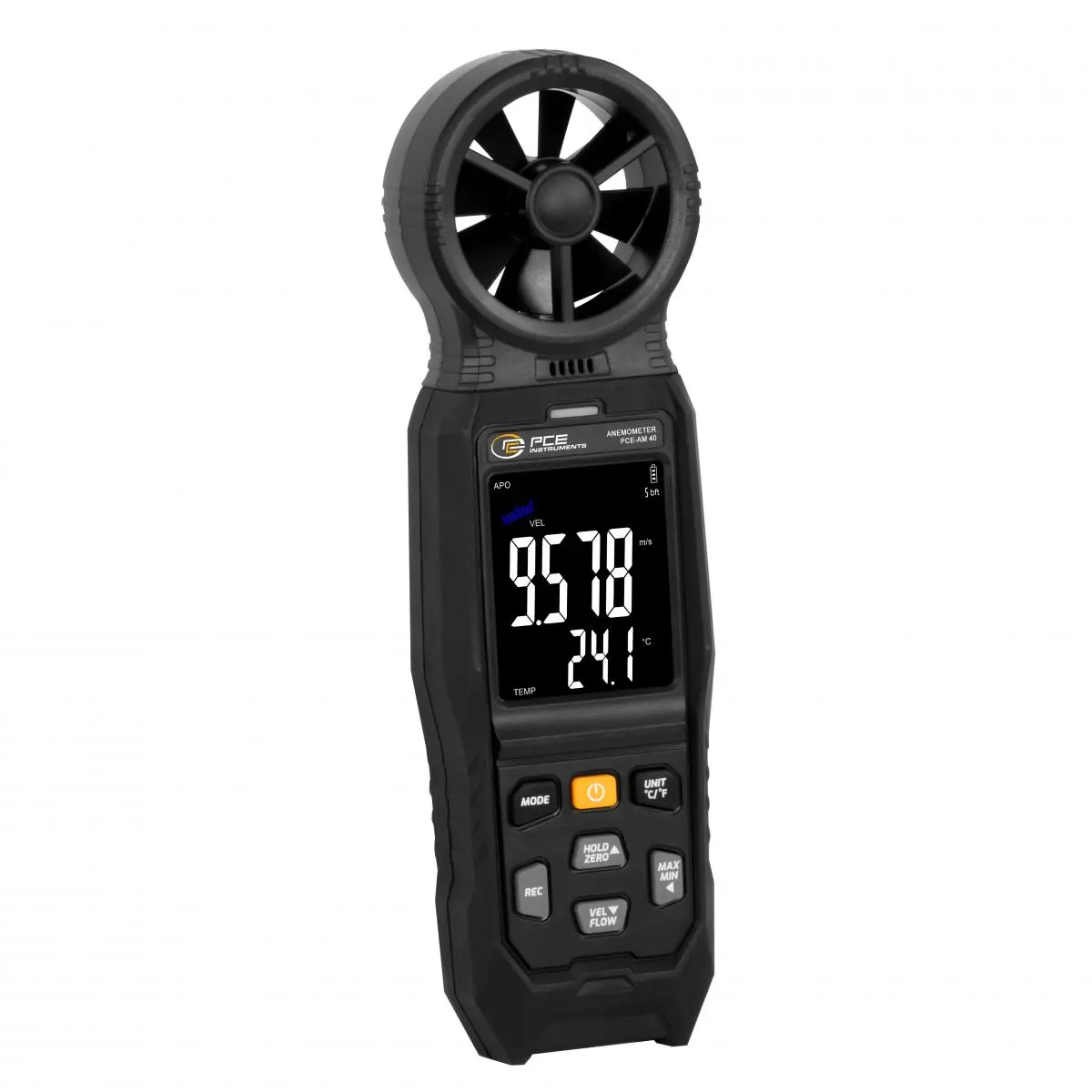

The Air Velocity Meter is a professional measuring device for the precise measurement of wind speed, air flow and temperature. It is ideal for applications in industry, trade, research or hobby. The Air Velocity Meter supports various units such as m/s, km/h, knots, mph, ft/min and ft/s - with a measuring range of 0.06 to 45 m/s.
Thanks to practical functions such as max, min, average (AVG) and hold, the Air Velocity Meter is easy to operate. Individually adjustable upper and lower limit values enable precise monitoring - a visual and audible alarm warns you if these are exceeded. The repeat accuracy is 2%, with a measuring rate of 2 measurements per second.

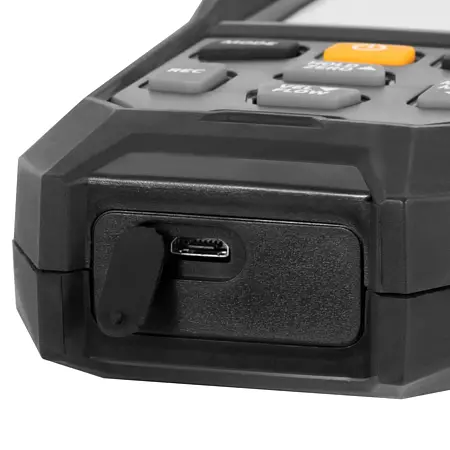

The Air Velocity Meter has an integrated data memory for up to 1000 measured values, which can be conveniently transferred to a PC via the USB interface. The associated software is included in the scope of delivery and allows live transmission, recording and analysis of the data in real time. The recorded measurement data can be saved, printed or exported - ideal for documentation and further processing. The storage interval can be set individually (5 s, 10 s, 30 s, 1 min, 30 min, 1 h, 24 h). The Air Velocity Meter switches off automatically after 15 minutes of inactivity - this function can be deactivated if required.

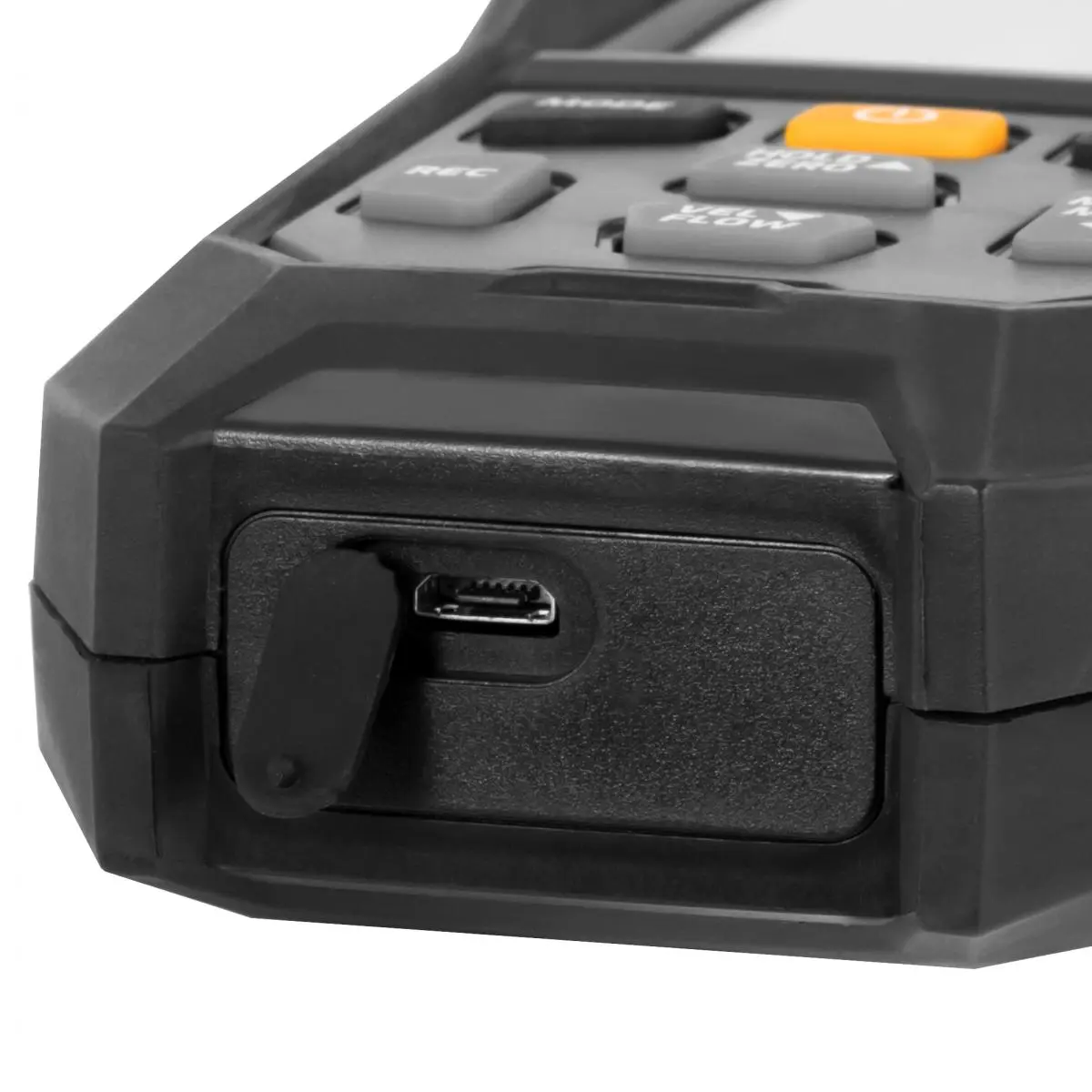

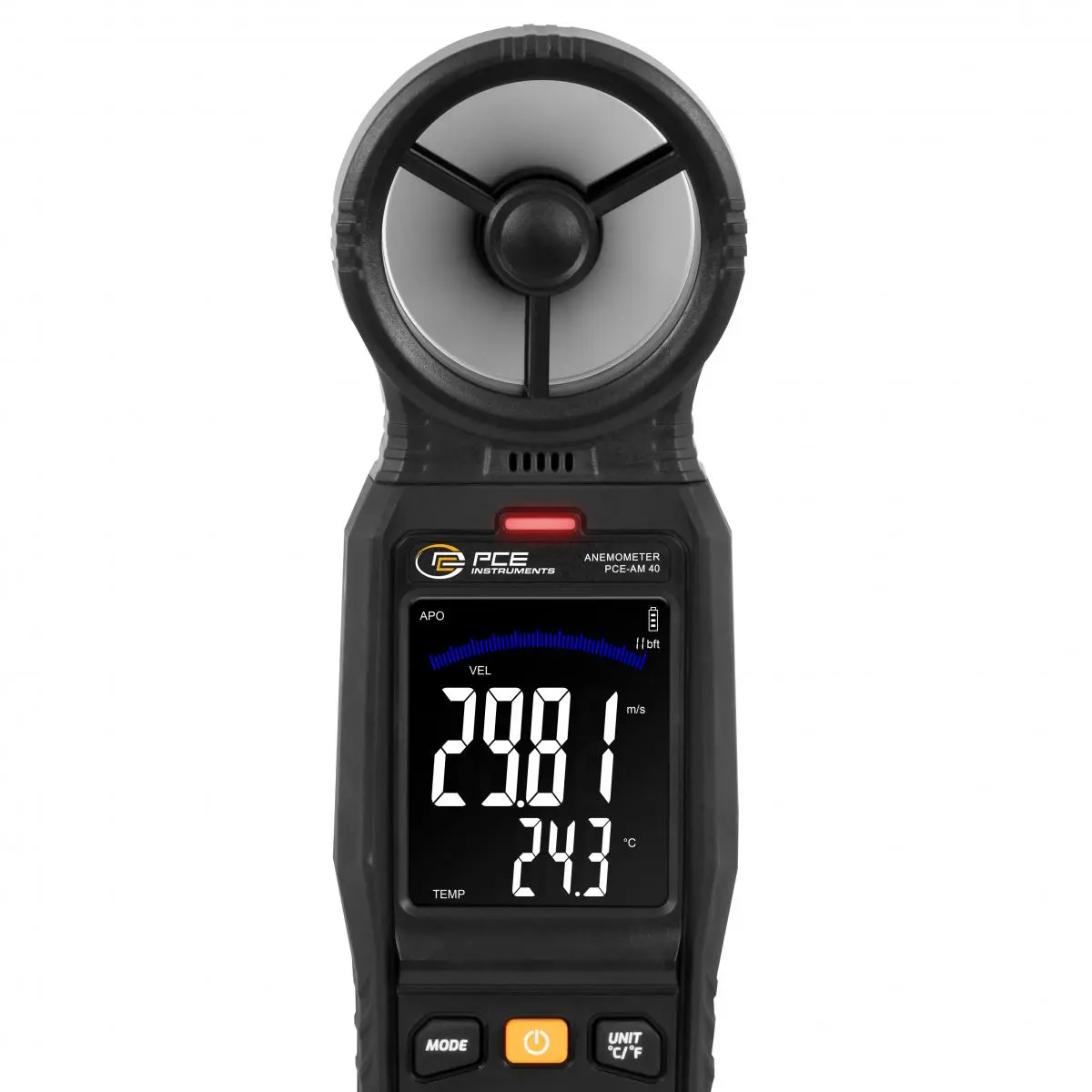

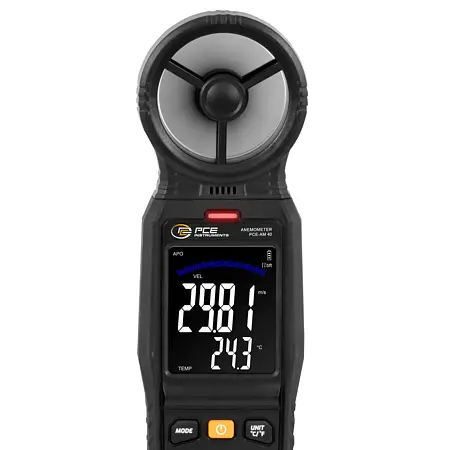

The easy-to-read 2.8-inch LCD display shows measured values digitally and on an analogue bar scale. The Beaufort value (BFT) is displayed numerically. The Air Velocity Meter can be operated both with batteries and via the micro USB interface - for maximum convenience and flexibility.
| Speed | |
| Measurement range up to | 0,06 ... 45 m/s |
| Resolution | 0.001 m/s |
| Accuracy | ±(2% of Rd +0.2) |
| Speed | |
| Measurement range up to | 1 ... 162 km/h |
| Resolution | 0.001 km/h |
| Accuracy | ±(2 % of Rd +0.7) |
| Speed | |
| Measurement range up to | 10 ... 8858 ft/min |
| Resolution | 0.001 ft/min |
| Accuracy | ±(2 % of Rd +20) |
| Speed | |
| Measurement range up to | 1 ... 147,6 ft/s |
| Resolution | 0.001 ft/s |
| Accuracy | ±(2 % of Rd +0.2) |
| Speed | |
| Measurement range up to | 0,1 ... 84,48 knots |
| Resolution | 0.001 knots |
| Accuracy | ±(2 % of Rd +0.2) |
| Speed | |
| Measurement range up to | 1 ... 100,6 mph |
| Resolution | 0,001 mph |
| Accuracy | ±(2 % of Rd +0.2) |
| Volume flow | |
| Measurement range up to | 0 ... 9999 m³/min |
| Resolution | 0,001 m³/min |
| Accuracy | ±(2 % of Rd +0.2) |
| Volume flow | |
| Measurement range up to | 0 ... 9999 ft³/min |
| Resolution | 0,001 ft³/min |
| Accuracy | ±(2 % of Rd +0.2) |
| Volume flow | |
| Measurement range up to | 0 ... 9999 m³/s |
| Resolution | 0,001 m³/s |
| Accuracy | ±(2 % of Rd +0.2) |
| Temperature | |
| Measurement range up to | 0 ... 45 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2 °C |
| Temperature | |
| Measurement range up to | 32 ... 113 °F |
| Resolution | 0,1 °F |
| Accuracy | ±3.6 °F |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG |
| Units | ft³/min, m³/min, m³/s, m/s, km/h, ft/min, ft/s, mph, Bft, knots, °C, °F |
| Display type | LCD |
| Display size | 2,8 Inch |
| Measuring rate | 2 x per second |
| Storage medium | Internal memory |
| Storage capacity | 1000 Values |
| Storage interval from | 5 s |
| Storage interval to | 24 h |
| Interface | Micro-USB |

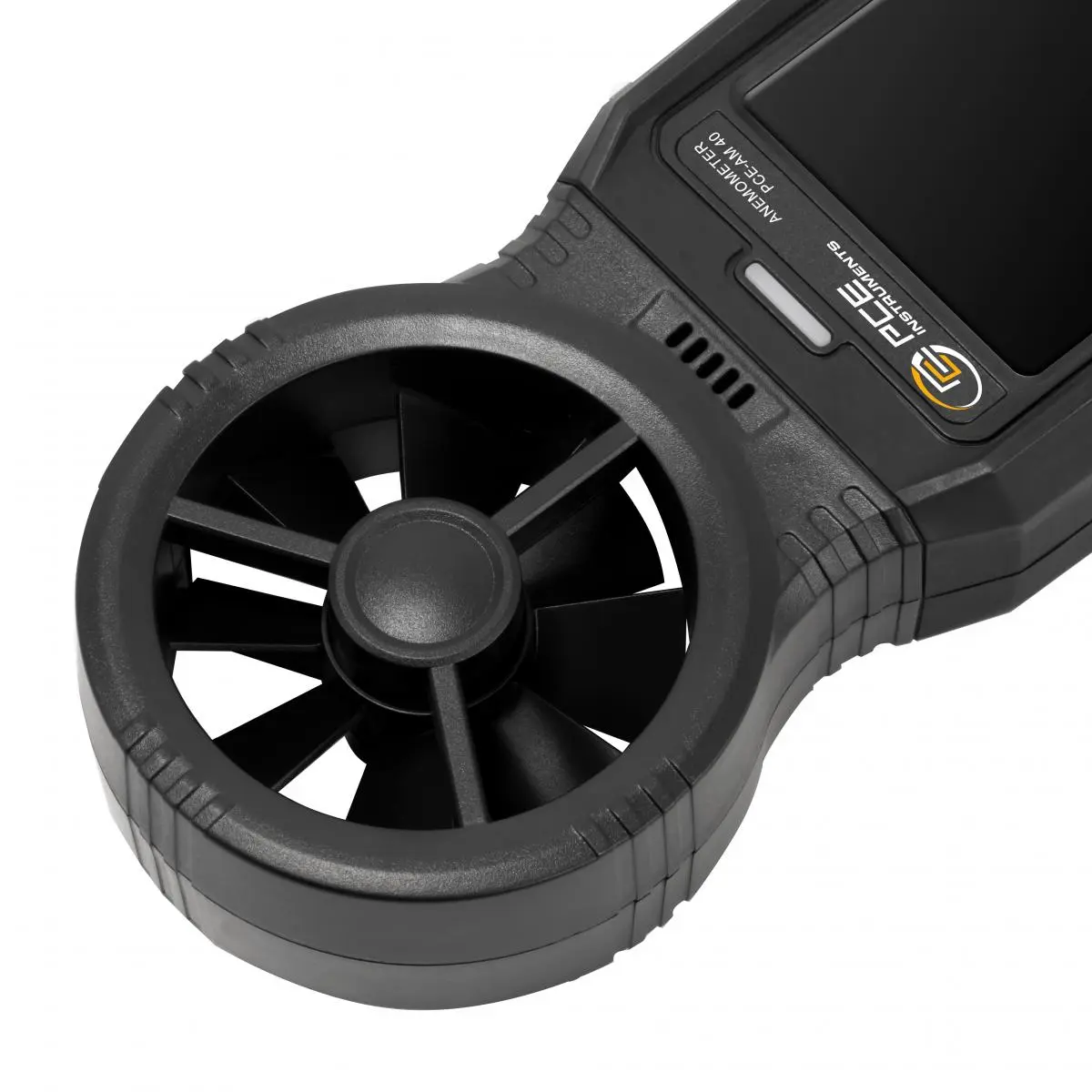

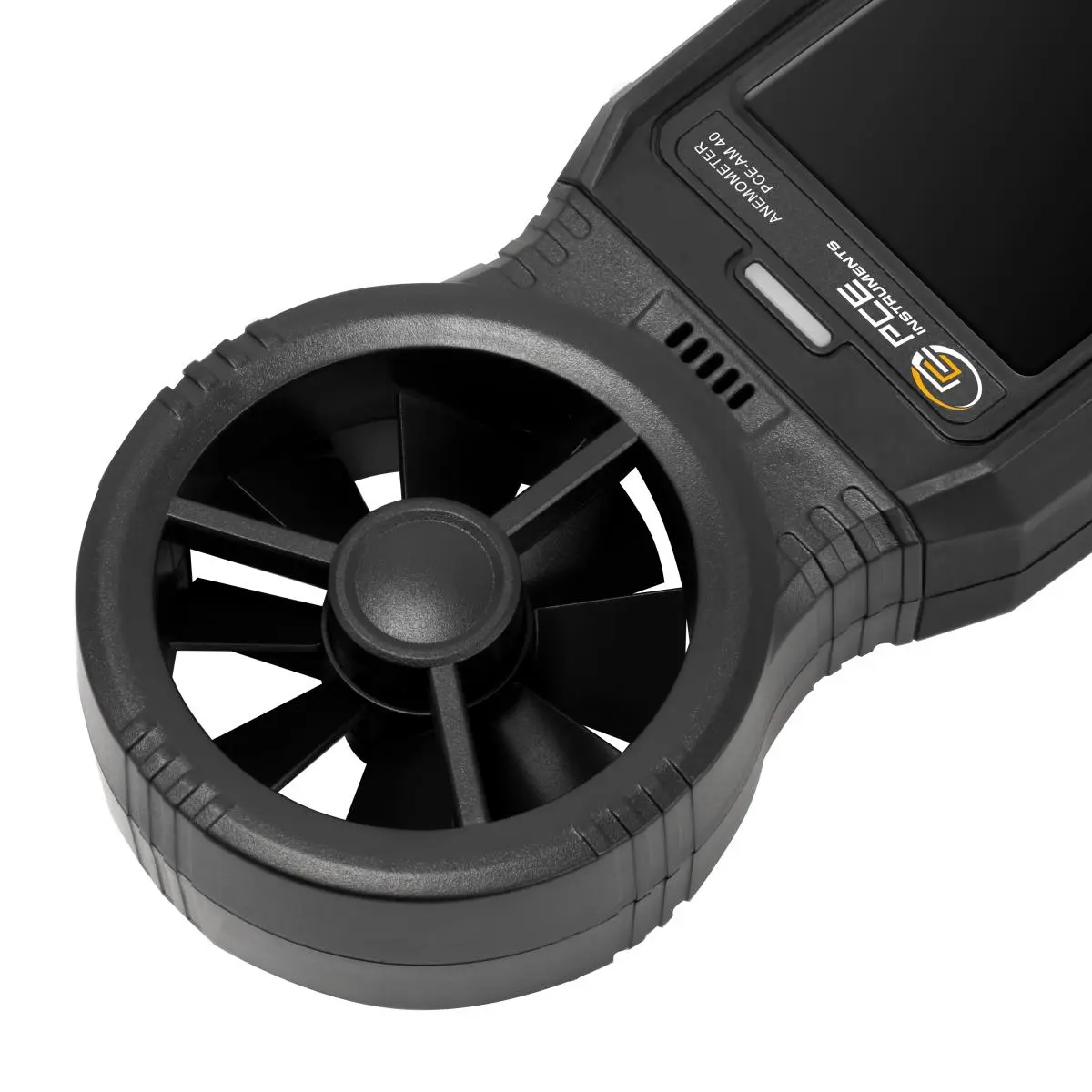

| Sensor | Vane |
| Automatic power-off | 15 min |
| Automatic power-off can be deactivated | Yes |

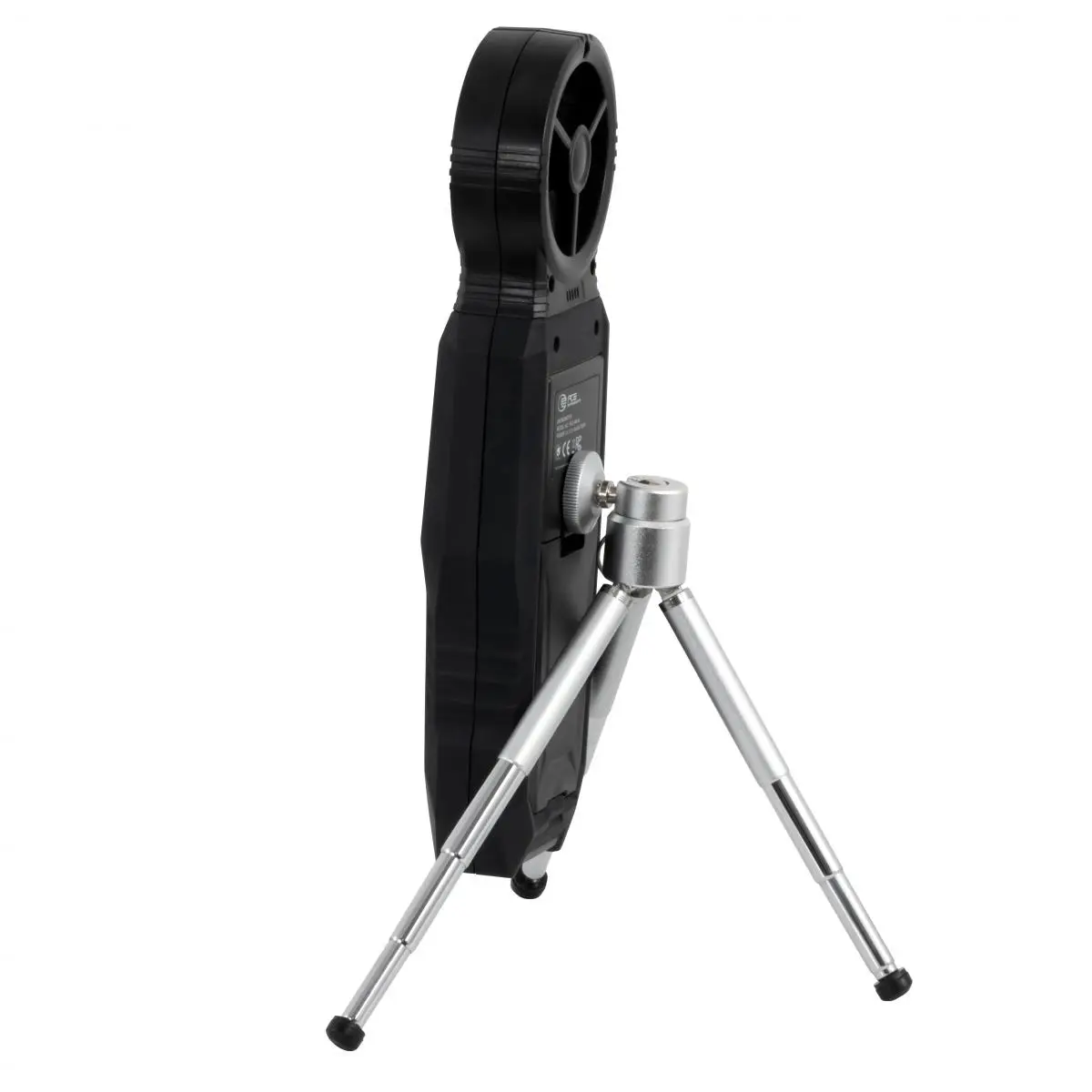

| Tripod thread | 1/4 inch |
| Alarm | optical, Acoustic |
| Repeat accuracy | 2 % |
| Display range | 9999 counts |
| Alarm settings | 0 ... 45 m/s |
| Protection class (device) | IP20 |
| Power supply | 5 V DC |

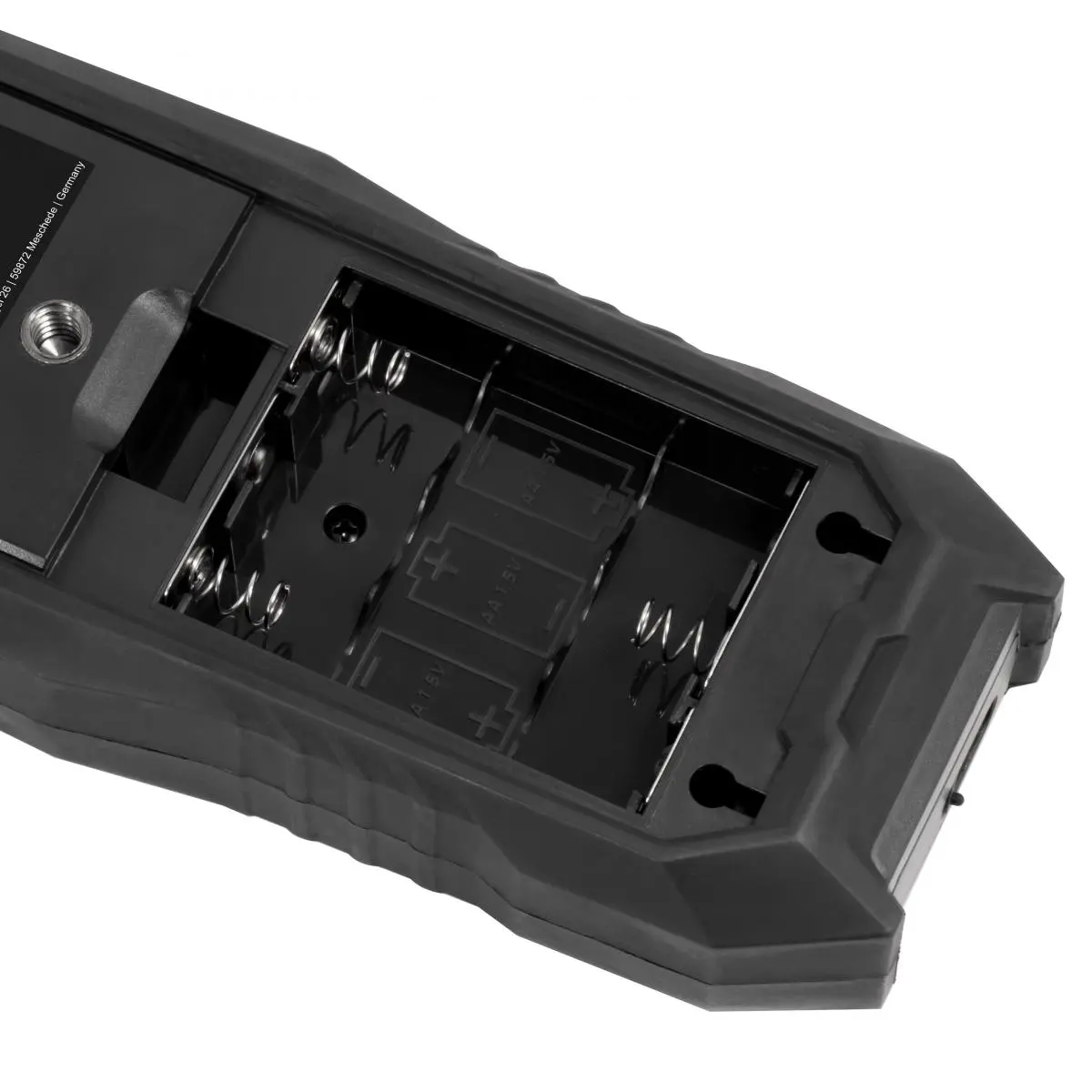

| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 70 % RH |
| Dimensions ( L x W x H ) | 240 x 70 x 33 mm |
| Weight | 212 g |
