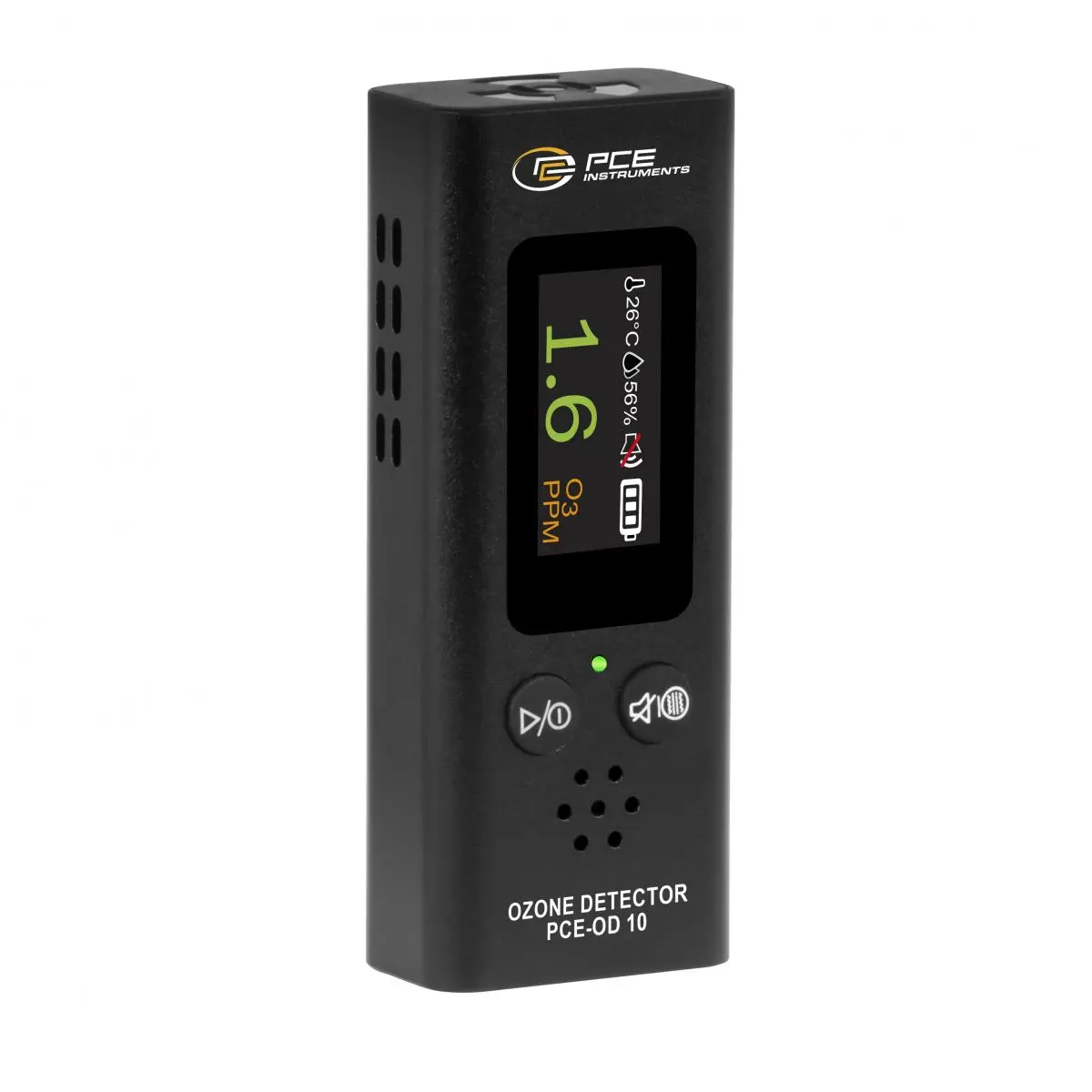

An Air Quality Meter is used to monitor the ozone concentration in the air and to measure temperature and humidity. The Air Quality Meter detects ozone in the range of 0 ... 9.9 ppm with an accuracy of ±15% of the measured value. The temperature is measured between 0 ... 50°C / 32 ... 122°F with ±1°C / 1.8°F accuracy, the humidity in the range of 5 ... 95% with ±5% accuracy. The device has an audible alarm when the preset alarm value of 3 ppm is exceeded and displays all values on a 0.9 inch LCD display. Other features include standby mode, rechargeable lithium battery via USB-C, compact size and a wrist strap for mobile use.
The Air Quality Meter is suitable for mobile use in homes, offices, workshops, small production areas or private applications where ozone pollution needs to be monitored. With its compact design, measurements can be taken directly on site, making the Air Quality Meter a practical instrument for reliable monitoring of ozone, temperature and humidity. By combining the three measuring functions, the Air Quality Meter provides all relevant information for fast and standardized environmental monitoring.
| Relative humidity | |
| Measurement range up to | 5 ... 95 % |
| Resolution | 1 % |
| Accuracy | ±5 % |
| Ozone | |
| Measurement range up to | 0 ... 9,9 ppm |
| Resolution | 0,1 ppm |
| Accuracy | ±15% FS |
| Temperature | |
| Measurement range up to | 0 ... 50 °C |
| Resolution | 1 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Display type | LCD |
| Display size | 0,9 Inch |
| Service life | approx. 2 years |
| Operating time | 24 h |
| Alarm | Acoustic |
| Alarm value | 3 ppm |
| Alarm volume | 85 dB |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 400 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 95 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 70 x 26 x 16 mm |
| Weight | 32 g |
