Order no.: PCE-THD 50

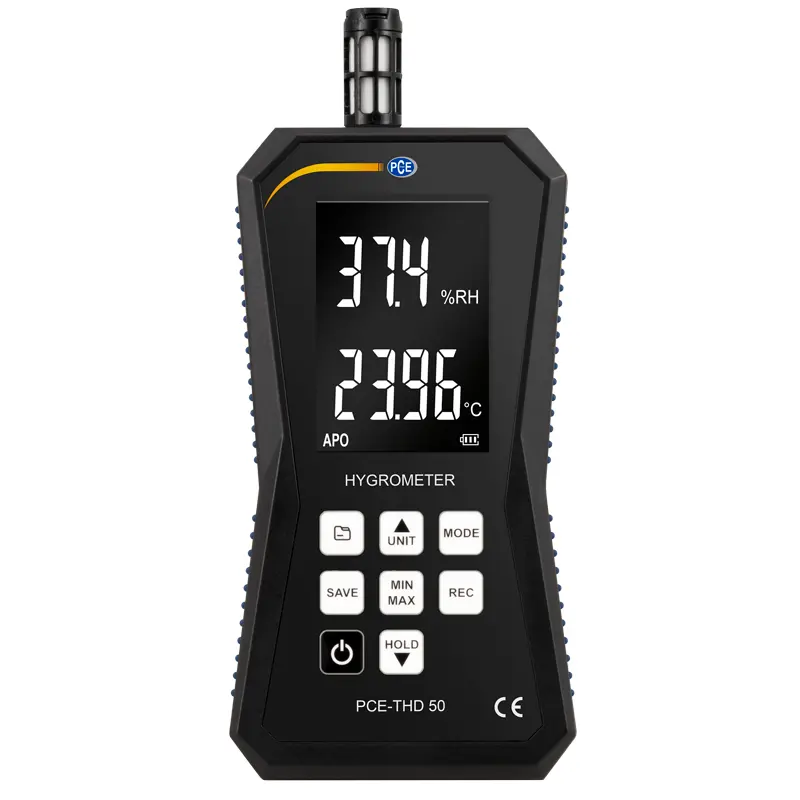

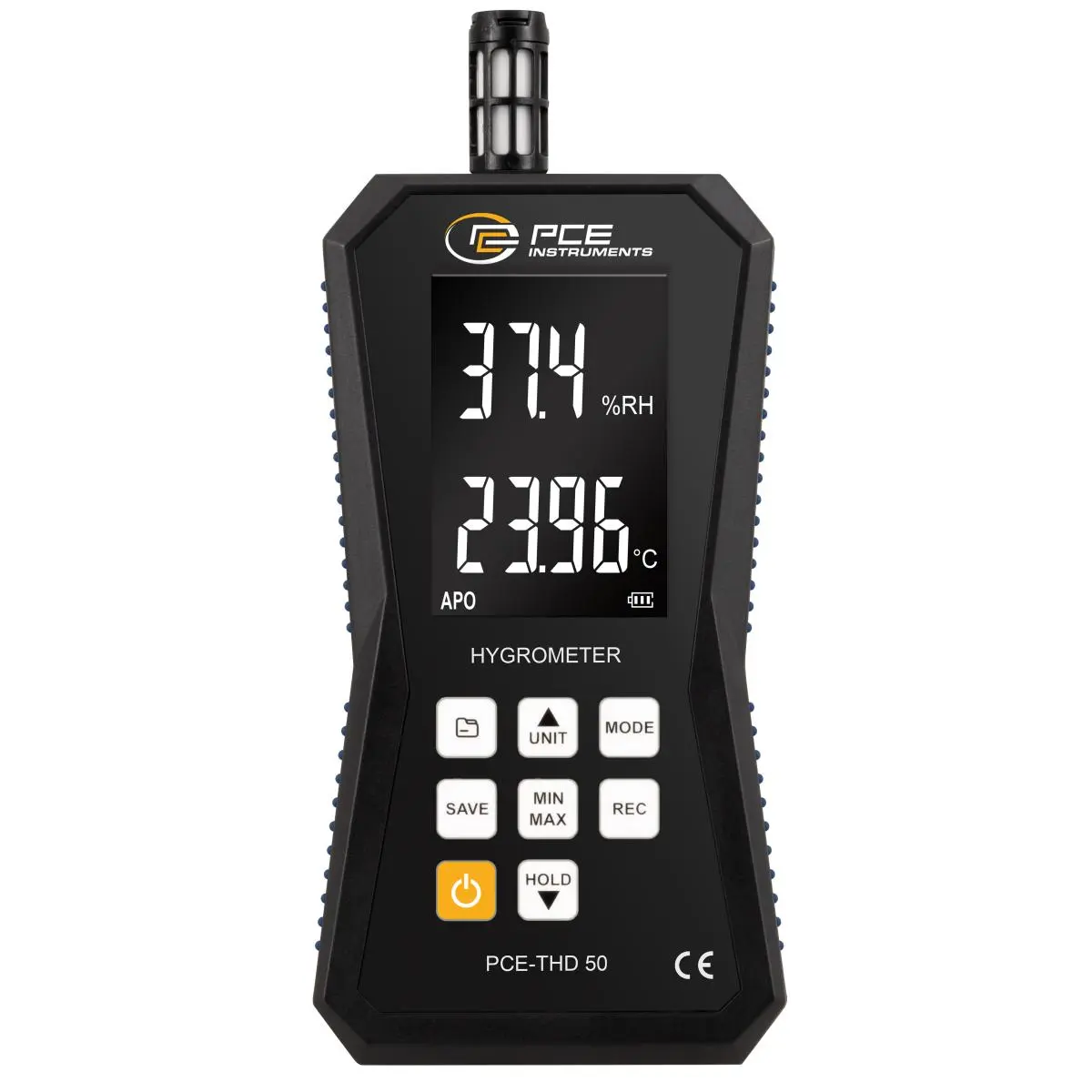

Air Humidity Meter PCE-THD 50

£ 148.00
£ 177.60
:
4250348728302
PCE-THD 50
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Air Humidity Meter with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate

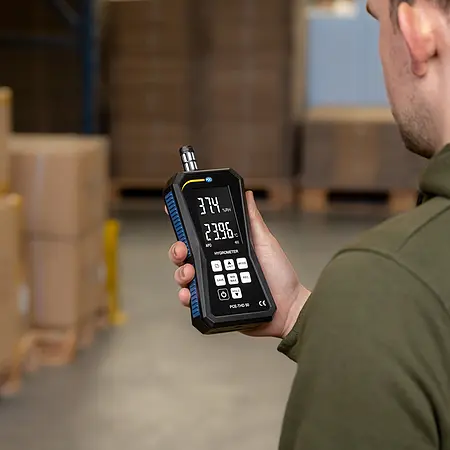

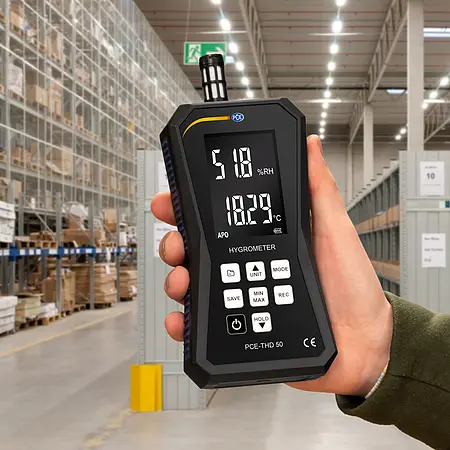

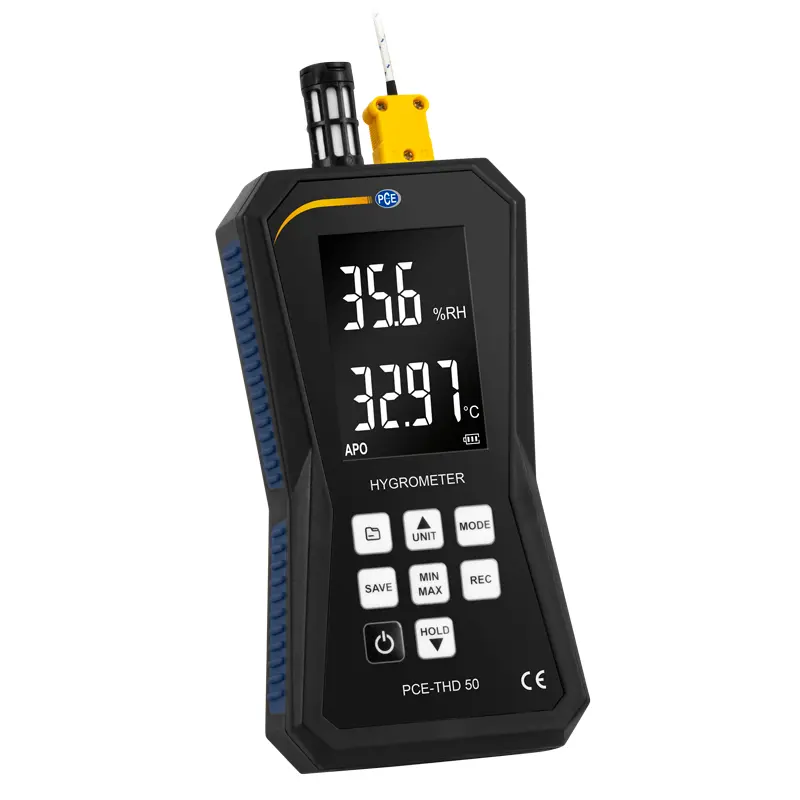

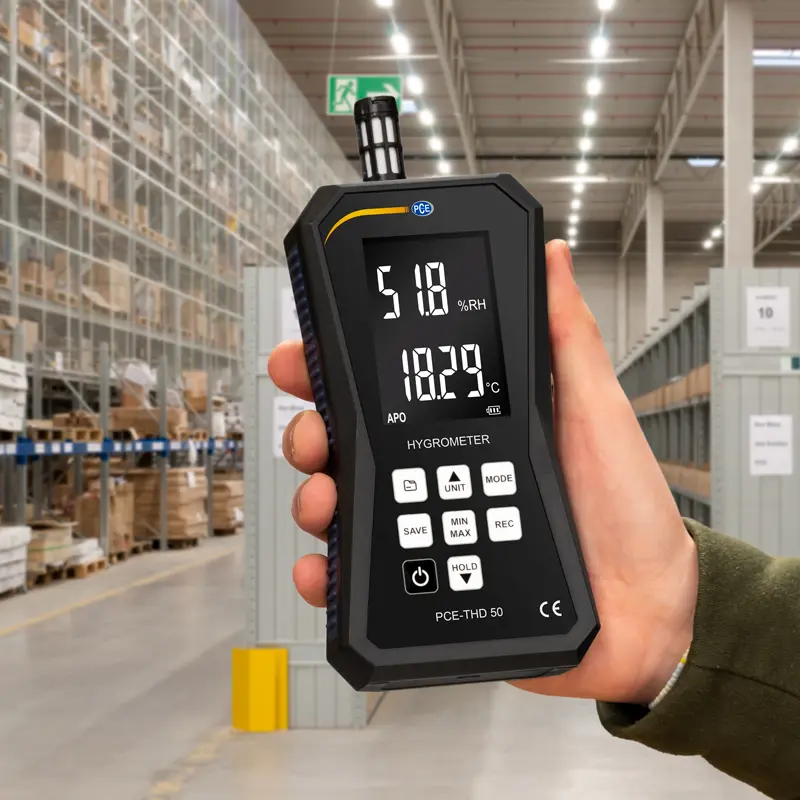

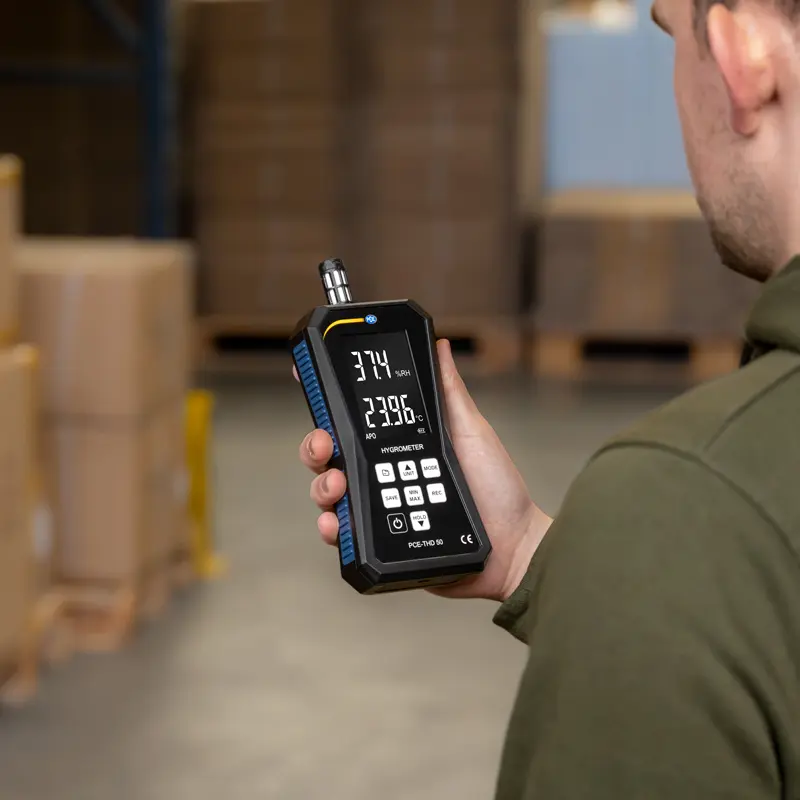

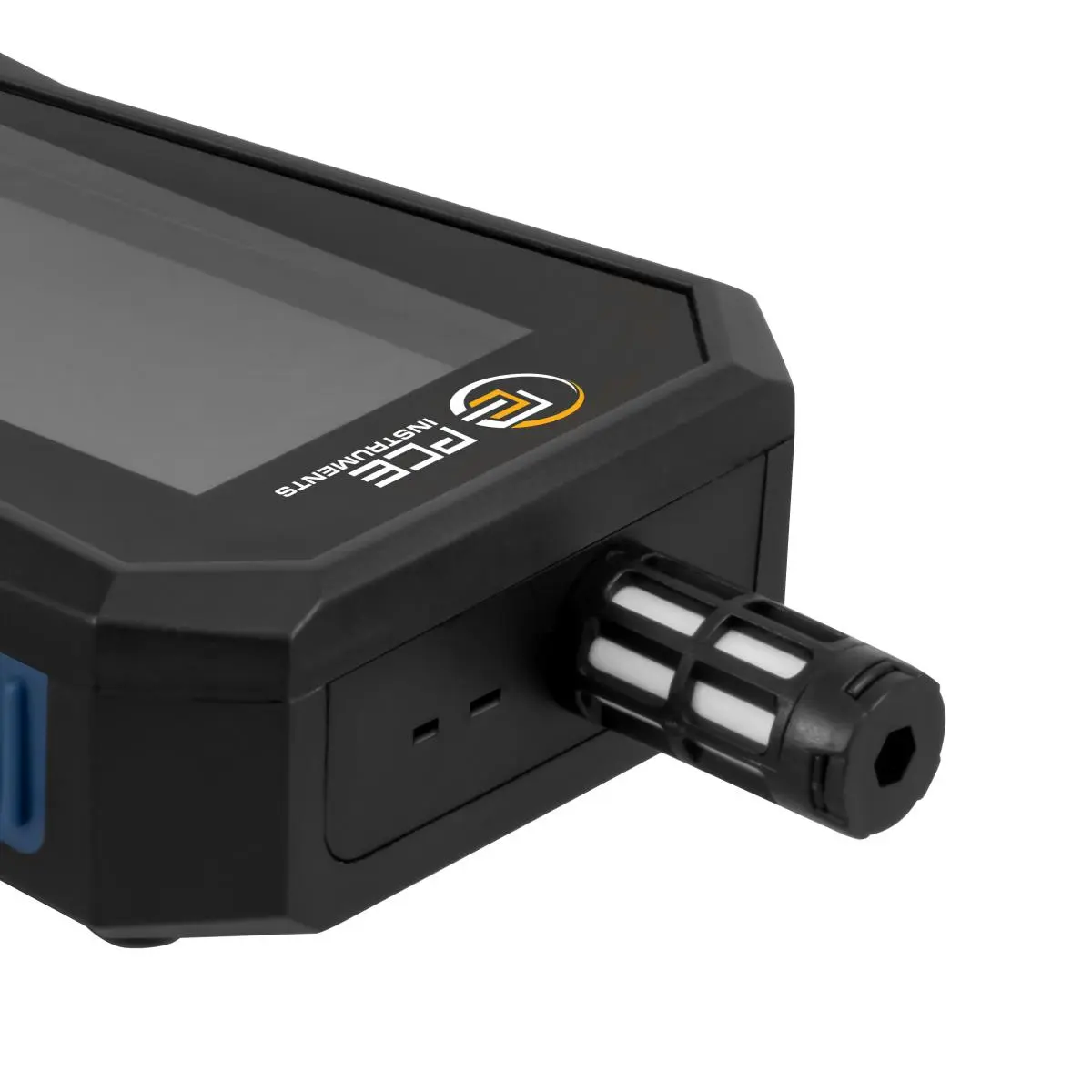

The air humidity meter is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The air humidity meter can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the air humidity meter. In addition, the dew point and wet bulb temperature is calculated and displayed by the air humidity meter. In addition, any type K thermocouple can be connected to the air humidity meter in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the air humidity meter to the thermocouple.

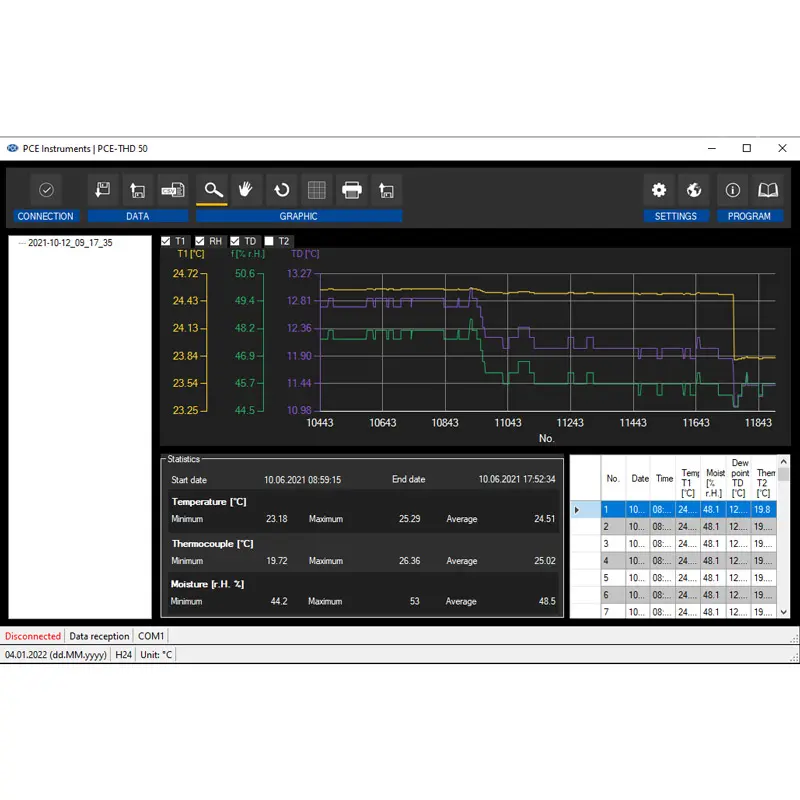

Measured values ​​can be recorded with the data logger function of the air humidity meter. The large memory of 32,000 measuring points in the air humidity meter allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the air humidity meter and the free software. The data logged by the air humidity meter can be exported in CSV file format for further processing.

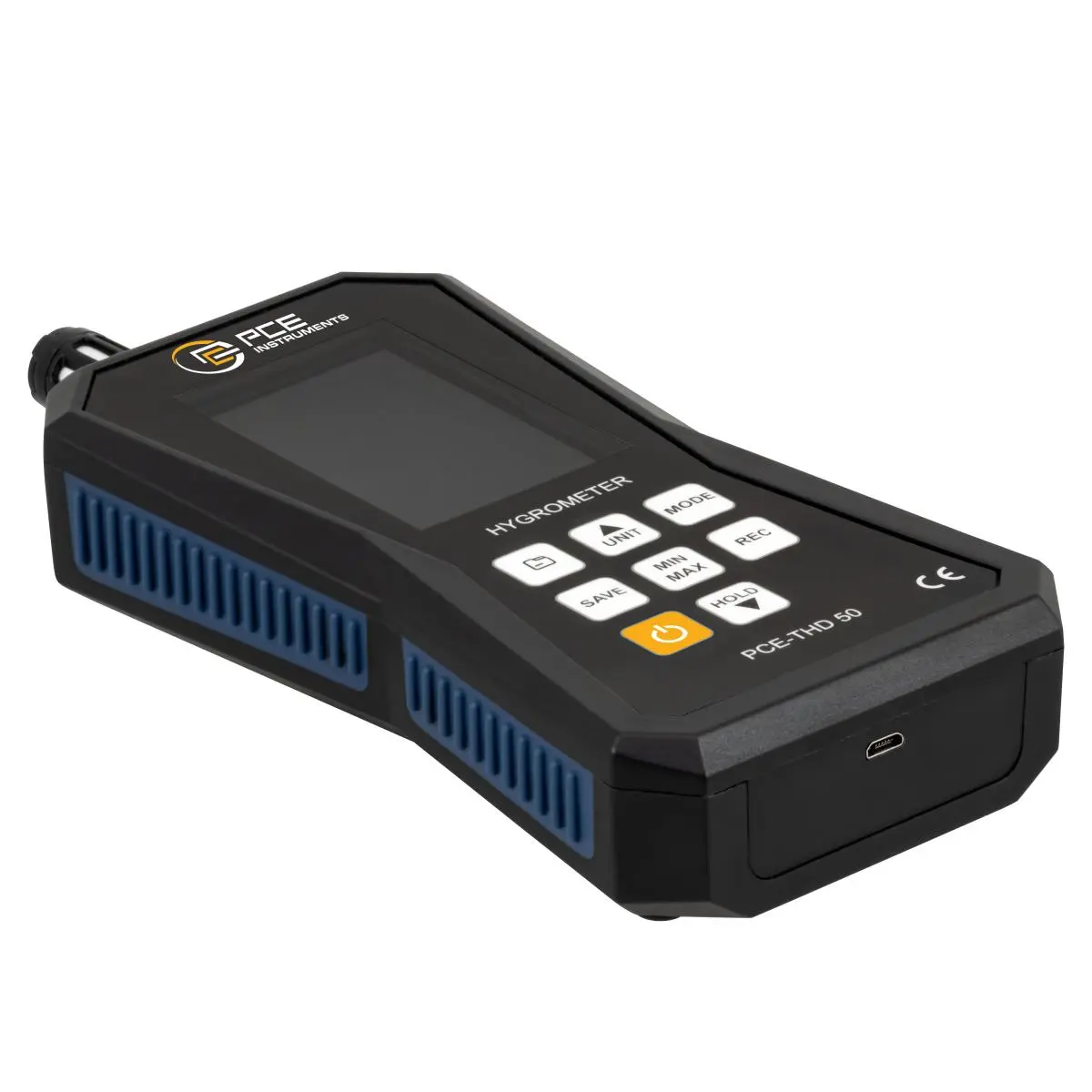

A 3.7 V Li-ion battery is installed in the air humidity meter to enable mobile use. This battery can be recharged via the micro-USB interface on the air humidity meter.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate

Specification

Air temperature
Measuring range -20 … 60 °C（-4 … 140 °F）
Resolution 0.01 °C/°F
Accuracy ±0.5 °C @ 0 … 45 °C，±1.0 °C
   in remaining range
  ±1.0 °F @ 32 … 113 °F，±2.0 °F
   in remaining range
Measuring rate 3 Hz

Relative humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±2.2 % RH (10 … 90 % RH)
  @ 23 °C (73.4 °F)
  ±3.2 % RH (<10，>90 % RH)
   @23 °C (73.4 °F)
Response time <10 s (90 % RH, 25 °C (77 °F), with no wind)

Thermoelement
Sensor type Thermoelement Type K
Measuring range -100 … 1372 °C（-148 … 2501 °F）
Resolution 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F
Accuracy ±(1 % ±1 °C)

Calculated values
Wet bulb temperature   -20 … 60 °C （-4 … 140 °F）
Dew point temperature -50 … 60 °C （-58 … 140 °F）

Further specifications
Internal memory 99 measuring points
  (redundant, only readable on the measuring device)
  32,000 measuring points
  (only readable on the PC)
Power supply 3.7 V Li-ion battery
Operating conditions 0 … 40 °C (32 … 104 °F) <80 % RH,
  non-condensing
Storage conditions -10 … 60 °C (14 … 140 °F) <80 % RH,
  non-condensing
Dimensions 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2"
Weight 248 g / 8.74 oz

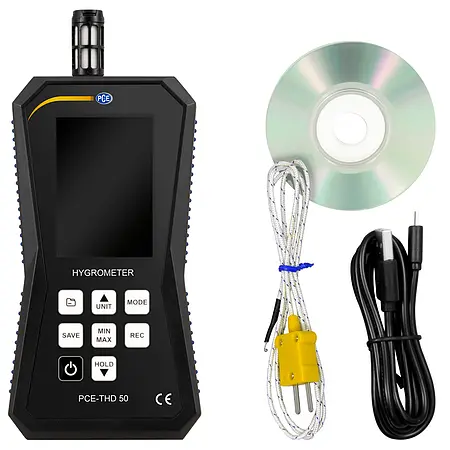

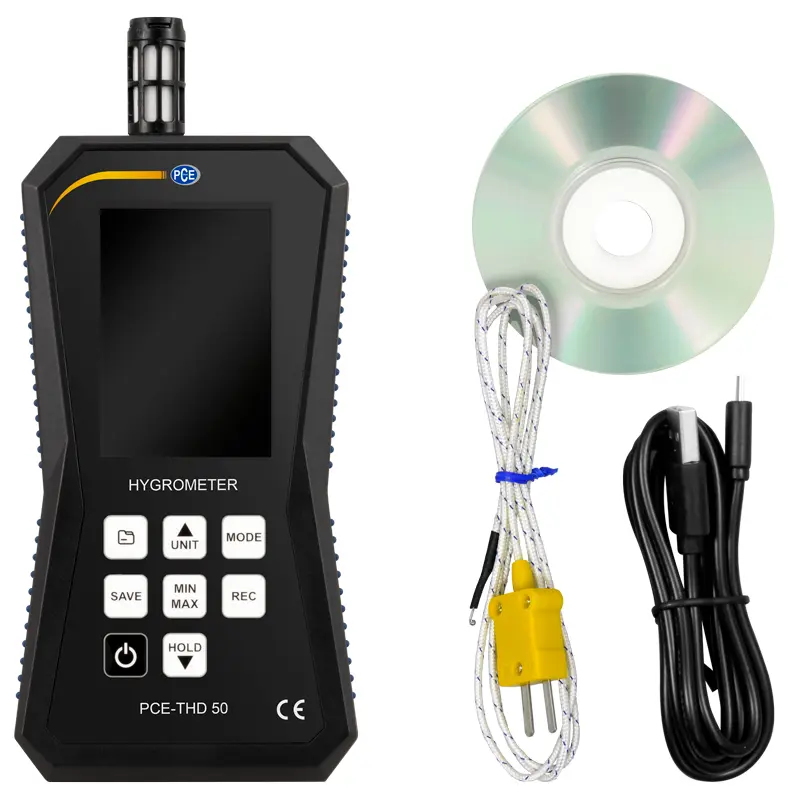

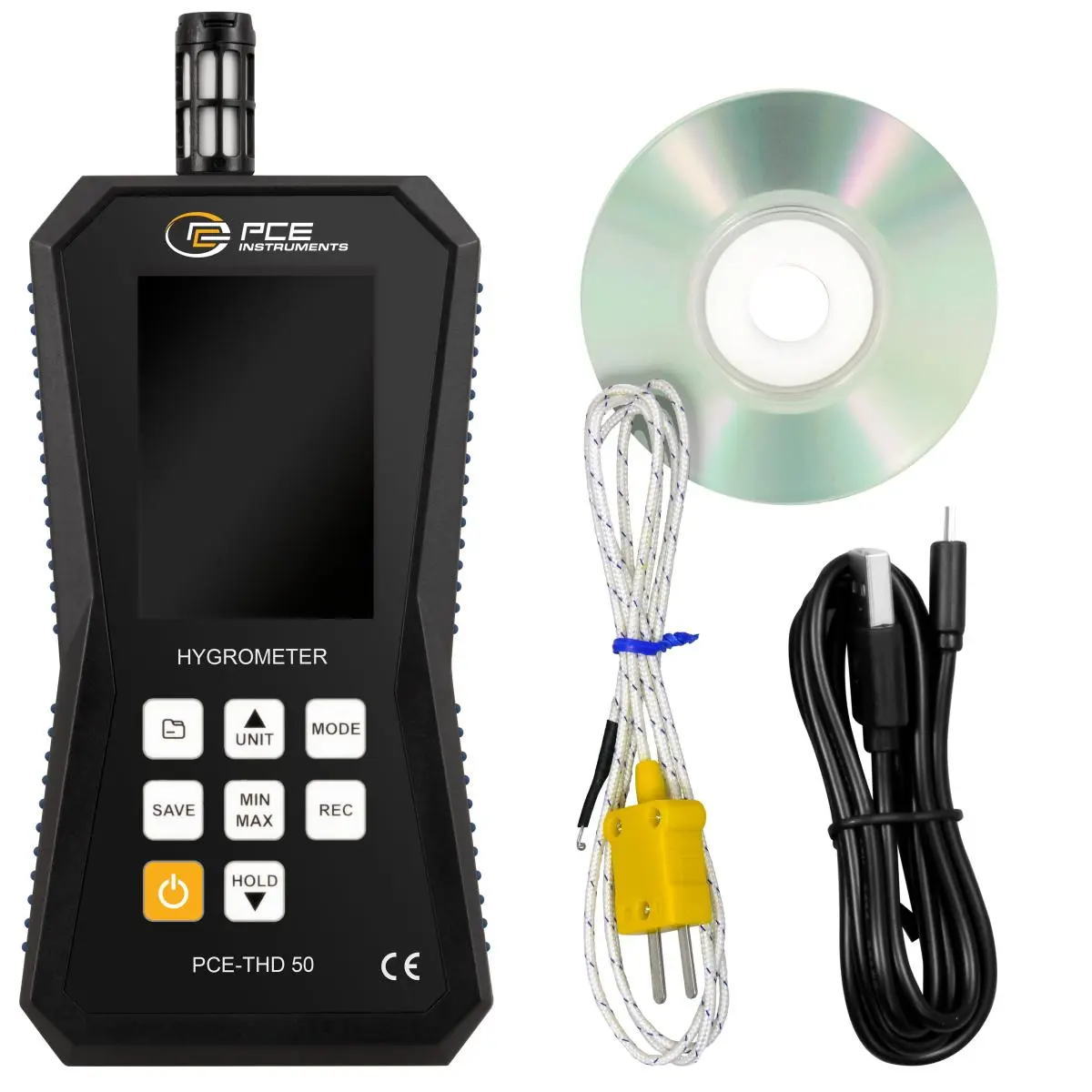

Delivery Scope

1 x Air Humidity Meter PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
