Air Humidity Meter PCE-EM 883

Order no.: PCE-EM 883

GTIN (EAN): 4250348714152

Description

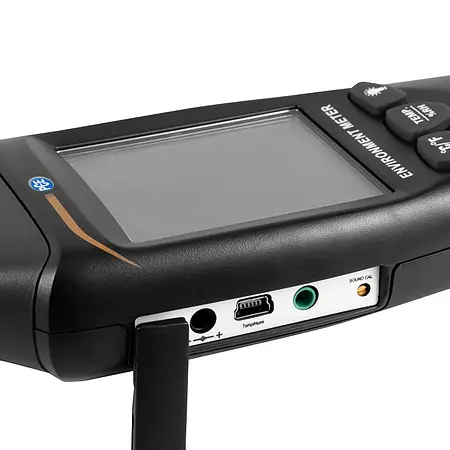

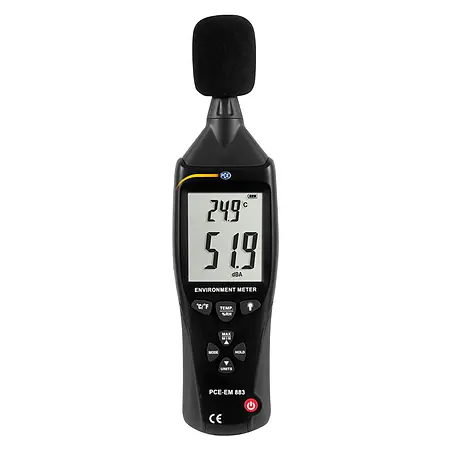

Air humidity meter PCE-EM 883

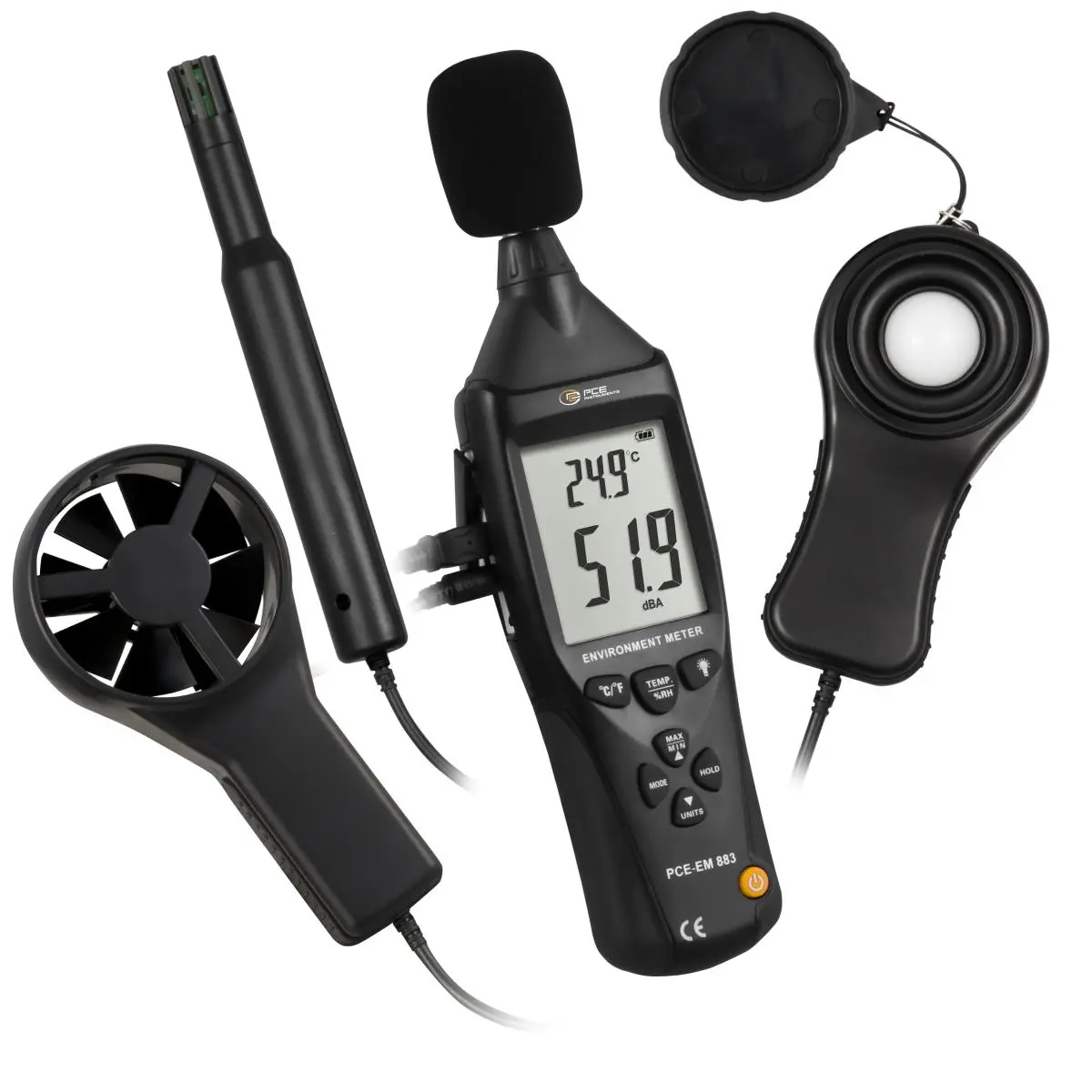

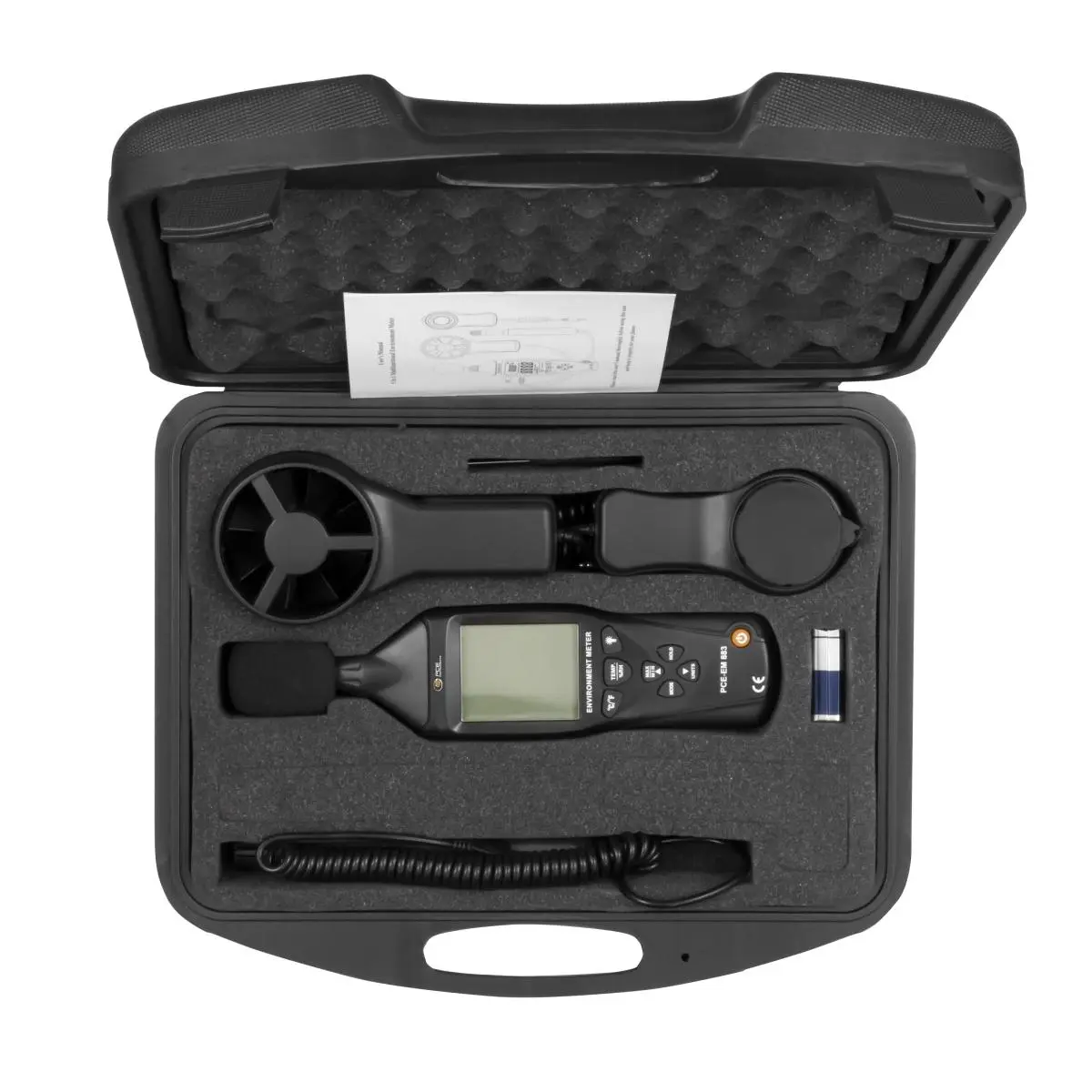

Multifunctional environmental measuring instrument with extensive accessories / Measurement of sound, light, wind speed, temperature and humidity / Data Hold, MIN and Max function / Backlight

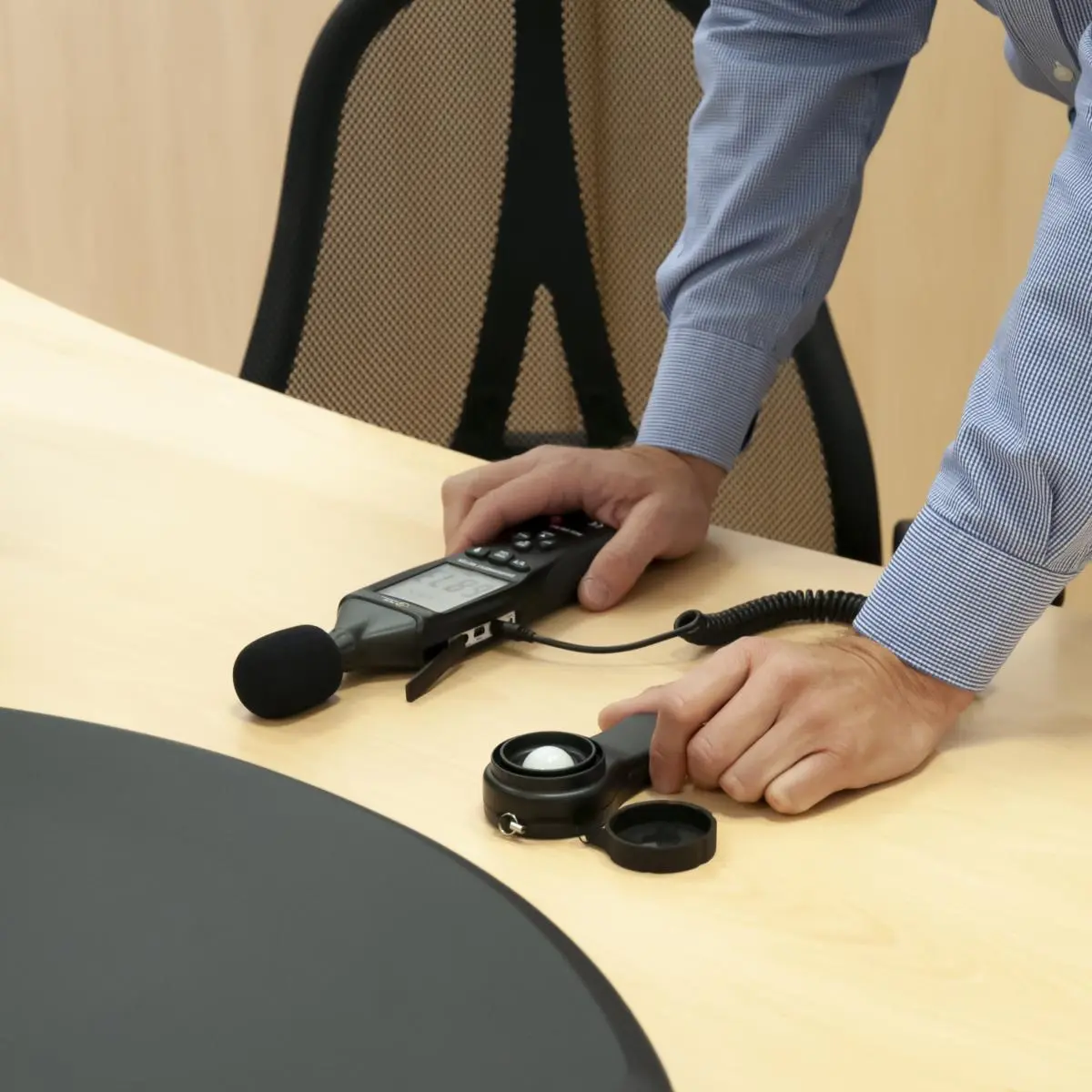

Our multifunctional air humidity meter PCE-EM 883 combines all important features for measuring the ambient conditions in one device. The air humidity meter is designed as fast as possible to determine as many parameters as possible. Due to the large number of external sensors that the air humidity meter brings with it, such fast and precise measurements are possible. Our multifunctional air humidity meter is able to detect not only the sound level but also the temperature, the light, the wind speed and the humidity of the environment.

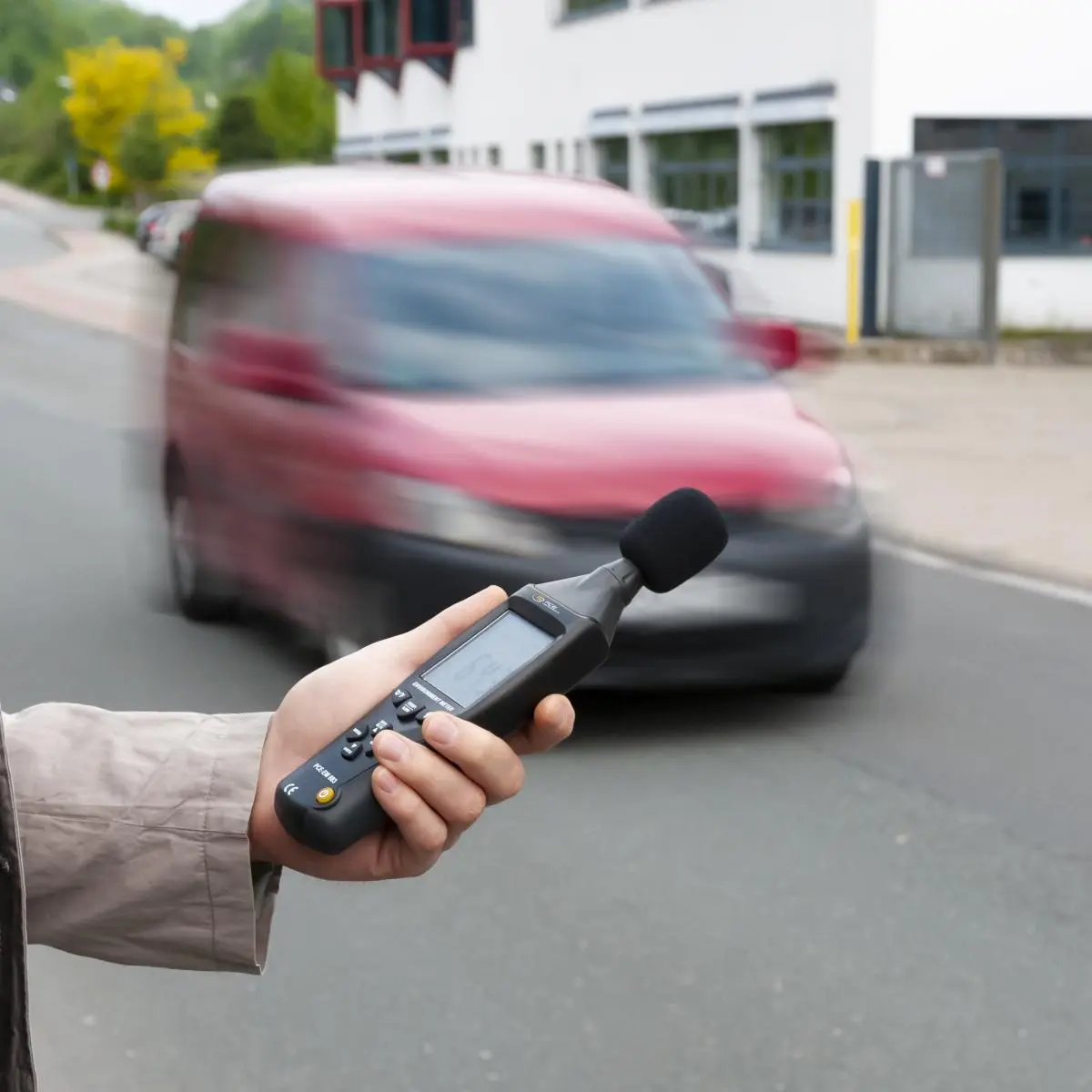

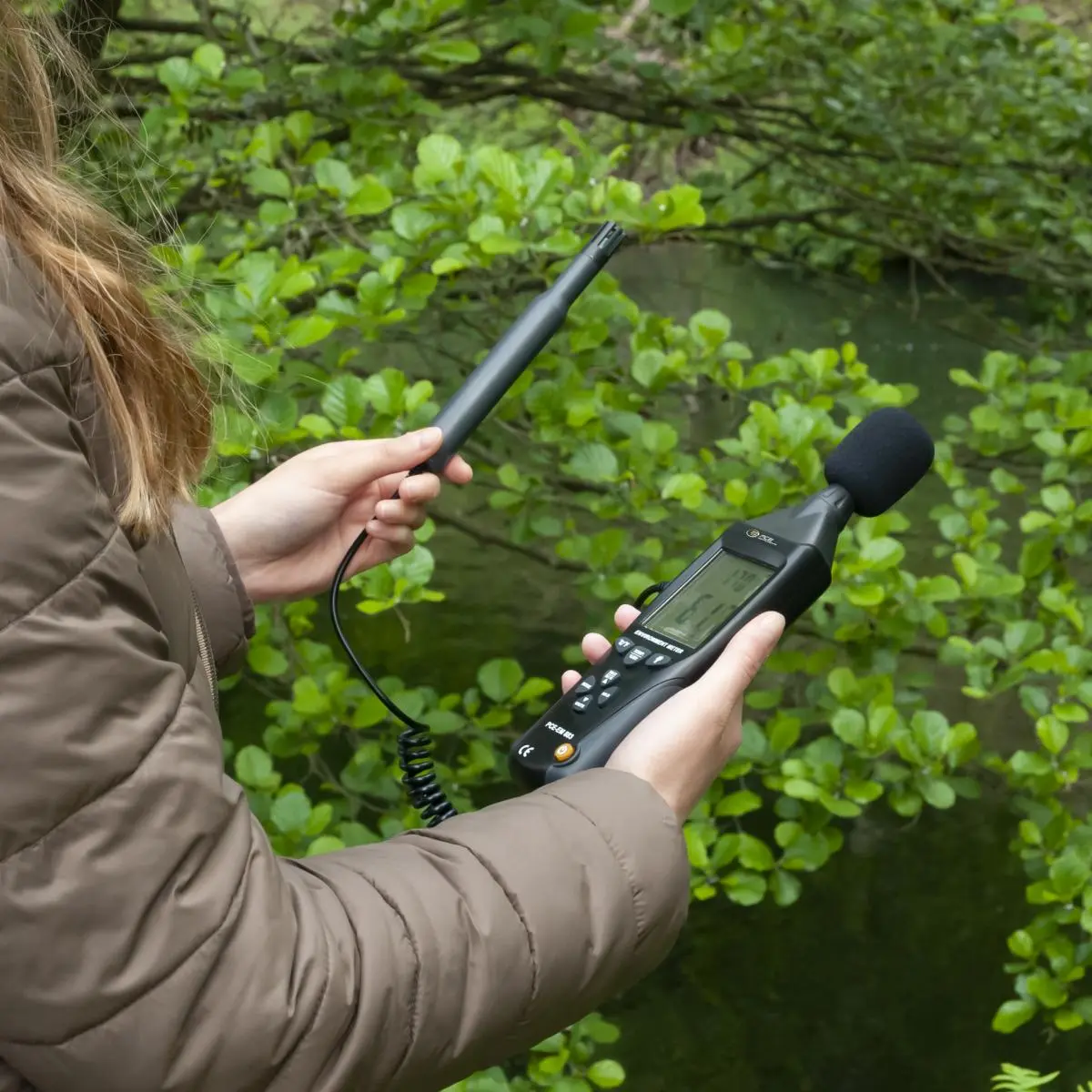

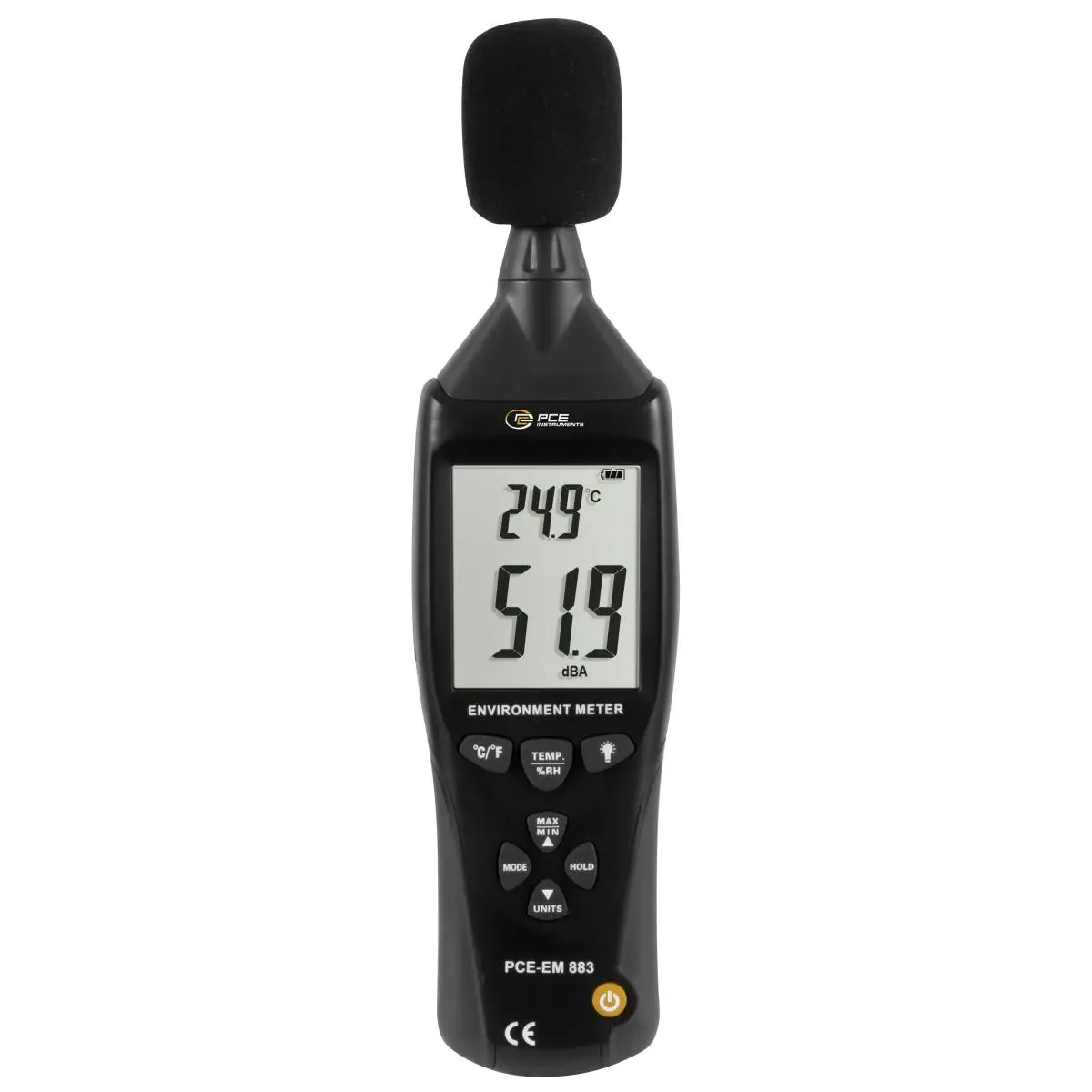

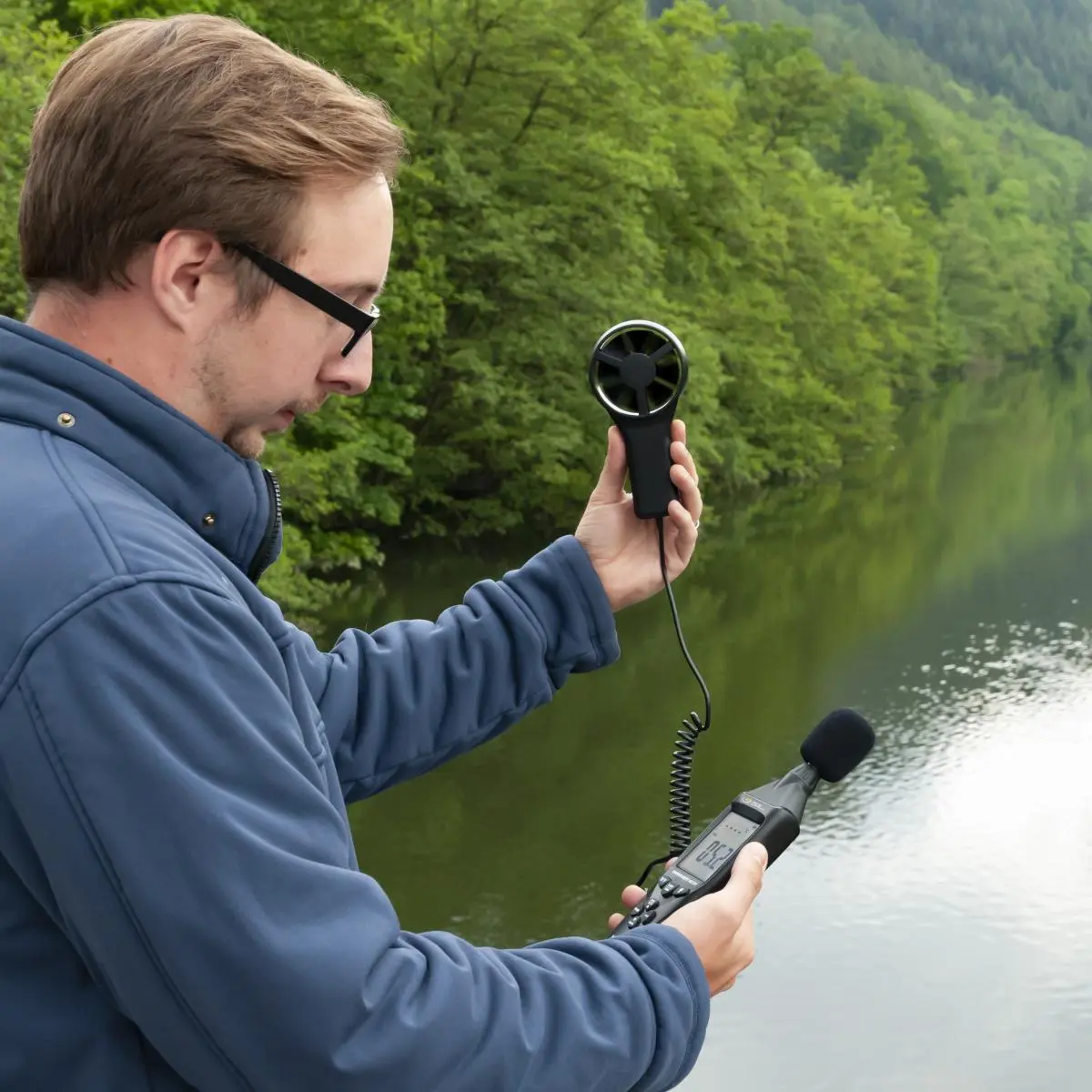

The compact meter allows one-handed operation as it has only eight buttons that are easily accessible. Because our air humidity meter is a non-stationary device, non-stationary measurements can be made at various locations. The backlight supports this field of application, as it is possible to use the device in dark places, without limitation of readability.

Highlights

- Measurement of all relevant environmental parameters

- High measurement accuracy

- One-hand operation

- Backlit

- MIN, MAX, HOLD function

- Automatic shutdown

Specification

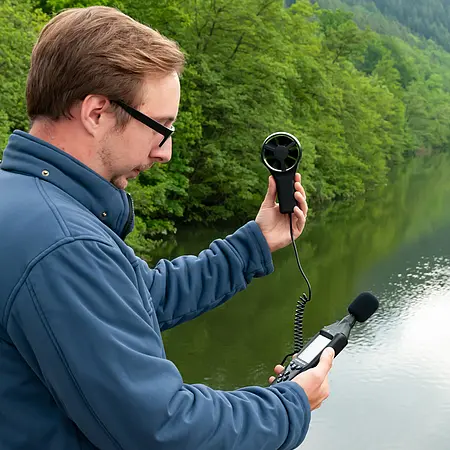

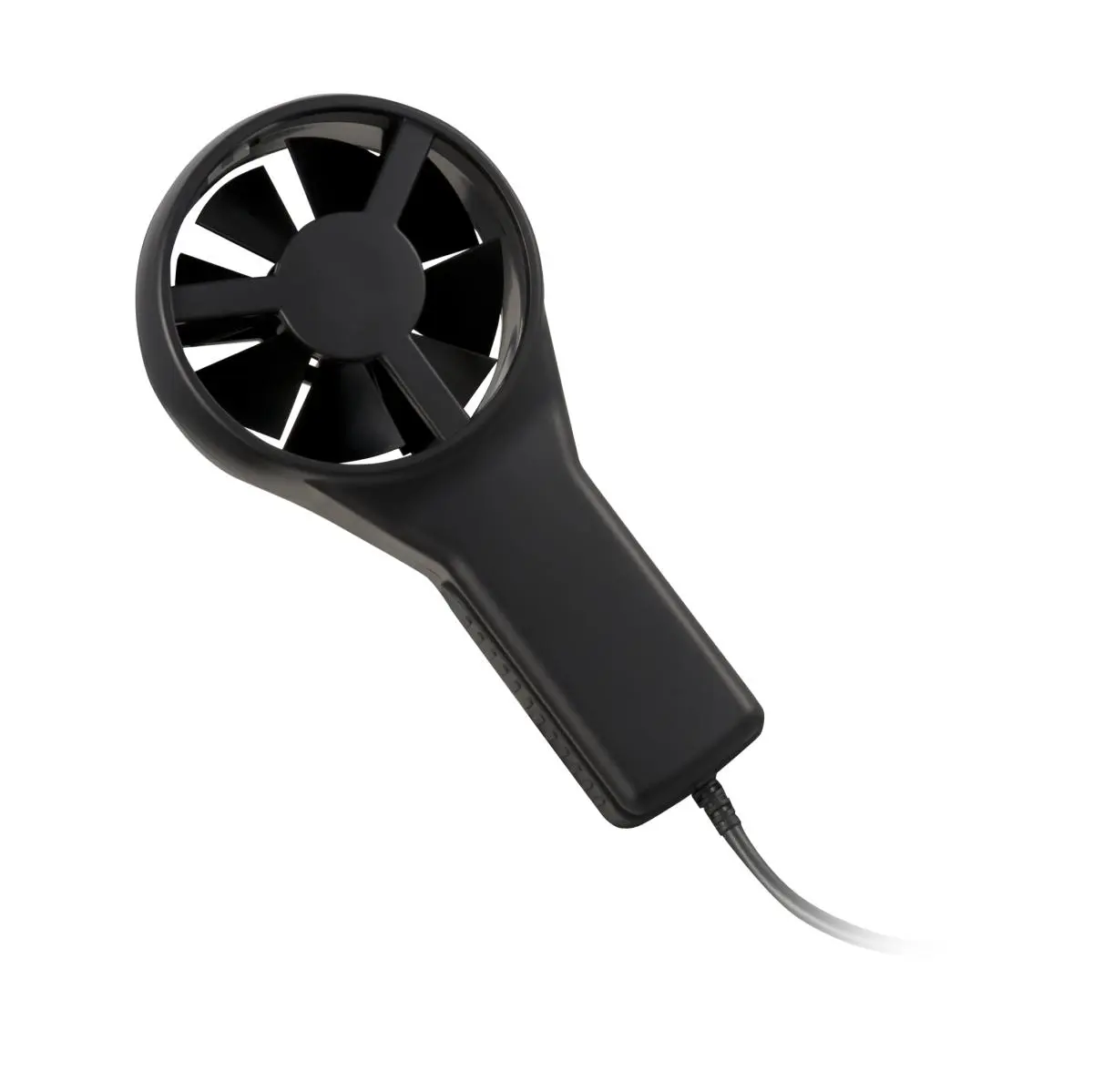

Speed
Measuring range	0,5 ... 30 km/h
Resolution	0.1 km/h
Accuracy	±(3 % +3 digits)

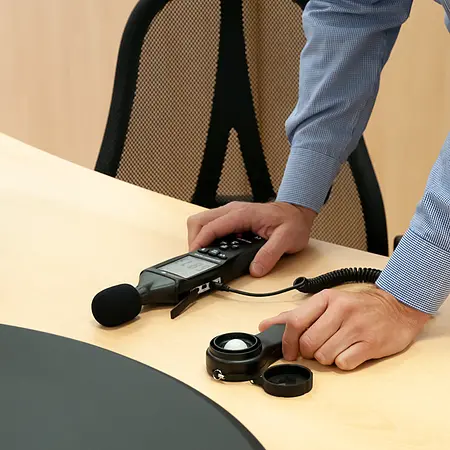

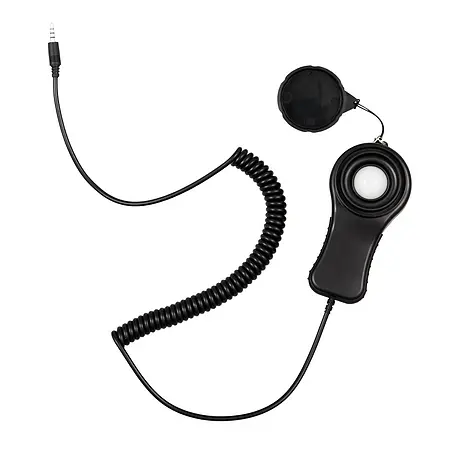

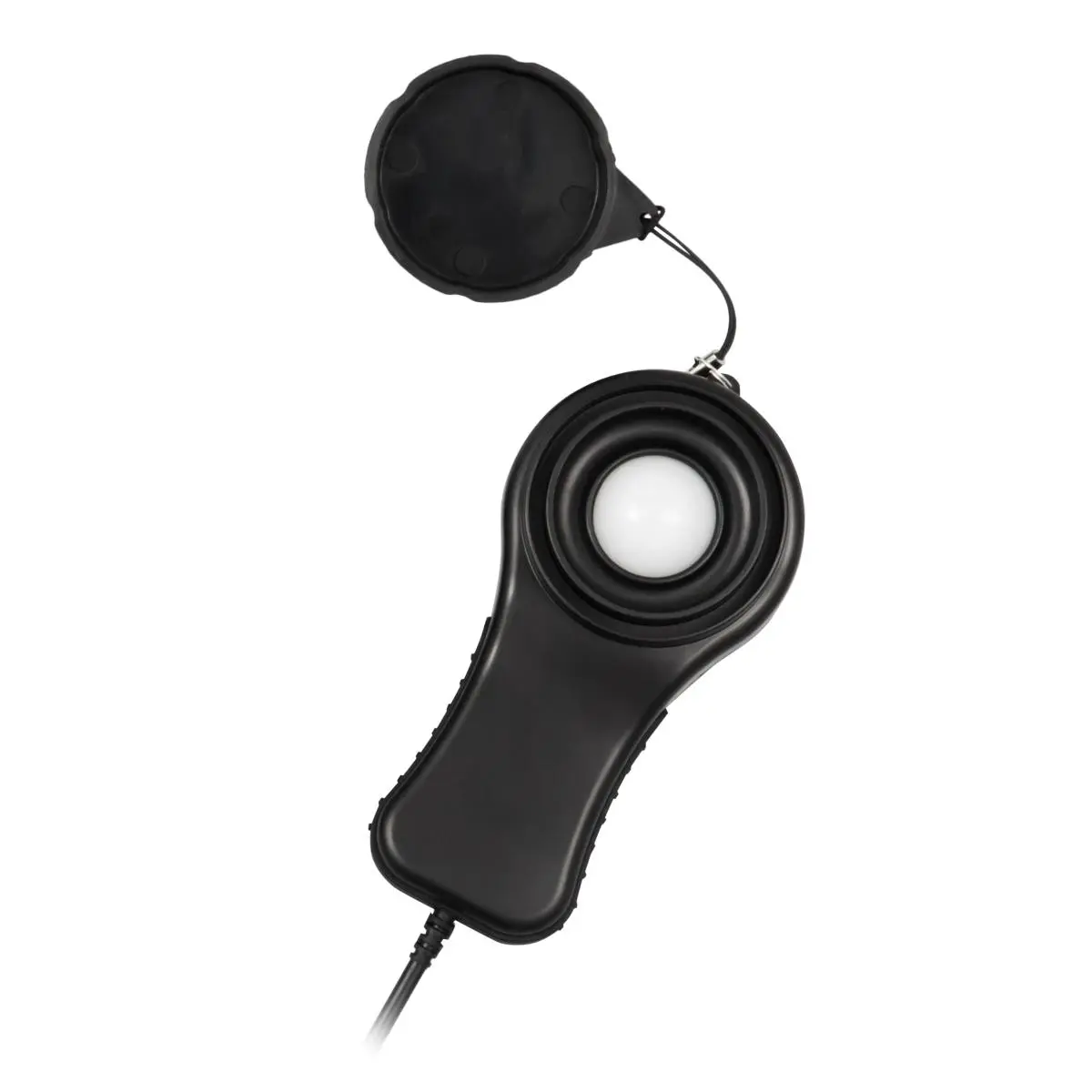

Light
Measuring range	0 ... 1000 lx
Resolution	0,1 lx
Accuracy	±4 % of Rd (<10 klx)

Light
Measuring range	1000 ... 9999 lx
Resolution	1 lx
Accuracy	±4 % of Rd (<10 klx)

Light
Measuring range	10 ... 200 klx
Resolution	0,1 klx
Accuracy	±0.5 % of range (>10 klx)

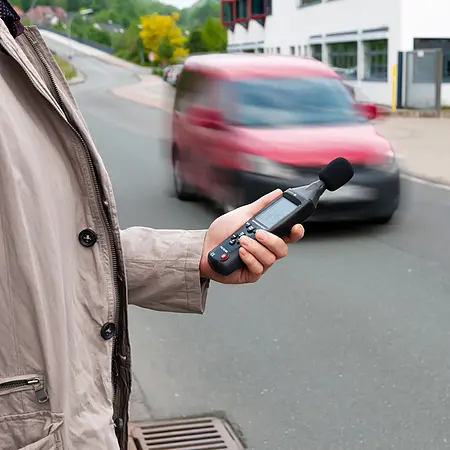

Sound level
Measuring range	35 ... 130 dBA
Resolution	0,1 dBA
Accuracy	±2 dbA

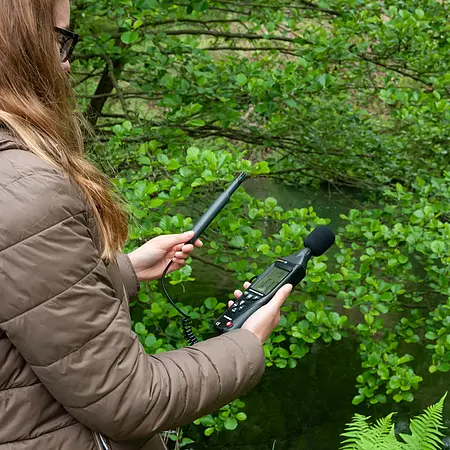

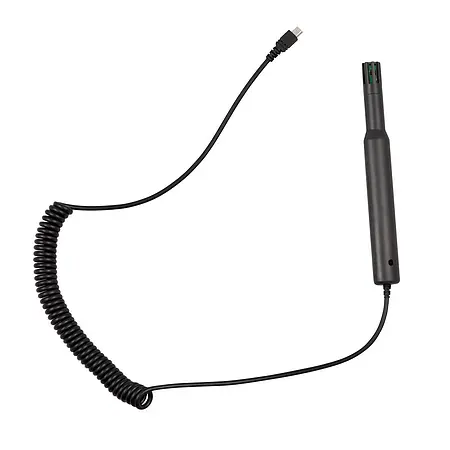

Relative humidity
Measuring range	10 ... 95 %
Resolution	0,1 %
Accuracy	±5 %

Temperature
Measuring range	-40 ... +70 °C
Resolution	0,1 °C
Accuracy	±2 °C

General technical data
Measuring functions	HOLD, MAX, MIN
Time weighting	slow (1 s)
Frequency weighting	A
Frequency	31.5 ... 8000 Hz

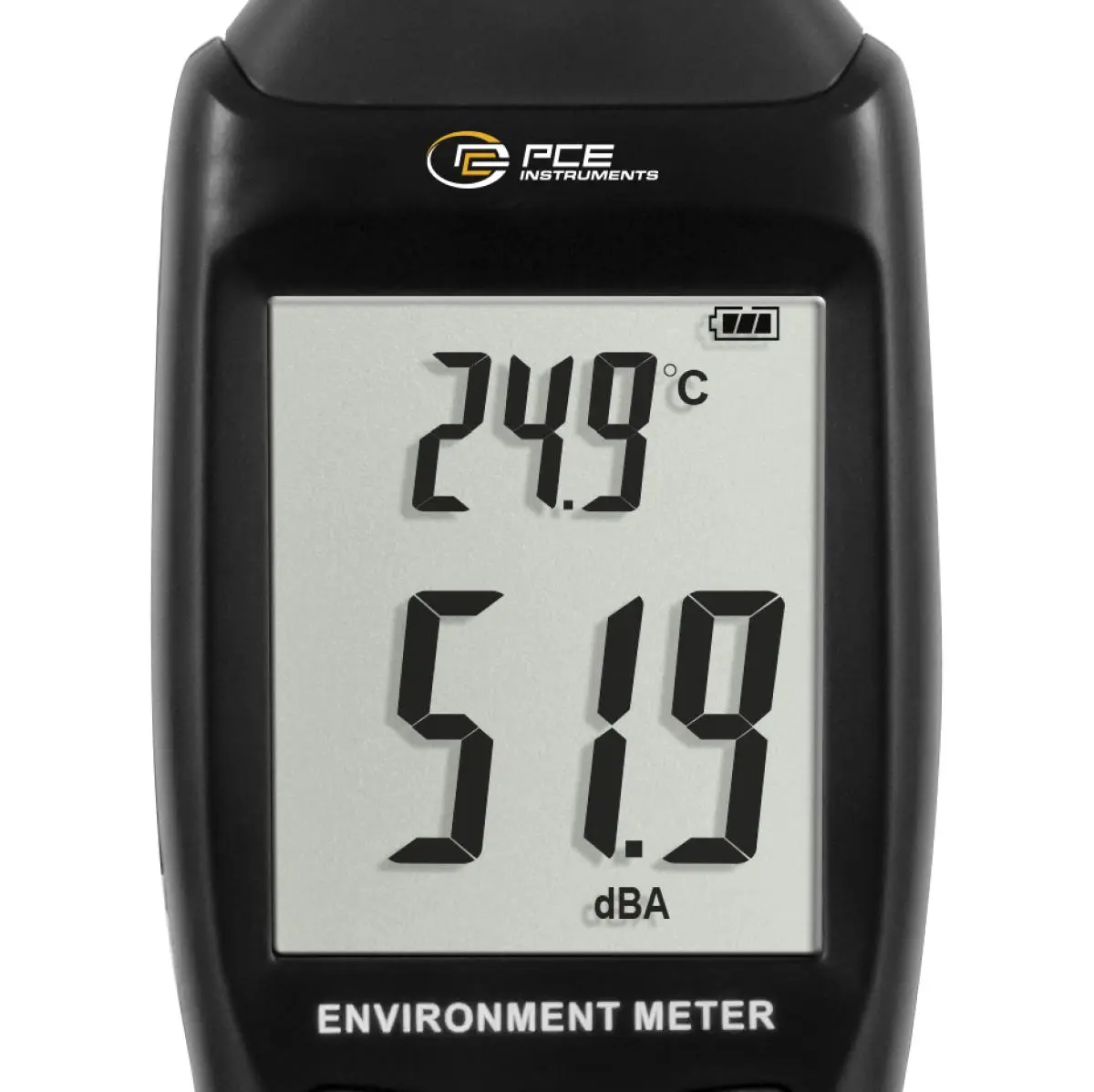

Display type	LCD
Display size	2,75 in
Display refresh rate	1 x per second
Measuring rate	1 Hz
Microphone type	Electret capacitor
Standard(s)	Based on IEC 61672-1 (Class II)
Response time	1 s
Automatic power-off	15 min
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Tripod thread	1/4 inch
Luminous intensity	Spectral sensitivity: CIE based on the human eye Spectral accuracy: CIE Vλ function f1' ≤6% Cosine behavior: f2' ≤ 2%
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Zinc carbon
Capacity	640 mAh
Operating conditions	-20 ... 60 °C , 10 ... 90 % RH
Storage conditions	-40 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )	252 x 70 x 29 mm
Weight	219 g
