Air Humidity Meter PCE-313A

Order no.: PCE-313A
£ 200.00
£ 240.00
4250348700308
PCE-313A
price ex. (VAT / delivery)
Delivery time: 1-2 working days

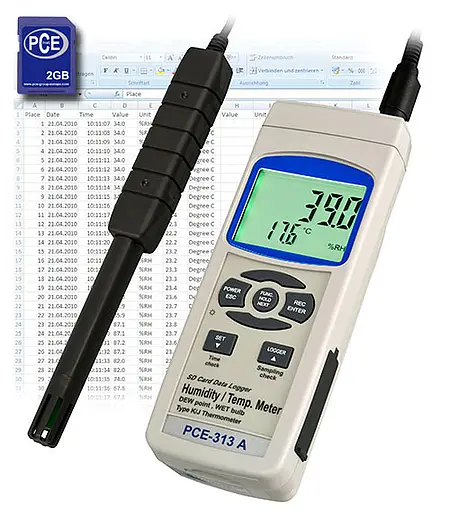

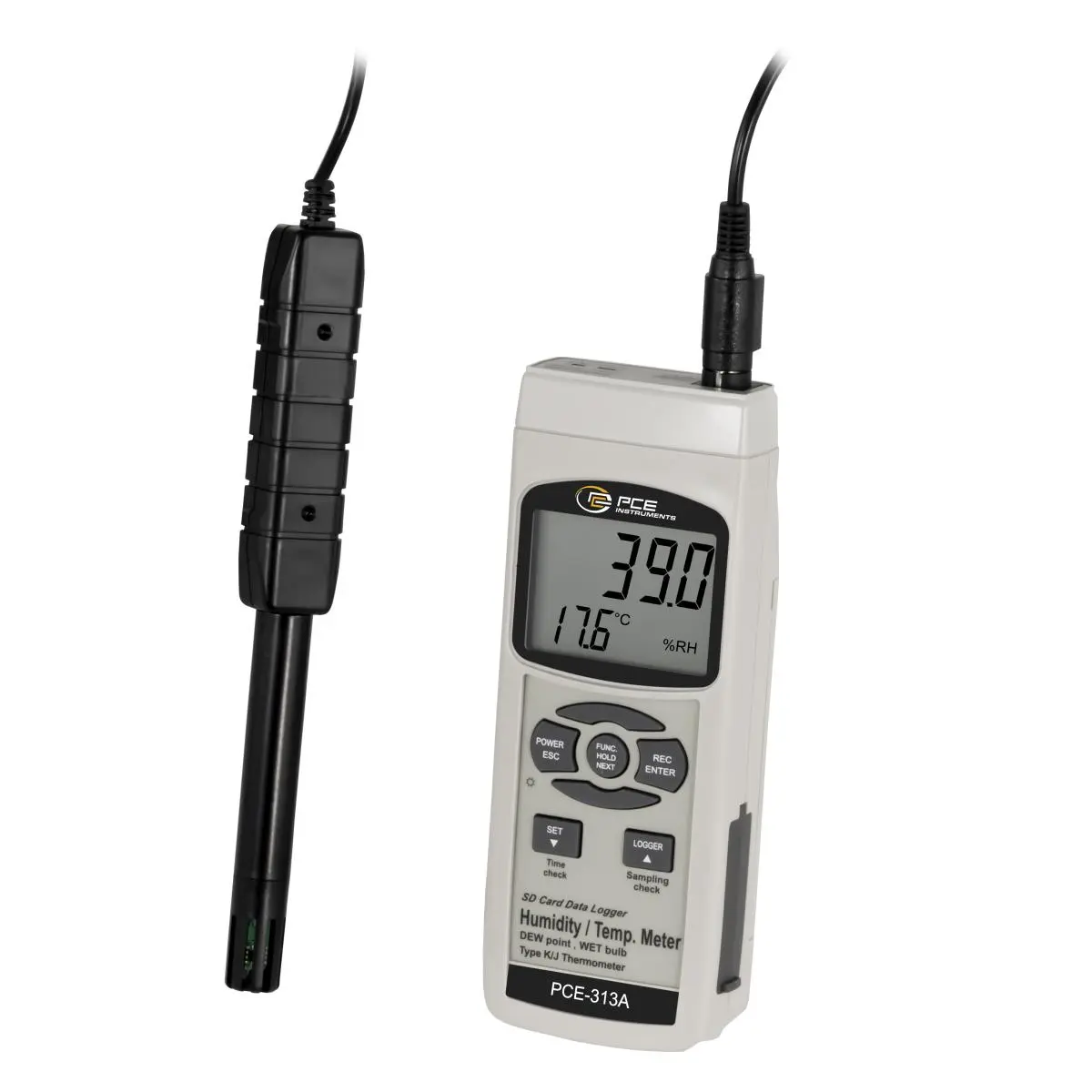

PCE-313A Air Humidity Meter
Measures ambient temperature from -20 ... 60°C (-4 ... 140°F) and relative humidity from 0 ... 100% RH / Integrated data logger with adjustable sampling rate and SD card memory

PCE-313A is a combination thermometer hygrometer used to measure the relative humidity (% RH) and temperature (°C / °F) of the air. Ideal for use in evaluating heating, ventilation and air conditioning (HVAC) system performance, this digital temperature and air humidity meter also has a port for connecting a type-K thermocouple. This allows the user to take surface temperature measurements using an optional external type-K temperature probe (not included - see accessories).

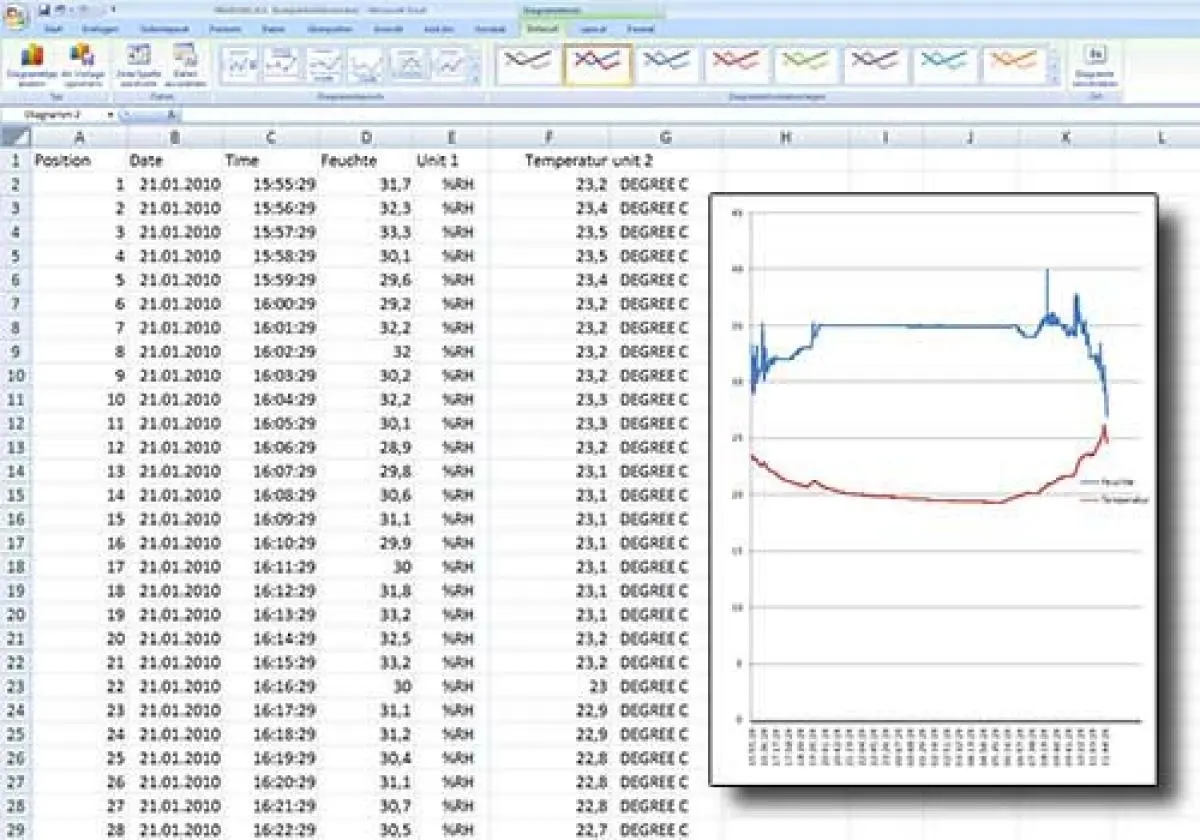

The thermo hygrometer features a built-in data logger capable of recording humidity and temperature measurement data at an adjustable sampling rate in direct mode or permanently in data logging mode. To use these functions, you must program the meter in advance using the keypad. For permanent or long-term recording applications, we recommend powering the meter using an optional AC power adapter (see accessories for details). The device also comes with an SD card memory of up to 16 GB to enable long-term data acquisition as well as quick and easy transfer of the stored data to a PC for analysis via Microsoft Excel (.xls files saved to SD card).


- Measures ambient temperature from -20 ... 60°C / -4 ... 140°F and relative humidity from 0 ... 100% RH
- Ideal for evaluating heating, ventilation and air conditioning (HVAC) system performance
- Integrated data logger with adjustable sampling rate and SD card memory
- Data stored in .xls format compatible with Microsoft Excel
- Optional software kit available as accessory
- Optional AC power adapter for permanent or long-term recording applications

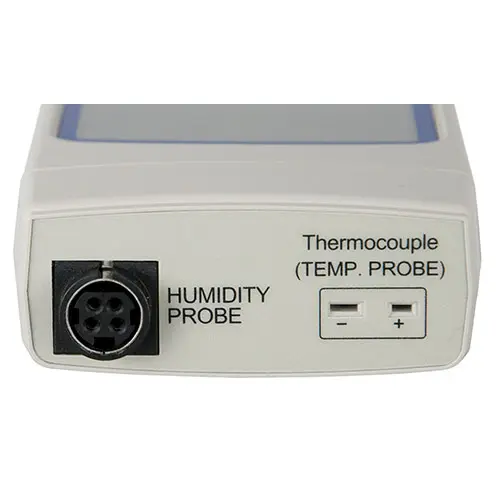

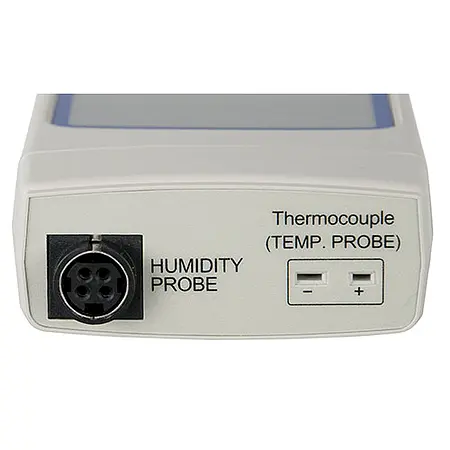

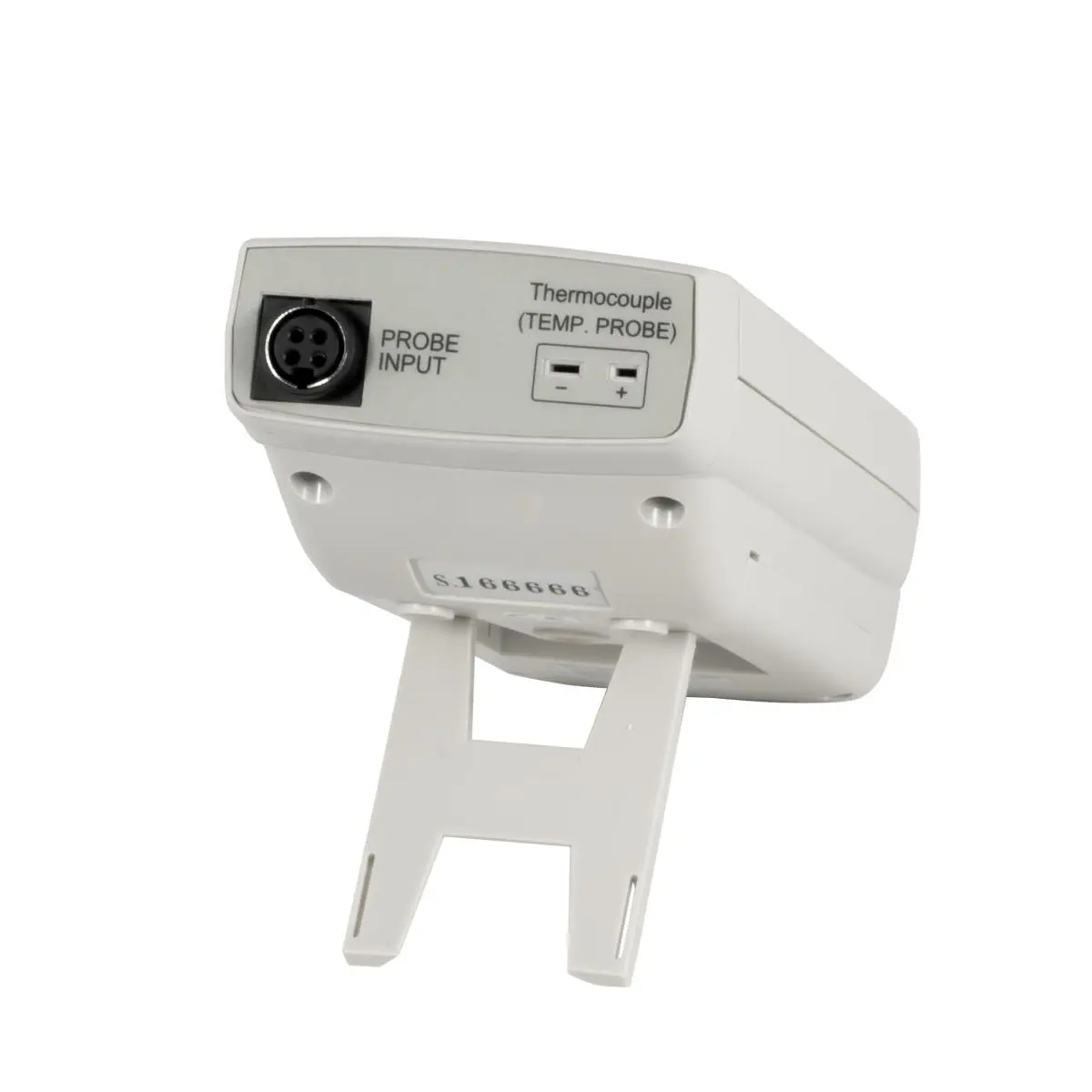

- Port for optional Type-K thermocouple
- Meter comes factory calibrated
- ISO calibration certificate available as an option - see accessories tab for details
Ranges
 - Relative humidity5 ... 95% RH
 - Temperature0 ... 50°C / 32 ... 122°F
 - Type K-50 ... 1300ºC / -58 ... 2372°F
 - Calculated dew point-25.3 ... 48.9ºC / -13.5 ... 120°F
 - Wet bulb temperature  -21.6 ... 50ºC / -6.9 ... 122°F
Resolution
 - Relative humidity0.1% RH
 - Temperature0.1°C / 0.18°F
 - Type K0.1°C / 0.18°F
 - Calculated dew point0.1°C / 0.18°F
 - Wet bulb temperature 0.1°C / 0.18°F
Accuracy
 - Temperature±0.8ºC / 1.4ºF
 - Relative humidity≥70% RH±3% of the measurement value ±1% RH
  <70% RH±3% RH
 - Type K± (0.4% + 0.5ºC / 32.9ºF)
MemorySD card (1 ... 16 GB)
Measurement rateAdjustable, 1 ... 3600 seconds
DisplayLCD 52 x 38 mm / 2 x 1.5 in, with backlight

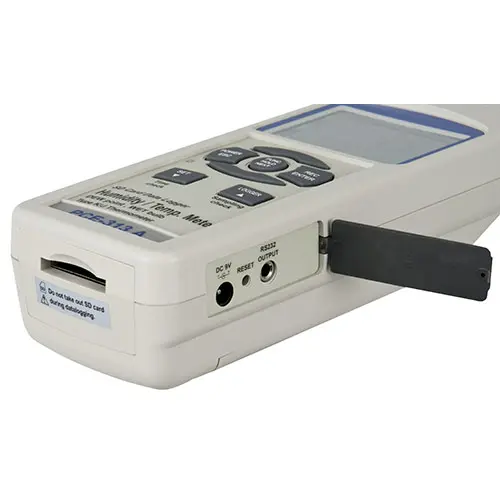

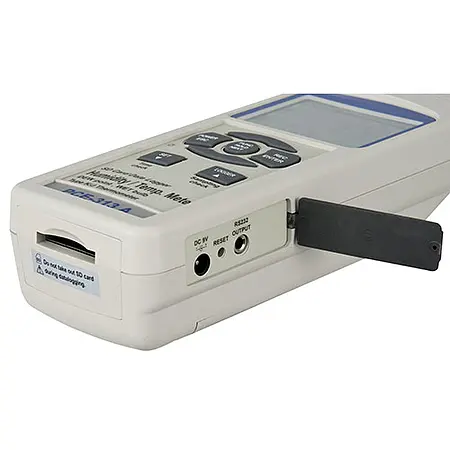

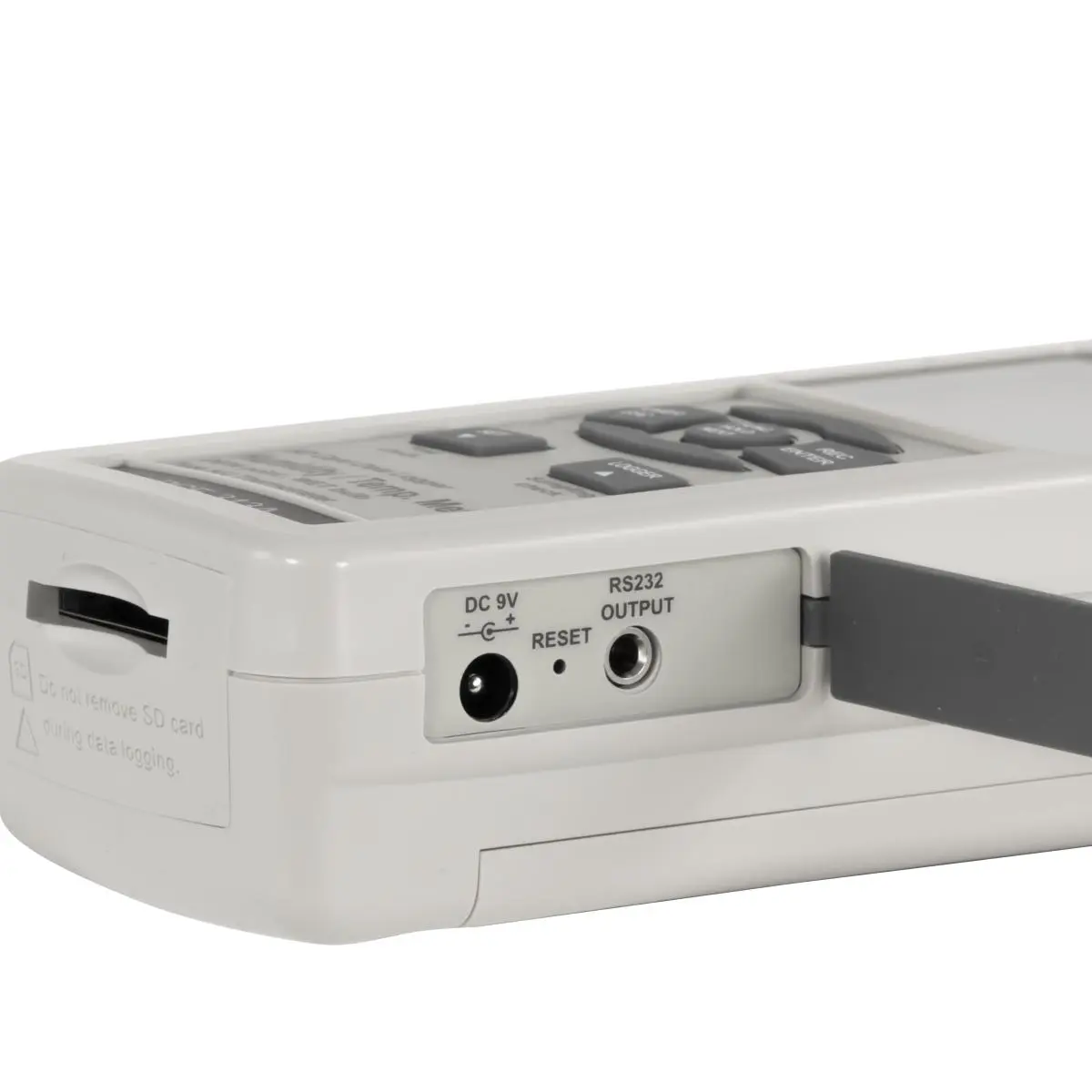

InterfaceRS-232
Operating conditions0 ... 50°C / 32 ... 122ºF
< 85% RH

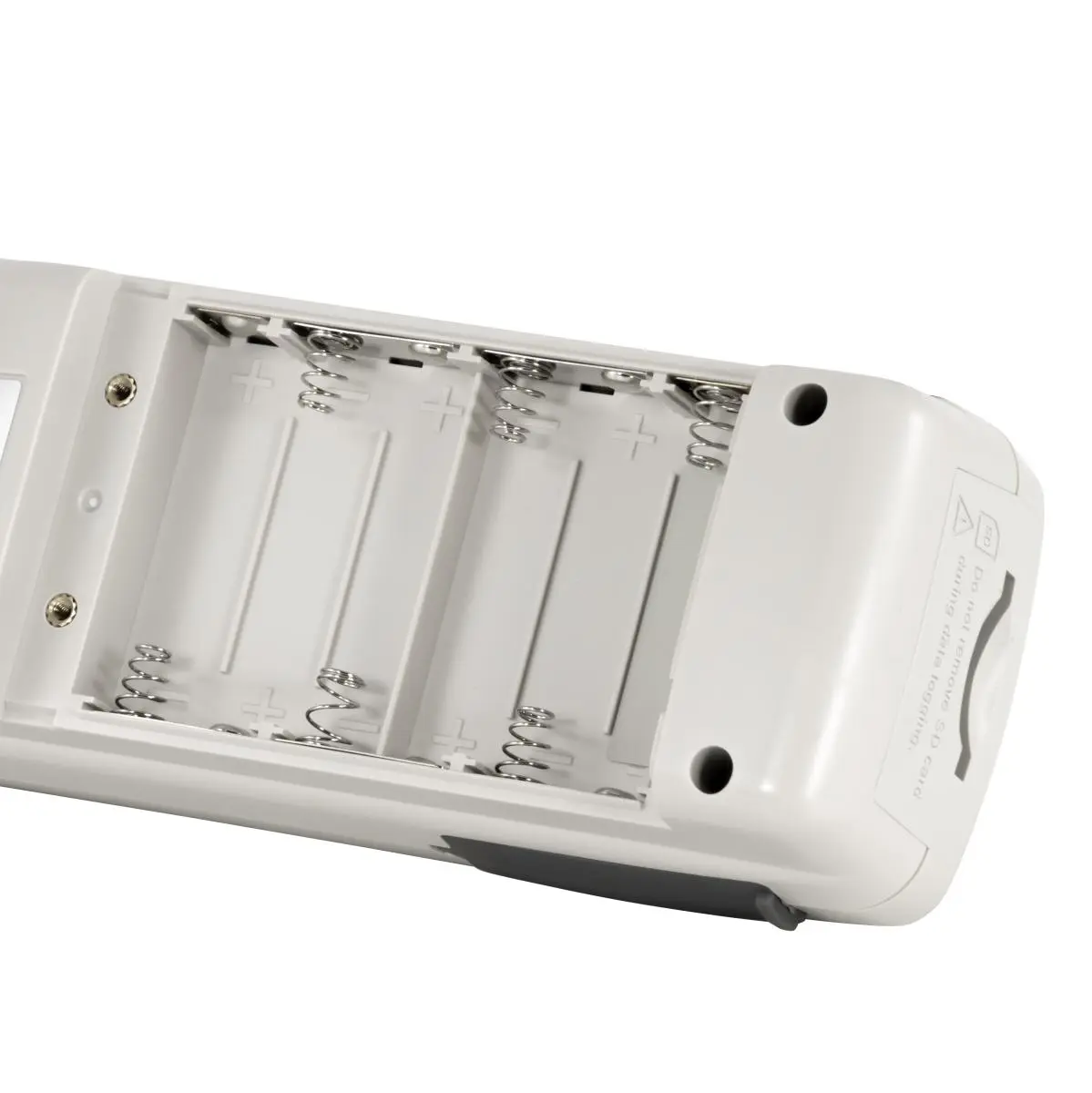

Power supply 6 x 1.5V batteries /
 9V mains adapter (optional)
Dimensions177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
WeightApprox. 490 g / 1.1 lbs

1 x PCE-313A air humidity meter

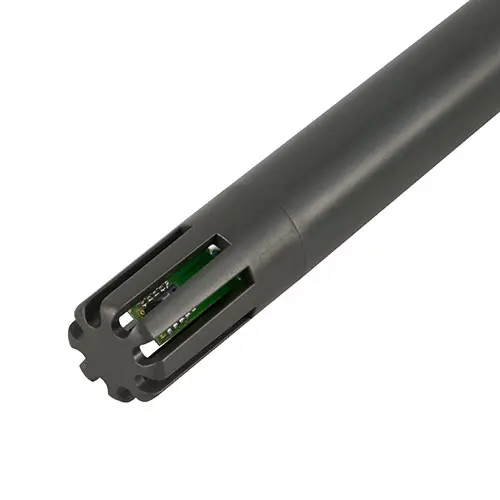

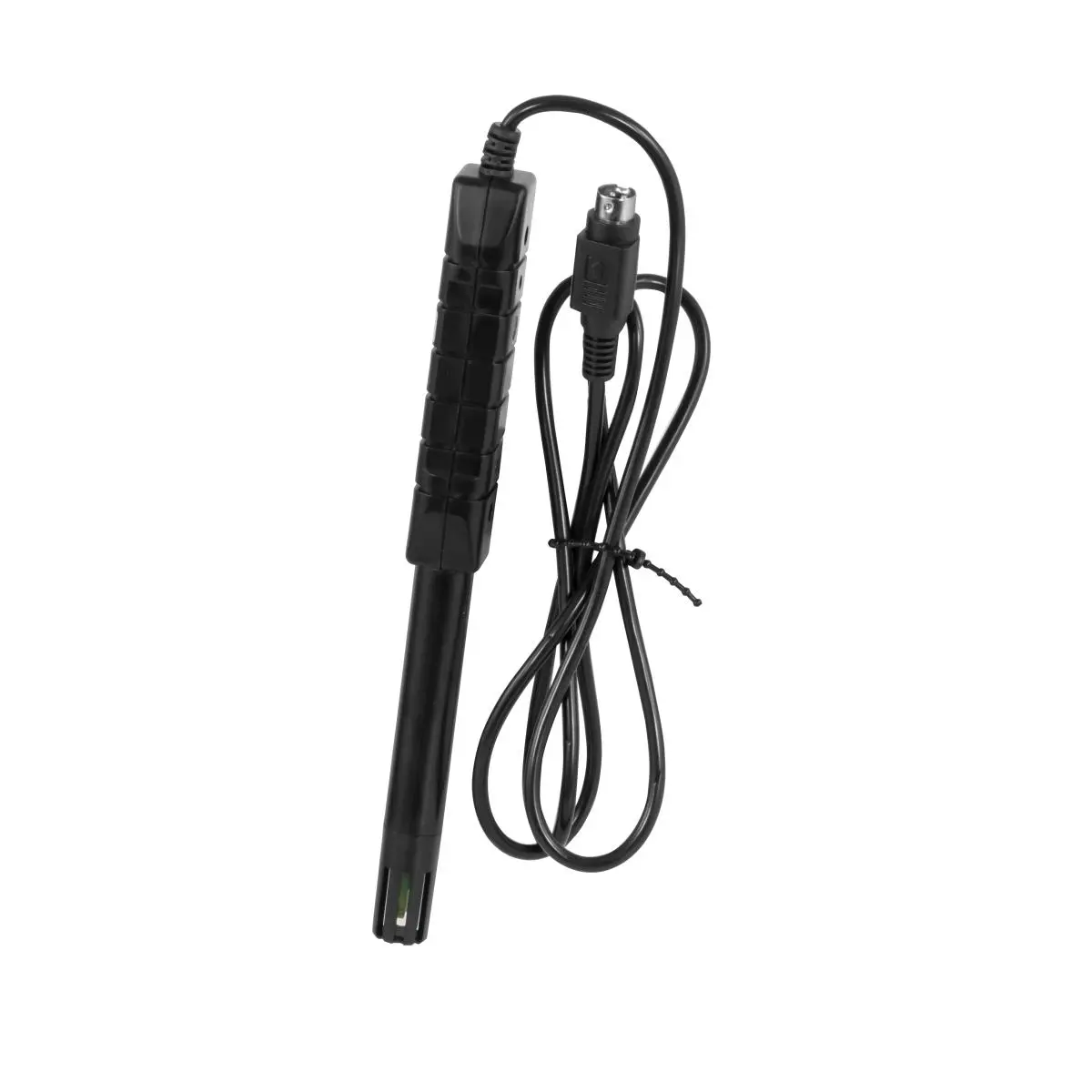

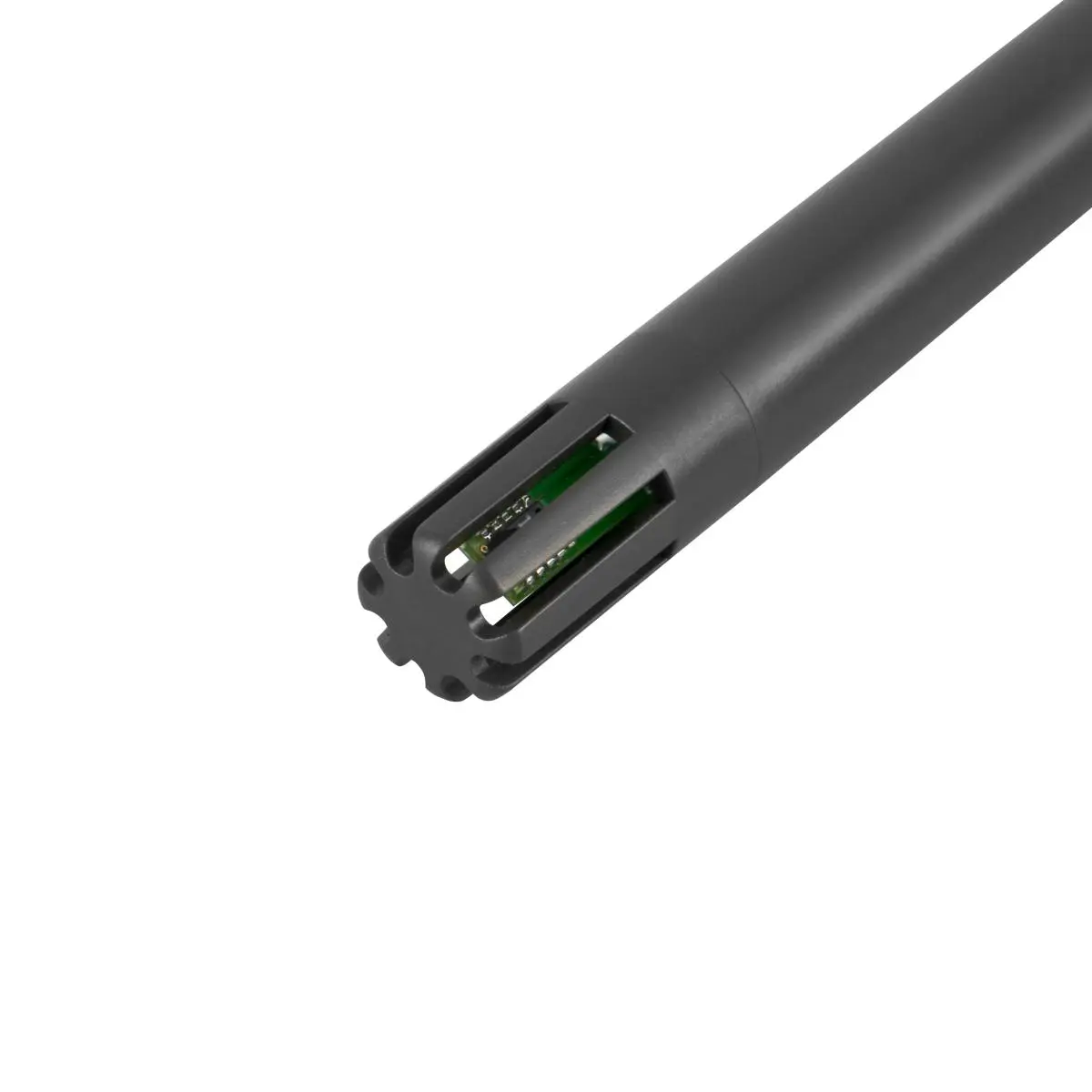

1 x Sensor for ambient temperature and relative humidity
1 x SD memory card (2 GB)
1 x 9V battery
1 x User manual
