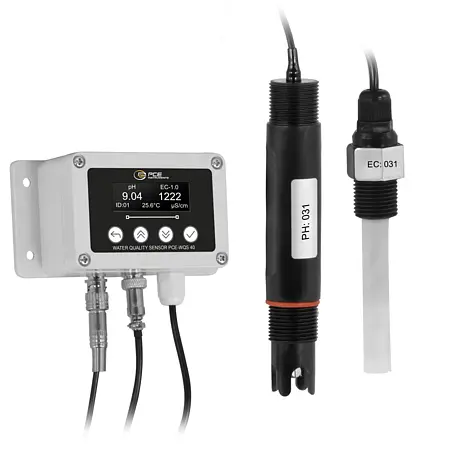

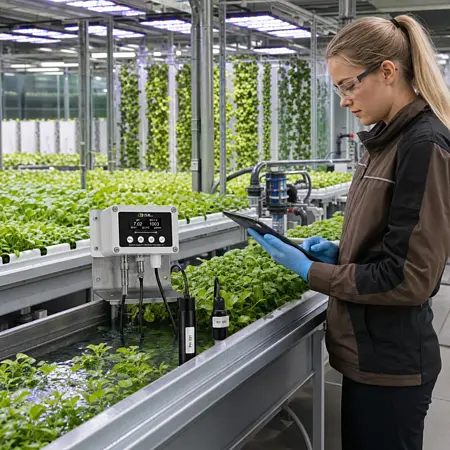

This high-quality agricultural measuring device enables reliable and fast monitoring of important water parameters. With simultaneous measurement of pH and conductivity, the agricultural measuring device is ideal for applications in water treatment, plant cultivation, scientific laboratories, and municipal and industrial processes.

The agricultural measuring device features a pH measuring range of 0 ... 14 pH with a high resolution of 0.01 pH and an accuracy of ±0.03 pH. Conductivity is measured in the range of 0 ... 5000 µS/cm with a resolution of 0.1 µS/cm and an accuracy of ±1.5% FS. This provides precise measured values for continuous water quality monitoring.

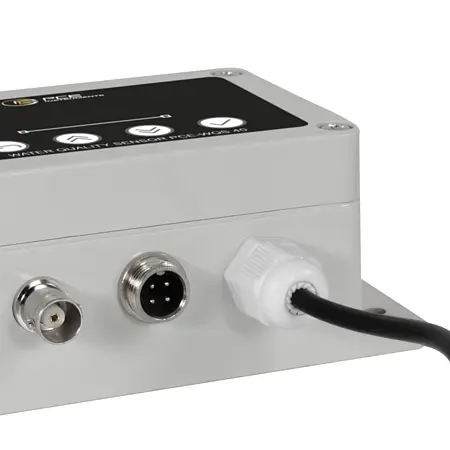

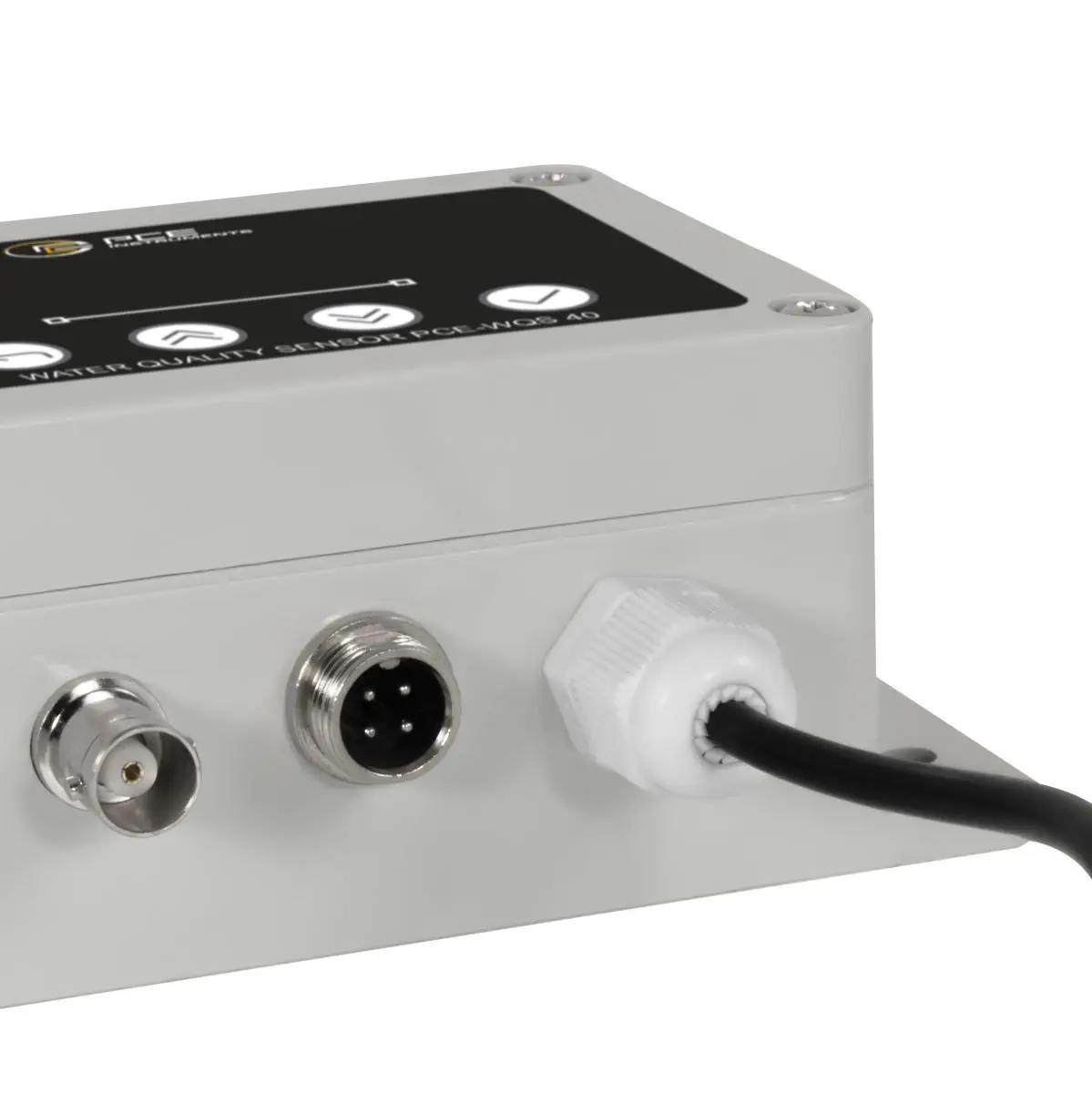

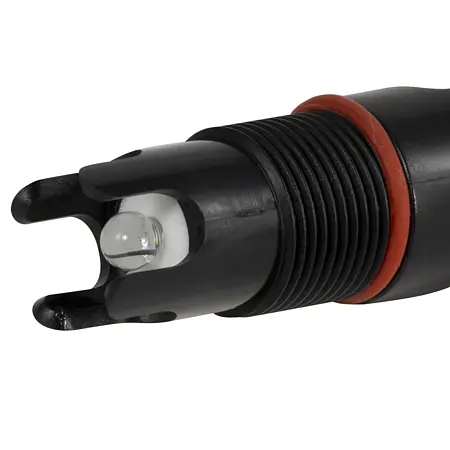

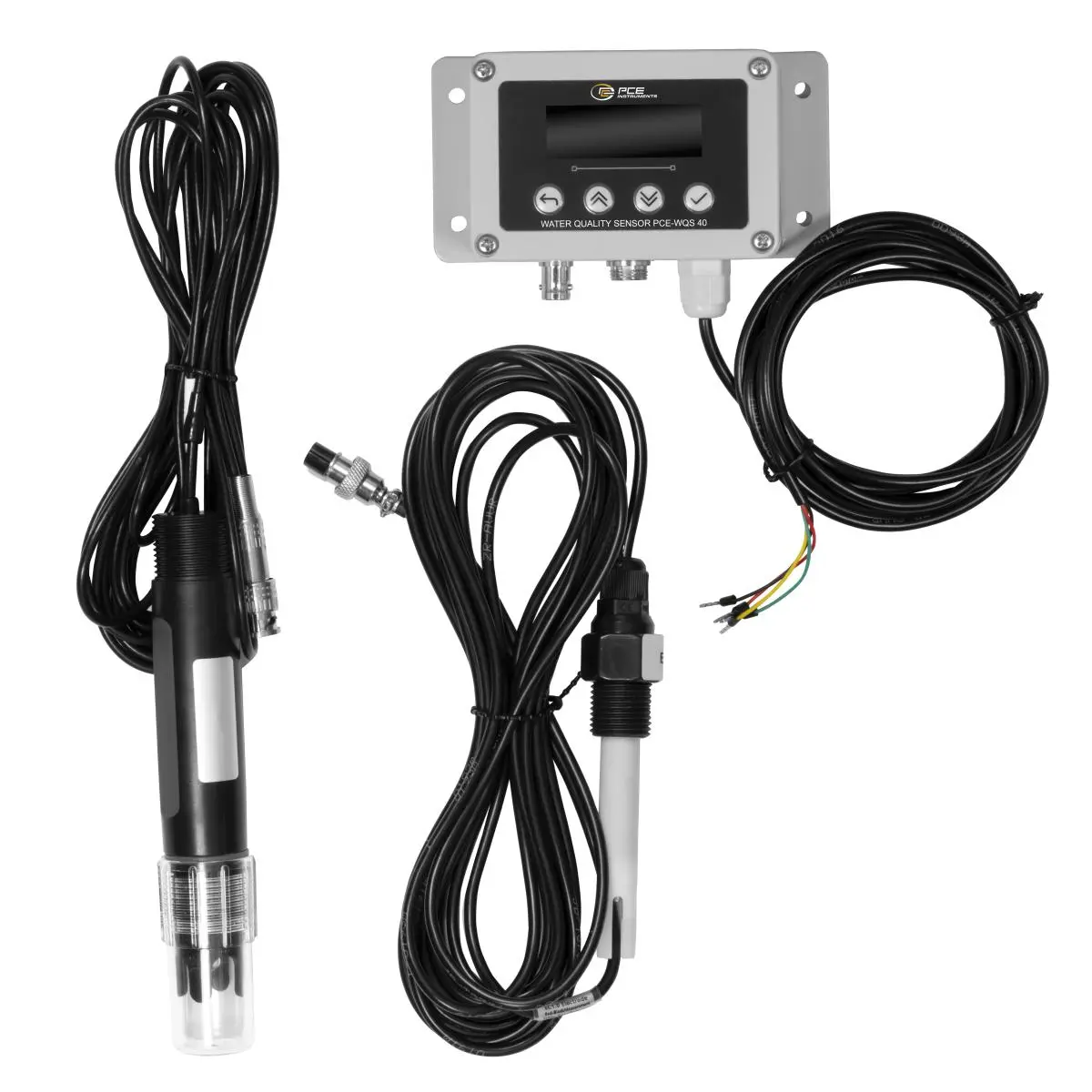

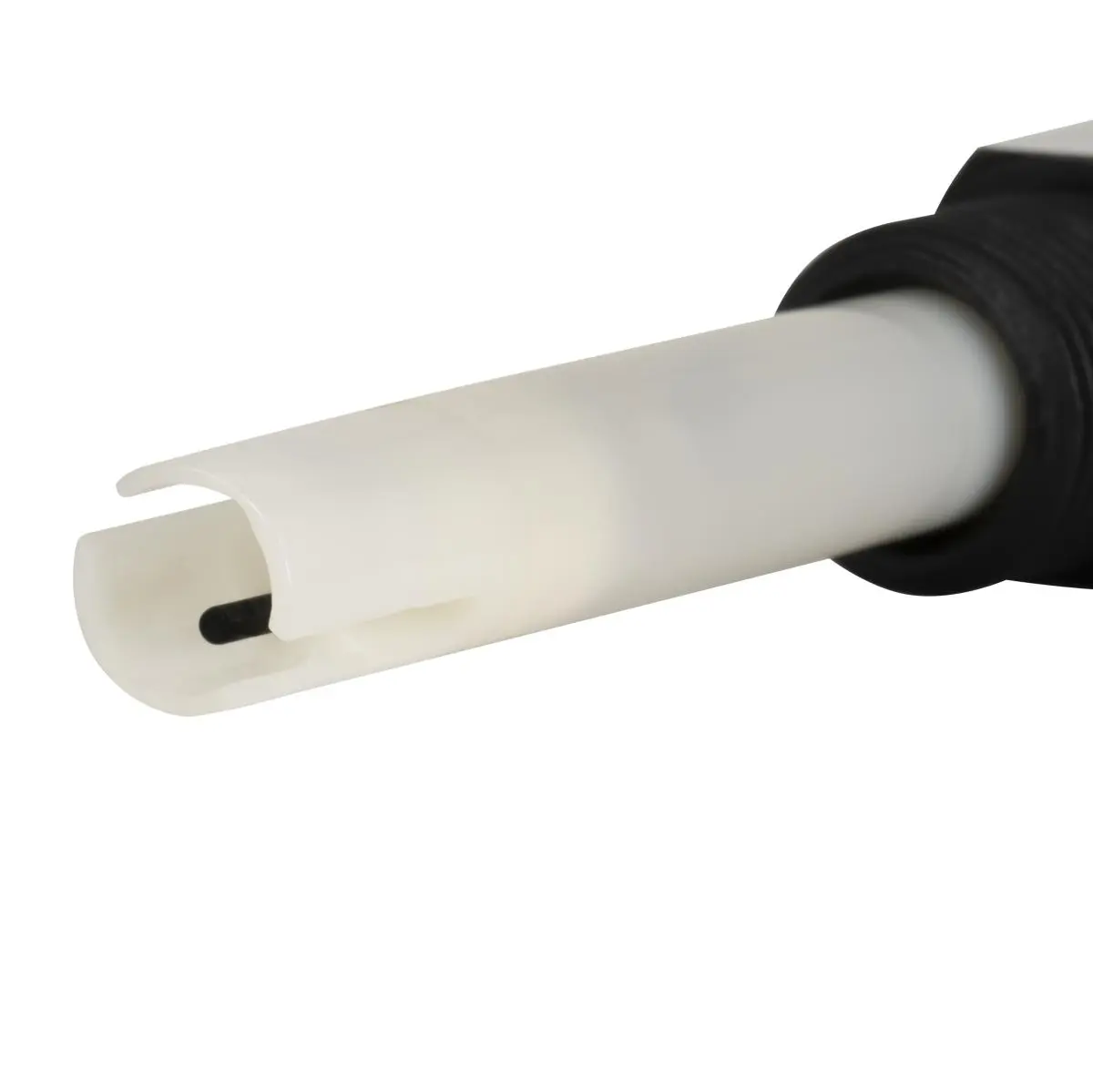

The pH electrode has a rugged plastic shaft with a glass diaphragm and is designed for temperatures from 0 to 60 °C. For easy installation, it features a 3/4-inch male thread on the top and bottom. Connection is made via a BNC plug, while the 5 m connection cable enables flexible installation. The conductivity electrode also consists of a durable plastic shaft and is equipped with a 1/2-inch NPT threaded connection.

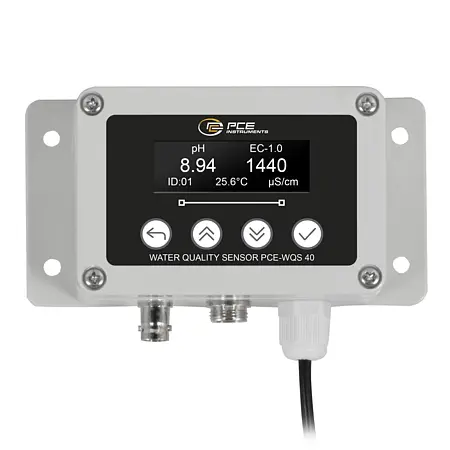

Thanks to the integrated 1.26-inch LCD, measured values can be read directly on site. Communication takes place via an RS485 interface, allowing the device to be easily integrated into existing measurement, control, and automation systems. The device is wall-mounted. A supply voltage of 9 to 24 V DC is required for operation.

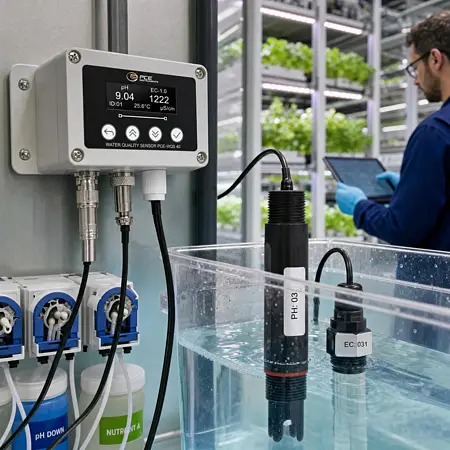

With a response time of only 45 seconds, the agricultural measuring device is particularly suitable for applications requiring fast and reliable measurement results. Typical applications include rapid water quality checks, plant cultivation, scientific experiments, municipal wastewater treatment plants, chemical process engineering, and environmental protection projects.
