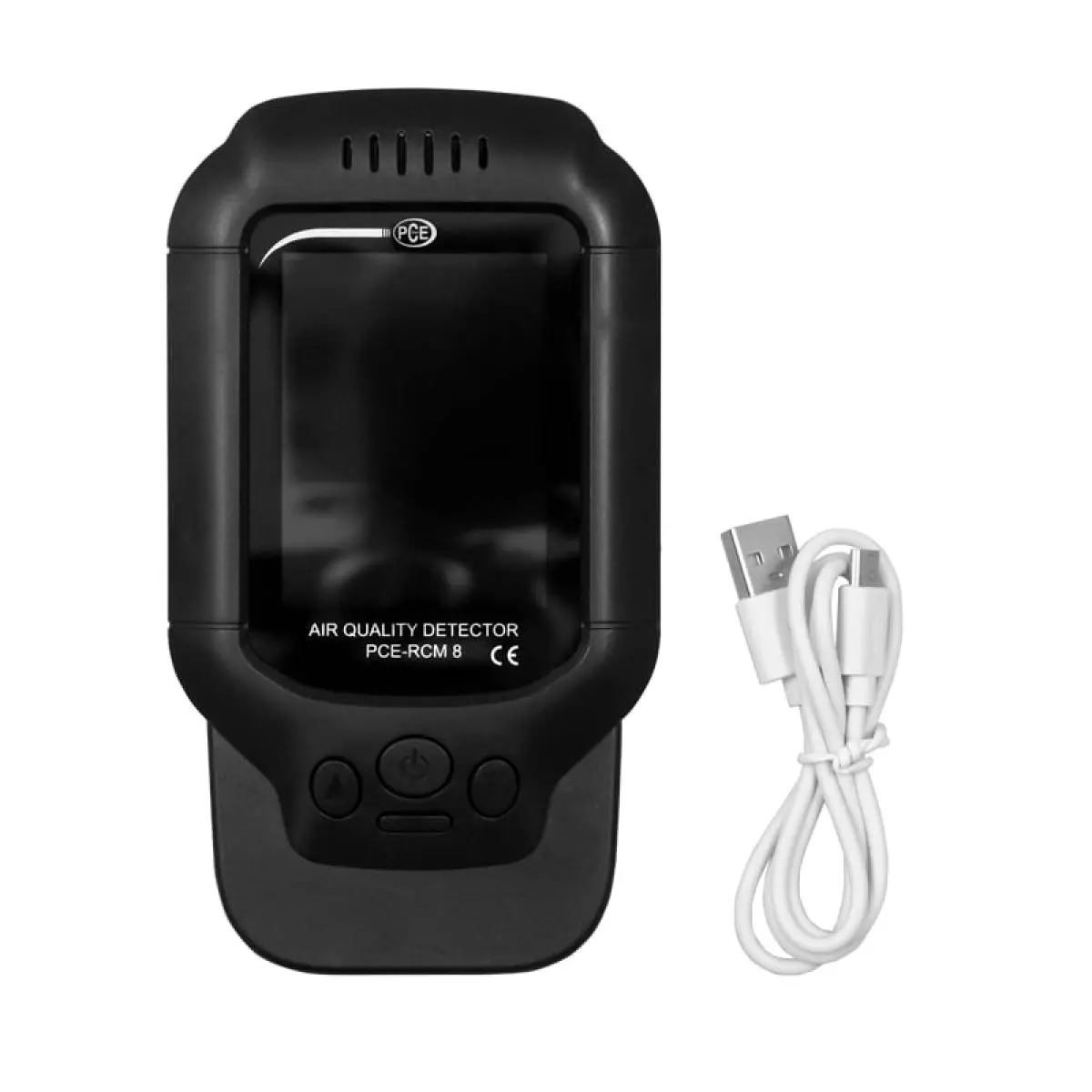

Aerosol measuring device PCE-RCM 8

Order no.: PCE-RCM 8

GTIN (EAN): 4250348718983

Description

Aerosol measuring device PCE-RCM 8
Indoor / Battery-powered multi-function particle counter / LC display / Mass concentration PM 1.0, PM 2.5, PM 10 / Formaldehyde / Alarm function / Temperature measurement / Foot stand / Switchable display

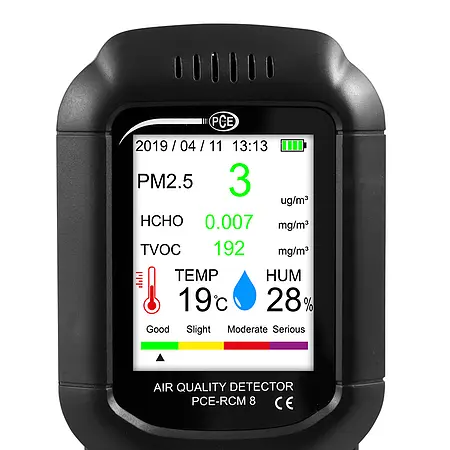

The multi-function Aerosol measuring device performs many measuring tasks. For example, the multi-function Aerosol measuring device can measure mass concentration, formaldehyde and TVOC. This multi-function Aerosol measuring device is specially designed for indoor measurement. The 320 x 240 pixel display shows you directly the current measured values.

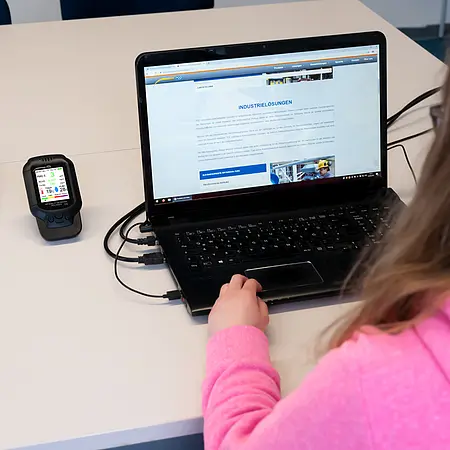

Due to its ease of use and the large display, this multi-function Aerosol measuring device is optimally suited for measuring in offices, schools and living spaces. With the help of the data logger function, you can view the last parameters at any time. Thanks to the built-in lithium ion battery, you can position the multi-function Aerosol measuring device freely at your workplace.

Highlights

- Battery operation

- LC display

- Measurement of TVOC

- Temperature measurement

- Alarm function

- Mass concentration

- Setting foot

- Formaldehyde in mg / m³

Specification

Formaldehyde
Measuring range	0,001 ... 1,999 mg/m³
Accuracy	±15 %

Particle
Measuring channel sizes	1.0, 2.5, 10
Measuring range	0 ... 999 µm

TVOC
Measuring range	0,001 ... 9,999 mg/m³
Accuracy	±15 %

Relative humidity
Measuring range	20 ... 99
Resolution	1
Accuracy	±15 %

Temperature
Measuring range	-10 ... +60 °C
Accuracy	±15 %

General technical data
Display type	LCD
Display size	2,8 in
Storage medium	Internal memory
Storage capacity	10 Data records
Storage interval from	1,5 s
Interface	USB-C
Automatic power-off from...to	30 ... 90 min.
Menu language	English, Chinese
Capacity	1000 mAh
Operating conditions	-10 ... 60 °C , 20 ... 85 % RH
Storage conditions	-10 ... 60 °C , 20 ... 85 % RH
Dimensions ( L x W x H )	155 x 87 x 35 mm
Weight	160 g
