Table Housing PCE-TGH905

Order no.: PCE-TGH905

GTIN (EAN): 4250348746856

Description

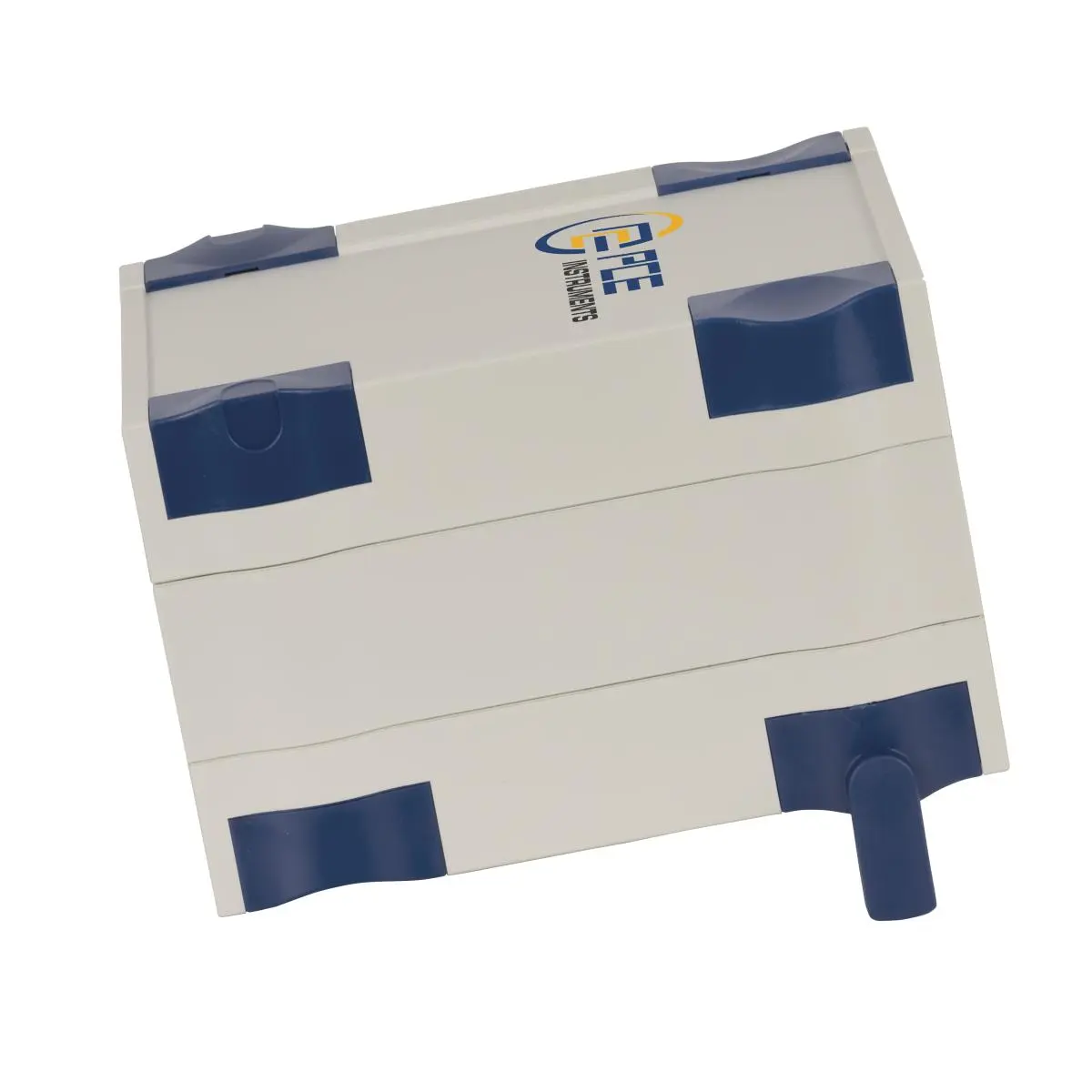

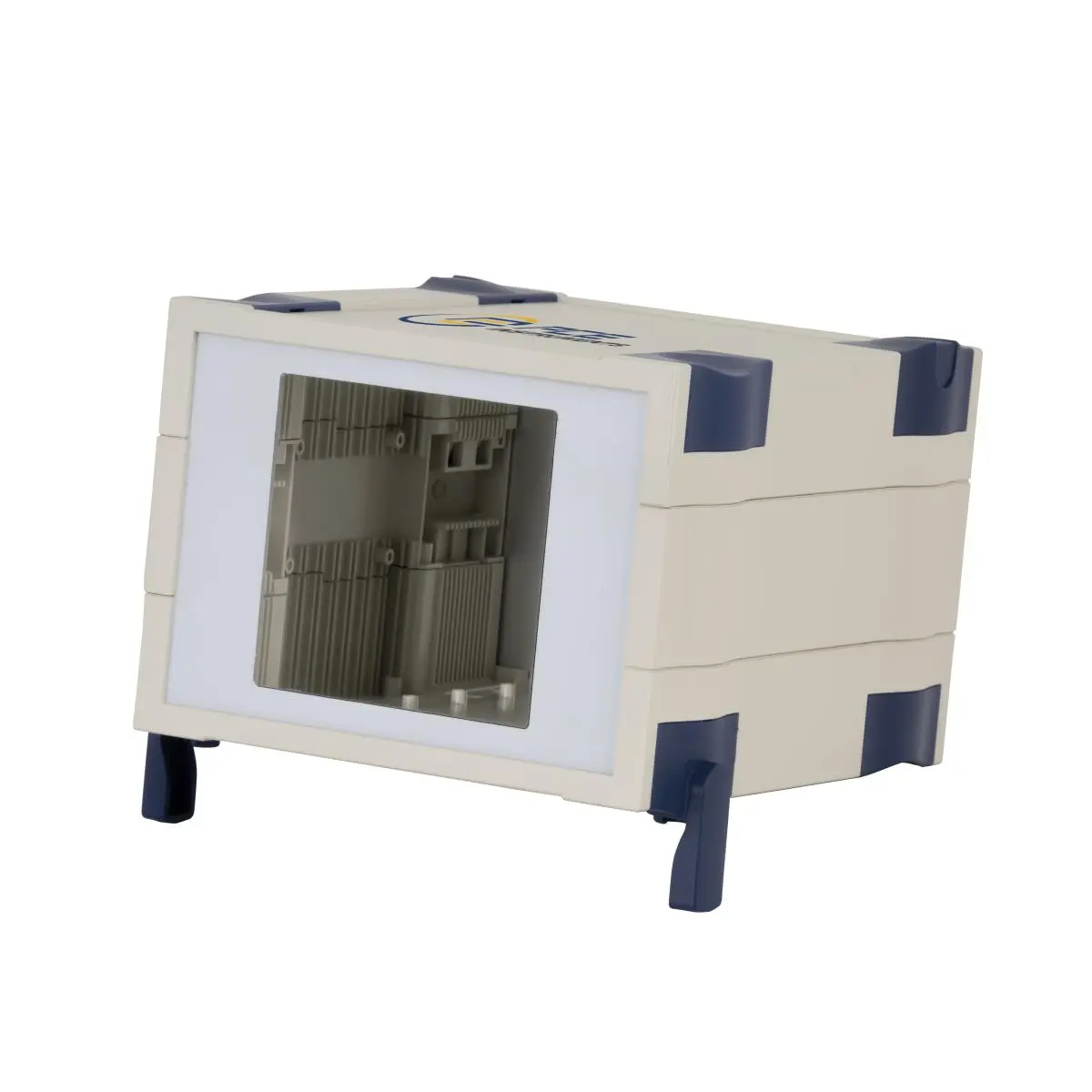

PCE-TGH905 is a stackable table housing designed to accommodate benchtop or tabletop use of the display recorder or data logger.

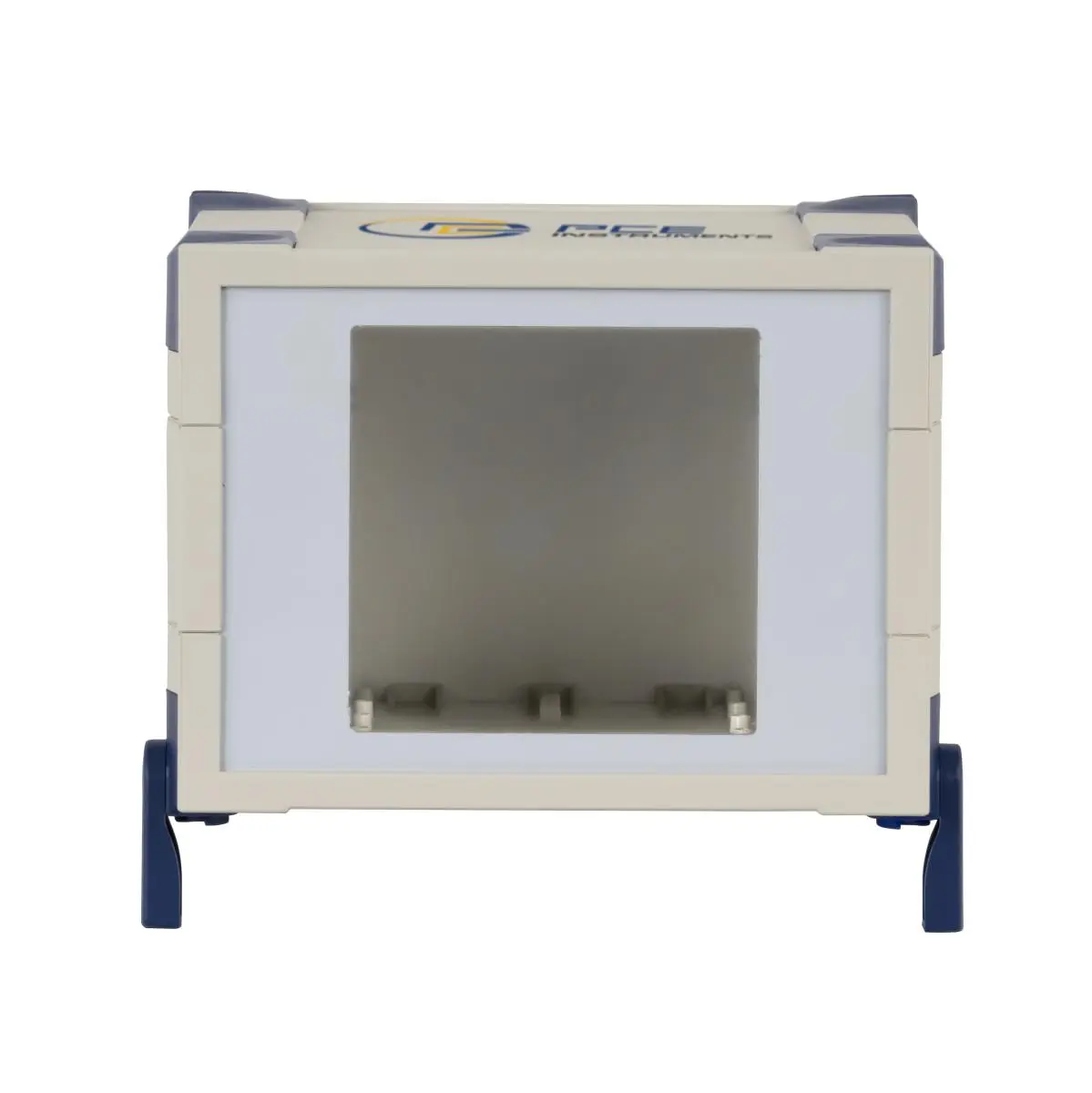

- 90.5 x 90.5 mm cutout for control panel or screen
- Front feet allow better viewing and access

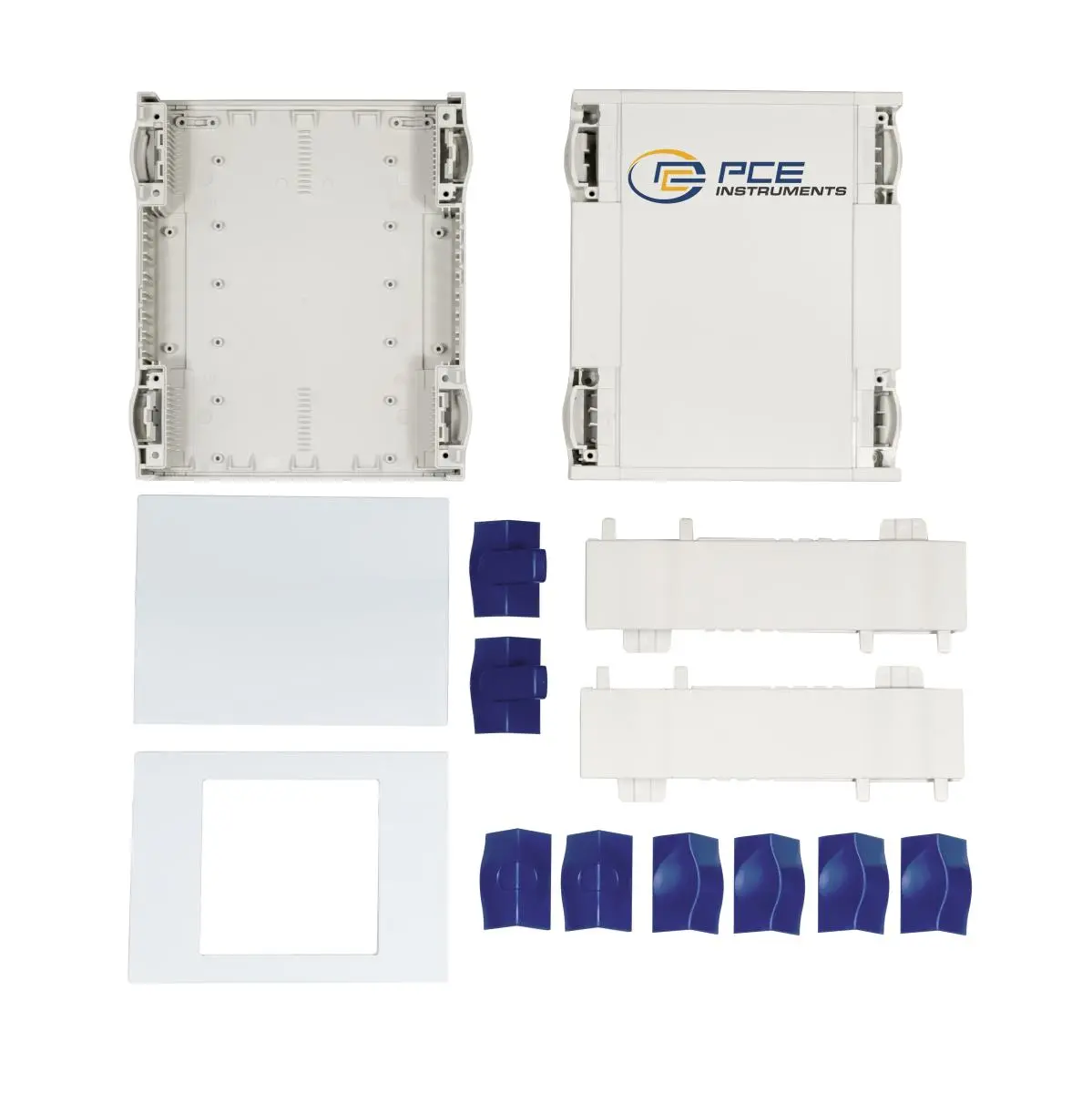

- Plastic case with aluminum face plate

Highlights

- User-friendly design ensures easy installation of display recorder or data

logger

- Groove, trough or cavity in the top enables secure stacking without sliding

- Ideal for use with PCE-KD5 and PAR-99X series devices

Specification

General technical data
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions	Installation depth: max. 186 mm Panel cut-out: 90.5 x 90.5 mm
Protection class (device)	IP20
Operating conditions	0 ... 50 °C , -5 ... 95 % RH
Storage conditions	-20 ... 60 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	155 x 178 x 197 mm
Weight	704 g
