One Phase Power Meter/ 1-Phase Power Meter

The 1-Phase Power Meter PCE-PA6000 power analyzer can be used as a desktop or portable instrument for measuring active power, apparent power, power factor, energy consumption, AC voltage, AC current, DC voltage, DC current, resistance and frequency. The power / performance measurement can be performed with this ammeter either directly with the supplied test leads, or indirectly by current clamps.

• Performance
• Power factor
• AC voltage and current
• DC voltage and current, resistance and frequency
• Incl. Data Cable and Test Leads
• Software available in the accessories tab

The 1-Phase-Power Meter PCE-PA6000 power analyzer can be used as a desktop or portable instrument for measuring active power, apparent power, power factor, energy consumption, AC voltage, AC current, DC voltage, DC current, resistance and frequency. The power / performance measurement can be performed with this power analyzer either directly with the supplied test leads, or indirectly by current clamps.

• Performance
• Power factor
• AC voltage and current
• DC voltage and current, resistance and frequency
• Incl. Data Cable and Test Leads
• Software available in the accessories tab
• Incl. ISO Calibration Certificate

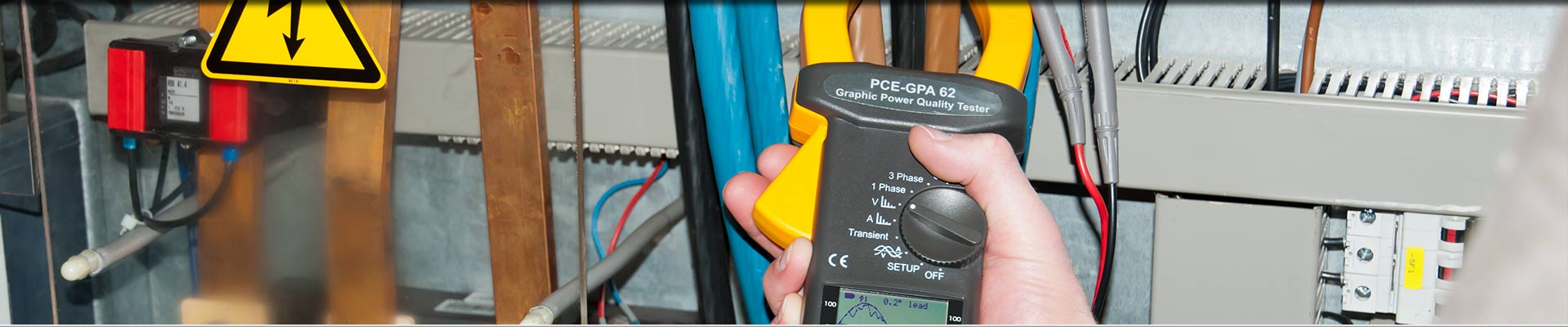

The 1-Phase-Power Meter PCE-GPA 62 (Graphic Power Quality Analyzer) with network analyzer / power and energy meter with data logger. The one-phase harmonic Analyzer (Graphic Power Quality Analyzer) is used for single-phase or three-phase measurements of active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics. This clamp meter is a perfect tool for all energetic measurements. It is delivered manufacturer calibrated and can be certified to ISO or standards.

• Real-time test, register and measurement of voltage and current (real and effective)
• Measures power factor and phase angle, frequency, energy, active, reactive and apparent power   (single-phase or three-phase in symmetrical networks).
• Max. conductor diameter: 55 mm / 2.2 in
• Records up to 50,000 records

This 1-Phase-Power Meter is used for single-phase or three-phase measurements of the active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics up to 50º of the harmonic waveform. The power analyzer clamp is equipped with data logger. The test instrument is delivered manufacturer ISO calibrated.

• Real-time test, register and measurement of voltage and current (real and effective)
• Measures power factor and phase angle, frequency, energy, active, reactive and apparent power   (single-phase or three-phase in symmetrical networks).
• Max. conductor diameter: 55 mm / 2.2 in
• Records up to 50,000 records
• incl. ISO Calibration Certificate

The PCE-360 is a Single-Phase Power Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period.

• Measuring range: 10 … 999.9 V
• AC voltage AC
• Alternating current AC
• Active power
• Power factor
• Phase angle
• Frequency
• Harmonic measurement
• Data memory: 512 kB   (non-volatile memory)
• incl. 4 current clamps / tapping terminals
• Standards: IP 30 / IEC 61 010, 600 V / CAT III
• incl. ISO Calibration Certificate

The PCE-360 is a HVAC Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period.

• Measuring range: 10 … 999.9 V
• AC voltage AC
• Alternating current AC
• Active power
• Power factor
• Phase angle
• Frequency
• Harmonic measurement
• Data memory: 512 kB   (non-volatile memory)
• incl. 4 current clamps / tapping terminals
• Standards: IP 30 / IEC 61 010, 600 V / CAT III
• incl. ISO Calibration Certificate
• incl. ISO Calibration Certificate

The Easycount-1-CEE-U 1-Phase energy meter is an electricity meter for alternating voltages up to 230 V, enclosed in a splash-proof and impact-resistant housing. The cable ends of the Easycount-1-CEE-U energy meter are equipped with male and female connectors.

• Uncalibrated counter
• Voltage input: 230 VAC
• Current rating: 16 A
• Frequency: 50 HZ

The Easycount-1-Schuko-U 1-Phase energy meter is an electricity meter for alternating voltages up to 230 V, enclosed in a splash-proof and impact-resistant housing. The cable ends of the Easycount-1-Schuko-U energy meter are equipped with male and female connectors.

• Uncalibrated counter
• Voltage input: 230 VAC
• Current rating: 16 A
• Frequency: 50 HZ

The Easycount-1-CEE-G 1-Phase energy meter is an electricity meter for alternating voltages up to 230 V, enclosed in a splash-proof and impact-resistant housing. The cable ends of the Easycount-1-CEE-G energy meter are equipped with male and female connectors.

• Calibrated counter
• Voltage input: 230 VAC
• Current rating: 16 A
• Frequency: 50 HZ

The Easycount-1-Schuko-G 1-Phase energy meter is an electricity meter for alternating voltages up to 230 V, enclosed in a splash-proof and impact-resistant housing. The cable ends of the Easycount-1-Schuko-G energy meter are equipped with male and female connectors.

• Calibrated counter
• Voltage input: 230 VAC
• Current rating: 16 A
• Frequency: 50 HZ

The PCE-P41 power converter is used to convert single-phase power parameters into standard signals. This DIN rail-mountable power converter has a freely programmable analog output, RS485 Modbus interface and memory for up to 9,000 measured values.

• Single-phase power
• Current or voltage output
• Direct and indirect measurement
• Configurable via USB
• RS485 Modbus interface
• Memory for up to 9,000 measured values
