Test Stand

• Torque: 0.03 ... 10 Nm
• Resolution: 0.001 Nm
• Accuracy: ±2% FS / ±2.5% FS
• Units: Nm, kgf cm, lbf ft, lbf in
• Internal memory: 999 values
• Adjustable alarm

• Torque: 0.01 ... 30 Nm
• Resolution: 0.01 Nm
• Accuracy: ±2% FS / ±2.5% FS
• Units: Nm, kgf cm, lbf ft, lbf in
• Internal memory: 999 values
• Adjustable alarm

• Torque: 0.01 ... 60 Nm
• Resolution: 0.01 Nm
• Accuracy: ±2% FS / ±2.5% FS
• Units: Nm, kgf cm, lbf ft, lbf in
• Internal memory: 999 values
• Adjustable alarm

• Torque: 0.01 ... 100 Nm
• Resolution: 0.01 Nm
• Accuracy: ±2% FS / ±2.5% FS
• Units: Nm, kgf cm, lbf ft, lbf in
• Internal memory: 999 values
• Adjustable alarm

Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.

• with digital measuring distance display
• max. range of force 500 N
• maximum operating length of 236.36 mm / 9.30"
• the mounting plate ADP-UNI must be ordered at the same time!

The motorized tension-compression test stand is a motorized test station with a force range of up to 500 N. With the help of the horizontal test stand, it is possible to to carry out tension-compression tests.

• Force range: 500 N / 50 kg / 110 lb
• Distance display resolution: 0.02 mm
• Resolution: 1 mm/min
• Tensile and compression testing
• Travel: 270 mm / 10.6"

Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.

• Measuring range: max. 5000 N / 500 kg
• Feed speed: 30 mm/min … 230 mm/min
• All PCE devices adaptable
• Robust steel design
• ** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

• Torque: 0 ... 50 Nm 0 ... 37 ft-lb
• Resolution: 0.001 Nm / 0.0007 ft-lb
• Accuracy: ±1 % v.Mw.
• Continuous measurement or peak value
• Units: Nm, kgf cm and lbf in
• RS232 interface
• 99 memory locations
• Software

Our motorized force test stand can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The motorized force test stand lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the motorized force test stand offers the operator the most precise equality of test bench and sample.

• Force range: max. 5000 N / 500 kg / 1100 lbs
• Travel: max. 300 mm / 11.8"
• Feed speed: 30 … 230 mm/min / 1.18 … 9.05 in/min
• Manual or automatic procedure
• incl. length measuring device: -150 … 150 mm / -5.9 … 5.9"
• ** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

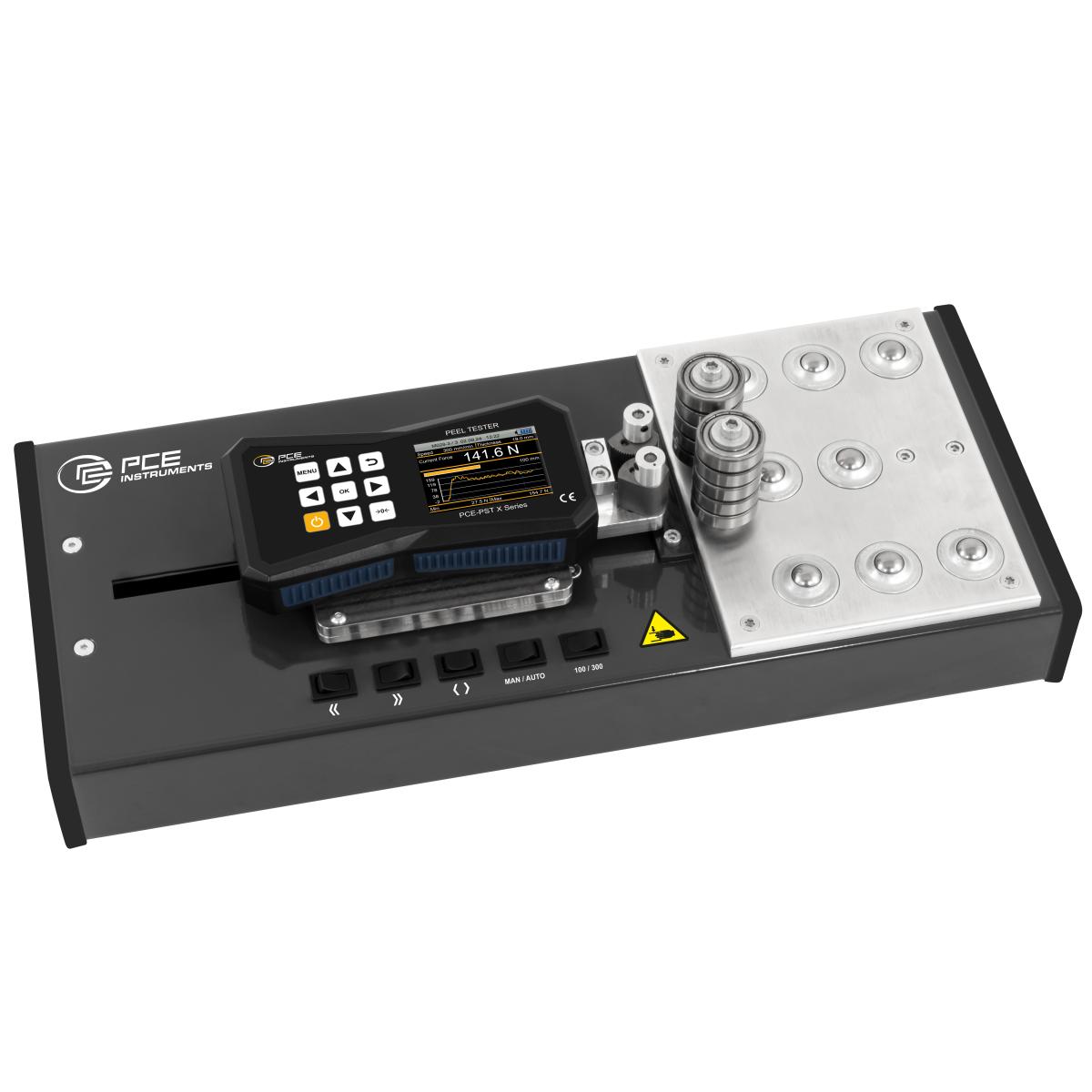

• measurement range: 0 ... 500 N
• resolution: 0.1 N
• accuracy: ±0.05 % FS
• sampling rate: 2 ... 100 Hz
• traverse speed: 100 mm/min, 300 mm/min
• traverse distance: 150 mm
• Measurable edge thickness: 0.4...3.5 mm
• Measurable board thickness: 10...64 mm
• graphical display
• data logger

• measurement range: 0 ... 500 N
• resolution: 0.1 N
• accuracy: ±0.05 % FS
• sampling rate: 2 ... 100 Hz
• traverse speed: 100 mm/min, 300 mm/min
• traverse distance: 150 mm
• graphical display
• data logger
• incl. ISO calibration certificate

• Measuring range: 500 N / 50 kg / 110 lbs
• Measurable edge thickness: 0.4 mm … 3.5 mm
• Measurable thicknesses: 10 mm … 64 mm
• Velocity: 0.3 m / min

Our motorized force test stand can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The motorized force test stand lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the motorized force test stand offers the operator the most precise equality of test bench and sample.

• Force range: max. 5000 N / 500 kg / 1100 lbs
• Travel: max. 300 mm / 11.8"
• Feed speed: 30 … 230 mm/min / 1.18 … 9.05 in/min
• Manual or automatic procedure
• incl. length measuring device: -150 … 150 mm / -5.9 … 5.9"
• incl. software
• incl. force gauge PCE-DFG N 5K (0 … 5000 N)
• ** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

• temperature range: 5 ... 1000 °C
• resolution: 0.01 °C
• accuracy: ±5 °C
• 8-inch capacitive touch screen
• cylindrical heating chamber
• programmable temperature control
• measures according to ISO 3451 and GB / T9345.1-2008

• Torque: 0 ... 500 Nm
• Resolution: 0.01 Nm
• Accuracy: ±1 % v.Mw.
• Continuous measurement or peak value
• Units: Nm, kgf cm and lbf in
• RS232 interface
• 99 memory locations
• Software

• torque: 0.01 ... 100 Nm
• accuracy: ±1 % of Rd
• real-time curve
• display of the direction of rotation
• units Nm, kgf cm, lbf in
• USB interface
• adjustable limit values
• peak hold
• 7-inch touchscreen

• torque: 0.01 ... 500 Nm
• accuracy: ±1 % of Rd
• real-time curve
• display of the direction of rotation
• units Nm, kgf cm, lbf in
• USB interface
• adjustable limit values
• peak hold
• 7-inch touchscreen

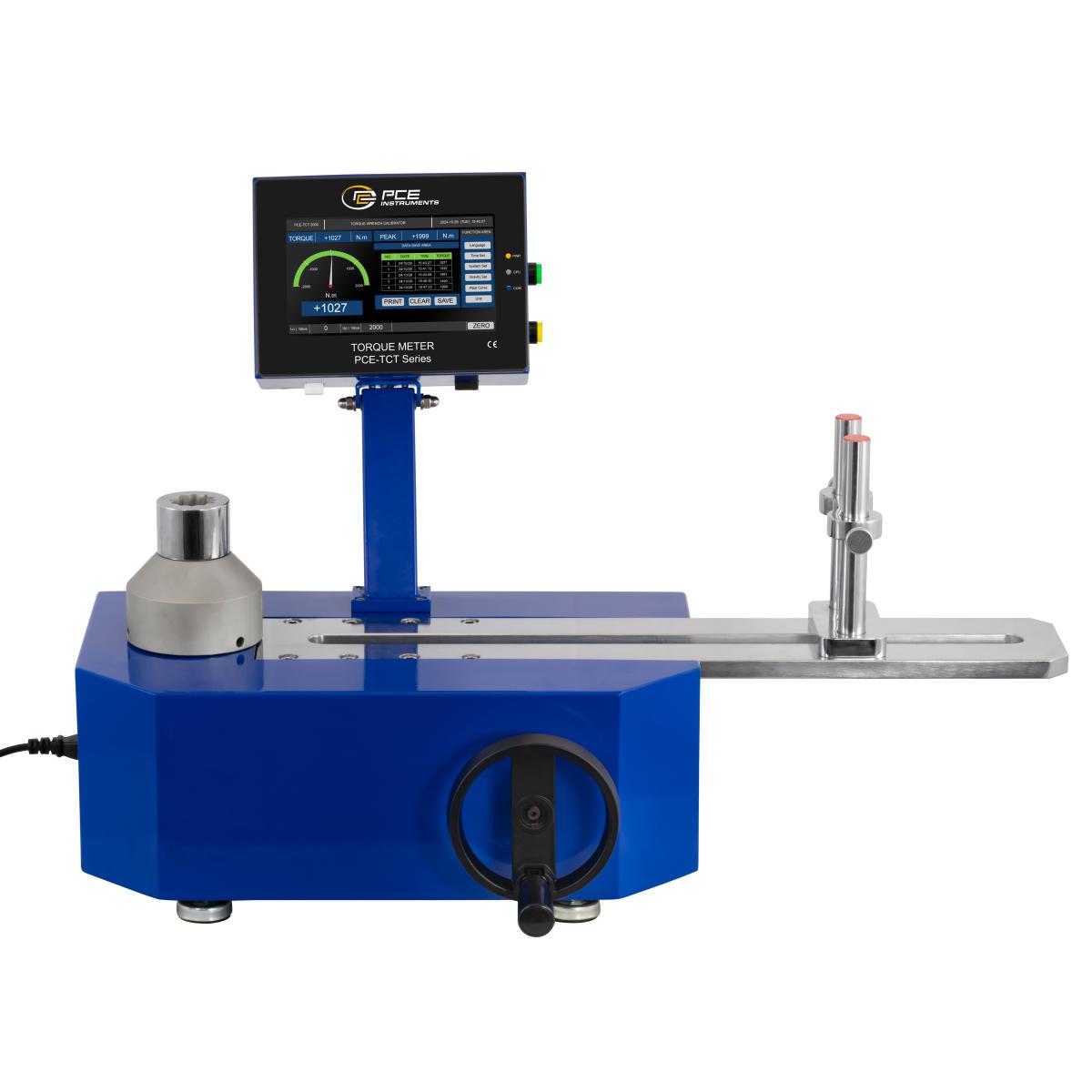

• torque: 0.1 ... 2000 Nm
• accuracy: ±1 % of Rd
• real-time curve
• display of the direction of rotation
• units Nm, kgf cm, lbf in
• USB interface
• adjustable limit values
• peak hold
• 7-inch touchscreen
