Manometer

Manometer PCE-PDA 01L
£ 786.00
Price excl. VAT &. delivery
2 year Warranty

The manometer PCE-PDA 01L is a reliable differential pressure gauge for pressure measurement of gases in the range of ± 200 Pa. The manometer PCE-PDA 01L has many different pressure measuring functions.


  • Measuring range: ± 200 Pa  / 0.029 psi / 0.002 bar
  • Resolution: 0.1 Pa / 0.0000145 psi / 0.000001 bar
  • Accuracy: ± 1% of final value
  • Min and Max value memory
  • Data logger and leak test
  • Temperature measurement, flow measurement

Manometer PCE-PDA 1L
£ 661.00
Price excl. VAT &. delivery
2 year Warranty

The manometer PCE-PDA 1L is a reliable differential pressure gauge for pressure measurement of gasses in the range of ± 2 kPa. The manometer PCE-PDA 1L has many different pressure measuring functions.


  • Measuring range: ± 2000 Pa  / ± 0.29 psi / ± 0.02 bar
  • Resolution: 1 Pa / 0.000145 psi / 0.00001 bar
  • Accuracy: ± 0.5% of final value
  • Min and Max value memory
  • Data logger and leak test
  • Temperature measurement, flow measurement

Manometer PCE-PDA 10L
£ 627.00
Price excl. VAT &. delivery
2 year Warranty

The manometer PCE-PDA 10L is a reliable differential pressure gauge for pressure measurement of gases in the range of ±20 kPa. The manometer PCE-PDA 10L has many different pressure measuring functions.


  • Measuring range: ± 20 kPa /± 2.9 psi / ± 0.2 bar
  • Resolution: 10 Pa / 0.00145 psi / 0.0001 bar
  • Accuracy: ± 0.5% of final value
  • Min and Max value memory
  • Data logger and leak test
  • Temperature measurement, flow measurement
  • Pitot tube not included in delivery / optionally selectable

Manometer PCE-PDA A100L
£ 697.00
Price excl. VAT &. delivery
2 year Warranty

The manometer PCE-PDA A100L is suitable for the measurement of atmospheric pressure. This manometer records the pressure from absolute zero to 200 kPa. The manometer can be used for many mobile applications in industry and crafts.


  • Measuring range pressure: 0 … 200 kPa absolute
  • Resolution: 0.01 kPa, 0.1 kPa
  • Accuracy: < ± 0.5% of the measuring range
  • USB interface
  • Datalogger
  • Different units

Manometer PCE-PDA 100L
£ 627.00
Price excl. VAT &. delivery
2 year Warranty

The manometer PCE-PDA 100L is a reliable differential pressure gauge for pressure measurement of gases in the range of -100 to +200 kPa. The manometer PCE-PDA 100L has many different pressure measuring functions.


  • Measuring range: -100 … 200 kPa / -14.5 …  29 psi / -1 … 2 bar
  • Resolution: 10 Pa / 0.00145 psi / 0.0001 bar
  • Accuracy: ± 0.5% of final value
  • Min and Max value memory
  • Data logger and leak test
  • Temperature measurement, flow measurement

Manometer PCE-PDA 1000L
£ 651.00
Price excl. VAT &. delivery
2 year Warranty

The relative pressure manometer PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this pressure manometer in the range between -100 … 2000 kPa. The relative pressure manometer PCE-PDA 1000L has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device.


  • Measuring range pressure: -100 … 2000 kPa relative/ -14.5 … 290 PSI
  • Resolution: 0.01 kPa, 0.1 kPa
  • Accuracy: <± 0.5% of the measuring range
  • USB interface
  • Data logger
  • Adjustable measuring units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF

Manometer PCE-BDP 10
£ 44.00
Price excl. VAT &. delivery
2 year Warranty
Wireless
The Bluetooth manometer PCE-BDP 10 is used to quickly and easily check the differential pressure. The Bluetooth manometer PCE-BDP 10 finds its application, for example, in the ventilation and air conditioning technology with the help of a smartphone to measure the gas flow pressure or the static pressure.

  • Measuring range: ± 13.8 kPa / ± 2 psi / ± 0.14 bar
  • Measurement accuracy: ± 0.006 psi (0 … 0.2 psi)
  • Resolution: 6.9 Pa / 0.001 psi / 0.000069 bar
  • Android and iOS app
  • Bluetooth interface
  • 11 different units

Manometer PCE-MPM 10
£ 76.00
Price excl. VAT &. delivery
2 year Warranty

The manometer is a small and handy measuring device for determining the differential air pressure. The manometer has a measuring range of ±5000 Pa. The manometer is connected via two hose connections with a diameter of 8 mm.

  • Measuring range: ±5000 Pa
  • 11 different pressure units:Pa, hPa, mBar, mmH2O, mmHg, inH2O, inHg, psi, ozin², bar, kPa
  • Medium: gaseous
  • Zero point calibration

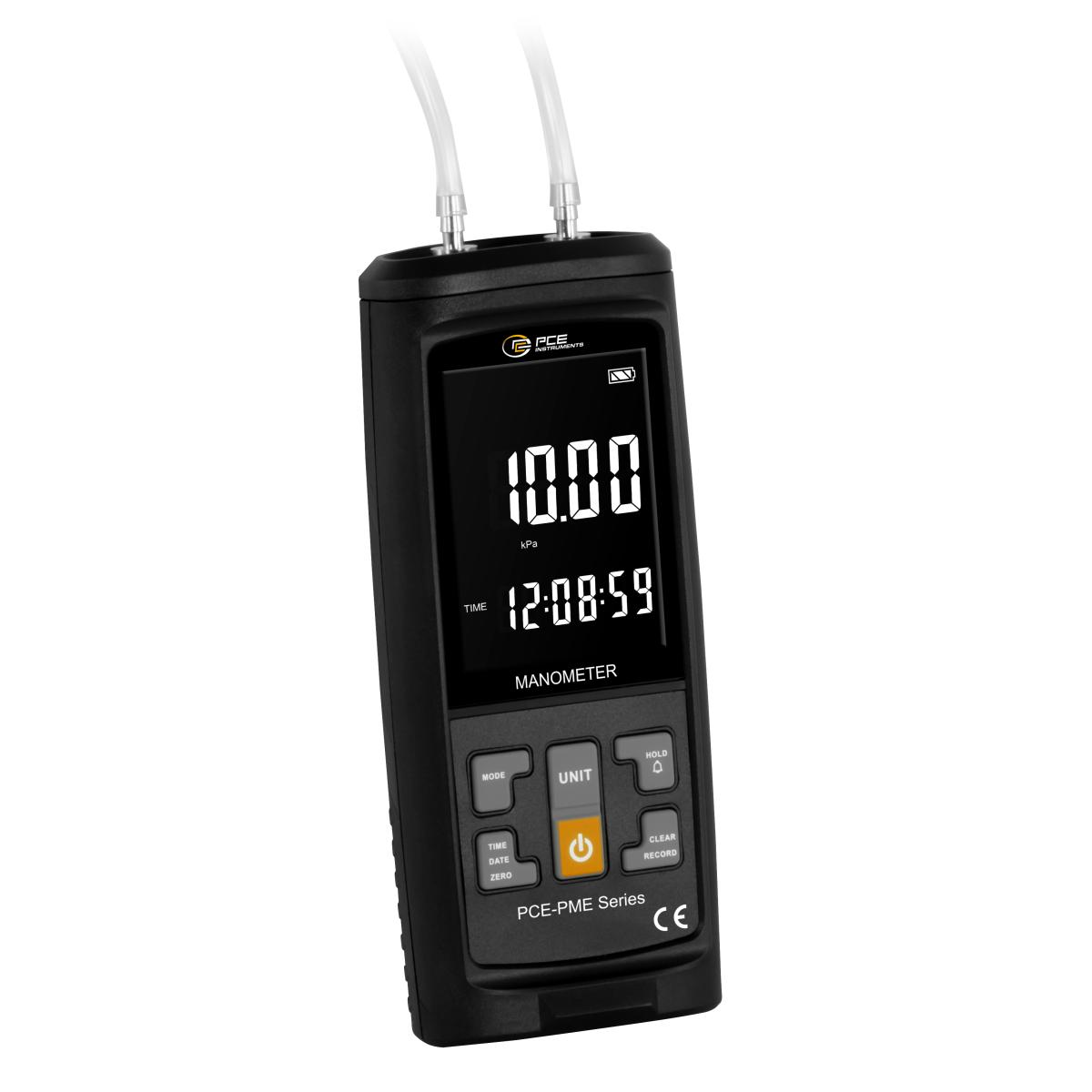

Manometer PCE-PME 10
£ 76.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -10 ... +10 kPa (-100 ... +100 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Manometer PCE-PDFL 10
£ 87.00
Price excl. VAT &. delivery
2 year Warranty
Topseller
The manometer has a measuring range of -30 … 60°C / -22 … 140°F and can be used in cold environments. In addition to temperature and humidity measurement, the manometer can also measure the absolute air pressure in the ambient atmosphere in a measuring range between 700 … 1100 hpa.

  • Measuring range temperature: -30 … 60°C / -22 … 140°F
  • Measuring range relative humidity: 0 … 100% r. h.
  • Measuring range absolute air pressure: 700 … 1100 hpa
  • Data export: .pdf, .csv
  • Interface: USB-A
  • Memory capacity: 13340 measuring points
Manometer PCE-PME 40
£ 88.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -40 ... +40 kPa (-400 ... +400 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Manometer PCE-PME 4
£ 104.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -4 ... +4 kPa (-40 ... +40 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Manometer PCE-PME 50
£ 108.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -50 ... +50 kPa (-500 ... +500 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Manometer PCE-PME 2
£ 113.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -2.5 ... +2.5 kPa (-25 ... +25 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Manometer PCE-PME 1
£ 117.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -1 ... +1 kPa (-10 ... +10 mbar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software

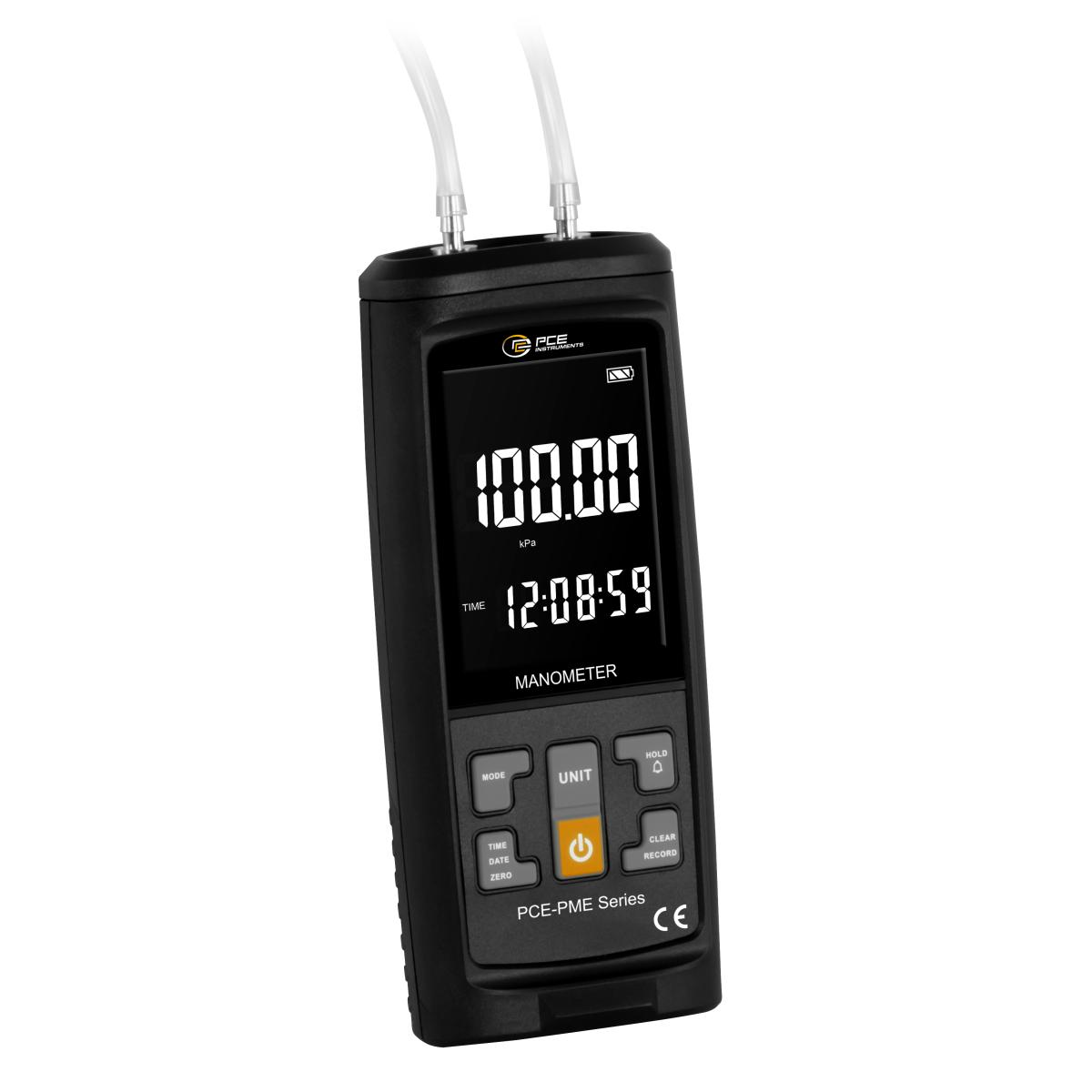

Manometer PCE-PME 100
£ 122.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -100 ... +100 kPa (-1 ... +1 bar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
Differential Pressure Manometer PCE-P01
£ 140.00
Price excl. VAT &. delivery
2 year Warranty

The differential pressure manometer is a robust, compact and comprehensive differential pressure measuring device for measuring pressure in 11 adjustable units. The differential pressure manometer is particularly suitable for the complete documentation of your measuring tasks.

  • Measurement of differential pressure and relative pressure
  • 11 selectable units: mbar, bar, psi, kPa, …
  • Measuring range from -140 to +140 mbar
  • Min / max and average value display directly on the display
  • USB interface

Manometer PCE-PME 125
£ 152.00
Price excl. VAT &. delivery
2 year Warranty
The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.

  • measurement range -125 ... +125 kPa (-1.25 ... +1.25 bar)
  • resolution 0.01 kPa
  • accuracy: ±1 % FS
  • MAX, MIN, AVG value, HOLD
  • audible alarm
  • 13 selectable pressure units
  • USB-C with data transfer
  • PC software
