Industrial Measurement Products and Solutions

Digital Multimeter

Order no.: PCE-LT1

Digital Multimeter for quickly testing networks, with functions to also be used as a Digital Multimeter.


- Measures AC and DC, alternate and continuous resistance, and resistance
- Continuity tester with buzzer and diode tester

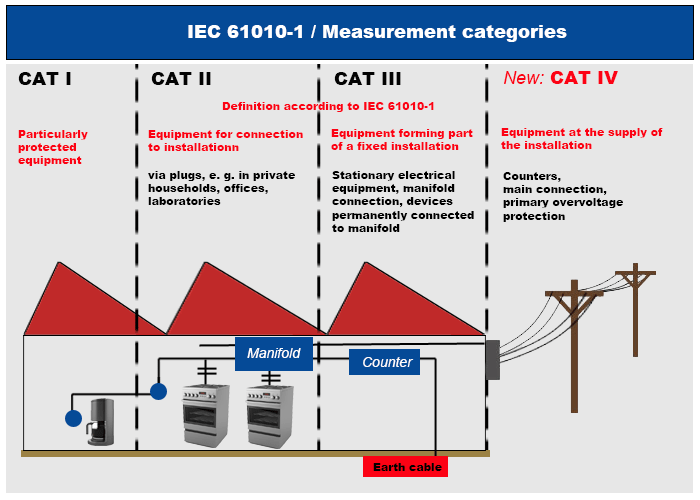

- Safety: CAT II 1000 V, EN-61010-1
- Auto shut-off
- Manual or automatic testing of individual connectors
- For testing cables, connections and cables that run within wall



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC1

The PCE-DC1 Mini digital multimeter has been designed to detect, indirectly, AC/DC current and frequency. The Mini digital multimeter has a flashlight integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact.


- AC current (50/60 Hz): 200 A / 0.1 A or 100-mA / ±3.0% + 8 digits
- DC current:200 A / 0.1 A or 100-mA / ±2.8% + 8 digits
- AC test voltage (without contact):100 VAC to 600 VAC 50 / 60 Hz
- Frequency (3 ranges): 40 to 50 Hz / 51 to 510 Hz/ 0.51 to 1 kHz



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC2

Digital Clamp Meter for measuring AC/DC current, AC voltage and resistance. This clamp meter is designed to indirectly detect AC/DC current and ohms. The clamp has white LEDs which illuminate the point of measurement and test the voltage without contact. Small dimensions of this device allow to take measurements in places with limited access. The clamp meter comes manufacturer calibrated and can optionally be certified according to ISO or standards.


- AC / DC current, voltage and resistance measurement
- 3 2/3-digit LCD display
- Power supply: 2 x 1.5V AAA battery
- Dimensions: 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in



Manufacturer: PCE Instruments
Order no.: PCE-DC3

Digital Multimeter to determine indirectly, the AC/DC currents with high accuracy.


- AC current (50 / 60 Hz): 2 A  / 1-mA / ± 2.8% + 10 dgt
- DC current: 2 A / 1-mA / ± 3.0% + 10 dgt
- AC overload protection: 100V AC up to 600V AC 50 / 60 Hz

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-EM 886

PCE-EM 886 is a portable handheld multifunctional digital device used to measure sound, light, humidity, temperature, AC / DC current, electrical resistance, capacitance and frequency.


- Sound: 35 ...100 dB
- Light: 4,000 ... 40,000 lux
- Humidity: 33 ... 99% RH
- Temperature: 0 ... 50°C / 32 ... 122ºF Indoor, -20 ... 1300ºC / -4 ... 2372ºF Type K
- Auto-ranging electrical multimeter



Manufacturer: PCE Instruments
Order no.: PCE-PCM 1

PCE-PCM 1 is a multipurpose digital multimeter or power analyzer used to measure alternating current (AC), voltage (TRMS) and frequency to determine active (kW), apparent (kVA) and reactive (kVAR) power as well as active energy (kWh) consumption. Both the phase angle and the power factor (cos φ) are shown on the handheld power meter's large and easy-to-read backlit display.

- Voltage (50 ... 200 Hz): 100 / 400 / 750V, ± (1.2% + 5 digits)
- Internal memory: Stores up to 99 measurement values
- Includes USB cable and PC software
- Three-phase power measurement
- True RMS

Manufacturer: PCE Instruments
Order no.: PCE-LCT 1

Digital Multimeter to test leakage / RMS measurement / continuity and resistance test.


- Measures current up to 100 A
- Measures voltage up to 600 V
- Measures resistance up to 400 O
- Test cables are included



Manufacturer: PCE Instruments
Order no.: PCE-DC 41

The digital multimeter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 ?. To perform a measurement, you can either use the measuring leads, which are included in the package of the digital multimeter, or you can use the integrated clamp mechanism. By using the clamp of the digital multimeter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it.


- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism



Manufacturer: PCE Instruments
Order no.: PCE-DM 22

Digital multimeter with data logger, RS-232 and software.


- DCV:   400mV; 4/ 40/ 400/ 1000V
- ACV:   400mV; 4/ 40/ 400/ 750V
- DCA:   400/ 4000µA; 40/ 400mA; 10A
- ACA:   400/ 4000µA; 40/ 400mA; 10A
- OHM:  400 Ω; 4/ 40/ 400 kΩ; 40MΩ
- Cap.:  4/ 40/ 400nF; 4/ 40/ 400µF; 4/ 40 mF
- Freq.:  4/ 40/ 400kHz; 4/ 40MHz
- RPM:   4/ 40kRPM; 4/ 40/ 400MRPM
- Temp.: -50°C to 1000°C



Manufacturer: PCE Instruments
Order no.: PCE-123

PCE-123 is a digital multimeter used to test and calibrate a variety of measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use multimeter provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the multimeter useful in a wide range of applications.


- DC current: 4 - 20 mA (1 kΩ load, 24 V loop supply) with 1 μA resolution
- DC voltage: 0 - 100.00 mV, 0 - 1.000 V, 0 - 12.000 V
- K, J, E, T type thermocouples (°C or °F)
- Frequency: 1 - 62,500 Hz



Manufacturer: PCE Instruments
Order no.: PCE-GPA 62

Three-Phase Digital Multimeter with network analyzer / power and energy meter with data logger.


- Voltage measurement: 4.0 ... 600.0 V RMS value ± 0.5%, ± 5 digits / 0.1 V
- Voltage peaks (> 10V): 50 Hz - 60 Hz / ± 5% ± 50 digits
- Current measurements: 4.0 ... 1500.0 A real ± 1% V ± 5 digits / 0.01 A
- Current peaks (> 20A):  50 Hz - 60 Hz / ± 5% ± 50 digits


Manufacturer: PCE Instruments
Order no.: METRAHIT Extra

Direct measurement of current, short-term 16 A / temperature measurement with Pt 100/1000 / measurement of capacity / automatic locking terminal.


- Automatic blocking of terminals patented
- 26 measurement functions
- Warning when exceeding the measuring range
- Direct measurement of current up to 10 A, short



Manufacturer: GMC-I Messtechnik GmbH
Test Instruments manufacturer
