PCE Instruments

Lux Meter

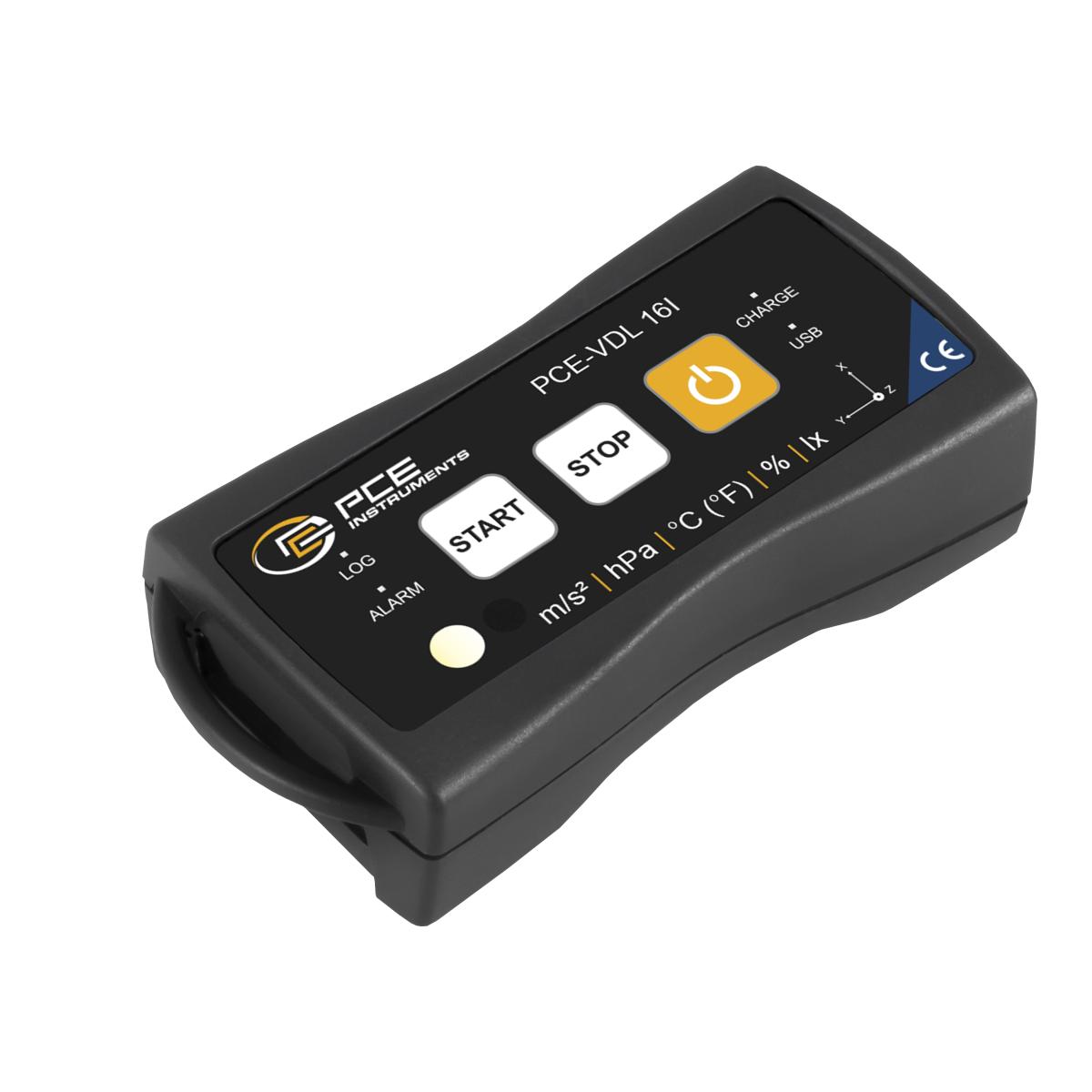

Order no.: PCE-VDL 16I
The lux meter PCE-VDL 16I from PCE Instruments measures and stores the relevant measured variables: temperature, relative humidity, air pressure, light as well as acceleration in three axes by means of a vibration sensor. Therefore, this lux meter is ideal for monitoring vibrations on machines while simultaneously measuring and recording the relevant environmental conditions of the system.

- 3-Axis acceleration up to 800 Hz
- 32 GB SD memory card
- Evaluation software
- Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
Temperature, Humidity, Air pressure, Vibration, and Light

£ 222.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-170 A

Lux Meter PCE-170 A to 40,000 lux, internal sensor, automatic zero adjustment. The lux meter has a large measurement range, short response time and a compact housing allowing for quick, effortless one-hand operation.


- Large 5-digit LCD display
- Measurement range: 0.00 to 40,000 lux
- Resolution: 0.01 lux in the range 39.99 Lux
- Sensor: silicon photodiode



£ 102.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LMD 5
The lux meter has a large measuring range of 0 … 400 lux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the lux meter can be positioned appropriately for every measuring task.

- Measuring range: 1000 ... 400,000 lux
- Resolution: 0.1 lux
- Lux and footcandle units
- Rechargeable battery
£ 122.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LED 20

PCE-LED 20 is a lux meter with an external LED light sensor. The cable of the LED light sensor has a length of approximately 1.5 m / 4.9 ft.


- Measuring range: 40 / 400 / 4000 / 40000 / 400000 lx or fc
- Measuring units (selectable): Lux (lx) or footcandle (fc)
- Accuracy: ± 3% (with a standard incandescent lamp at 2856 K and LED white light), ± 6% for other visible light sources

£ 164.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-EM 883
Our multifunctional lux meter PCE-EM 883 combines all important features for measuring the ambient conditions in one device. The lux meter is designed as fast as possible to determine as many parameters as possible. Due to the large number of external sensors that the lux meter brings with it, such fast and precise measurements are possible.

- Measurement of all relevant environmental parameters
- Wind speed
- Temperature
- Humidity
- Sound level
- Light
- High accuracy
- MIN, MAX, HOLD function
£ 173.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LMD 10
The lux meter has a large measuring range of 0 … 400 lux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the lux meter can be positioned appropriately for every measuring task.

- Measuring range: 1000 ... 400,000 lux
- Resolution: 0.1 lux
- Lux and footcandle units
- Micro-USB interface
- Incl. software
- Rechargeable battery
- Data memory: 32,000 sets of readings
£ 174.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-170 A-ICA

Lux Meter PCE-170 A to 40,000 lux, internal sensor, automatic zero adjustment. The lux meter has a large measurement range, short response time and a compact housing allowing for quick, effortless one-hand operation.


- Large 5-digit LCD display
- Measurement range: 0.00 to 40,000 lux
- Resolution: 0.01 lux in the range 39.99 Lux
- Sensor: silicon photodiode
- Incl. ISO Calibration Certificate

£ 276.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LXT
The lux meter consists of a measuring sensor with a handle and a wall bracket with a 1.5 m (4.9 ft) cable, a light transmitter and a digital display. The main area of application of the lux meter is in the continuous light measurement and light monitoring of photo laboratories and production rooms (e.g. food or drug production ...).

- Measuring range: 0 ... 50000 lux in three areas
- Resolution: 0.1 lx / 1 lx
- Accuracy: ±5% of reading
- 4 to 20-mA analog output
£ 307.00

Price excl. VAT &. delivery
2 year Warranty

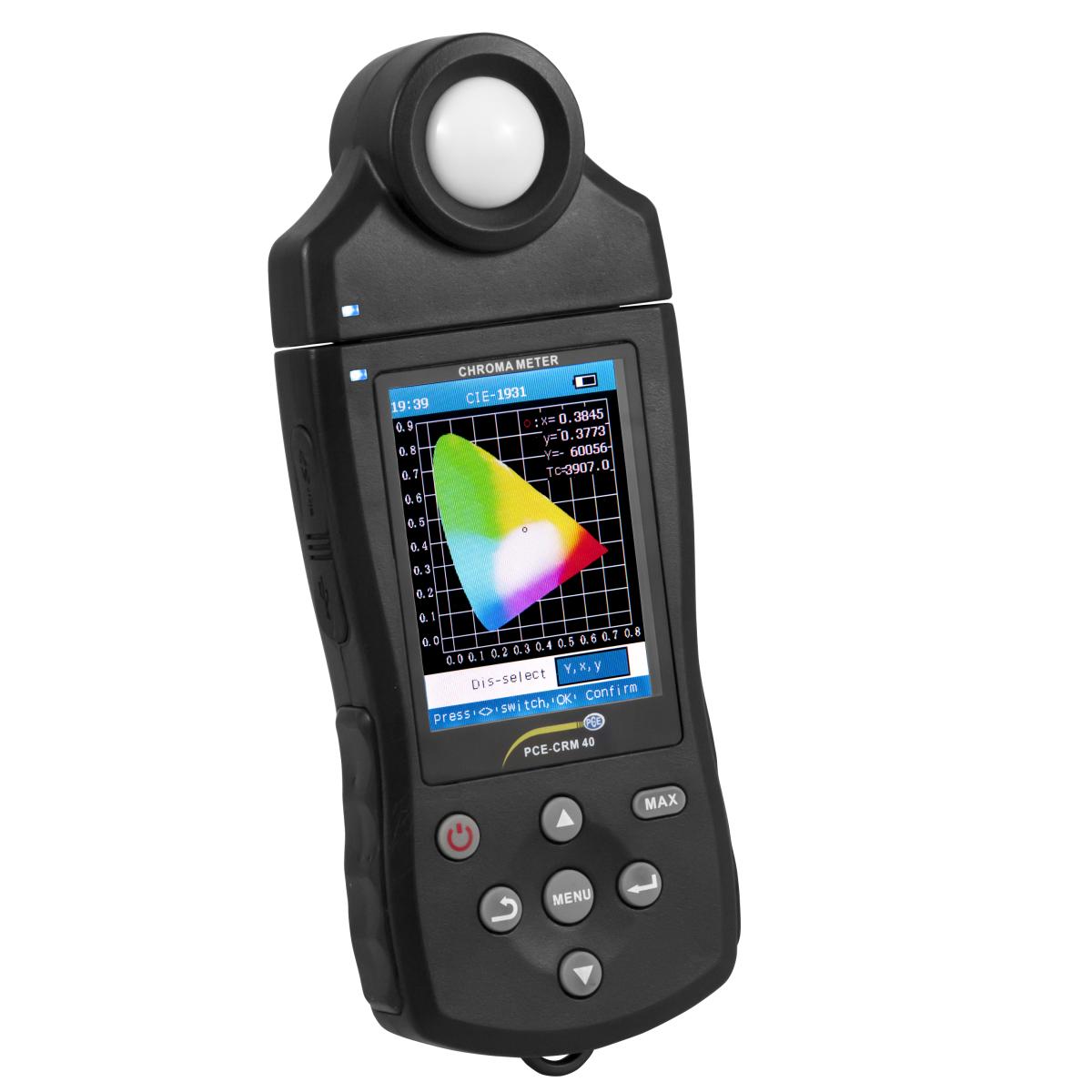

Order no.: PCE-CRM 40

PCE-CRM 40 is a portable handheld lux meter used to accurately measure the correlated color temperature (CCT - in Kelvin), illuminance, chromaticity, excitation purity (Pe), luminous flux (in lumens - lm), RGB and dominant wavelength of light sources such as LED, organic LED (OLED) and other forms of organic electroluminescence (EL).


- Measuring range: 0.1 ... 150,000 lux / 0.01 ... 15,000 foot-candle
- Spectral wavelength range: 360 ... 780 nm
- Display: 3.2" colour LCD
- Chromaticity: Ev xy, Ev u'v'

£ 1,980.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LMD 5-ICA
The lux meter has a large measuring range of 0 … 400 lux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the lux meter can be positioned appropriately for every measuring task.

- Measuring range: 1000 ... 400,000 lux
- Resolution: 0.1 lux
- Lux and footcandle units
- Rechargeable battery
- incl. ISO Calibration Certificate
£ 292.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LMD 10-ICA
The lux meter has a large measuring range of 0 … 400 lux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the lux meter can be positioned appropriately for every measuring task.

- Measuring range: 1000 ... 400,000 lux
- Resolution: 0.1 lux
- Lux and footcandle units
- Micro-USB interface
- Incl. software
- Rechargeable battery
- Data memory: 32,000 sets of readings
- incl. ISO Calibration Certificate
£ 343.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LXT-ICA
The lux meter consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, a light transmitter and a digital display. The main field of application of the lux meter is the continuous light measurement and light monitoring of photo laboratories and production areas, such as food or drug production.

- Measuring range: 0 ... 50,000 lx
- Resolution: 0.1 / 1 lx
- For permanent installation
- Relay and control output
- Incl. ISO calibration
£ 512.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LXT-TRM

The lux meter consists of a measurement sensor and a small wall bracket or holder with a 1.5 m / 4.9 ft cable, and a light transmitter. The application field of the lux meter is the continuous measurement of daylight and light control in photo labs and production facilities, such as in the manufacturing of food and medicine.


- Measuring range: 0 ... 50000 Lux in three areas
- Resolution: 0.1 lx / lx 1
- Accuracy: ± 5% of reading



£ 169.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-LXT-TRM-ICA

The lux meter consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, and a light transmitter. The main field of application of the light meter is the continuous light measurement and light monitoring of photo laboratories and production areas, such as food or drug production.

- Measuring range: 0 ... 50,000 lux in three ranges
- Resolution: 0.1 lx / 1 lx
- Accuracy: ± 5% of the reading
- Incl. ISO calibration certificate
£ 374.00

Price excl. VAT &. delivery
2 year Warranty
