Order no.: PCE-CT 5000H-ICA

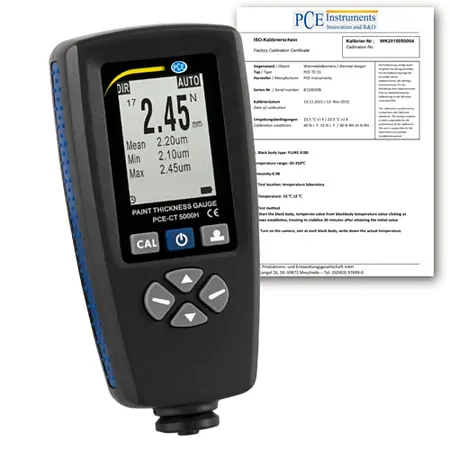

Paint Thickness Tester PCE-CT 5000H-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 461.00
£ 553.20
price ex. (VAT / delivery)
Paint Thickness Testing
Delivery time: 10 - 14 days


PCE-CT 5000H Thickness Gauge
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous (Type F) and non-ferrous (Type N) metal substrates

PCE-CT 5000H is a thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.


- Designed for non-destructive testing and inspection
- Measures coating thickness on Fe and nFe metals
- Displays measuring units in μm, mm or mils
- Saves up to 2000 measurements to internal memory
- Practical V-groove on the measuring head
- One- to four-point and zero calibration
- Comfortable one-handed operation
- Programmable alarm limits
- High measuring range
- High measuring accuracy
- Automatic shutdown
- Incl. ISO Calibration Certificate



Type F and Type N

Measuring range Type F 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils
Measuring accuracy Type F ± (2% + 1 μm)
Resolution Type F 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type F Magnetic induction
Smallest thickness of the base material 0.02 mm
Measuring range Type N 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils
Measuring accuracy Type N ± (2% + 1 μm)
Resolution Type N 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type N Eddy current
Smallest thickness of the base material 0.05 mm
Calibration One-point to four-point calibration, zero calibration
Data storage Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)
Statistical functions Number of measurements, average, minimum, maximum, standard deviation
Measurement units μm, mm, mils
Alarm Alarm limits adjustable, alarm symbol is displayed when limits are exceeded
Minimum radius of curvature (convex) 5 mm / 0.2 in
Minimum radius of curvature (concave) 25 mm / 1 in
Smallest measuring surface Diameter of 20 mm / 0.8 in
Maximum measuring rate 2 x per second
Data interface Data transfer via USB
Power supply 2 x 1.5V AAA batteries
Menu languages German, English, Russian, Chinese
Operating conditions 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH
Storage conditions -10 ... 60°C / 14 ... 140°F
Standards CE ROHS FCC
Dimensions 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in
Material housing ABS plastic
Weight 92 g / < 1 lb

Delivery Scope

1 x PCE-CT 5000H thickness gauge
2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x PC-compatible software
1 x User manual
1 x Carrying case
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
