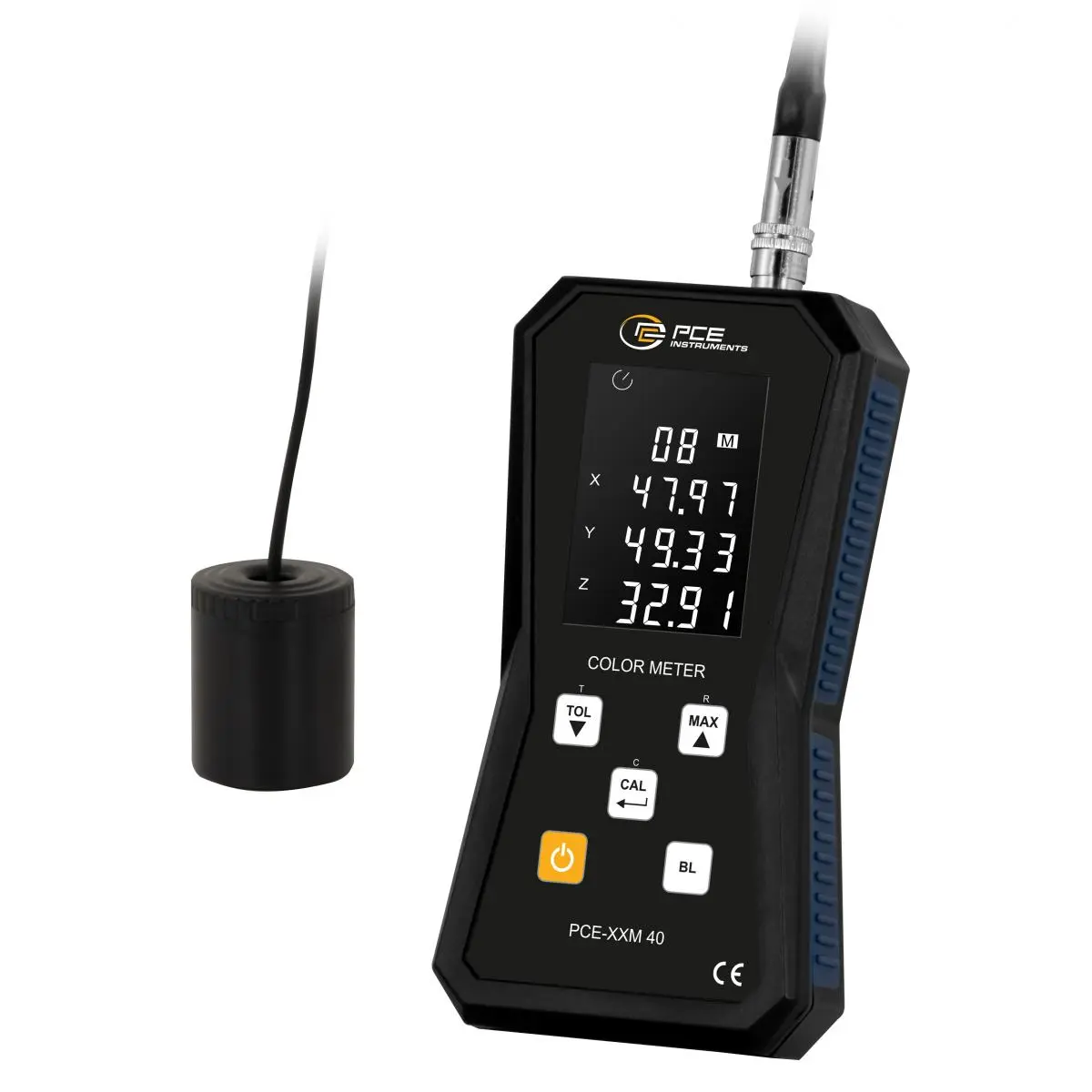

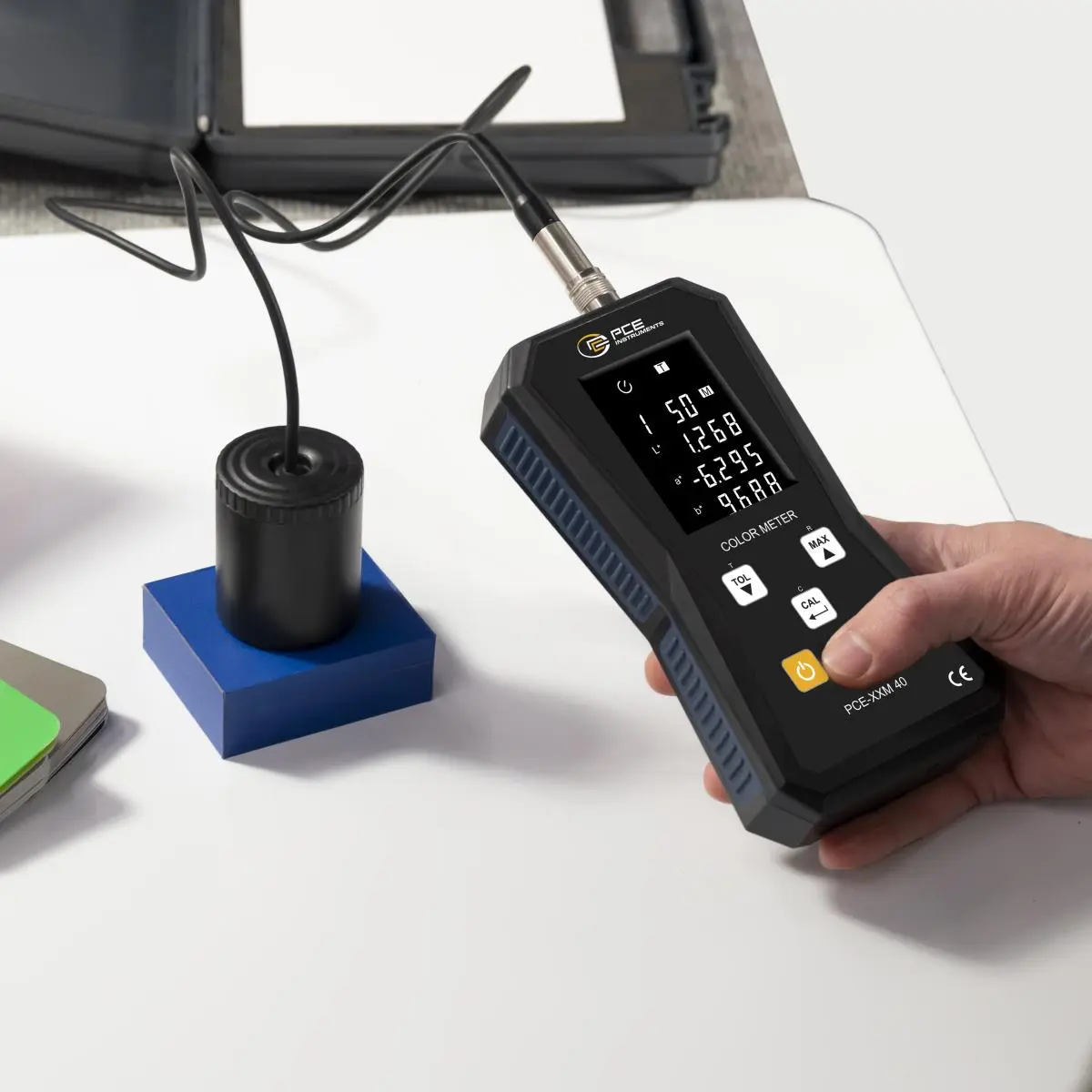

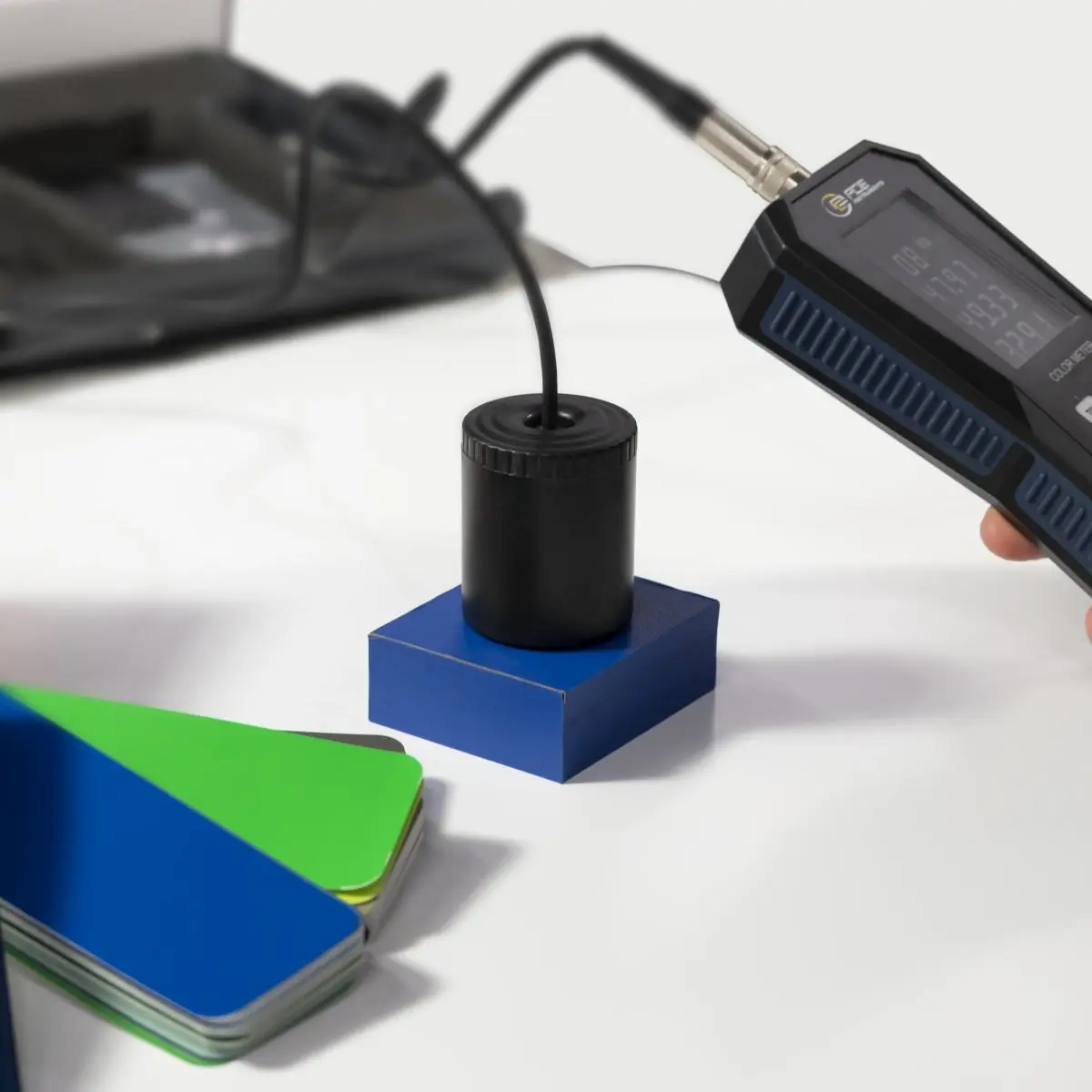

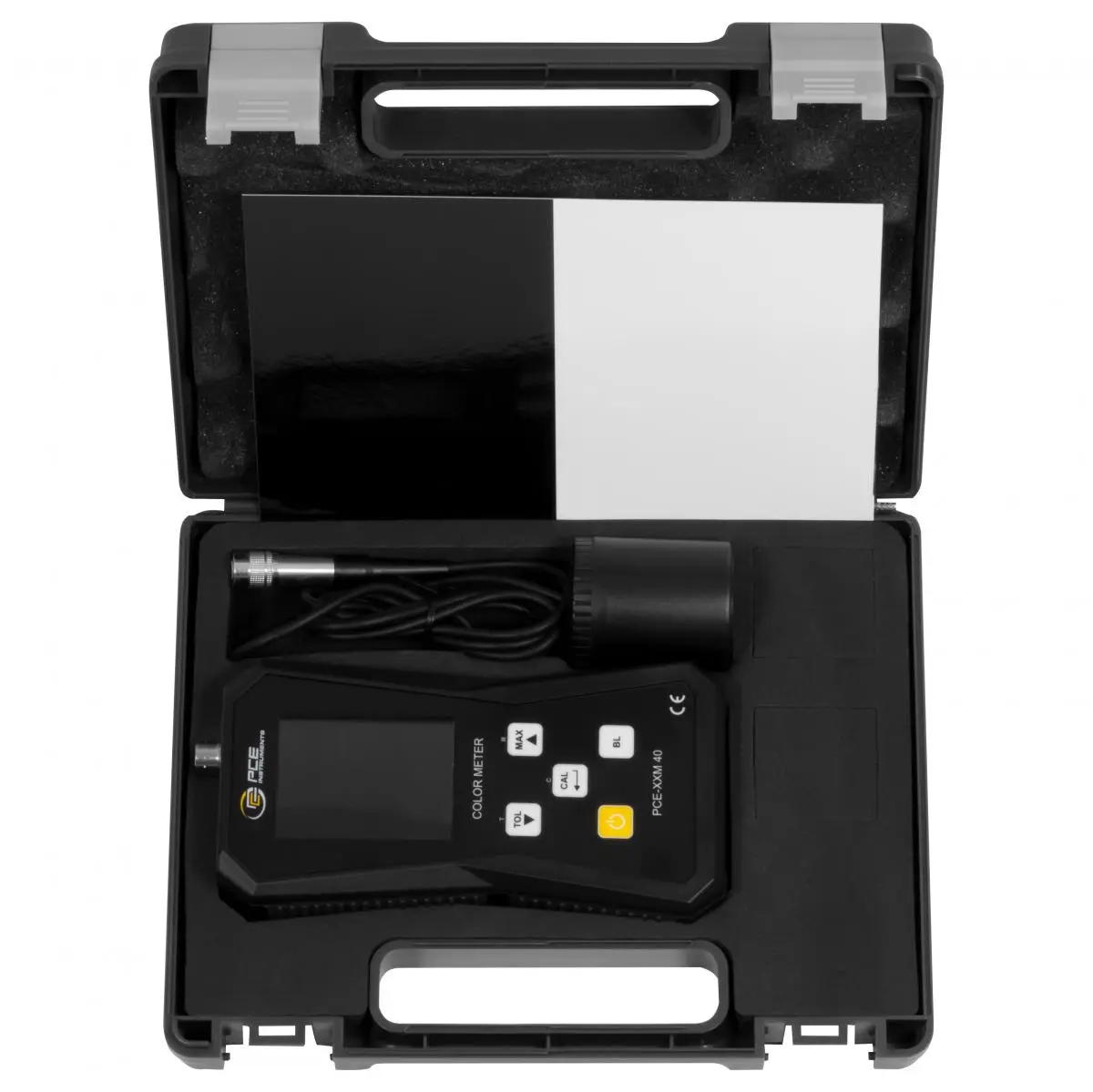

The Paint Test Equipment / Paint Testing Equipment enables precise and objective color measurement and reliable determination of color deviations. Our Paint Test Equipment / Paint Testing Equipment measures color values in the Lab, XYZ, xyY and R s/G s/B s color spaces and also displays important color indices such as whiteness (WI), yellowing index (YI) and color temperature (Tw). The integrated ΔEab calculation allows the color difference to be determined directly. An adjustable tolerance function (PASS/WARN/FAIL) immediately indicates whether the measured color is within the specified limits. The device measures directly on the sample, can store multiple measurements and target values, and covers a brightness range of 5 to 100. Power is supplied by three AA batteries, making the Paint Test Equipment / Paint Testing Equipment particularly mobile and flexible – ideal for measurements directly on site. Thanks to its versatile applications, the device is ideal for quality control in the production of textiles, paints, plastics, leather or paper, as well as for laboratories and color testing. By displaying different color spaces and automatically calculating color differences, it helps users to evaluate colors objectively and comprehensibly. The Paint Test Equipment / Paint Testing Equipment delivers precise and reproducible results without the need for visual assessments, making it an indispensable tool for standardized color analysis and professional color control.
| General technical data | |
| Measuring functions | AVG, MIN, MAX |

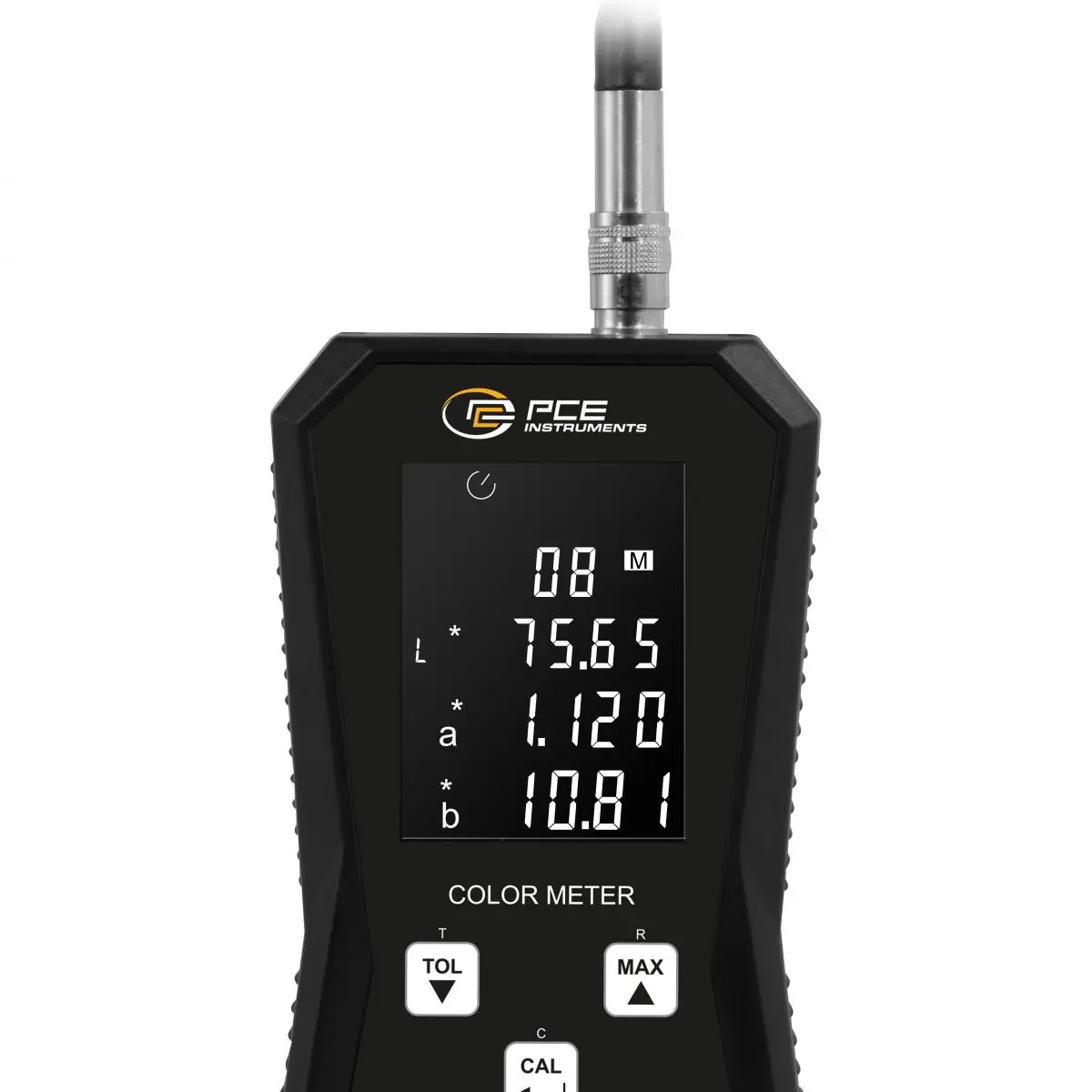

| Display type | LCD |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 99 Data records |
| Memory information | only viewable on the device |
| Measuring surface minimum | 10 mm |
| Automatic power-off | 3 min |
| Repeatability | 0,5 ΔE*ab |
| Light source | LED |
| Colour spaces | CIEL a* b*, CIEXYZ, WI (whiteness), YI (yellowness), Yxy, sRGB |
| Colour difference | ∆(L*, a*, b*) ∆(E*ab, C*ab, H*ab) ∆(Y, x, y) ∆(X, Y, Z) ∆(Rs, Gs, Bs) ∆(WI, YI, Tw) |
| Measuring aperature | ca. Φ10 mm |
| Measuring geometry | 45/0 |
| Observer | 2° |

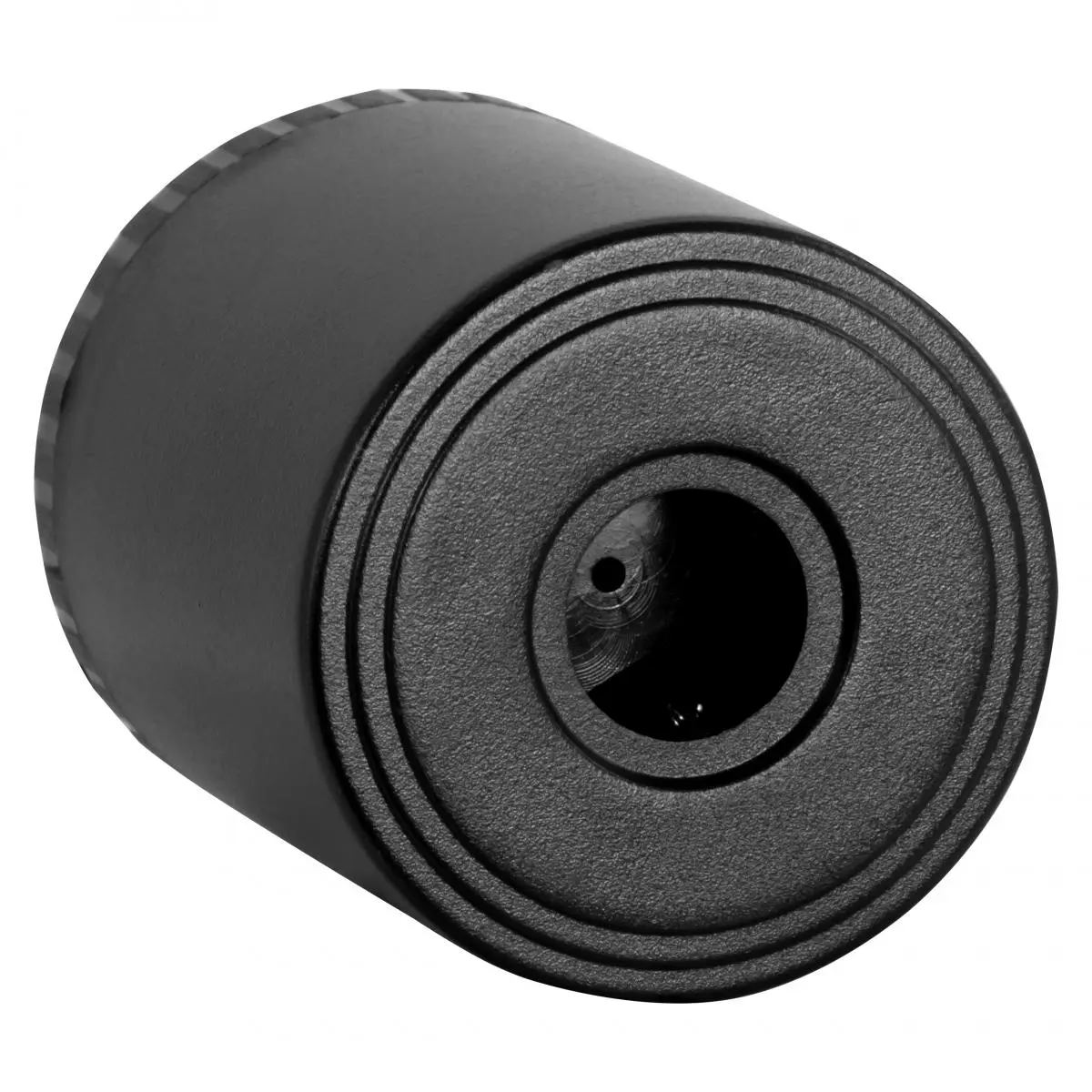

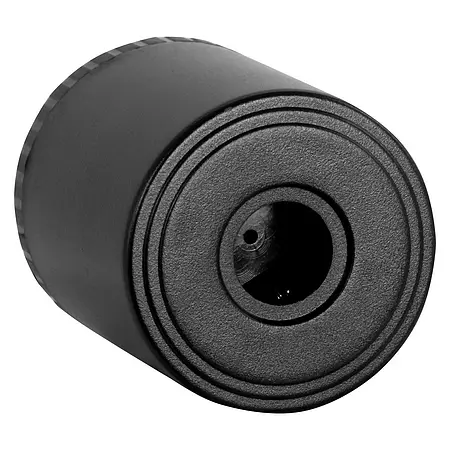

| Dimensions | Sensor: 43 x 53 mm Cable: 120 cm |
| Measuring interval | 2 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |

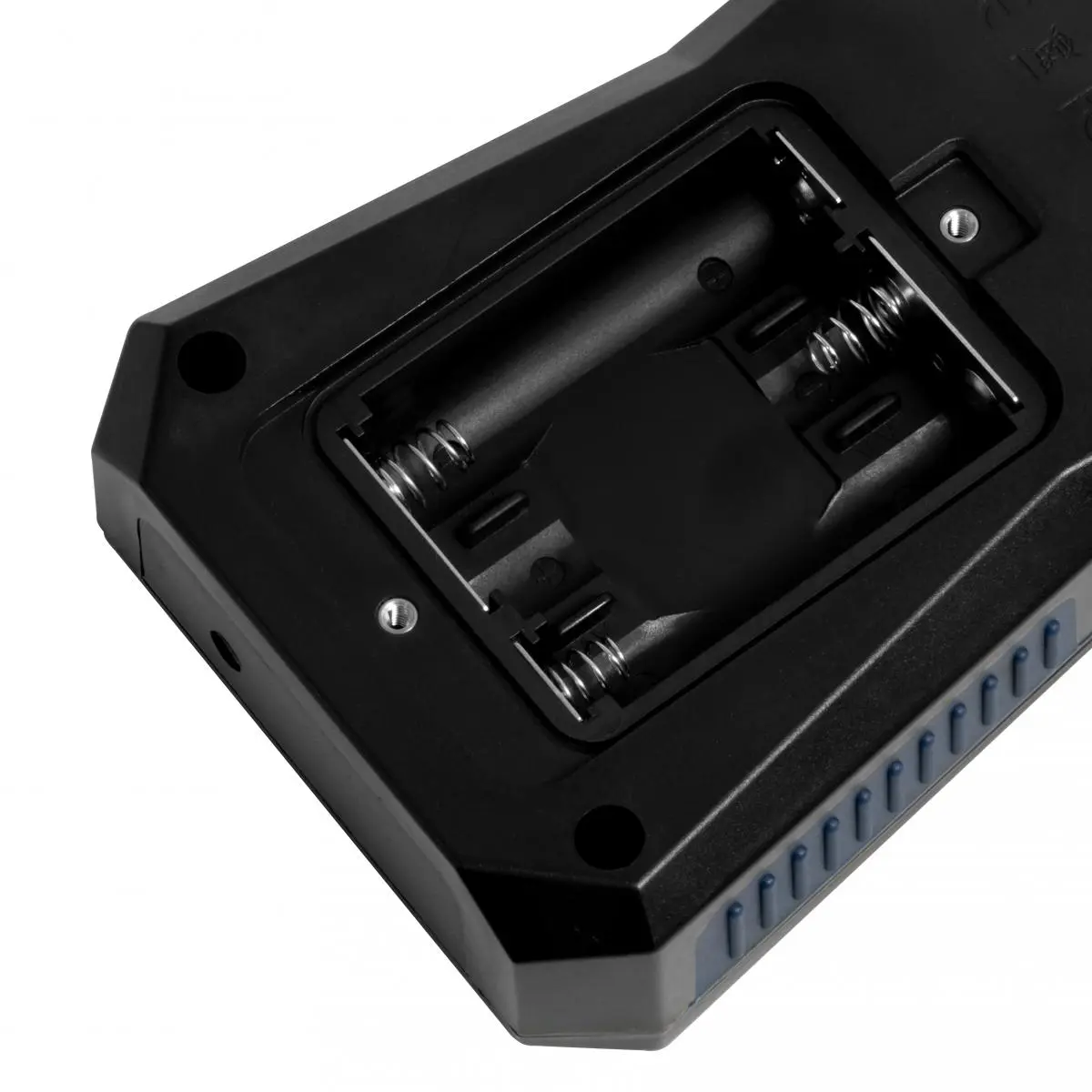

| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 2970 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 0 ... 70 % RH |
| Dimensions ( L x W x H ) | 175 x 90 x 31 mm |
| Weight | 228 g |
