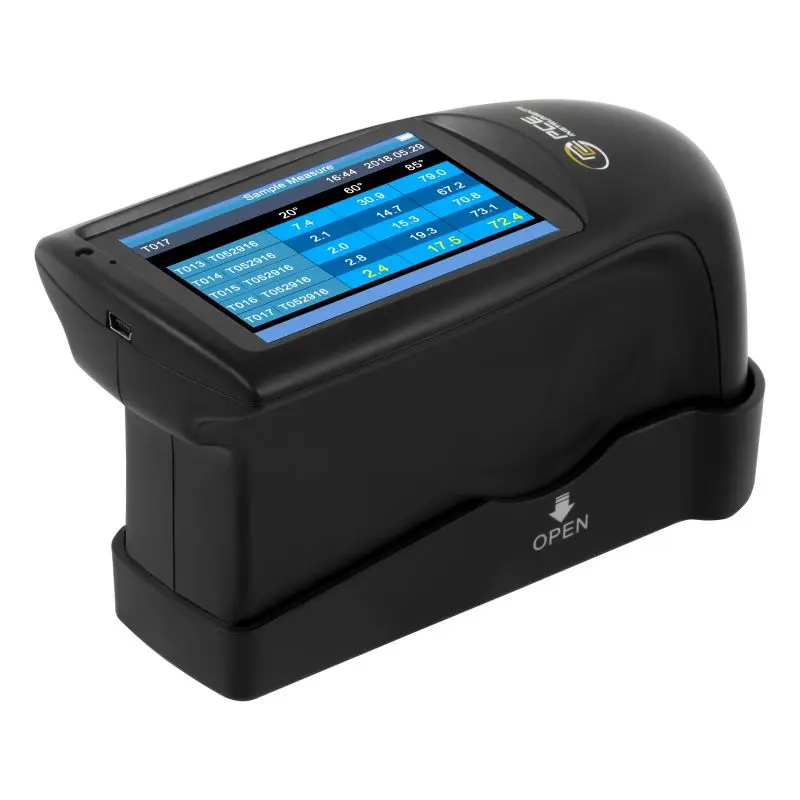

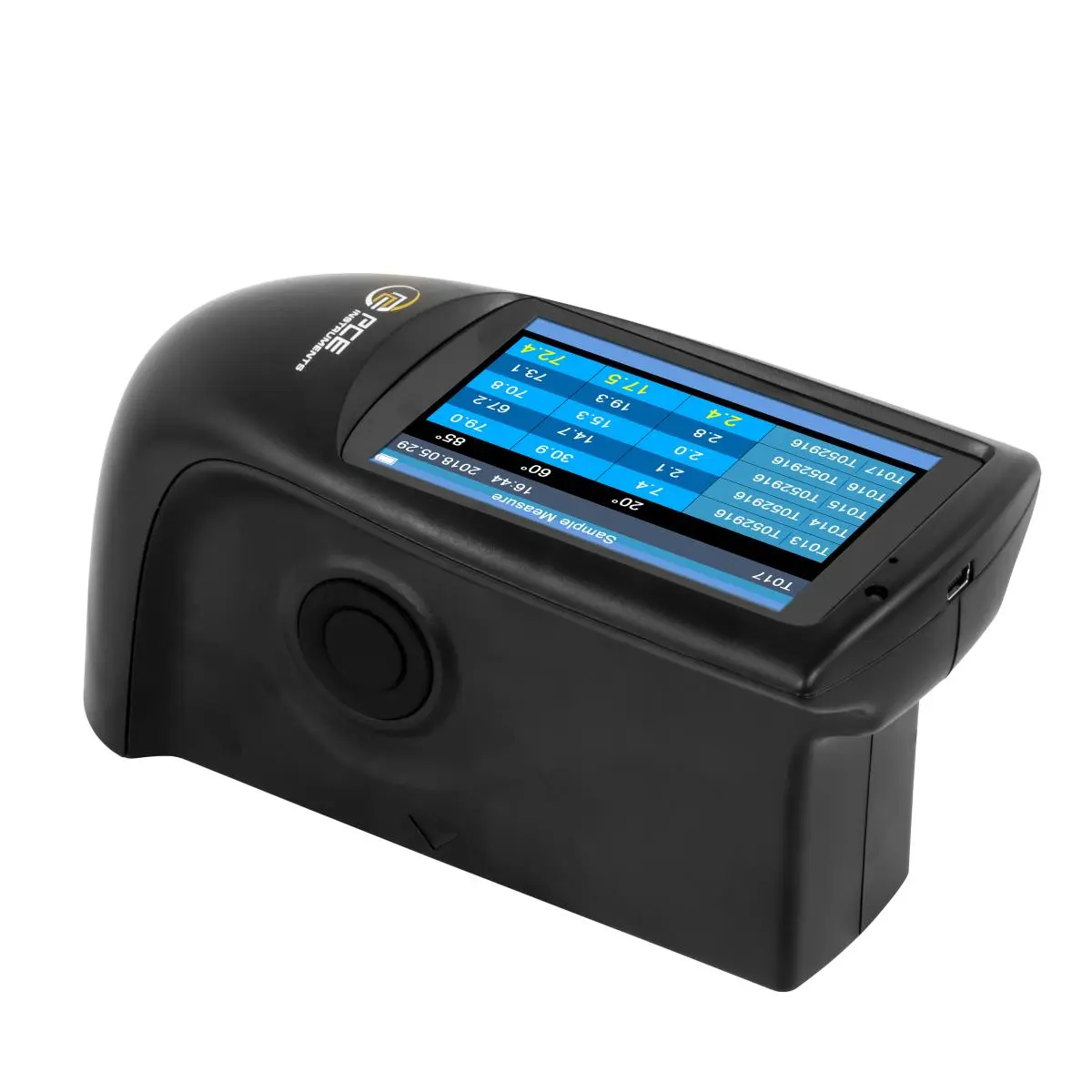

Paint Test Equipment / Paint Testing Equipment PCE-PGM 100

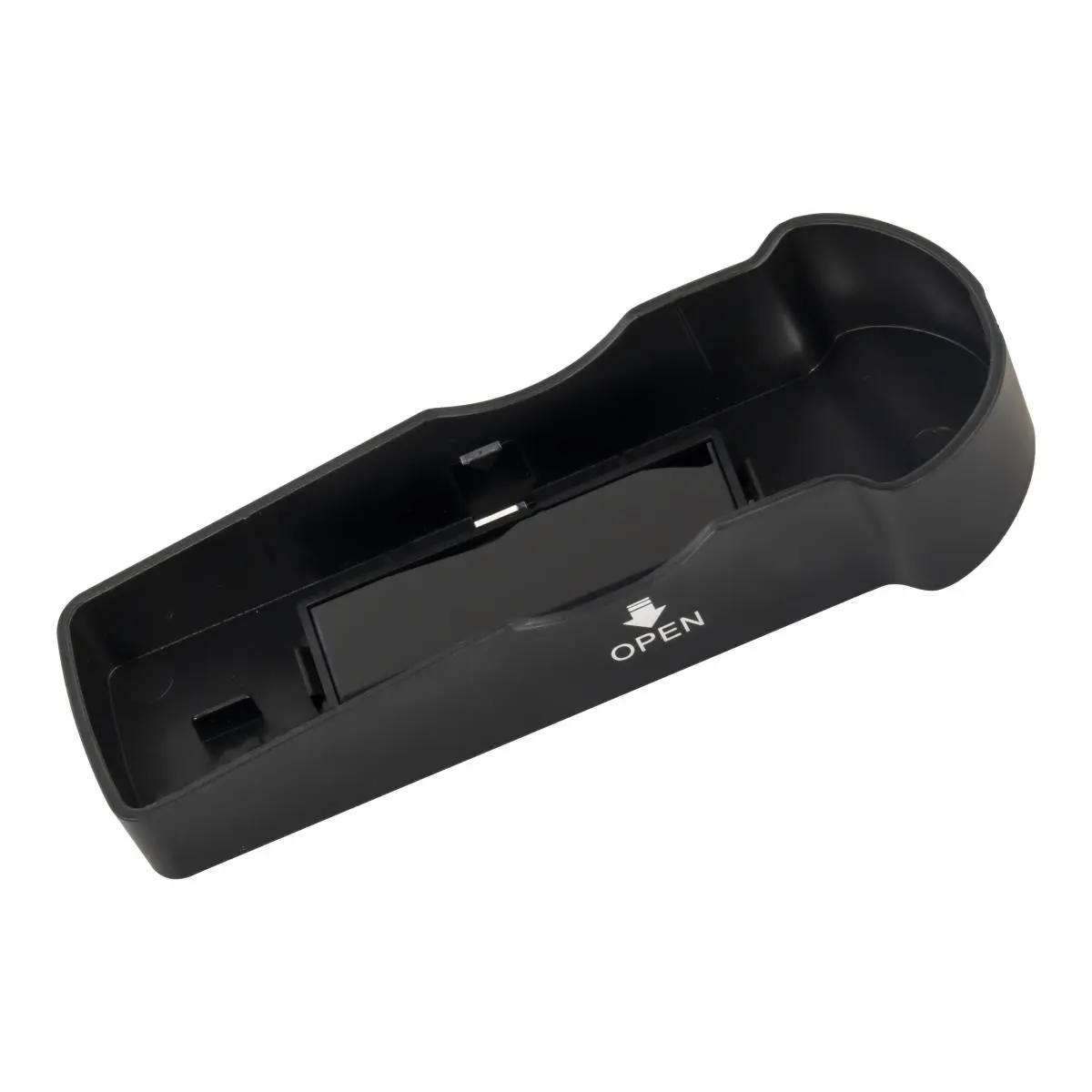

Paint Test Equipment / Paint Testing Equipment Calibration standard

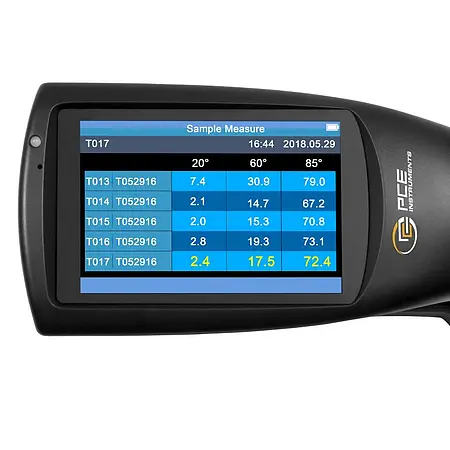

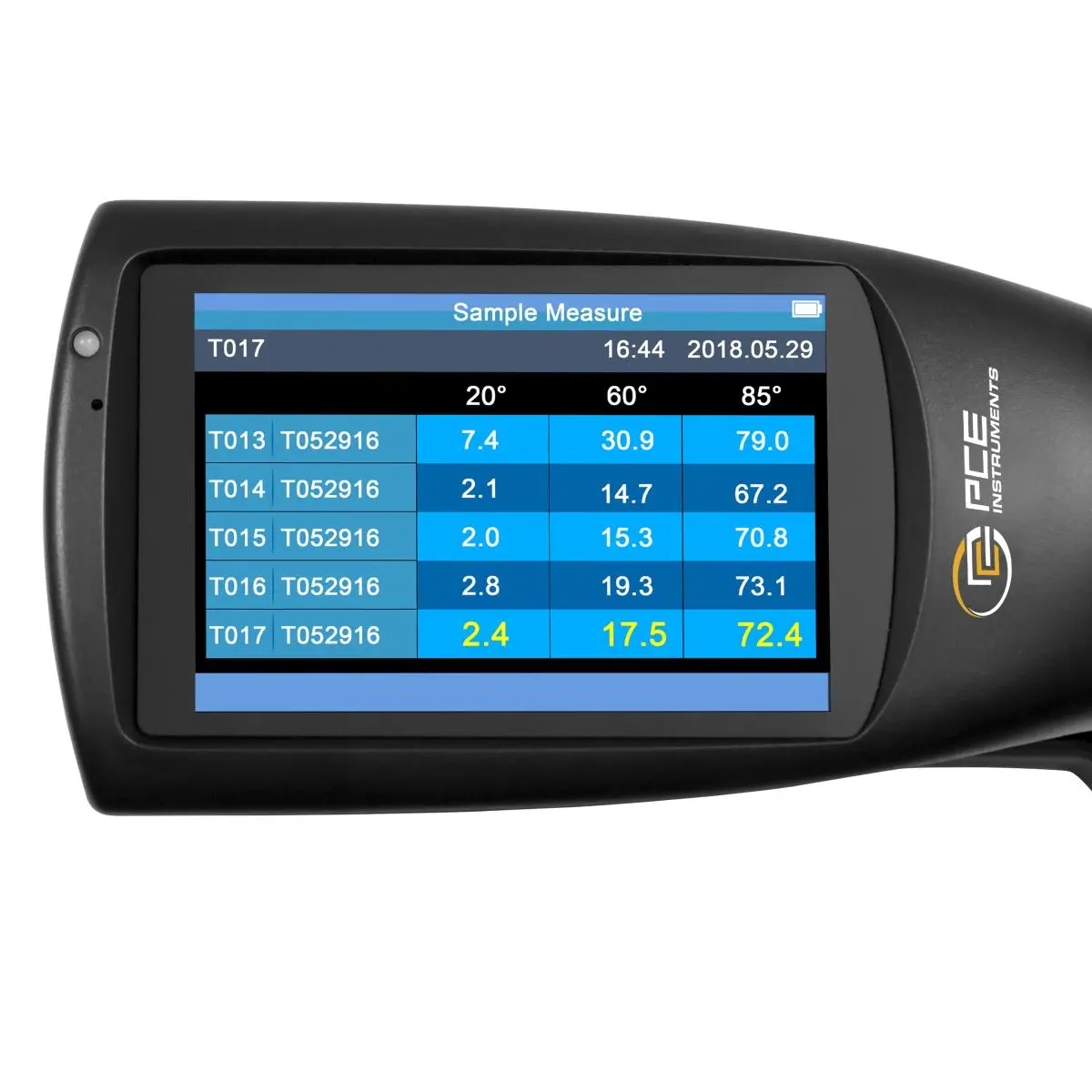

Paint Test Equipment / Paint Testing Equipment Display

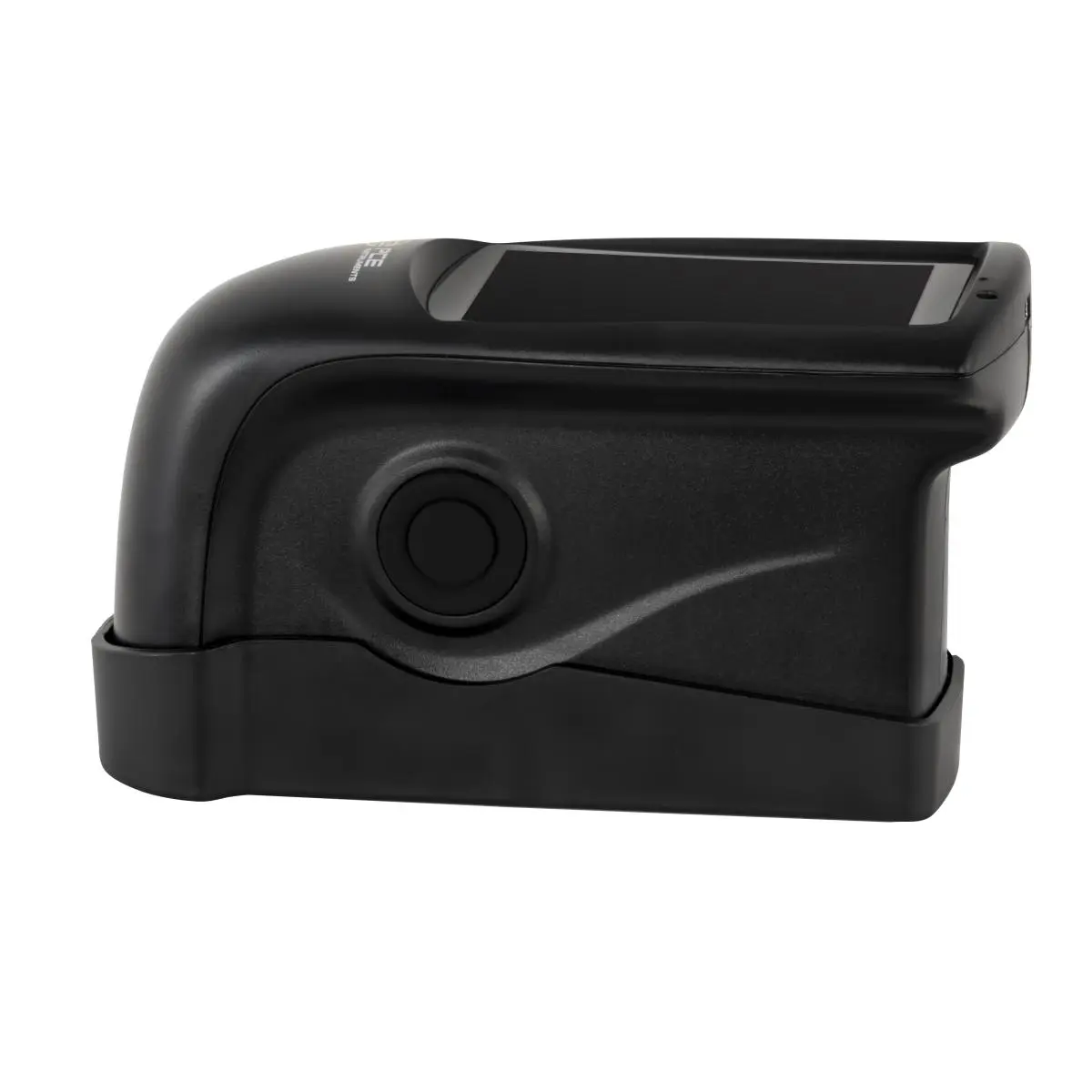

Paint Test Equipment / Paint Testing Equipment Side view
Paint Test Equipment / Paint Testing Equipment Connections

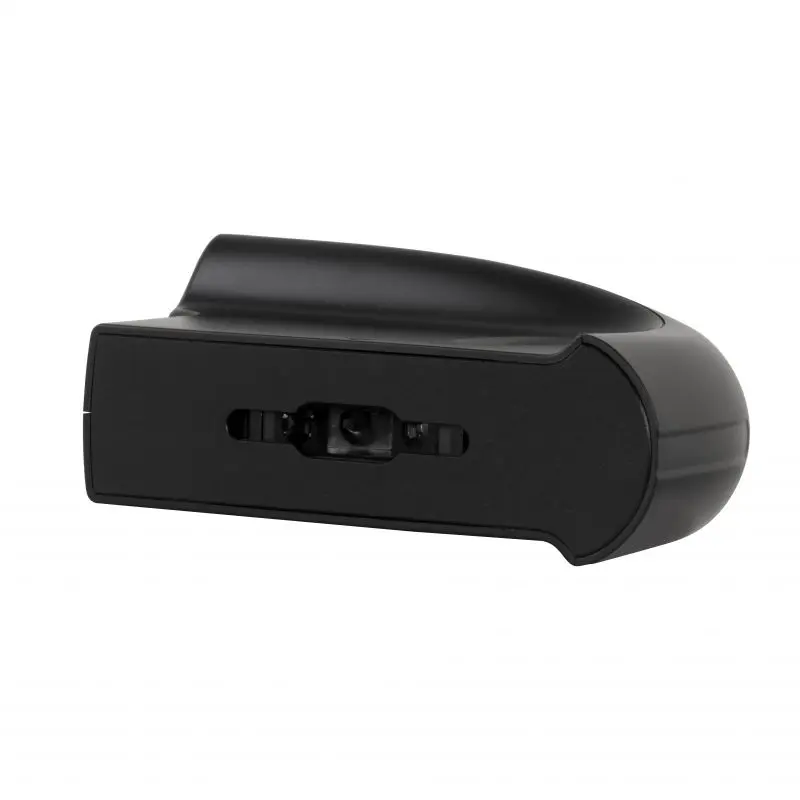

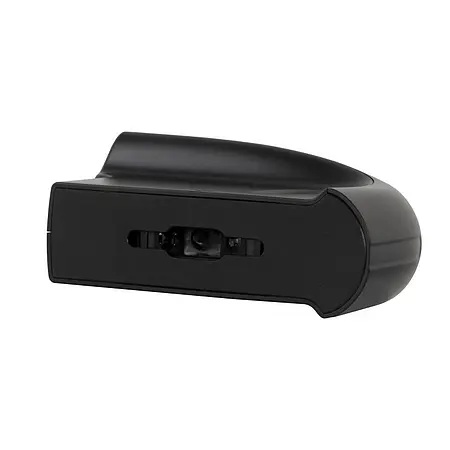

Paint Test Equipment / Paint Testing Equipment Sensor
Paint Test Equipment / Paint Testing Equipment Application picture
Paint Test Equipment / Paint Testing Equipment Delivery scope

Paint Gloss Tester PCE-PGM 100

Order no.: PCE-PGM 100
GTIN (EAN): 4250348715067
£ 1,327.00
£ 1,592.40
price ex. (VAT / delivery)
:
4250348715067
PCE-PGM 100
Delivery time:1-2 working days
Paint Gloss Testing

Accessory

Description

Gloss meter for mobile use / Flexibility due to various measuring geometries /
3.5 " TFT display / Very short measuring time / Internal memory for readings /
Including evaluation software

The PCE-PGM 100 gloss meter works with measuring geometries of 20°, 60° and 85°, using the reflection principle. This means that the gloss meter emits light which hits the surface to be tested. A part of the light will be absorbed by the surface and another part will be reflected. After this, the gloss meter will calculate the degree of gloss.

The wide measurement range allows the user to test many different surfaces. These features make the gloss degree meter very useful for gloss measurements in quality and incoming goods control. The included software makes later evaluation of the measured data easily possible.


Highlights

- Various measuring geometries
- 3.5" TFT
- Internal measurement value storage
- Calibration plate included in the delivery content
- Short measuring time
- Evaluation software

Specification

Gloss
Measuring geometry  20°
Measuring range  0 ... 1000 GU
Resolution  0,1 GU
Accuracy  ±1.5 / ±1.5 %

Gloss
Measuring geometry  60°
Measuring range  0 ... 1000 GU
Resolution  0,1 GU
Accuracy  ±1.5 / ±1.5 %

Gloss
Measuring geometry  85°
Measuring range  0 ... 160 GU
Resolution  0,1 GU
Accuracy  ±1.5 / ±1.5 %

General technical data
Display type  TFT colour display
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  1000 Values
Interface  Mini-USB, RS232
Standard(s)  ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring surface additional information  20°: 10x10 mm / 60°: 9x15 mm / 85°: 5x36 mm
Repeatability  ±0.1 GU / ±0.2 GU / ±0.2 GU (%)
Measurement time  0,1 s
Reproducibility  ±0.2 GU / ±0.5 GU (%) / ±0.5 GU (%)
Measuring geometry  20°, 60°, 85°
Chromaticity  Corresponds to CIE 1931 (2°) under a CIE C light source
Readability  0,1 GU
Menu language  English, Chinese, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50 ... 60 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3200 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  -20 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  160 x 75 x 90 mm
Weight  350 g

Delivery Scope

1 x Gloss level meter PCE-PGM 100
1 x Charging adaptor
1 x Rechargeable lithium-ion battery
1 x USB cable
1 x Calibration plate
1 x Evaluation software (on a CD-ROM)
1 x Instruction manual
