The magnetic stirrer is equipped with a heater. Thus, the magnetic stirrer with heating, liquids can heat up to 120°C / 248°F and mix or stir at the same time. The magnetic stirrer with heating has 5 stirring points, so that several liquids can be stirred simultaneously in the laboratory during a test. The maximum volume is per agitator at 400 ml, with heating up to 2000 ml altogether. The heating temperature can be adjusted step by step in 1°C / 1.8°F increments. The stirring speed can be changed in 10 rpm per setting up to a maximum of 1500 rpm.
| Drive the stirring points | Brushless motors |
| Number of stirring points | 5 |
| Max. Stirring quantity | 400 ml per stirring point |
| 2000 ml total | |
| Adjustable speed | 300 ... 1500 rpm |
| Accuracy speed | 10 RPM |
| Heating temperature | Ambient temperature ... 120°C / 248°F |
| Accuracy temperature | ± 1°C / 1.8°F |
| Timer range | 1 ... 999 minutes - infinity |
| Recommended length of stirring rods | 25 mm / 0.98 in |
| Dimensions stirring field | 456 x 118 mm / 18 x 4.6 in |
| Heating capacity | 375 W (220 V) |
| Protection class | IP 42 |
| Operating conditions | 5 ... 40°C / 41 ... 104°F, max. 80 RH |
| Power supply / | 220V AC / 1.7A |
| Current consumption | |
| Input | 400W |
| Dimensions | 565 x 136 x 75 mm / 22.2 x 5.4 x 3 in |
| Weight | About 3 kg / 6.6 lbs |

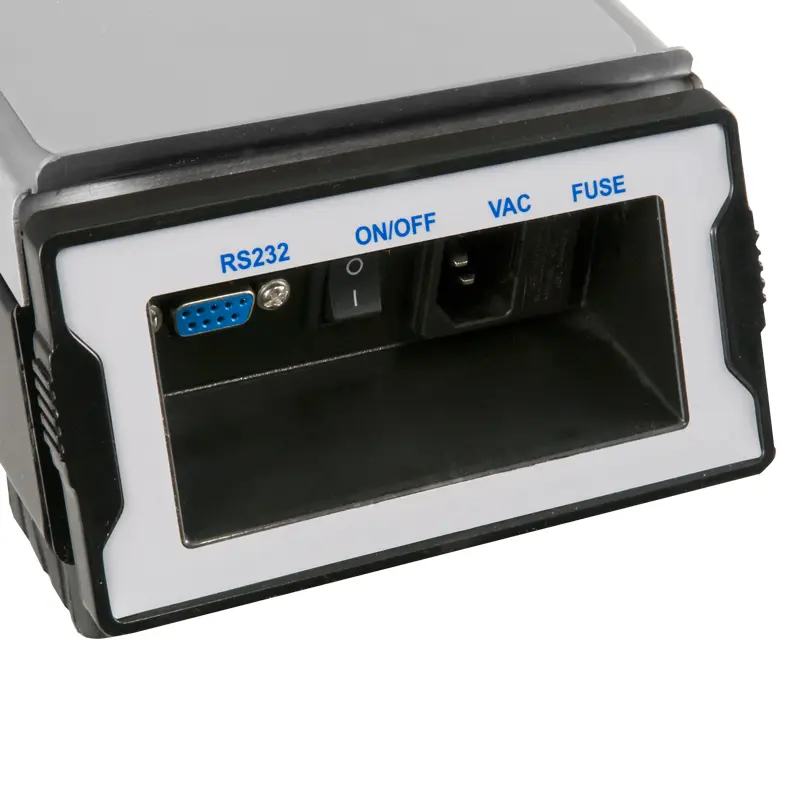

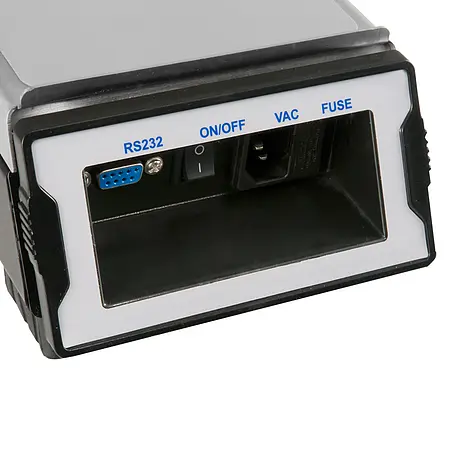

| Interface | RS232 |
|
| |
