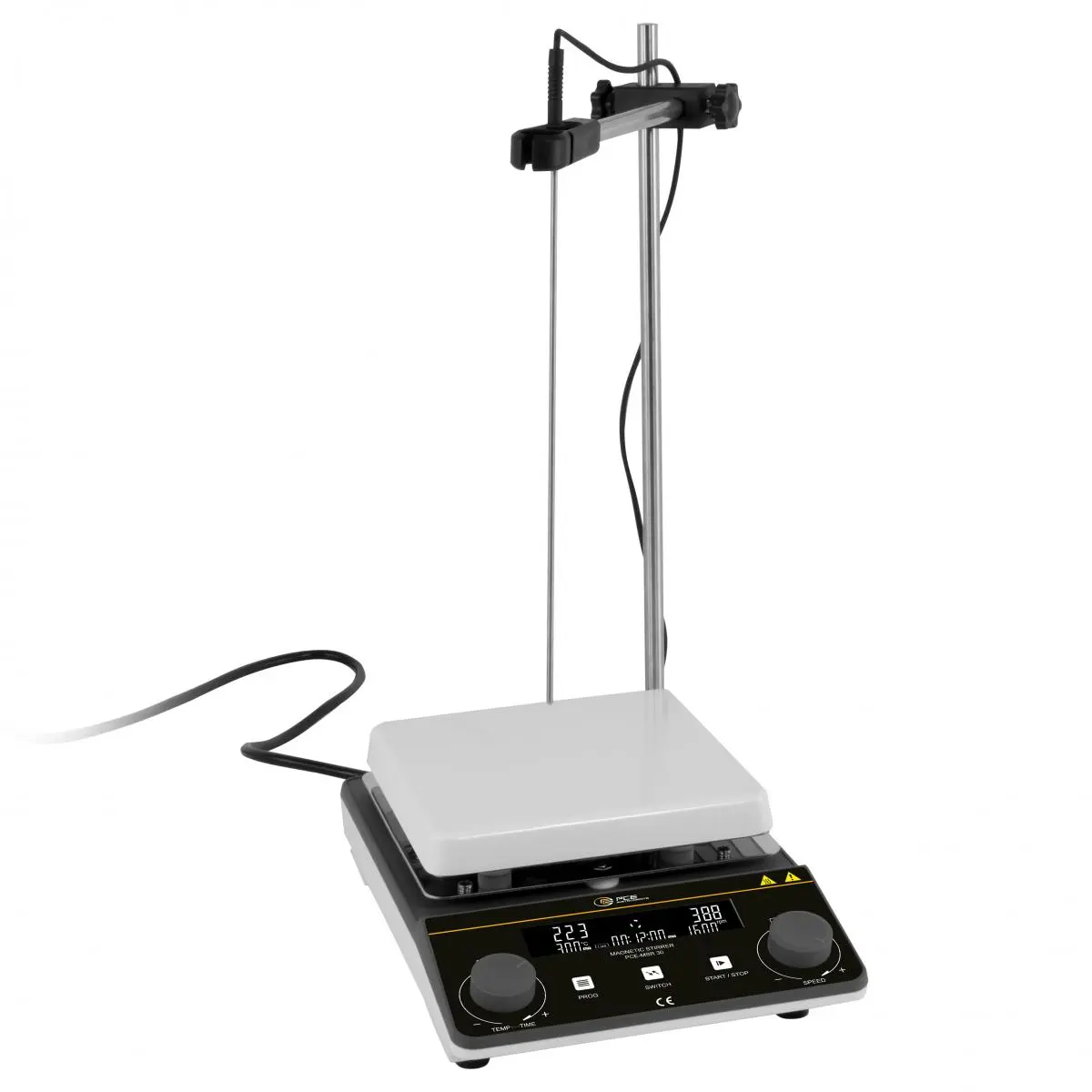

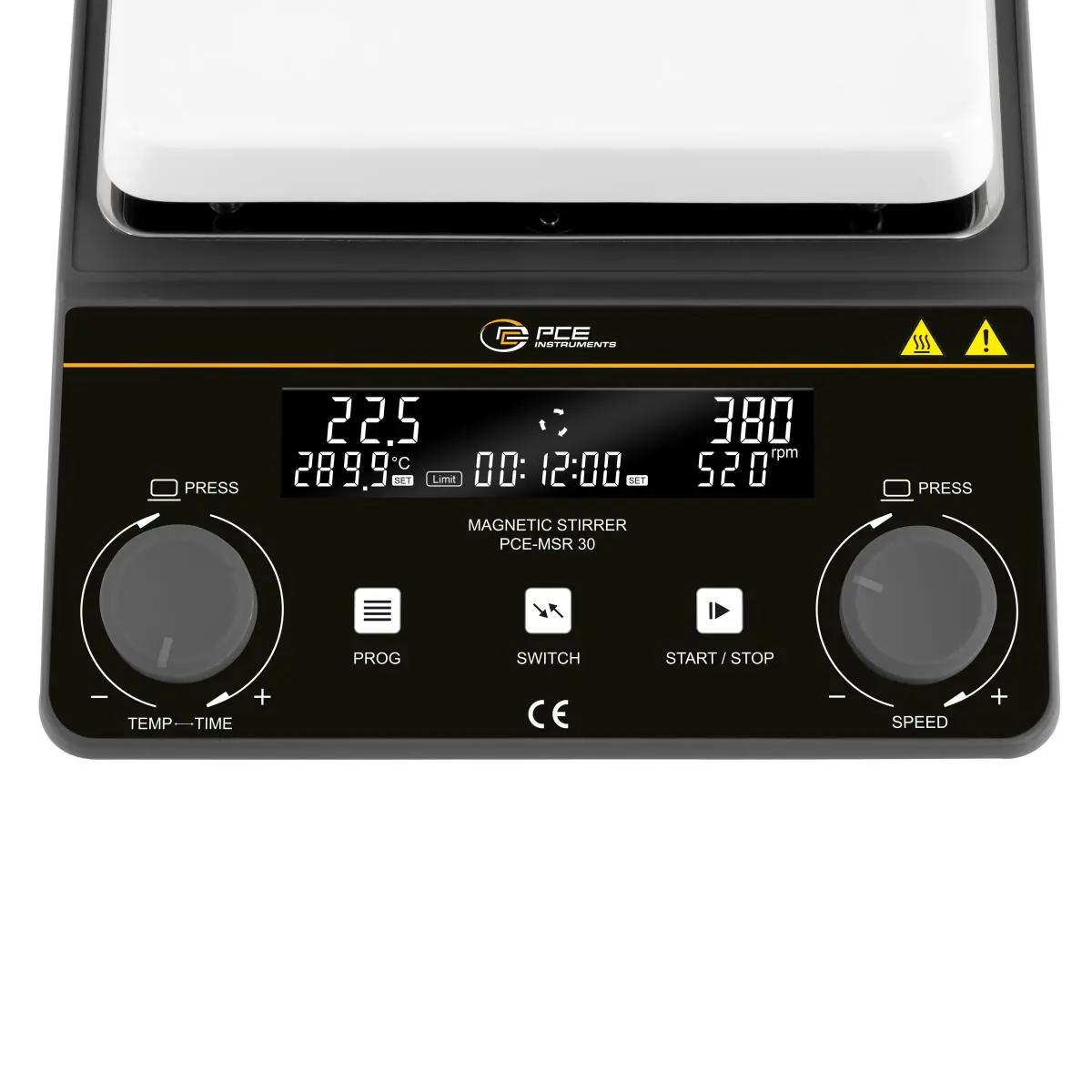

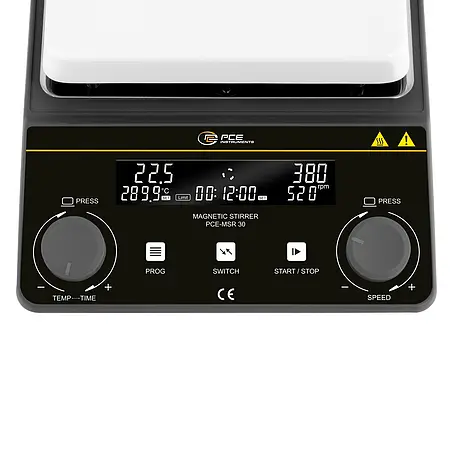

The Magnetic Stirrer offers a maximum stirring capacity of 5 liters and a continuously adjustable speed of 100 ... 1600 rpm with a high control accuracy of ±10 rpm. Driven by a brushless motor, the Magnetic Stirrer ensures reliable and maintenance-free performance. The intelligent PID temperature control enables precise heating in the range from room temperature to 300°C / 572°F. An external temperature sensor also ensures particularly precise control of the medium temperature, while an easy-to-read 3.7-inch LCD display clearly shows all the important parameters.
The robust worktop made of die-cast aluminum with a surface area of 155 x 155 mm / 6.1 x 6.1 in ensures even heat distribution and high resistance to chemical influences. Together with a stirring rod of Ø 8 x 30 mm, the Magnetic Stirrer is ideal for demanding applications. Functions such as an adjustable direction of rotation, a wide timer range from 1 second ... 99 hours and 59 minutes and the option of saving up to 6 individual stirring programs offer maximum flexibility in everyday laboratory work.
Thanks to the single stirring position, the Magnetic Stirrer is ideal for precise tasks in chemical syntheses, biological and pharmaceutical processes and materials research. Wherever precise temperature control and uniform stirring are required, this Magnetic Stirrer impresses with its powerful technology.
Speed | |
Measurement range up to | 100 ... 1600 rpm |
Resolution | 1 rpm |
Accuracy | ±10 U/min |
Temperature sensor | |
Measurement range up to | -50 ... +300 °C |
Resolution | 1 °C |
Accuracy | ±0.5°C |
General technical data | |
Display type | LCD |
Display size | 3,7 Inch |
Dimensions | Stirring plate: 150 x 150 mm Stirring rod: Ø 8 x 30 mm |
Performance | 550 W |
Number of stirring points | 1 |
Drive of the stirring points | Brushless motor |
Max. Stirring quantity | 5 l |
Stirring plate material | Cast aluminium with ceramic coating |
Temperature | Stirring plate: 0 ... 300°C / Accuracy: ±3°C |
Timer from | 1 s |
Timer until | 100 h |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Power supply | 230V AC | 50/60 Hz |

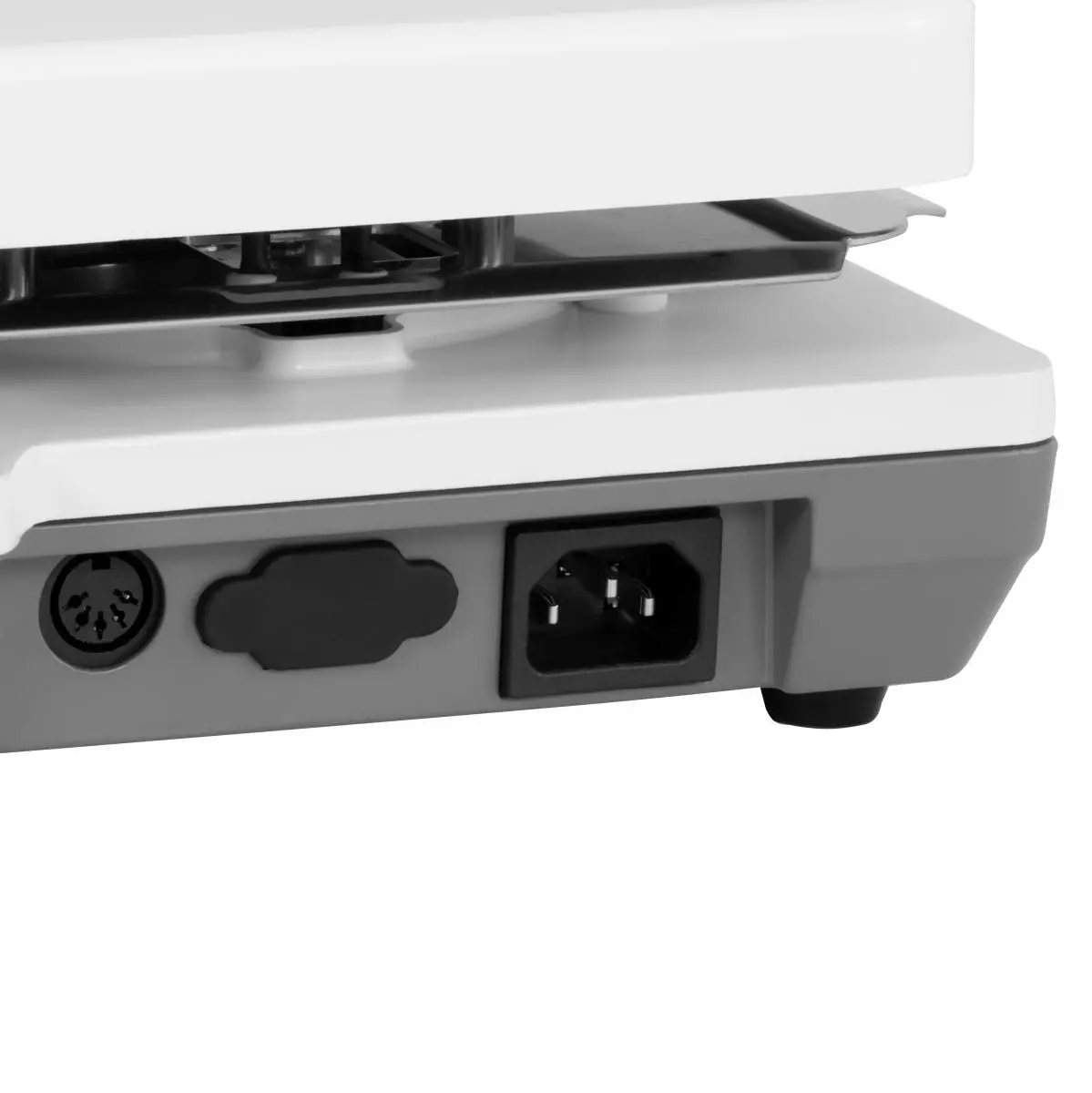

Connector type | Cold-device plug |
Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
Dimensions ( L x W x H ) | 270 x 180 x 85 mm |
Weight | 1911 g |
