Magnetic Stirrer PCE-MSR 1600

Magnetic Stirrer PCE-MSR 1600

Order no.: PCE-MSR 1600
GTIN (EAN): 4250348738691
£ 196.00
£ 235.20
price ex. (VAT / delivery)
:
4250348738691
PCE-MSR 1600
Delivery time:1-2 working days

Description

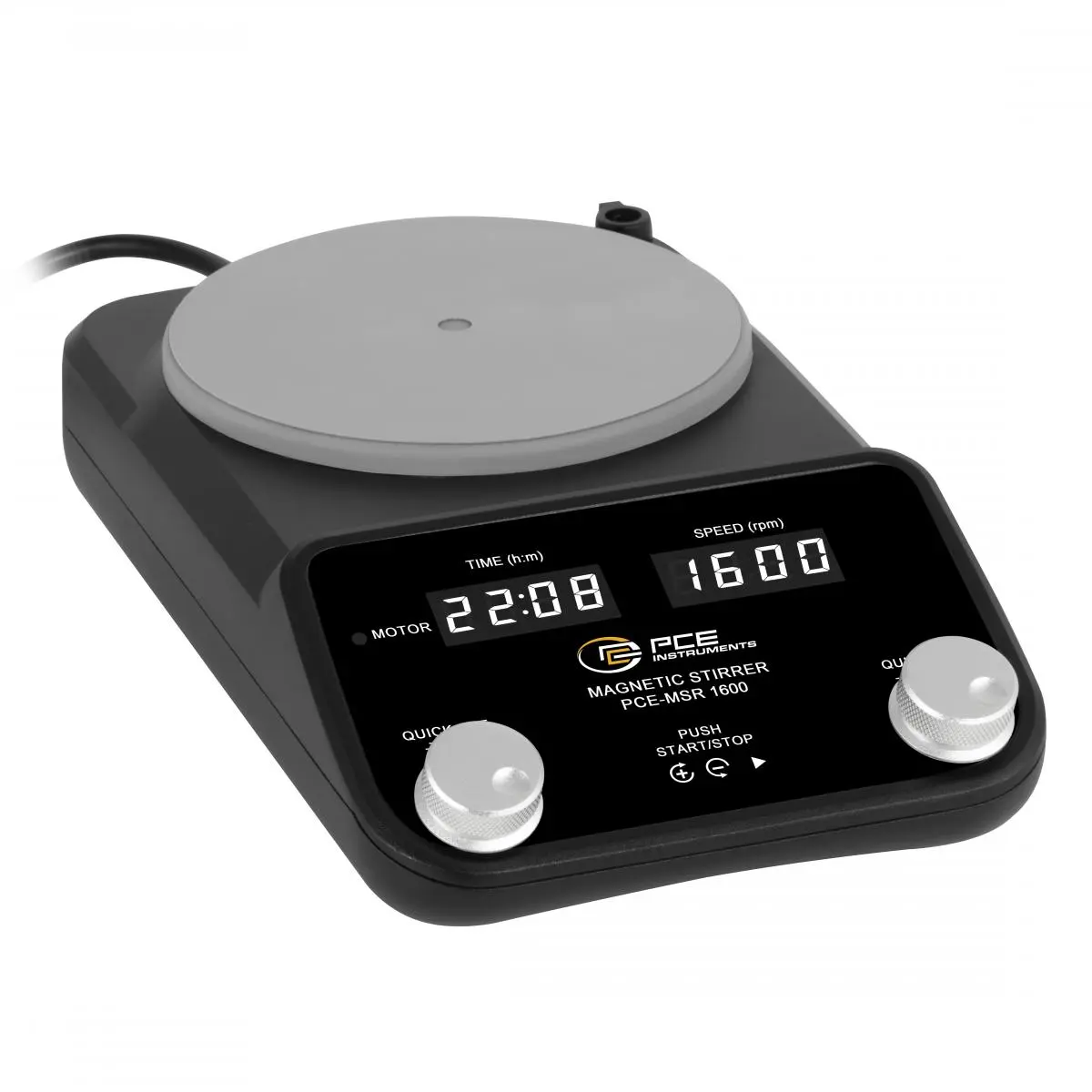

Magnetic Stirrer with digital display / 200 ... 1600 rpm / Timer function / Max. stirring volume 20 l / 1 stirring position / Compact design

The Magnetic Stirrer is designed for professional users in laboratories in the chemical, biotechnology, medical, and food industries, as well as in research and development, who want to stir and mix liquids reliably. The Magnetic Stirrer has a continuously adjustable stirring speed of 200 to 1,600 rpm and a volume range of up to 20 liters (H₂O).

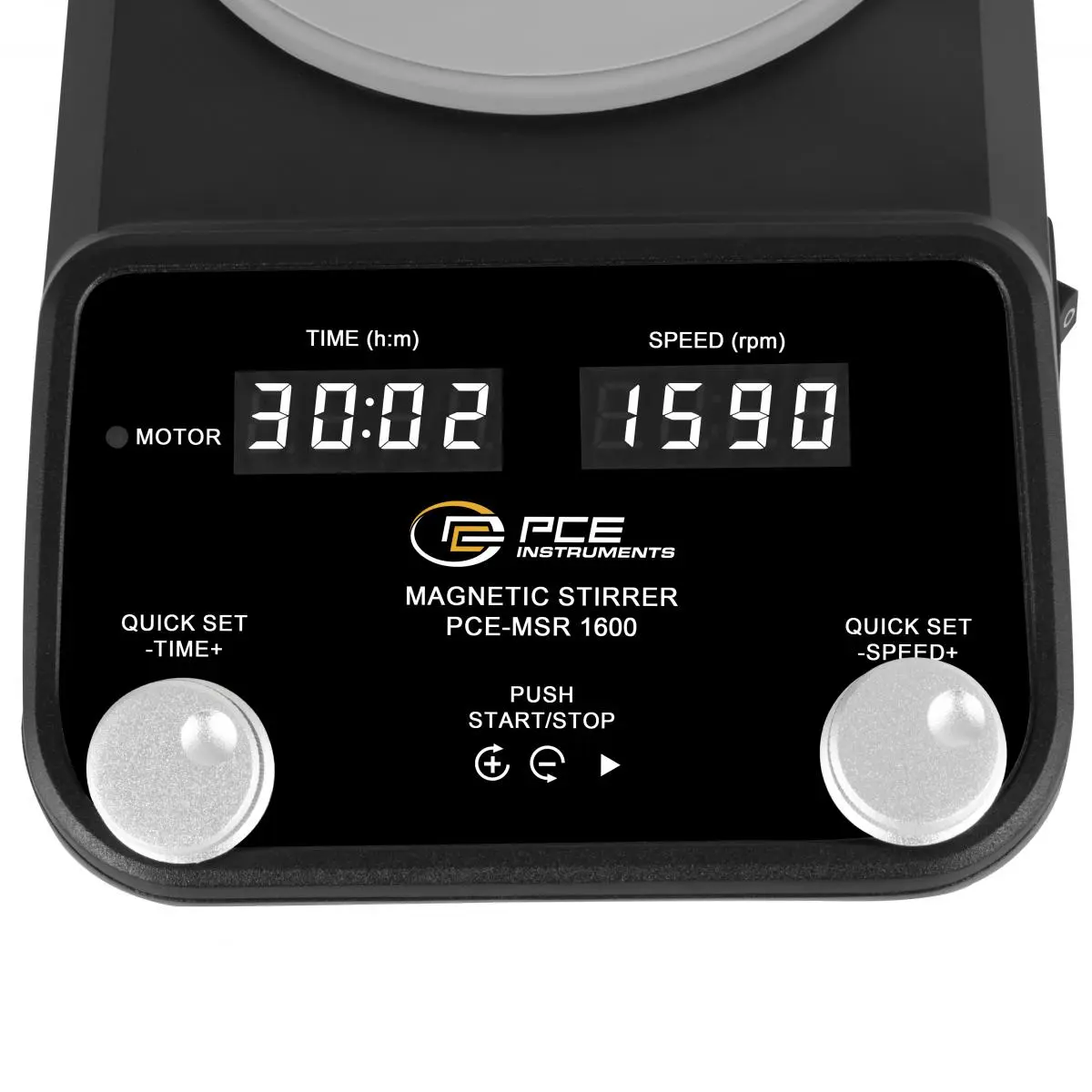

Speed and time can be precisely adjusted using two rotary knobs and are shown on the digital display, ensuring reproducible results. The time setting is flexible from 1 second to 99 hours and 59 minutes; at 00:00, the Magnetic Stirrer runs continuously and stops automatically after the set time with an acoustic signal.

Technically, the Magnetic Stirrer is driven by a brushless DC motor that operates quietly, with low vibration, and maintenance-free. The work surface consists of a silicone pad with a diameter of 134 mm, and the robust housing ensures a secure footing and long-term laboratory use. The compact design with an inclined control panel (approx. 30°) allows for comfortable readability when sitting or standing. The Magnetic Stirrer is operated with a power supply of 220V AC | 50/60 Hz, has a power consumption of 20W, and is equipped with a fuse for device protection.

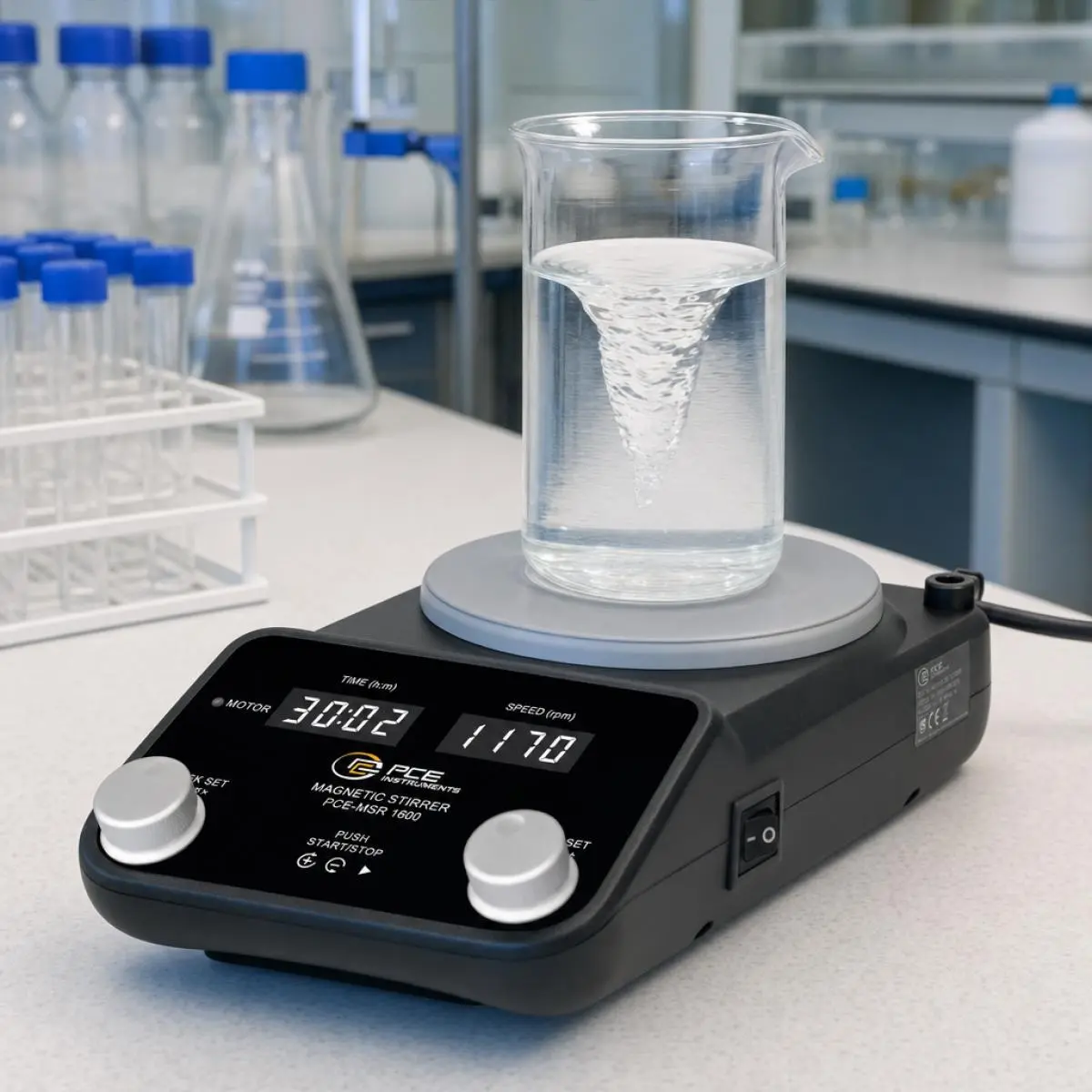

Thanks to its strong magnetic force and precise control system, this Magnetic Stirrer is ideal for mixing reagents, solutions, and chemical substances in laboratories, quality control, research and development, and in the production of food and medical preparations.


Highlights

- Stirring speed adjustable from 200 to 1,600 rpm
- Digital display for time and speed
- Timer: 1 s to 99 h 59 min
- Mode: timer and continuous operation
- Silicone stirring plate
- For a maximum of 20 liters of liquid
- Power supply: 220V AC | 50/60 Hz, 1 A

Specification

Speed
Measurement range up to  200 ... 1600 rpm
Resolution  1 rpm
Accuracy  ±10 U/min

General technical data
Display type  LCD
Display size  1,8 Inch
Dimensions  Stirring plate: Ø 134 mm Stirring rod: Ø 8 x 45 mm
Fuse(s)  250V, 1 A, Ø 5 x 20
Performance  20 W
Number of stirring points  1
Drive of the stirring points  Brushless motor
Max. Stirring quantity  20 l
Stirring plate material  Silicone
Timer from  1 s
Timer until  100 h
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  220V AC | 50/60 Hz, 1 A

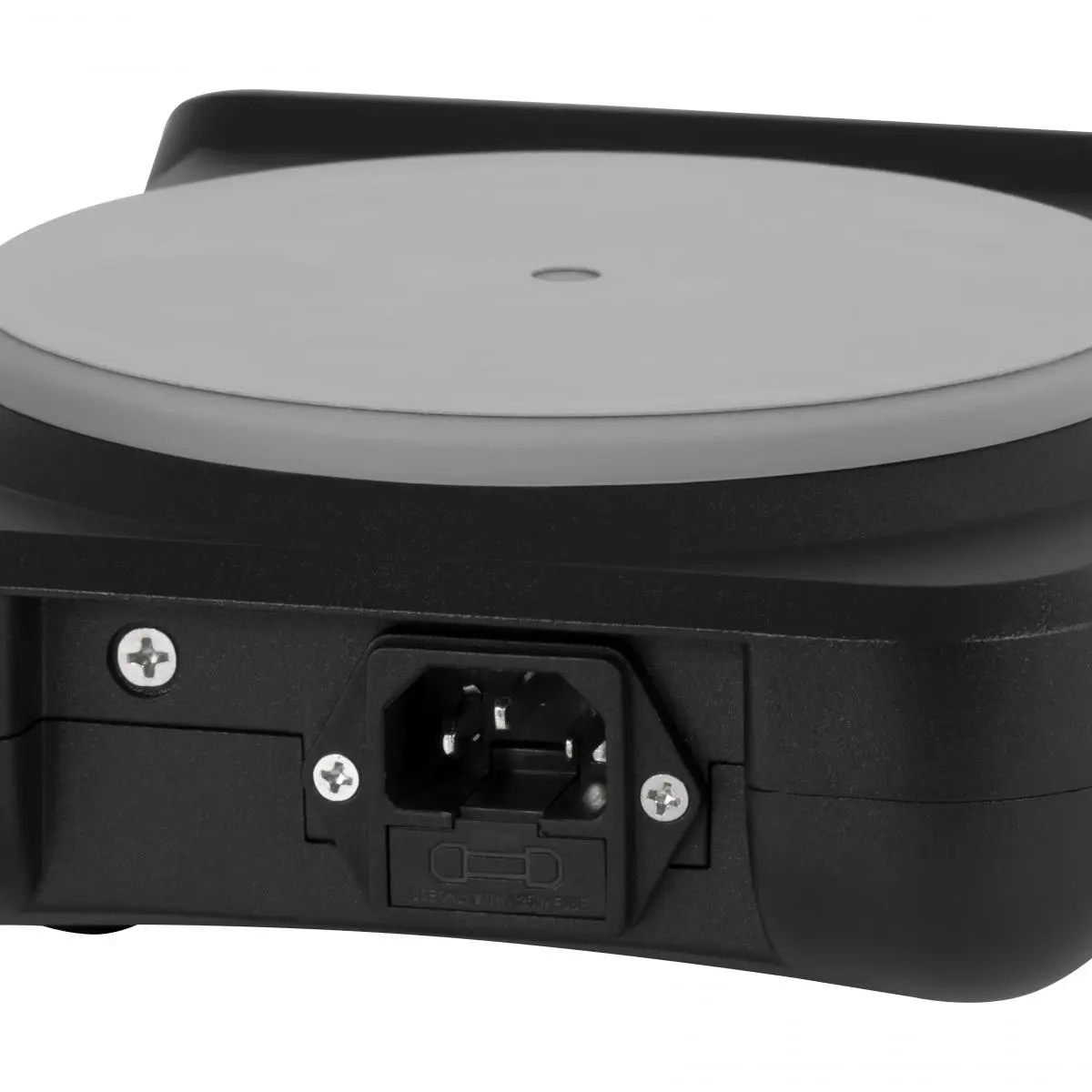

Connector type  Cold-device plug
Operating conditions  4 ... 45 °C , 0 ... 70 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  270 x 160 x 70 mm
Weight  2046 g

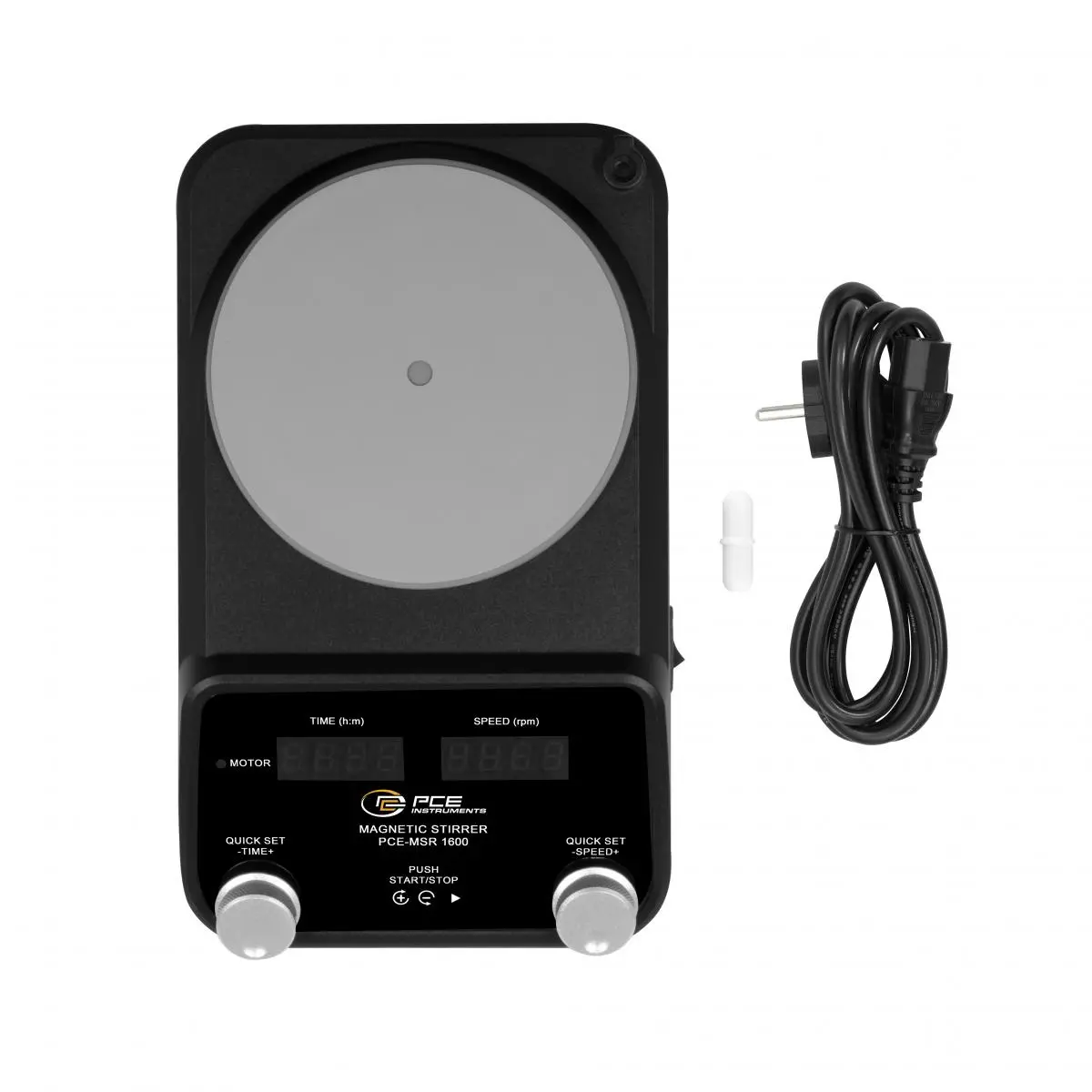

Delivery Scope

1 x PCE-MSR 1600 Magnetic Stirrer
1 x Device cable
1 x Stirring bar: Ø 8 x 45 mm
1 x Operating instructions
