Magnetic Stirrer PCE-MSR 100L

Magnetic Stirrer PCE-MSR 100L

Order no.: PCE-MSR 100L
GTIN (EAN): 4250348738479
£ 877.00
£ 1,052.40
price ex. (VAT / delivery)
:
4250348738479
PCE-MSR 100L
Delivery time:1-2 working days

Description

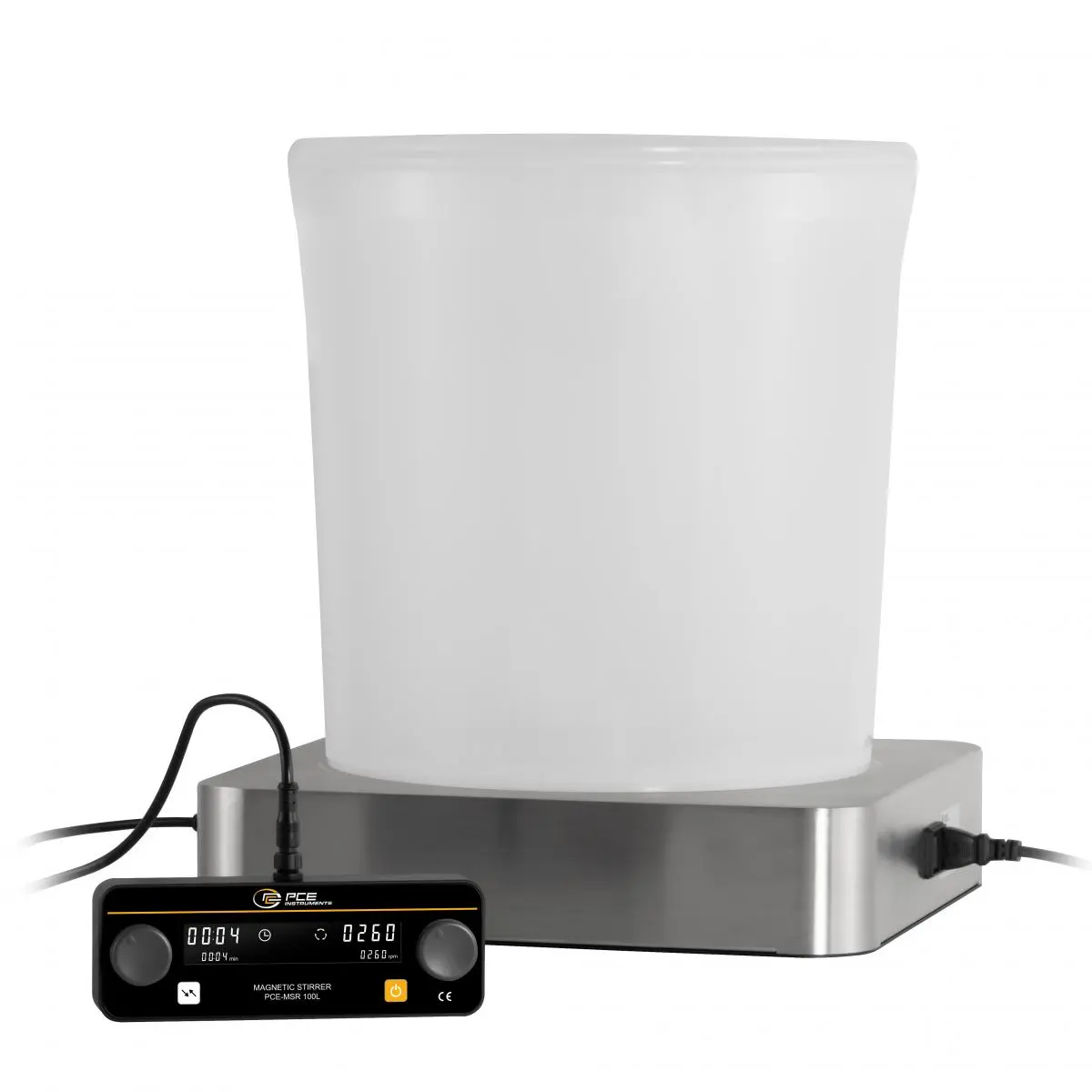

Magnetic Stirrer / External control unit / Stainless steel stirring plate / Timer / Incl. large stirring bowl

The Magnetic Stirrer is a powerful stirring device for professional laboratory applications with high volume requirements. With a maximum stirring capacity of up to 100 liters (water equivalent), this Magnetic Stirrer is ideal for large-volume mixing processes in research, industry and educational institutions. The robust stainless steel plate measuring 400 × 400 mm / 15.7 x 15.7 in provides a stable work surface for a wide range of vessel sizes and ensures uniform mixing even with large containers.

Equipped with a durable, brushless 120 watt motor, the Magnetic Stirrer delivers powerful performance in continuous operation. The infinitely variable speed from 100 to 600 rpm allows precise adjustment to different viscosities and process requirements. An additional reverse function of the direction of rotation ensures a particularly homogeneous distribution of the mixing media.

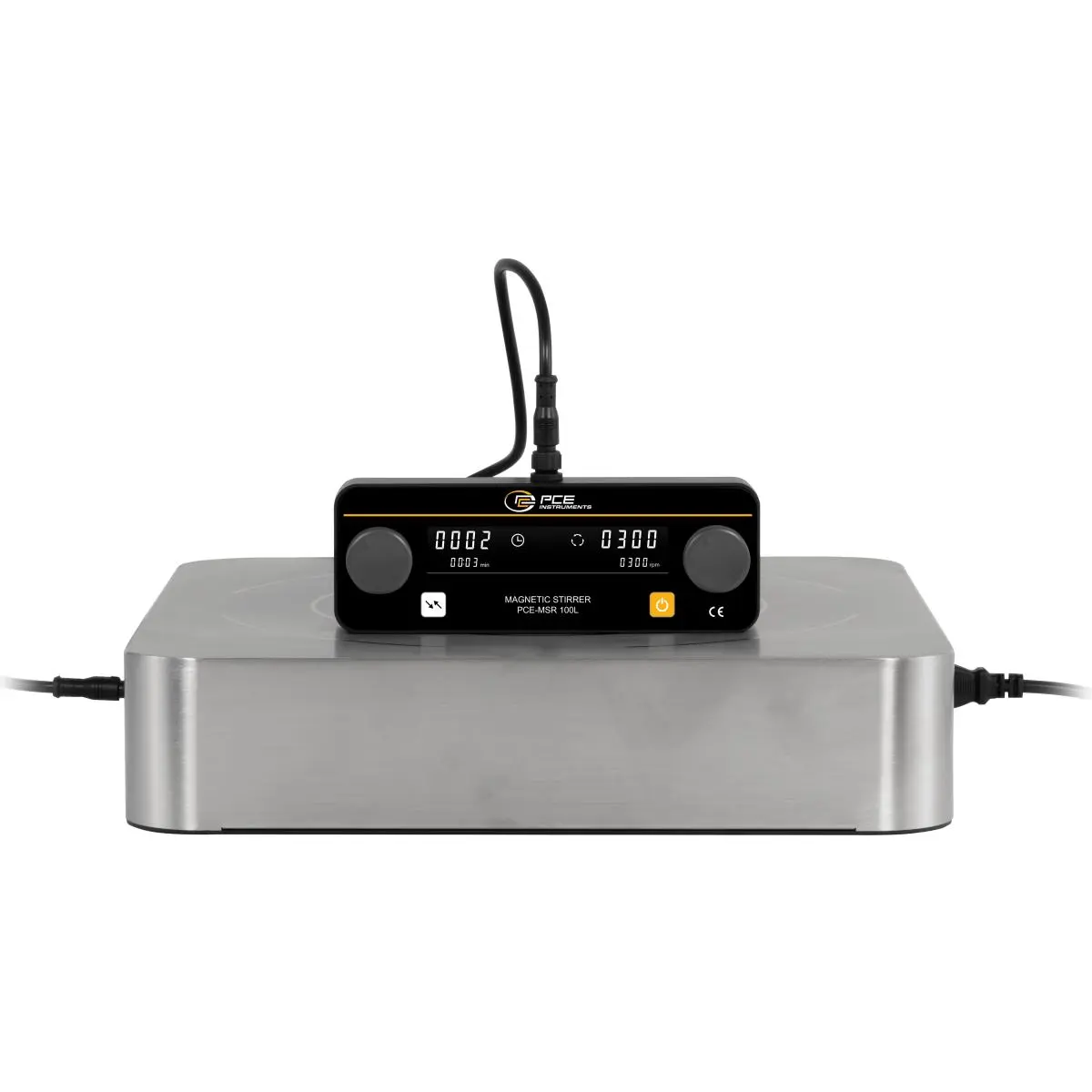

It is controlled intuitively via an easy-to-read LCD display in combination with a central rotary control. An integrated timer function enables the programming of running times between 1 minute and 24 hours - ideal for automated mixing processes in everyday laboratory work. The sturdy housing and high-quality workmanship make this Magnetic Stirrer a durable and reliable solution for everyday use.

A Magnetic Stirrer of this size is ideal for applications such as the production of large quantities of solutions, chemical production, water treatment or biotechnological processes. The Magnetic Stirrer can also be used in pilot plants, university laboratories or in industrial environments.


Highlights

- High mixing capacity
- Large stainless steel plate
- Timer function
- LCD display & control dial
- Reversible stirring direction
- Max. stirring viscosity: 34 cP

Specification

Speed
Measurement range up to  100 ... 600 rpm
Resolution  5 rpm
Accuracy  10 U/min

General technical data
Display type  LCD
Cable length  1,5 m
Dimensions  Platform: 400x400 mm
Control panel: 210x75 mm
Stirring paddle: 160 mm
Performance  120 W
Number of stirring points  1
Drive of the stirring points  Brushless motor
Max. Stirring quantity  100 l
Stirring plate material  Plain stainless steel sheet
Timer from  1 min
Timer until  24 h
Max. Stirring viscosity  34 cp
Protection class (device)  IP21
Power supply  100 ... 240V AC
Connector type  Schuko plug
Operating conditions  5 ... 40 °C , 80 % RH
Storage conditions  0 ... 50 °C , 80 % RH
Dimensions ( L x W x H )  400 x 400 x 95 mm
Weight  7,8 kg

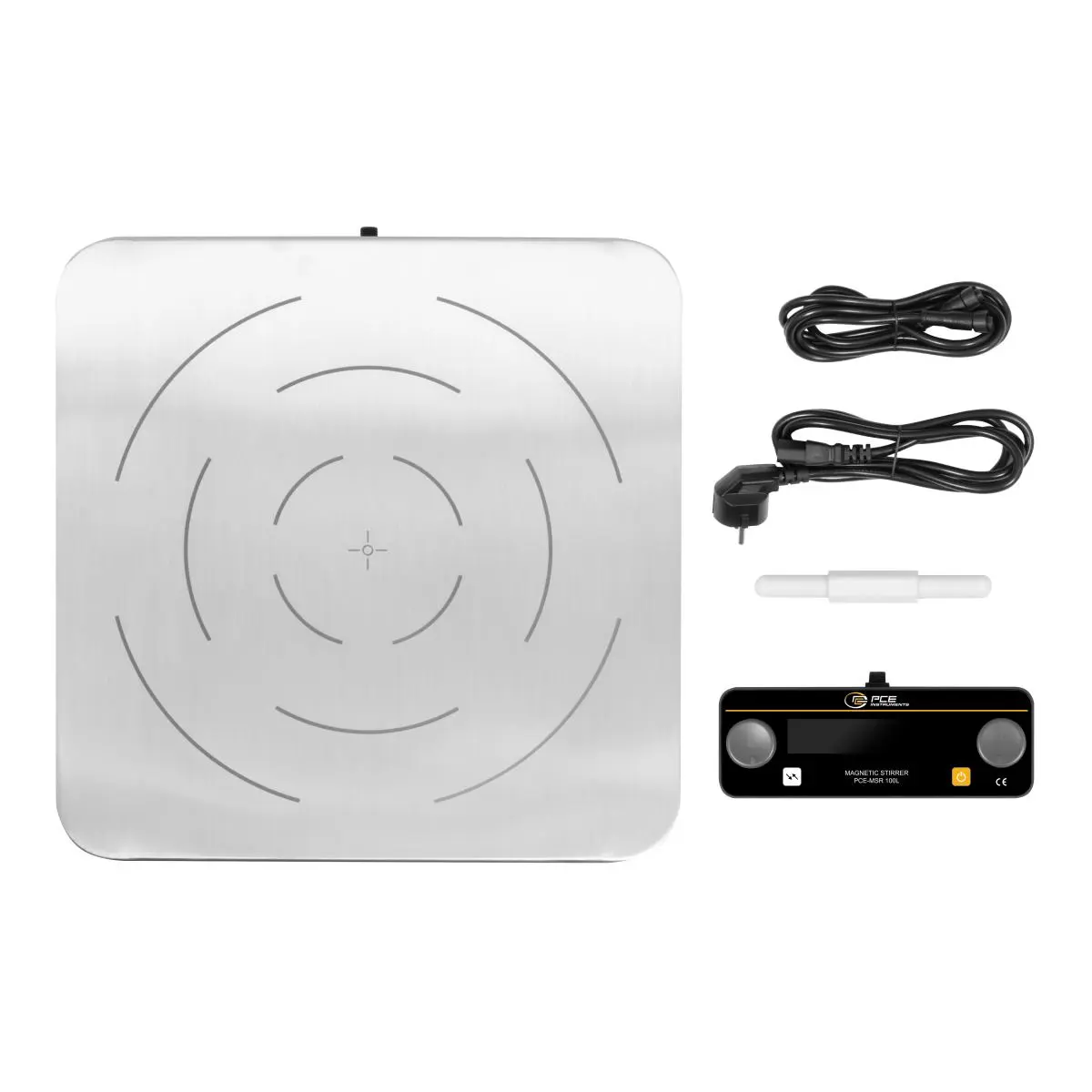

Delivery Scope

1 x PCE-MSR 100L Magnetic Stirrer
1 x Stirring paddle
1 x Control unit
1 x Connection cable
1 x Power cable
1 x Operating instructions
