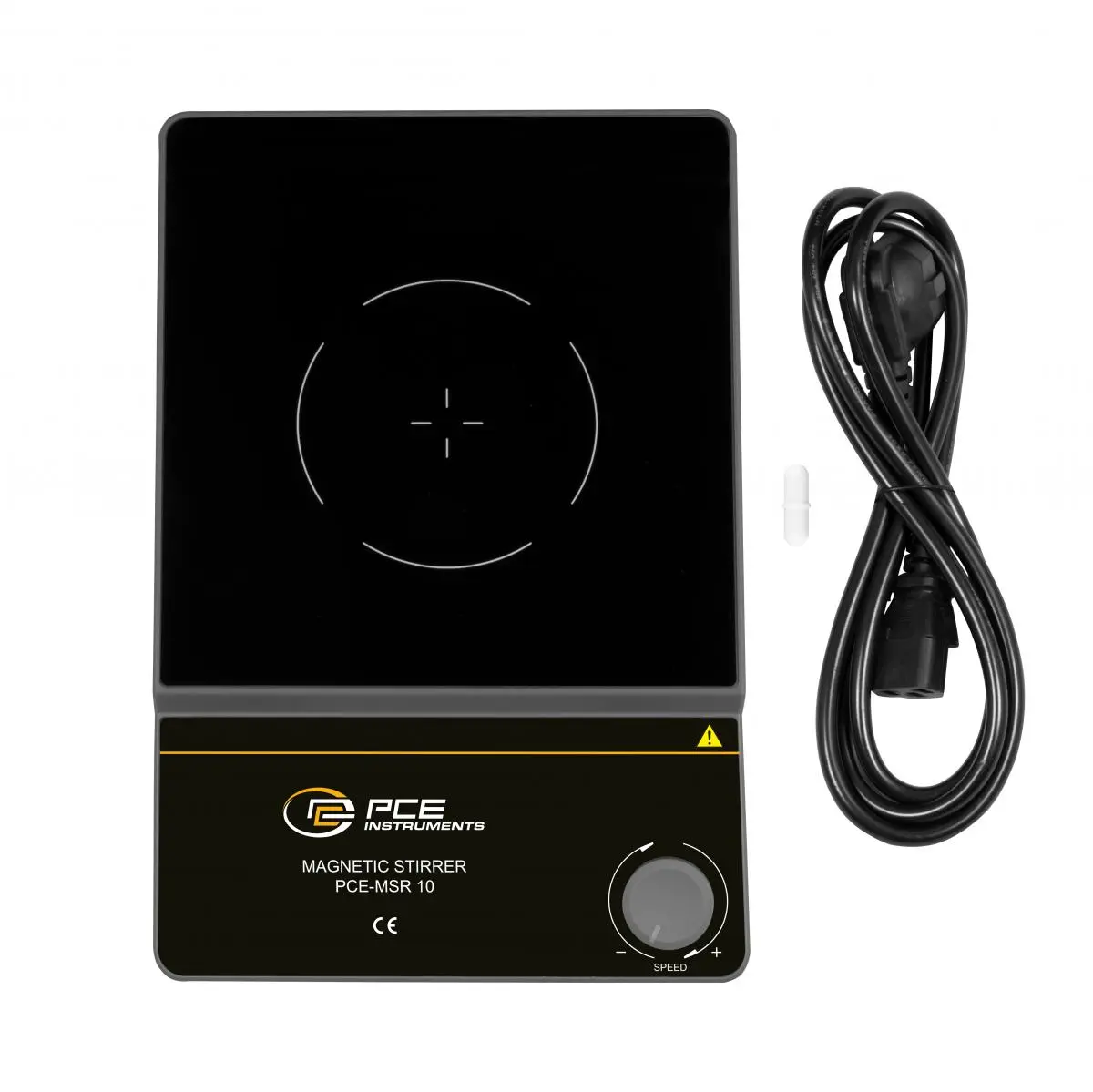

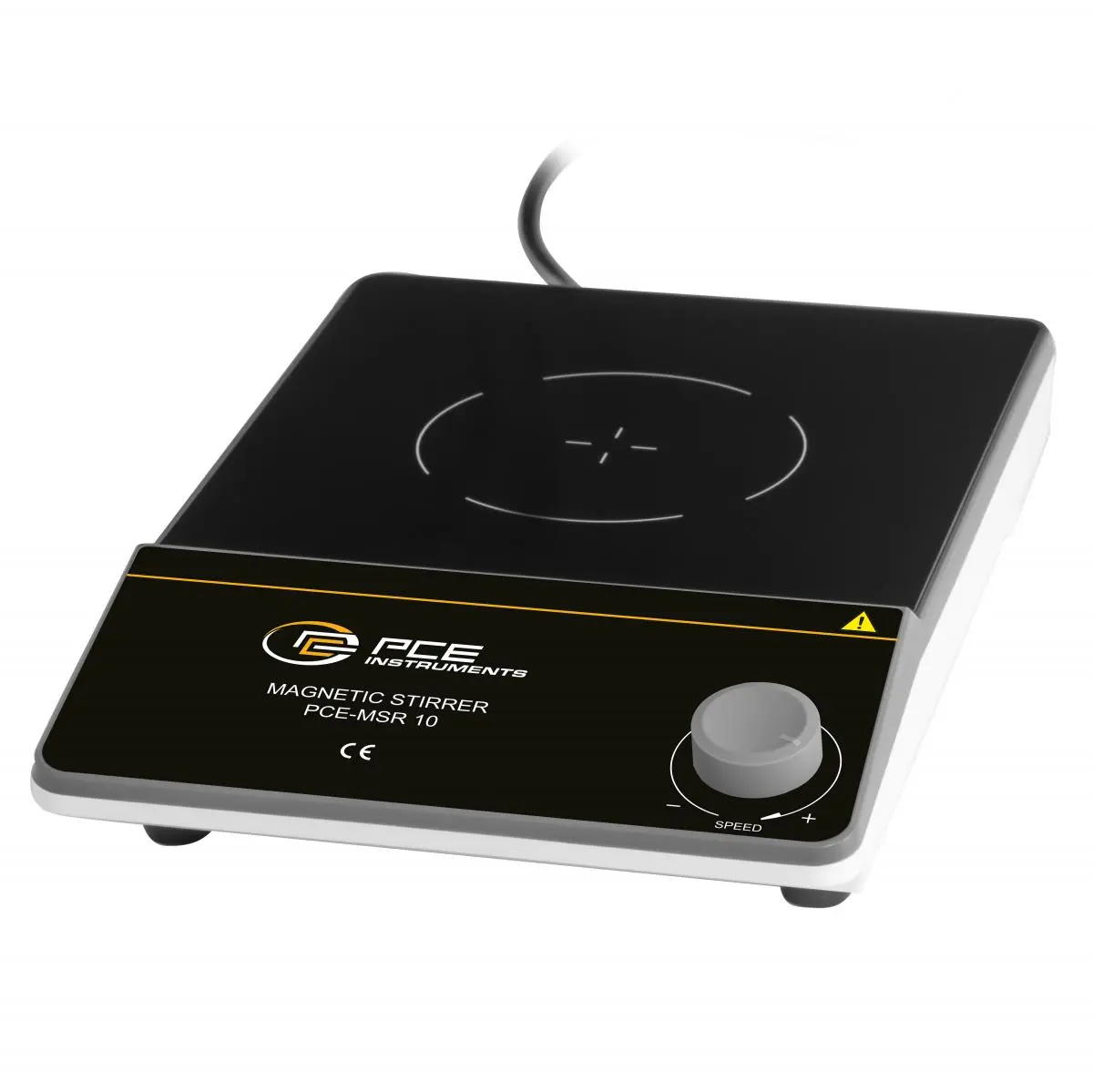

The Magnetic Stirrer is a compact and powerful laboratory device for the efficient mixing of liquids. With an adjustable stirring speed of 200 to 1600 rpm, it is ideal for volumes of up to 5 liters. The robust stirring plate made of acrylic glass with dimensions of 173 × 180 mm provides a stable work surface.
The Magnetic Stirrer is driven by a brushless motor, which guarantees particularly quiet and low-maintenance operation. The stirring rod supplied measures 8 mm in diameter and is 30 mm long - ideal for a wide range of everyday laboratory applications. With a power consumption of just 10 watts, the Magnetic Stirrer is also extremely energy-efficient. Power is supplied flexibly via 100 to 240V AC at 50/60 Hz.

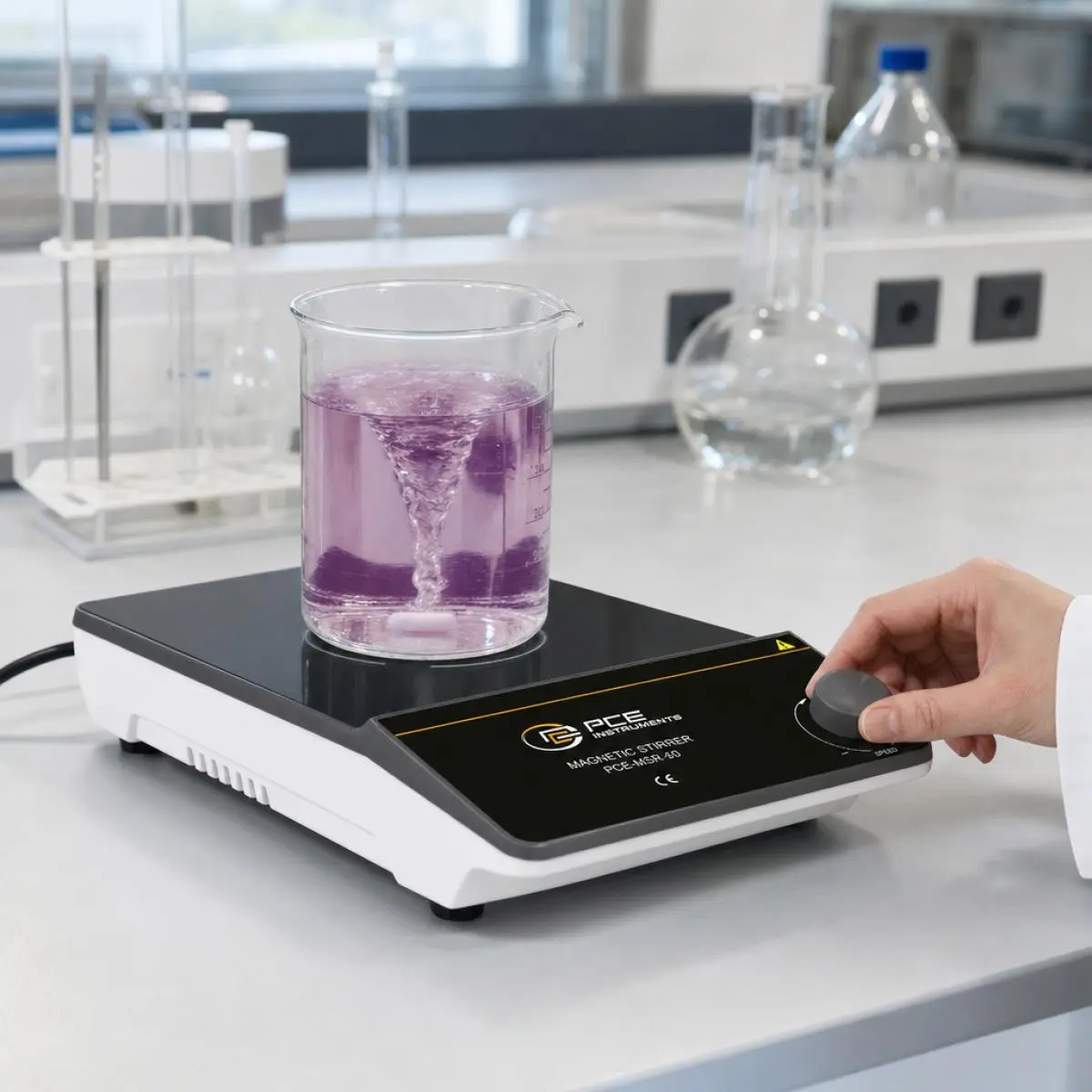

Typical areas of application are chemical and biological laboratories, research facilities and industrial processes where reliable and uniform mixing is required.
| General technical data | |
| Dimensions | Stirring plate: 173 x 180 mm Stirring rod: Ø 8 x 30 mm |
| Performance | 10 W |
| Number of stirring points | 1 |
| Drive of the stirring points | Brushless motor |
| Max. Stirring quantity | 5 l |
| Stirring plate material | Acrylic glass |

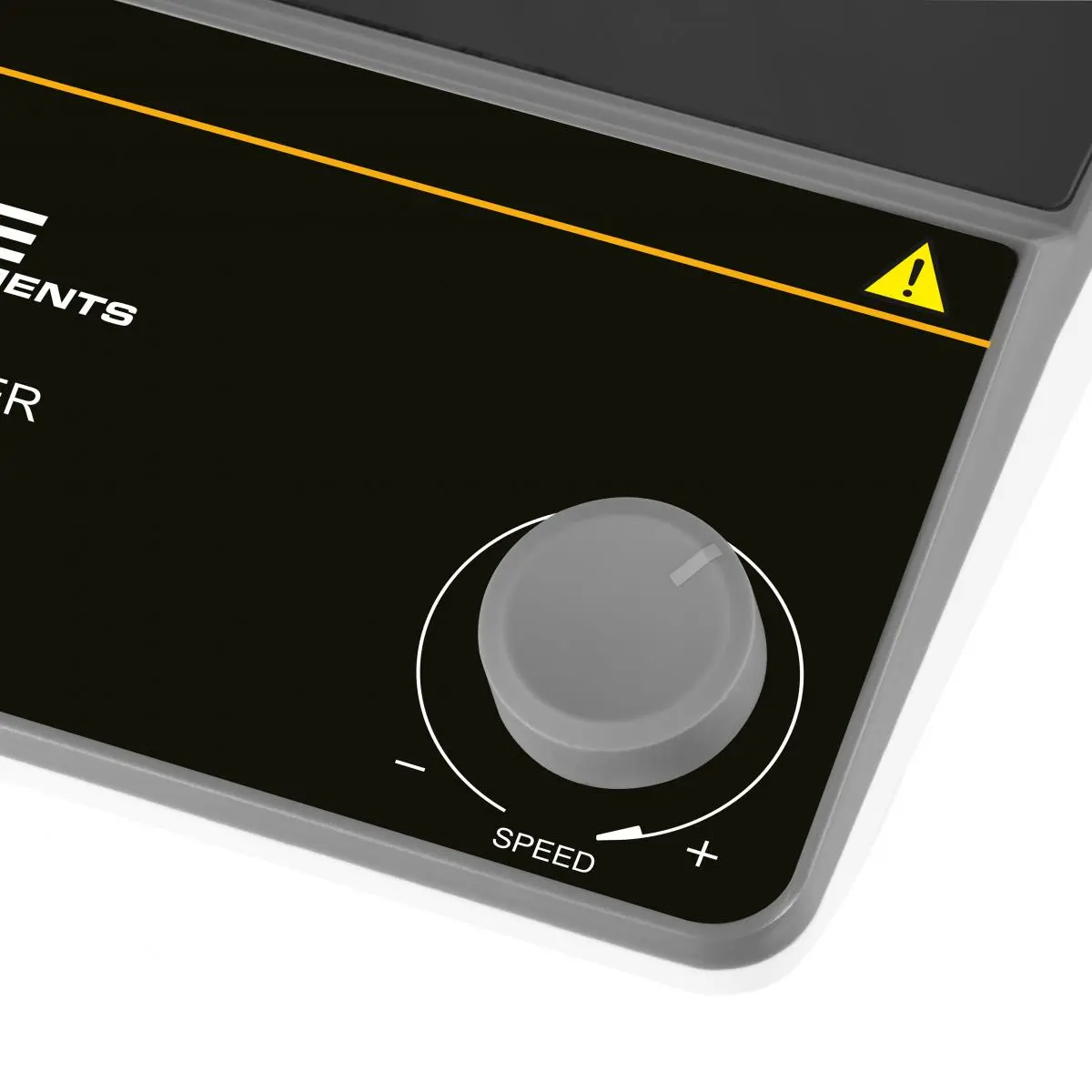

| Adjustable speed | 200 ... 1600 rpm |
| Protection class (device) | IP42 |
| Power supply | 100 ... 240 V AC | 50/60 Hz |

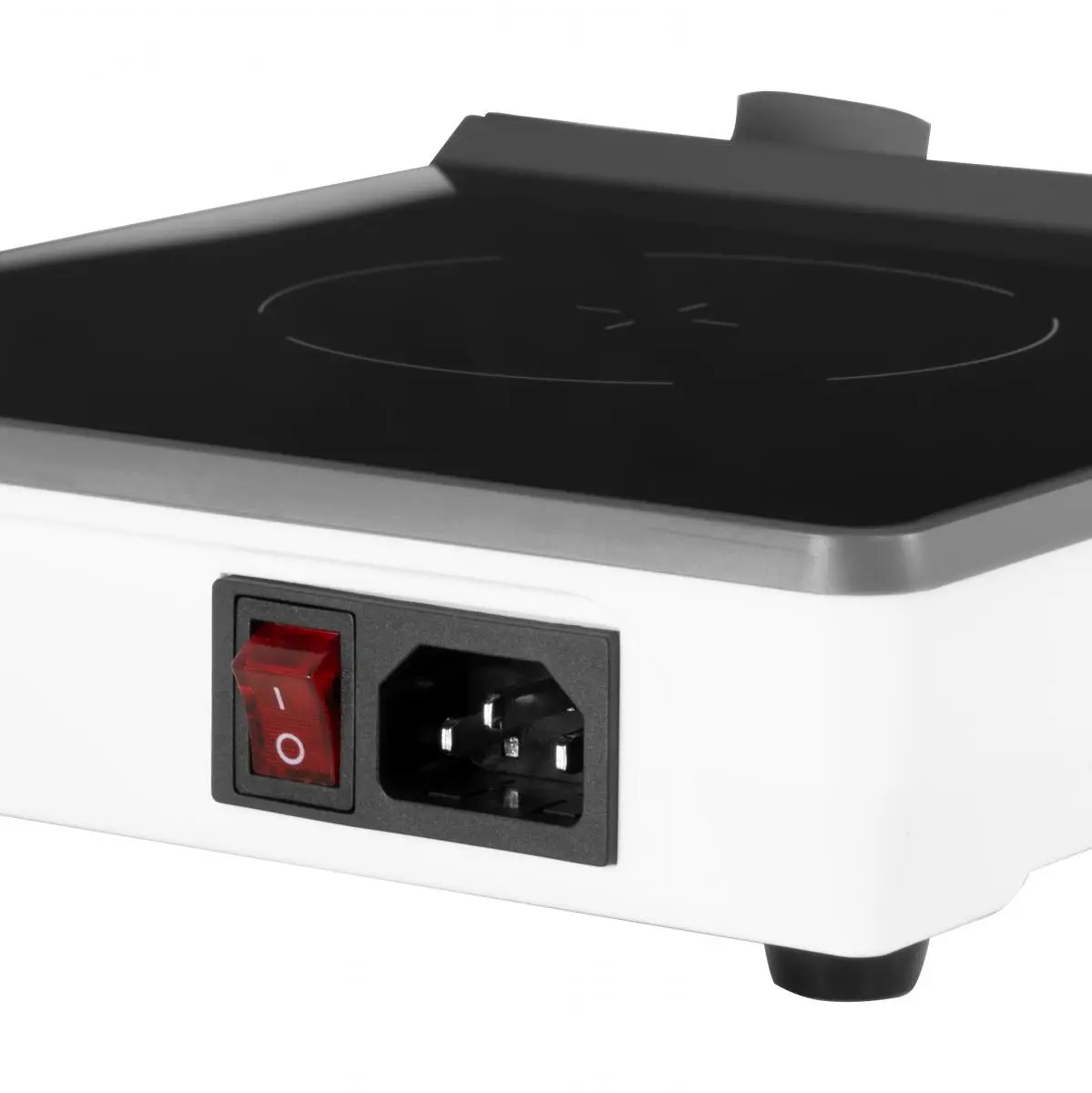

| Connector type | Cold-device plug |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 270 x 180 x 50 mm |
| Weight | 1060 g |
