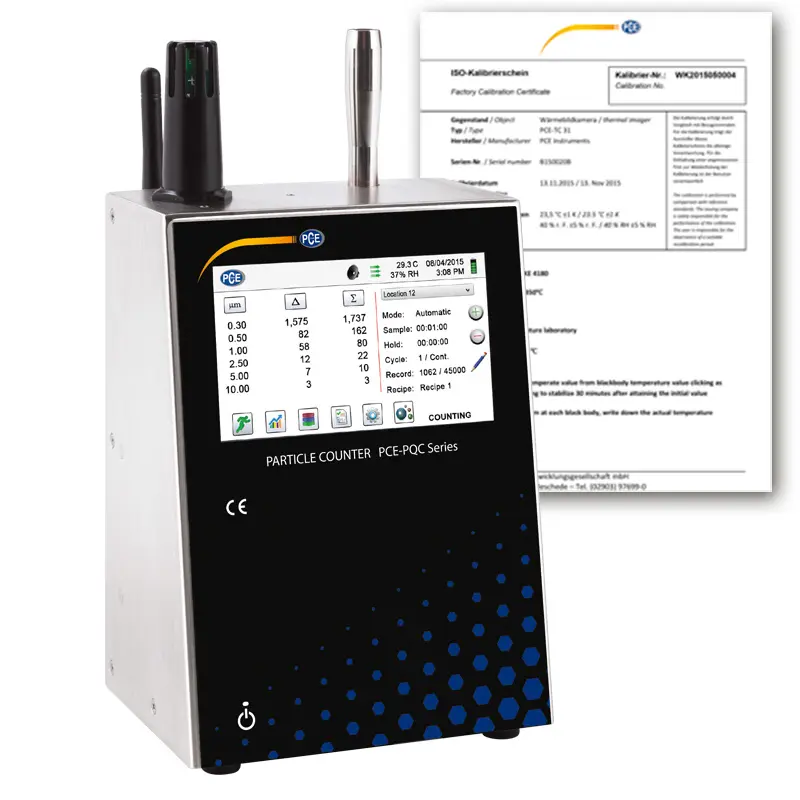

Dust Monitor PCE-PQC 21EU Incl. Calibration Certificate

Order no.: PCE-PQC 21EU
£ 3,301.00
£ 3,961.20
4250348720412
PCE-PQC 21EU
price ex. (VAT / delivery)
Delivery time: 10 - 14 days
Air particle counter PCE-PQC 2xEU series incl. calibration certificate
Counting of six particle sizes / Flow rate of 2.83 l / min / 4.3" color touch display / Ethernet and USB (optional Wifi) / Incl. temperature and humidity sensor

The PCE-PQC 2xEU series air particle counters are portable detection systems that include particles of specific sizes in the air. Furthermore, the air temperature and the relative humidity are monitored. The fixed flow rate of 2.83 l / min complies with current standards for air particle counter ISO 21501-4 and JIS B9921. Due to the compact design, the air particle counter of the PCE-PQC 2xEU series can be used in a variety of ways. These include the monitoring and inspection of clean rooms, filter systems in operating theaters and bottling plants in the pharmaceutical industry.

The internal memory of the air particle counter is sufficiently large for up to 45000 data sets. These data sets each include the metering parameters, temperature and humidity sensor readings, locations, and timestamp. An optionally available printer enables the measurement results to be printed directly. On the other hand, the stored data records of the air particle counter can be read out and processed via the supplied software via Ethernet, USB or Wifi.

- Captures 6 particle sizes
- Flow rate 2.83 l / min
- Including software package
- 4.3" color touch display
- Ethernet and USB interfaces
- Installed in a stainless steel housing
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921
Measuring range 0.5 ... 25 μm
Measuring channel sizes Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm

Counting efficiency 50% at 0.5 μm, 100% at > 0.75 μm according to JIS
Particle mass display PM0.5, PM1.0, PM2.5, PM5.0, PM10 and TPM
Flow 2.83 l / min (0.1 ft3 / min)
Random loss 5% at 4,000,000 particles / ft³
Battery 10 h
Light source Long-life laser diode
Zero count <1 count / 5 min (<2 particles / ft3) according to ISO 21501-4 and JIS
Counting modes Automatic, manual, real-time, cumulative /
  differential, mass concentration
Alarms 1 ... 9999999 counts, adjustable
Calibration Traceable to NIST
Display 4.3" WQVGA color touch display, 480x272 px
Printer External thermal printer
Aspiration Internal pump with automatic
  Flow control
Air outlet Internal HEPA filter
Battery pack Replaceable Li-Ion battery
Charging time About 4 hours
Reports ISO 14644-1
  EU GMP Annex 1
  FS 209E
Configuration Memory for 50 custom configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 13.3 x 10.5 x 21 cm
Weight 1.8 kg
Storage 45000 data sets (ring memory) consisting of
  Particle counting, temp. And humidity, CO2, (PID),
sample locations Places and times up to 1000 places can be deposited
samples duration 1 s ... 99 h adjustable
power supply 110 ... 240V AC 50/60 Hz
operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH not condensing
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH not condensing

CO2 sensor
Measuring range 0 ... 5000 ppm
Resolution 1 ppm
Accuracy ± 1% of v. measuring range

PID sensor
Measuring range 0 ... 50 ppm
Resolution 0.001 ppm
Accuracy ± 1.5%
Minimum concentration 5 ppb
Response time < 3 sec.

Temp. / Humidity sensor Intern   0 ... 50°C (32 ... 122°F), 15 ... 90% rh
Resolution 0.5°C / ± 0.9°F
Accuracy ± 0.5°C / ± 0.9°F,  ± 2% RH

Interface Ethernet, USB
Optional interfaces Wifi 802.11 b / g, RS485 or RS232
Number of measuring  Channels        6

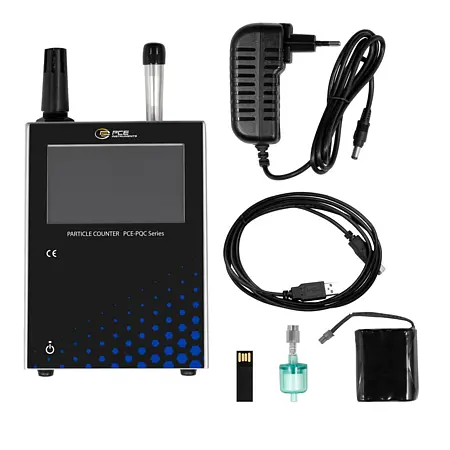

1 x Particle counter PCE-PQC 21EU
1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
