Sound Sensor PCE-SLT

Order no.: PCE-SLT

GTIN (EAN): 4250348701589

Accessory

Class 2 Acoustic Calibrator PCE-SC 43

£ 129.00

ISO Calibration Certificate for Noise Meter CAL-SL

£ 111.00

Description

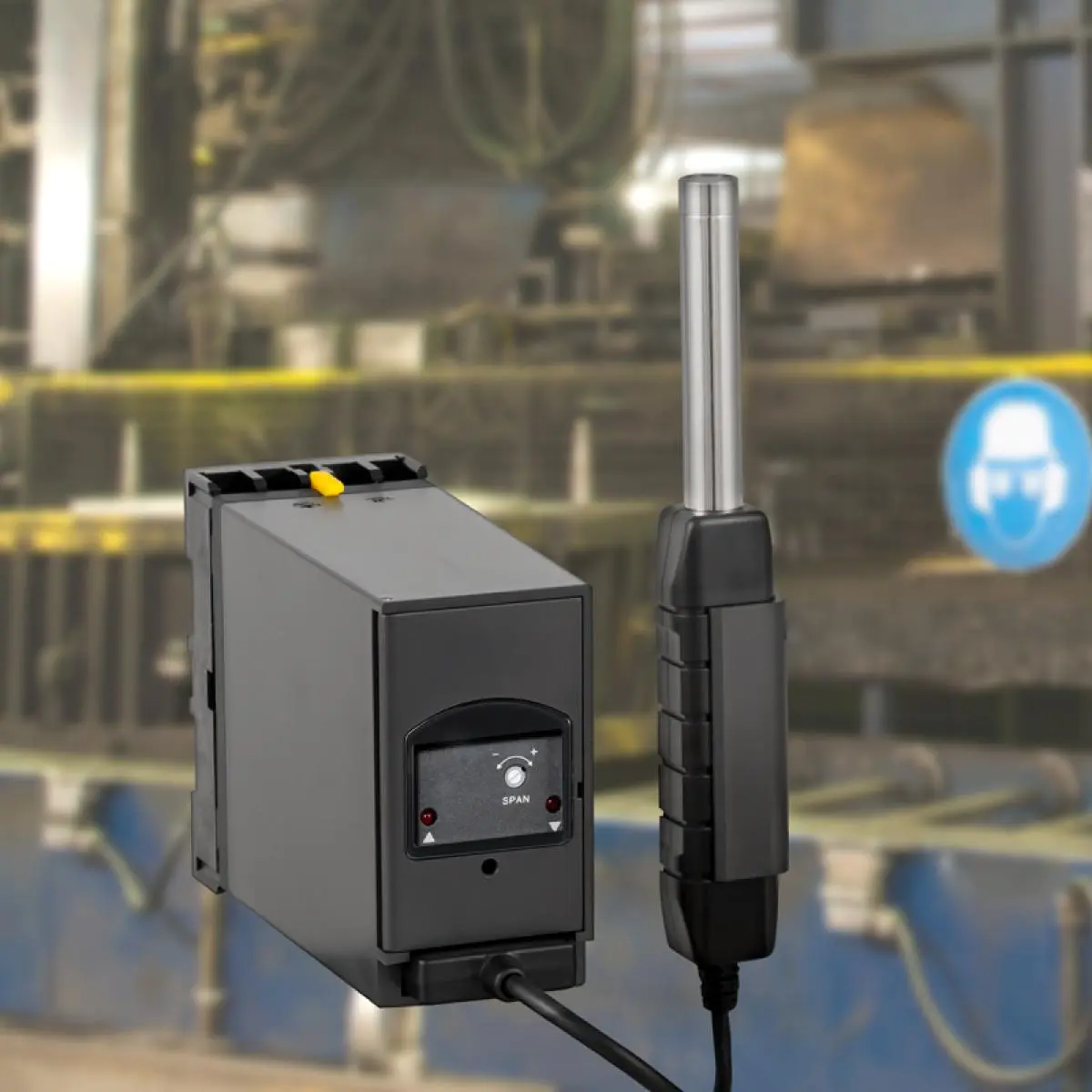

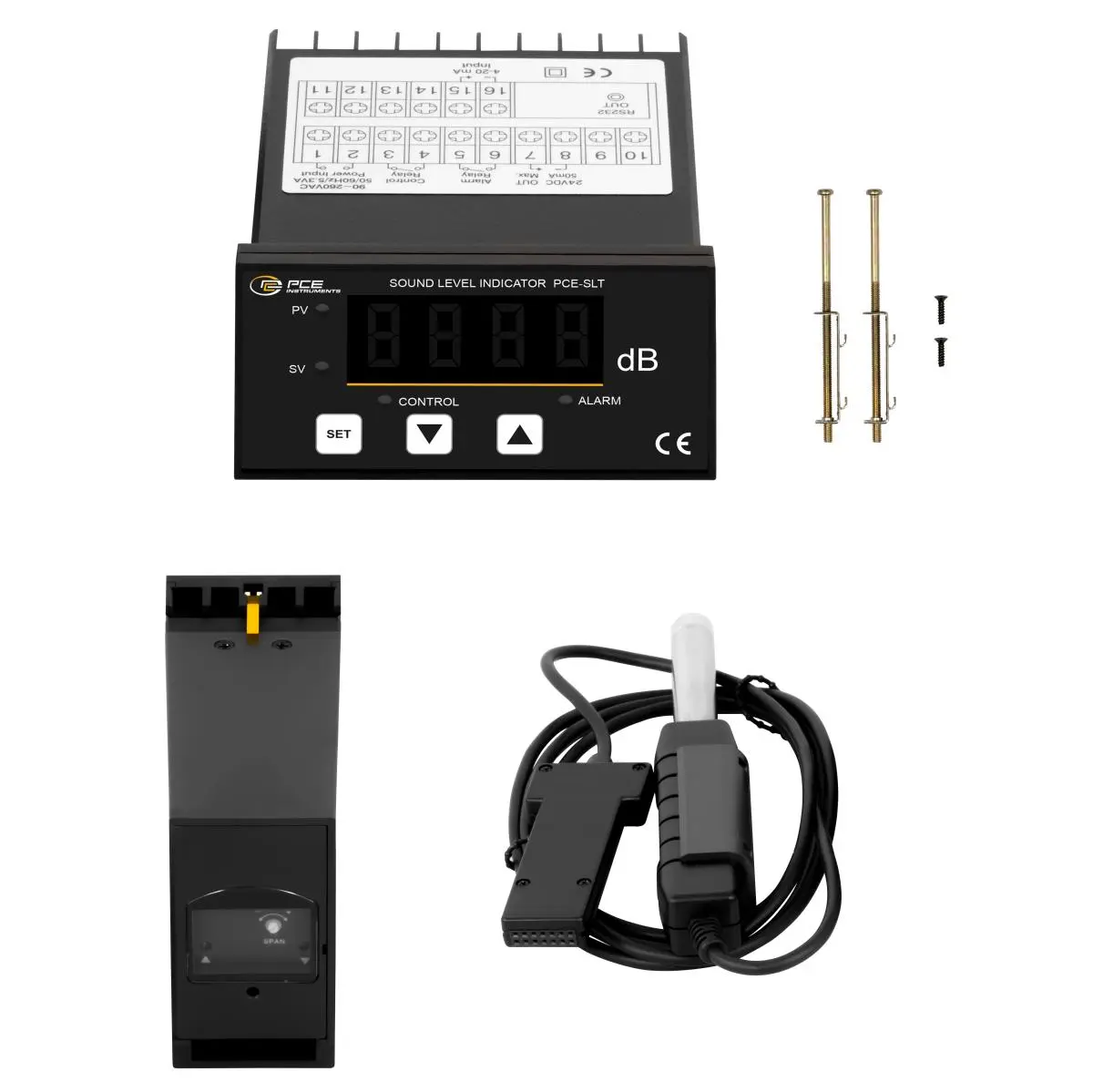

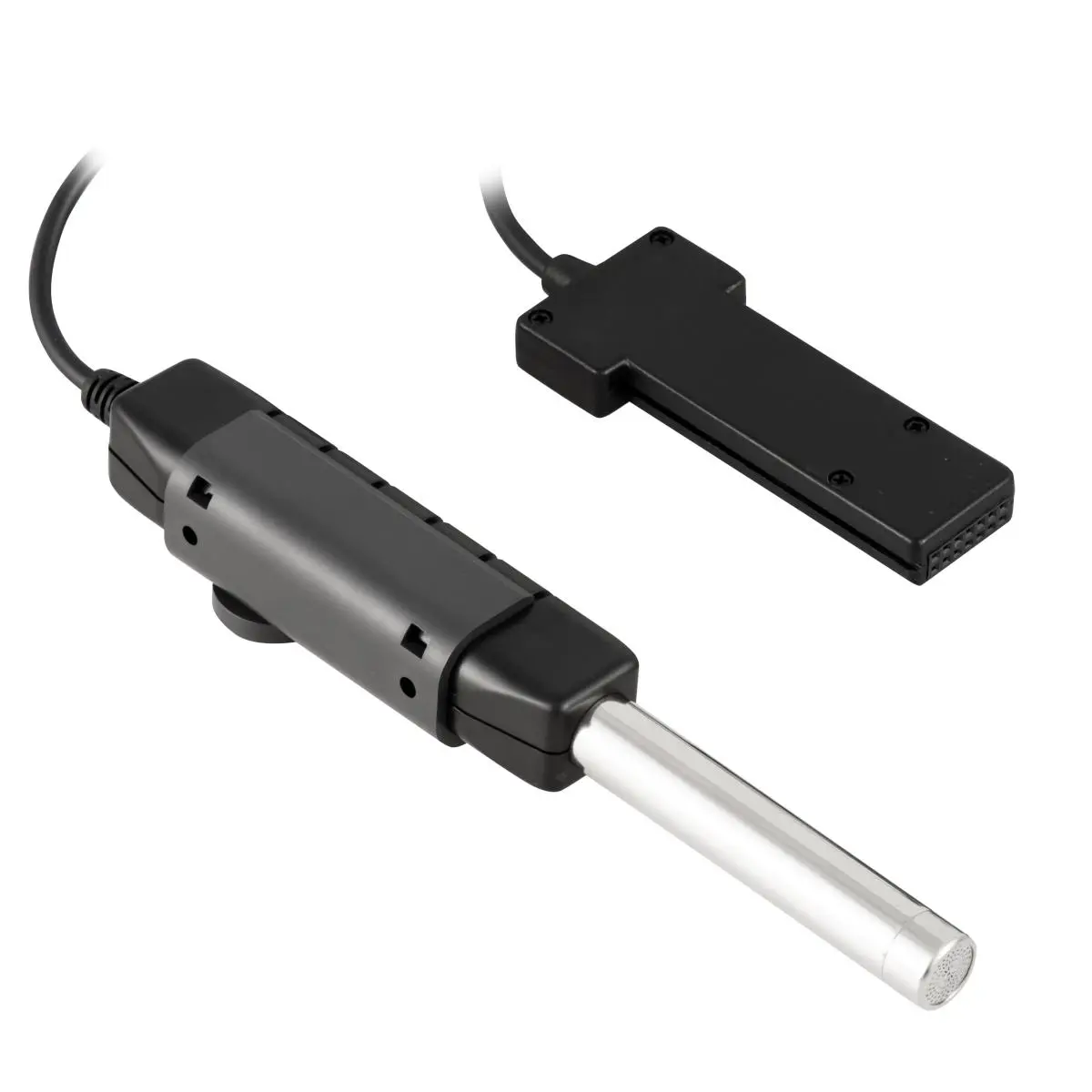

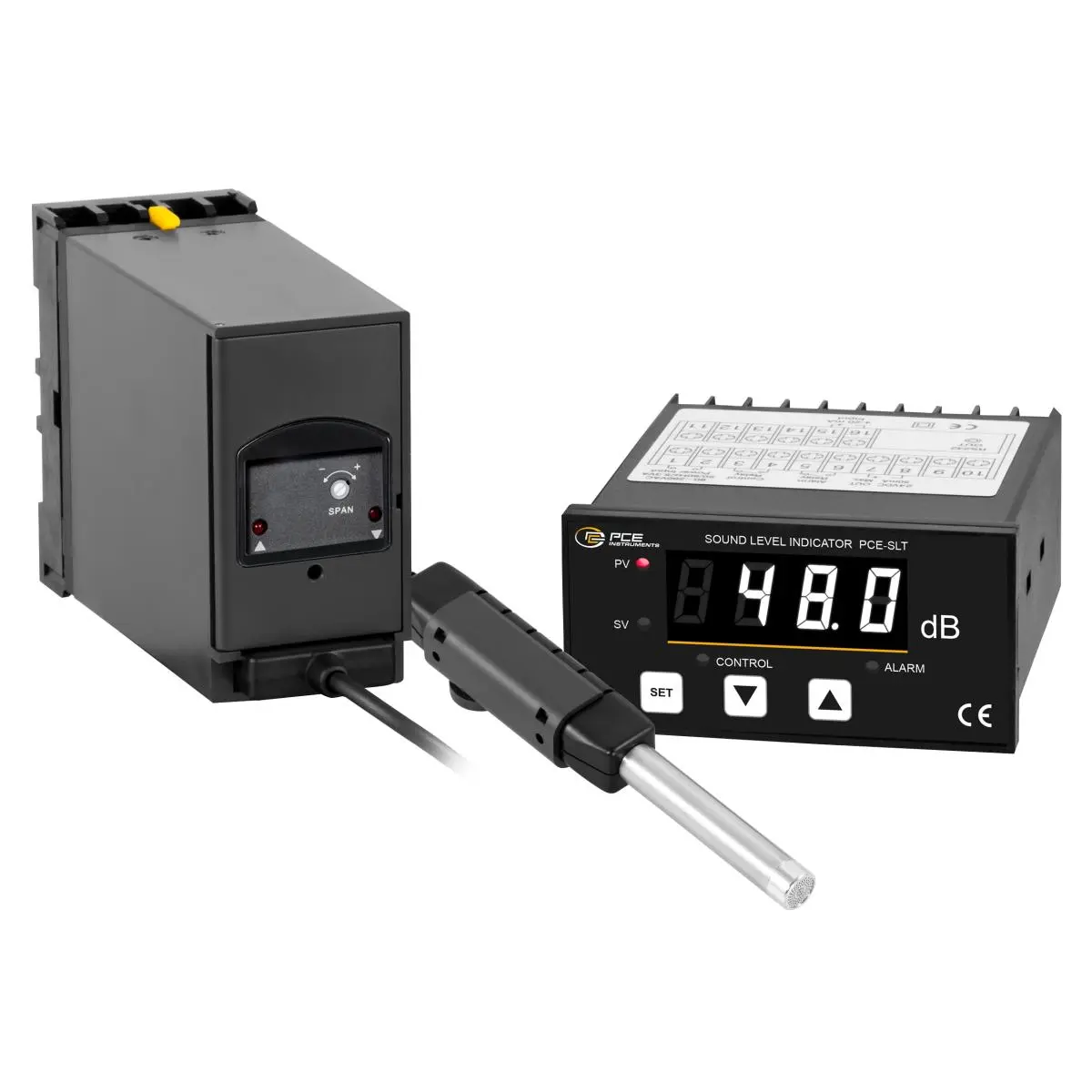

The sound sensor is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. The sound sensor is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.

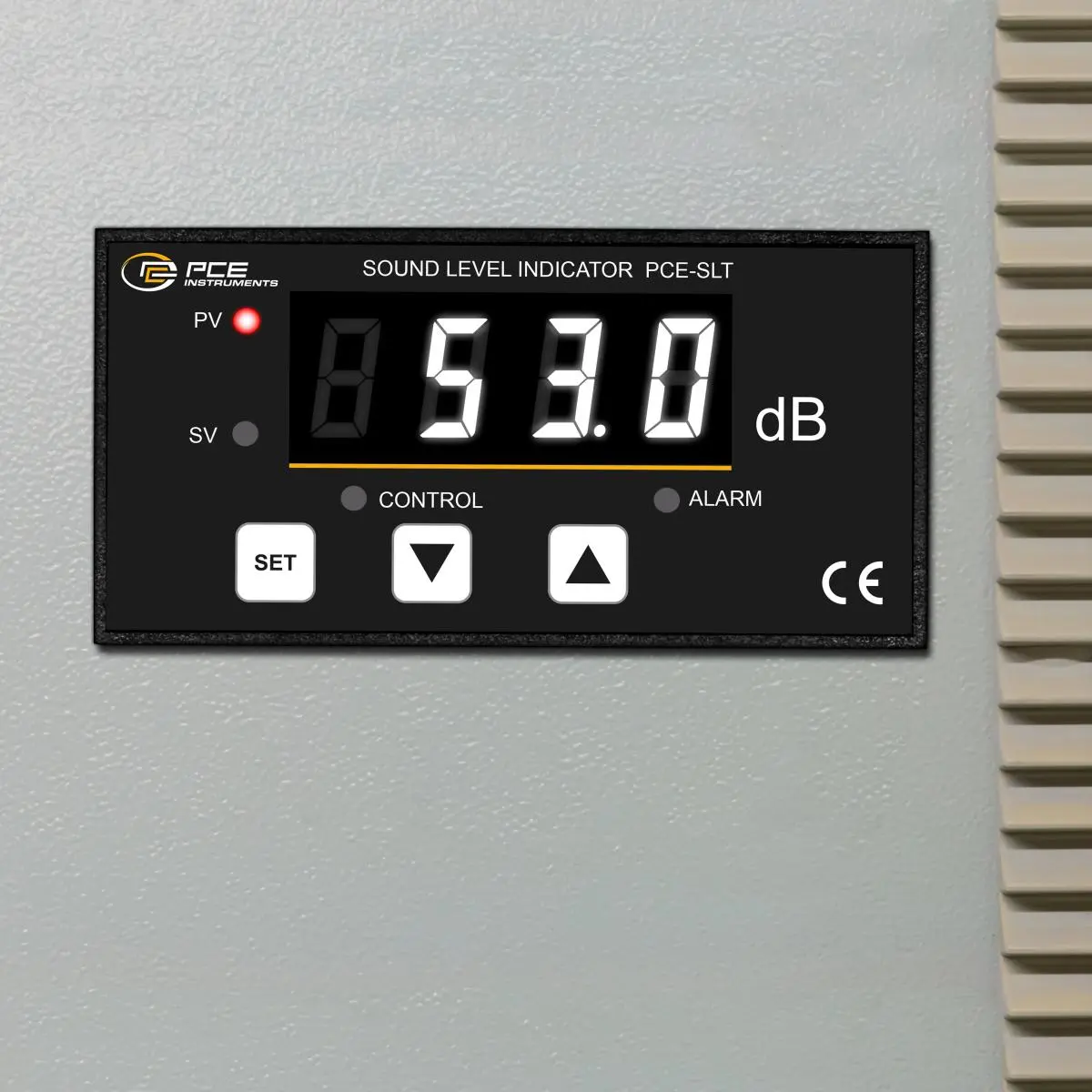

***Includes digital indicator with IP 65 rating***

Highlights

- Measuring range: 30 ... 130 dB in 3 ranges

- Resolution: 0.1 dB

- Accuracy: ± 1.5 dB

- IP 54 ingress protection rating on transmitter offers limited protection

against dust ingress (no harmful deposit) and protection against splashed water

from any direction

- IP 65 ingress protection rating on digital indicator offers total protection

against dust ingress and protection against low-pressure water jets from any

direction. Limited ingress permitted.

Specification

Sound level
Measuring range	30 ... 80 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	50 ... 100 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	80 ... 130 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

General technical data
Outputs	4 ... 20 mA
Cable length	1,5 m
Connections	1/2 inch microphone
Frequency weighting	A
Microphone type	Electret capacitor
Standard(s)	IEC 942 (Class 1)
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)

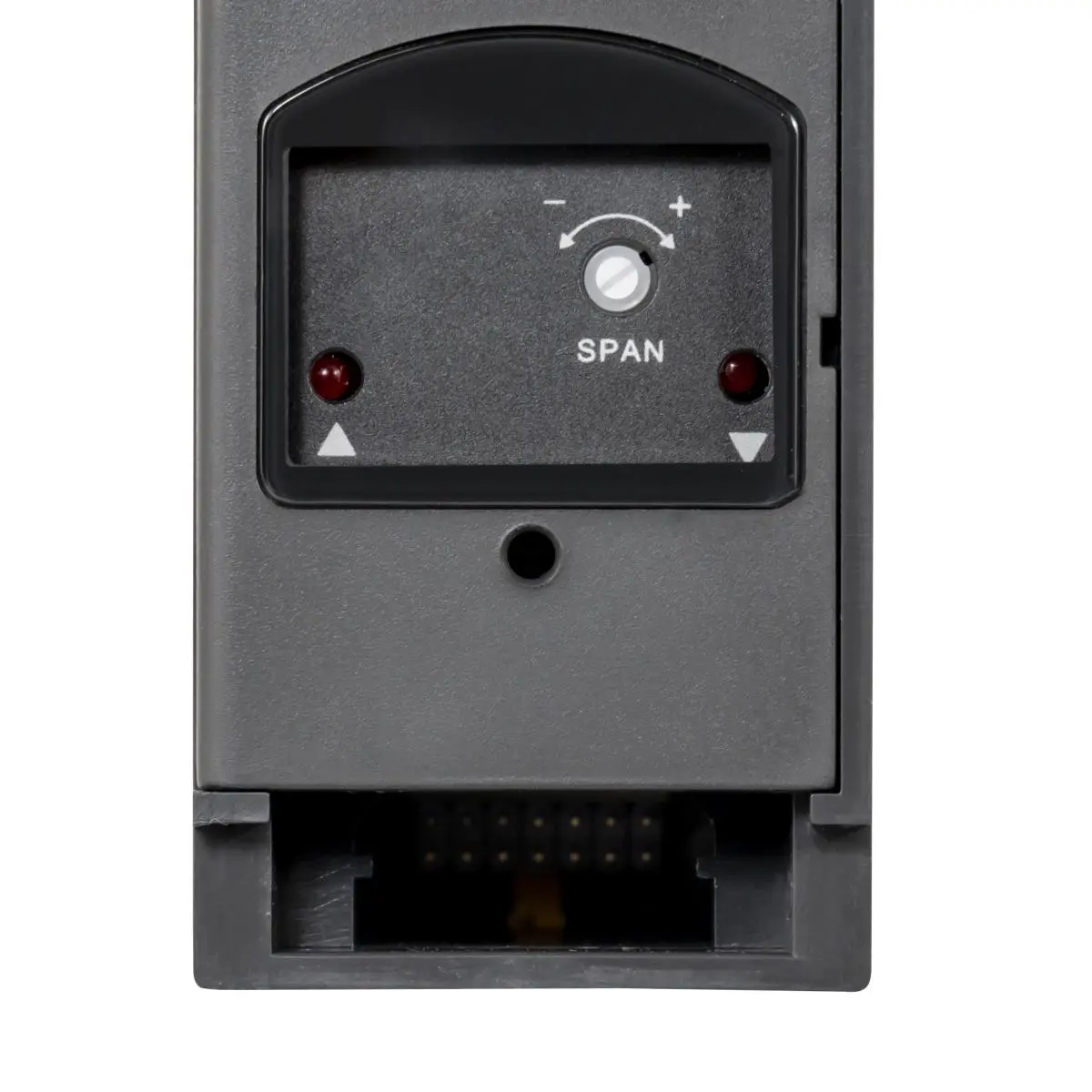

Calibration	adjustable via a grub screw
Weights	Transmitter: 314 g Sensor: 143 g
Display range	-1999 ... 9999
Protection class (device)	IP54, IP65
Power supply	Transmitter: 90 … 260V AC (max. 1.5 A) Digital display: 90 ... 260V AC / 50 ... 60 Hz
Operating conditions	-10 ... 50 °C , 20 ... 90 % RH
Storage conditions	-40 ... 65 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	105 x 96 x 48 mm
Weight	260 g
