Order no.: PCE-WS US2

Wind Sensor PCE-WS US2

£ 674.00
£ 808.80
:
4250348735997
PCE-WS US2
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

2D Wind Sensor / measurement of wind speed and direction / RS485 Modbus communication / protection class IP65

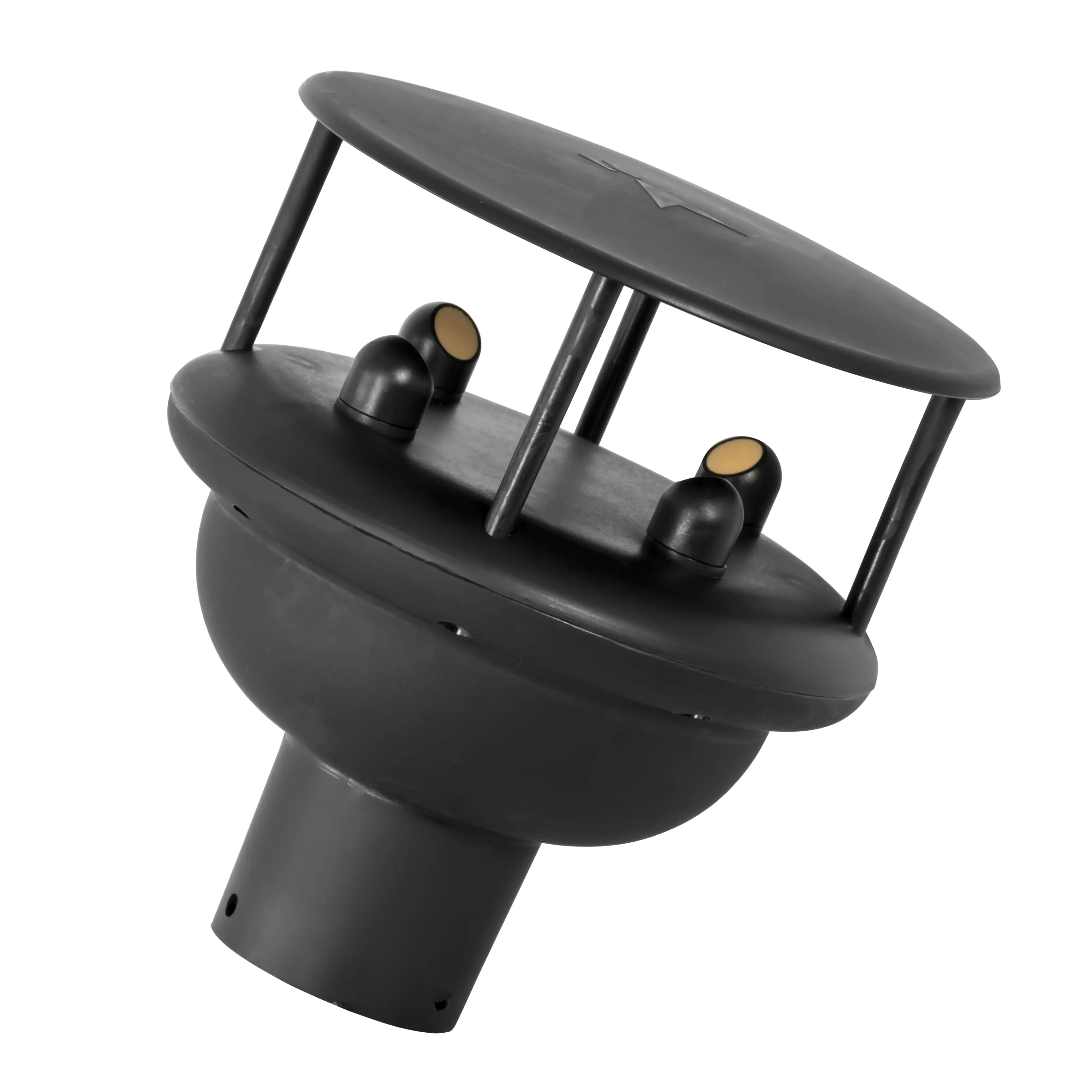

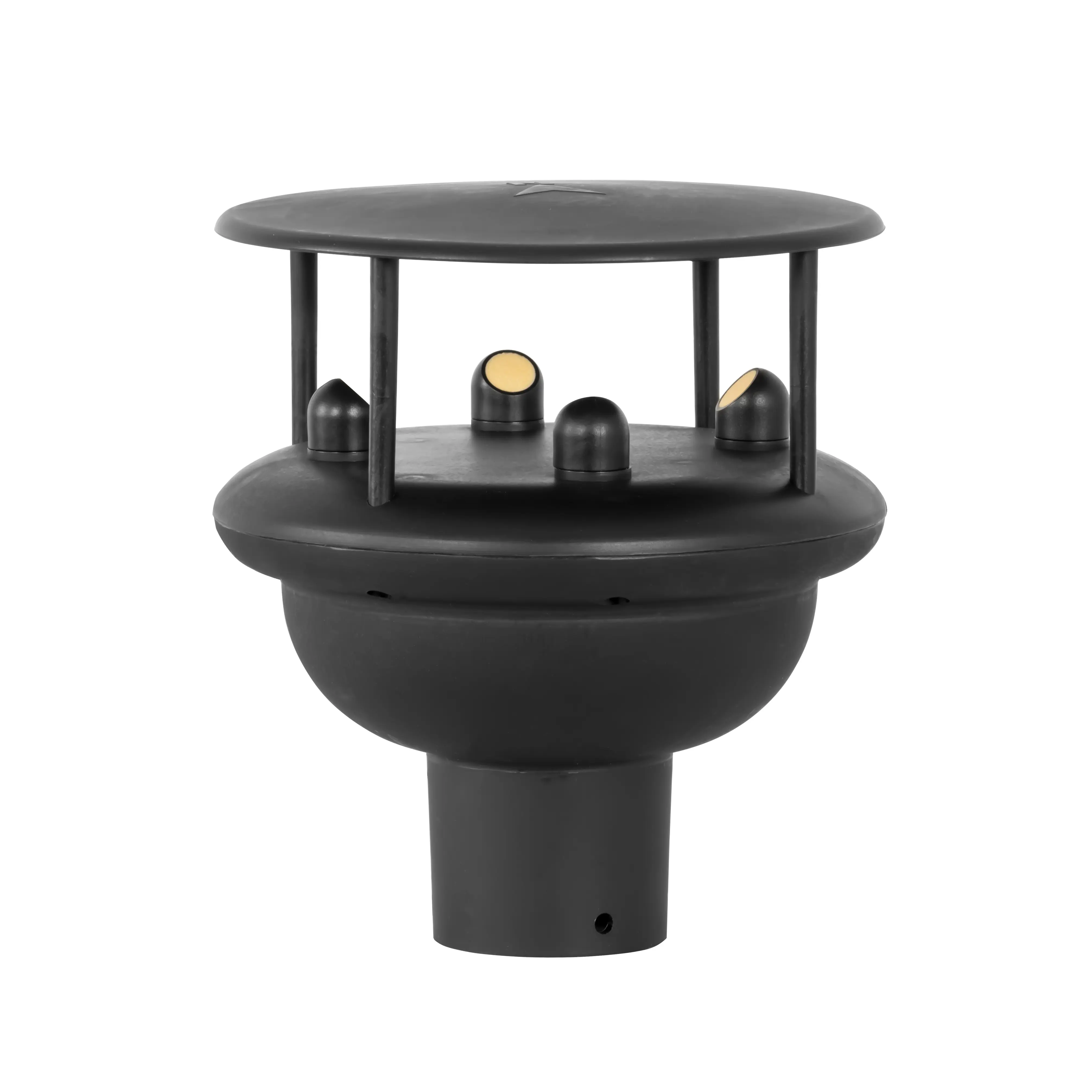

The Wind Sensor measures the wind flow using ultrasonic transducers to determine the exact wind speed and direction. The ultrasonic measuring principle eliminates the need for moving parts, as used in mechanical cup anemometers, so there is no wear due to mechanical friction. The Wind Sensor has a robust construction, is designed for use in industrial environments and is highly resistant to radio frequencies and electromagnetic waves. Thanks to its high IP65 protection, it is also protected against the ingress of dust and water, making it ideal for outdoor use.

The Wind Sensor offers RS485 Modbus RTU bus communication and is therefore compatible with the latest industrial communication protocols. The compact design of the Wind Sensor enables the measurement of wind speed and direction in a single device, significantly reducing the complexity and space requirements of conventional mechanical anemometers and wind vanes.

Typical applications include solar trackers, irrigation control systems, greenhouse automation, wind turbines, cranes and weather stations. The device is ideal for any application that requires precise wind monitoring for control, safety or industrial resource optimisation.


Highlights

- high resistance to high-frequency interference and electromagnetic waves
- RS485 Modbus RTU output
- wear and maintenance-free ultrasonic transducers
- compact: measurement of wind speed and direction in one device
- protection class IP65 for outdoor use
- 5 m cable with 4-pin M12 plug included
- power supply 9 ... 30 V DC
- max. permissible wind speed: 200 km/h

Specification

Speed
Measurement range up to  0 ... 15 km/h
Resolution  1 km/h
Accuracy  0.5 km/h

Speed
Measurement range up to  15 ... 120 km/h
Resolution  1 km/h
Accuracy  3 % of Rd

Speed
Measurement range up to  120 ... 160 km/h
Resolution  1 km/h
Accuracy  5 % of Rd

Wind direction
Measurement range up to  0 ... 359 °
Resolution  1 °
Accuracy  3 °

General technical data
Measuring functions  Flow velocity

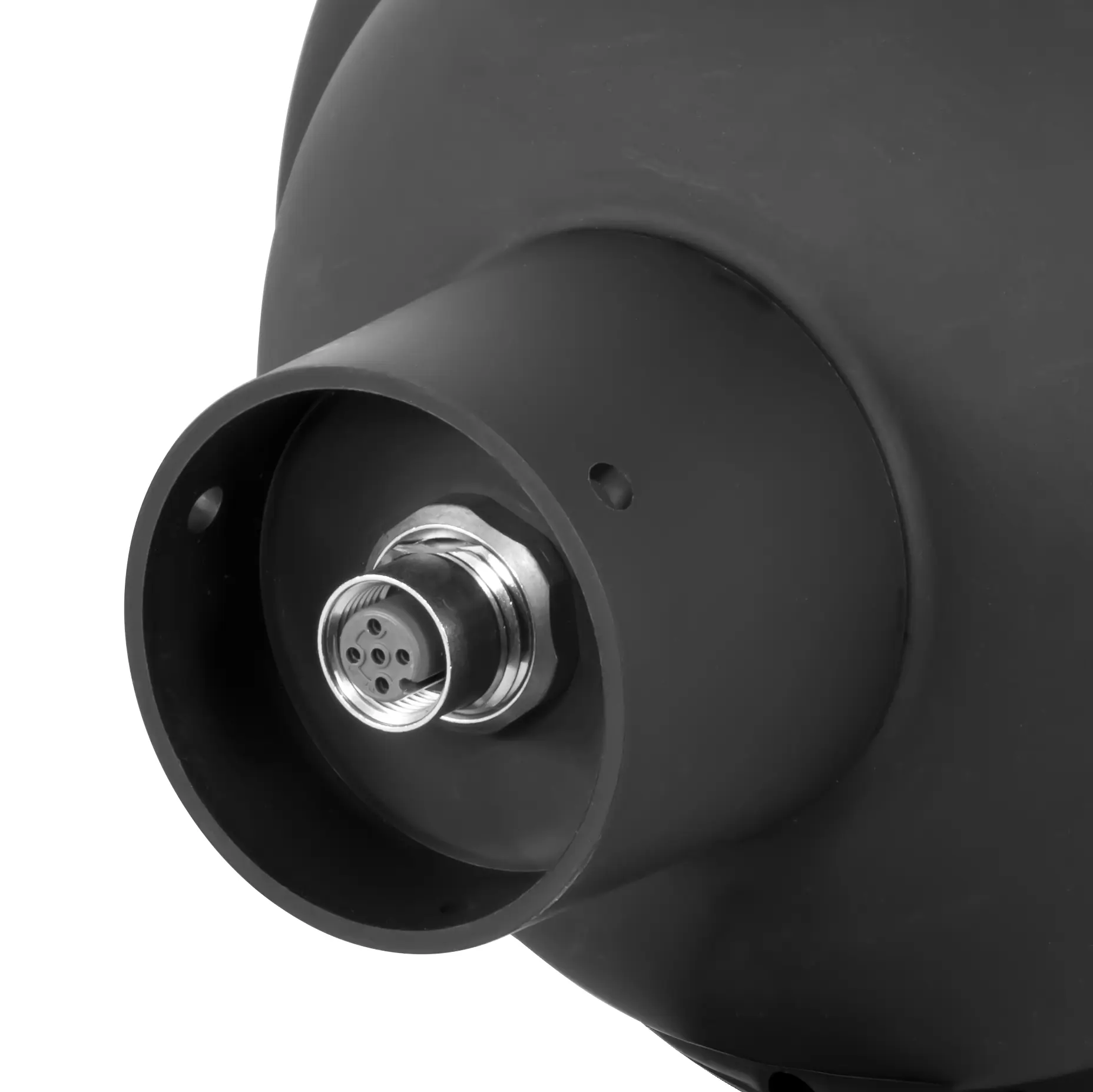

Connections  M12 4-pole
Display type  without display
Interface  RS485
Sensor  Ultrasound
Housing  PA (polyamide)
Protection class (device)  IP65
Power supply  9 ... 30 V DC
Weight  400 g
Operating conditions  -30 ... 70 °C , 0 ... 100 % RH
Storage conditions  -35 ... 80 °C , 0 ... 100 % RH
Dimensions ( H x D )  162 x 143 mm

Delivery Scope

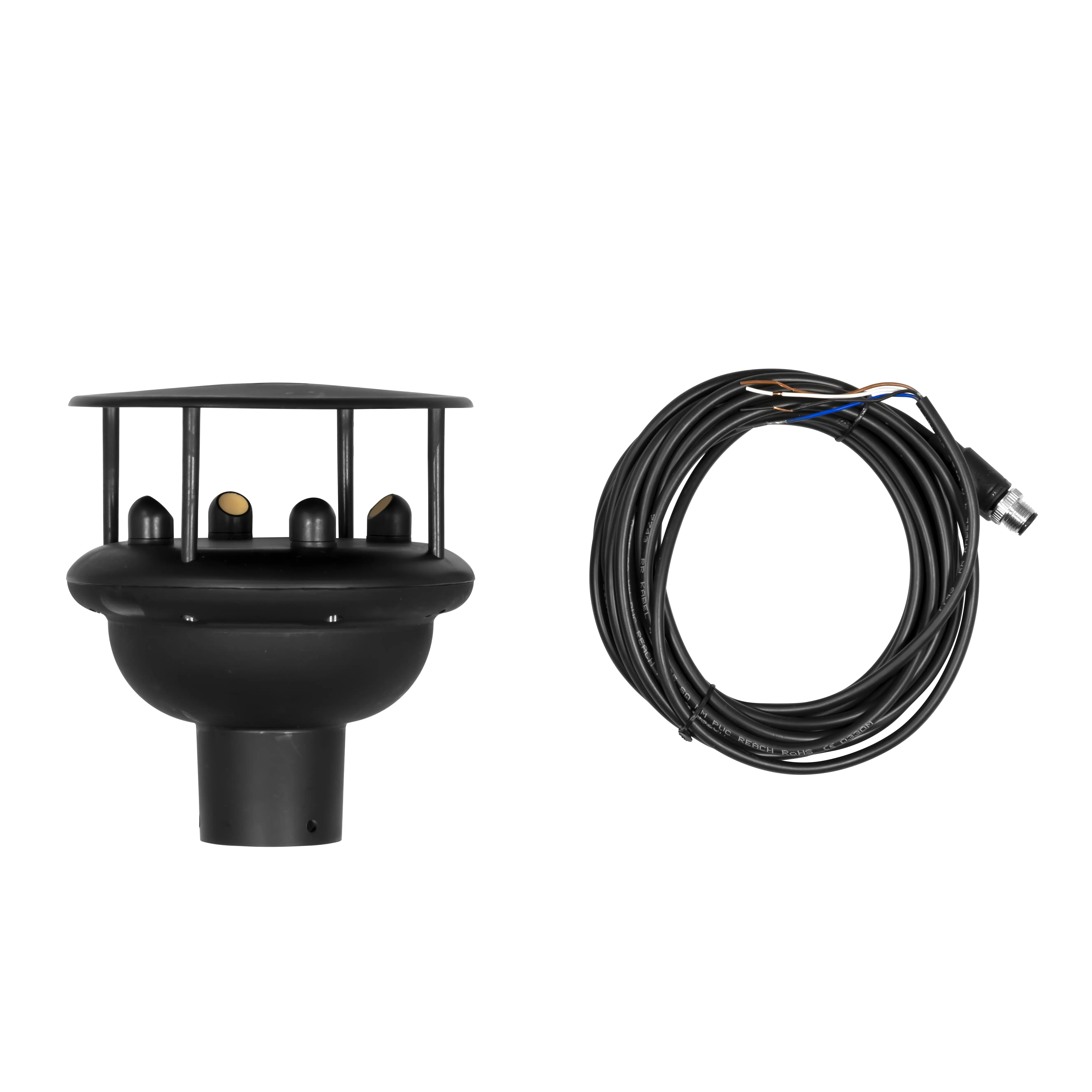

1 x Wind Sensor PCE-WS US2
1 x 5m cable with 4-pin M12 plug
1 x user manual
