Sound Sensor PCE-SLT-TRM-ICA incl. ISO calibration certificate

Order no.: PCE-SLT-TRM-ICA

GTIN (EAN): 4250348726711

Accessory

Class 2 Acoustic Calibrator PCE-SC 43

£ 129.00

Description

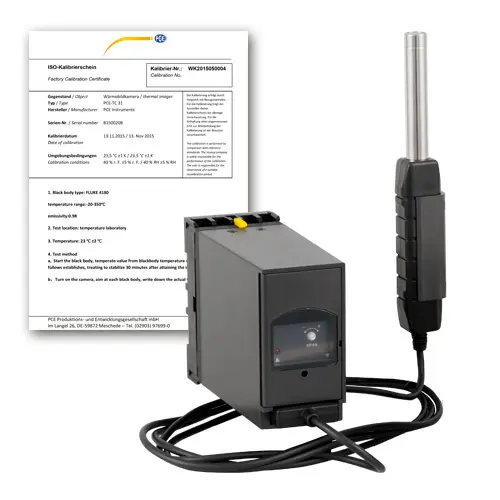

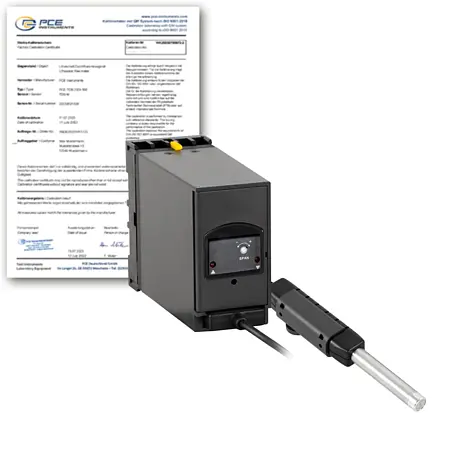

PCE-SLT-TRM-ICA sound sensor incl. ISO calibration certificate
Noise measuring device for permanent installation with analog output 4 ... 20-mA

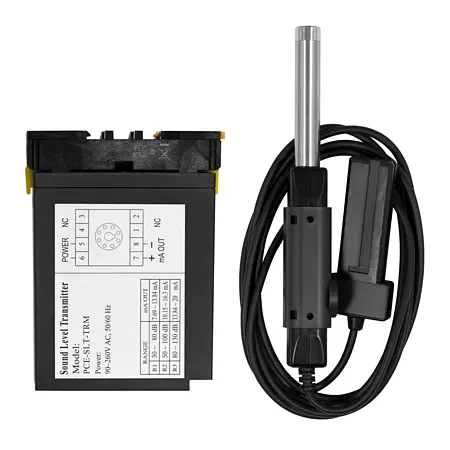

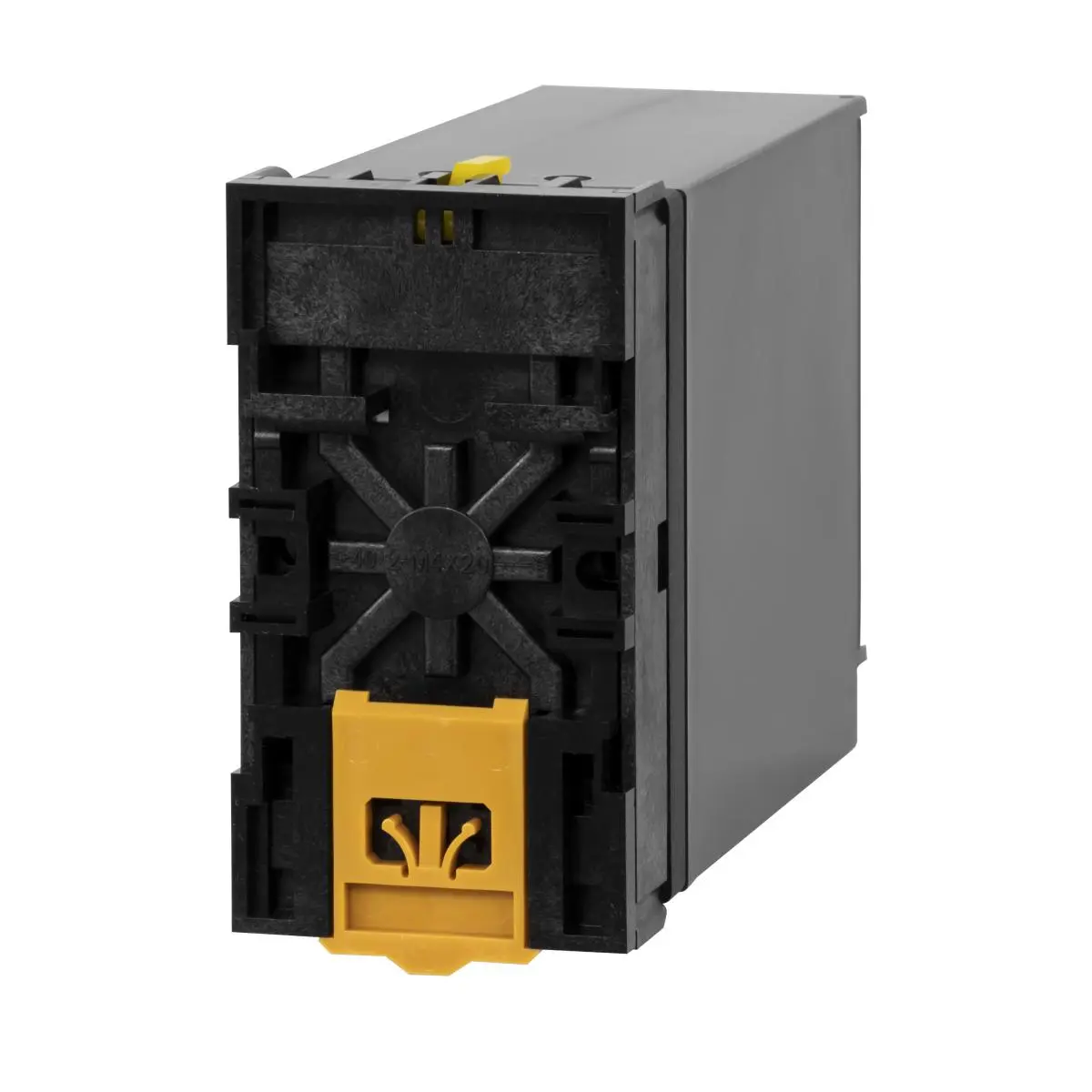

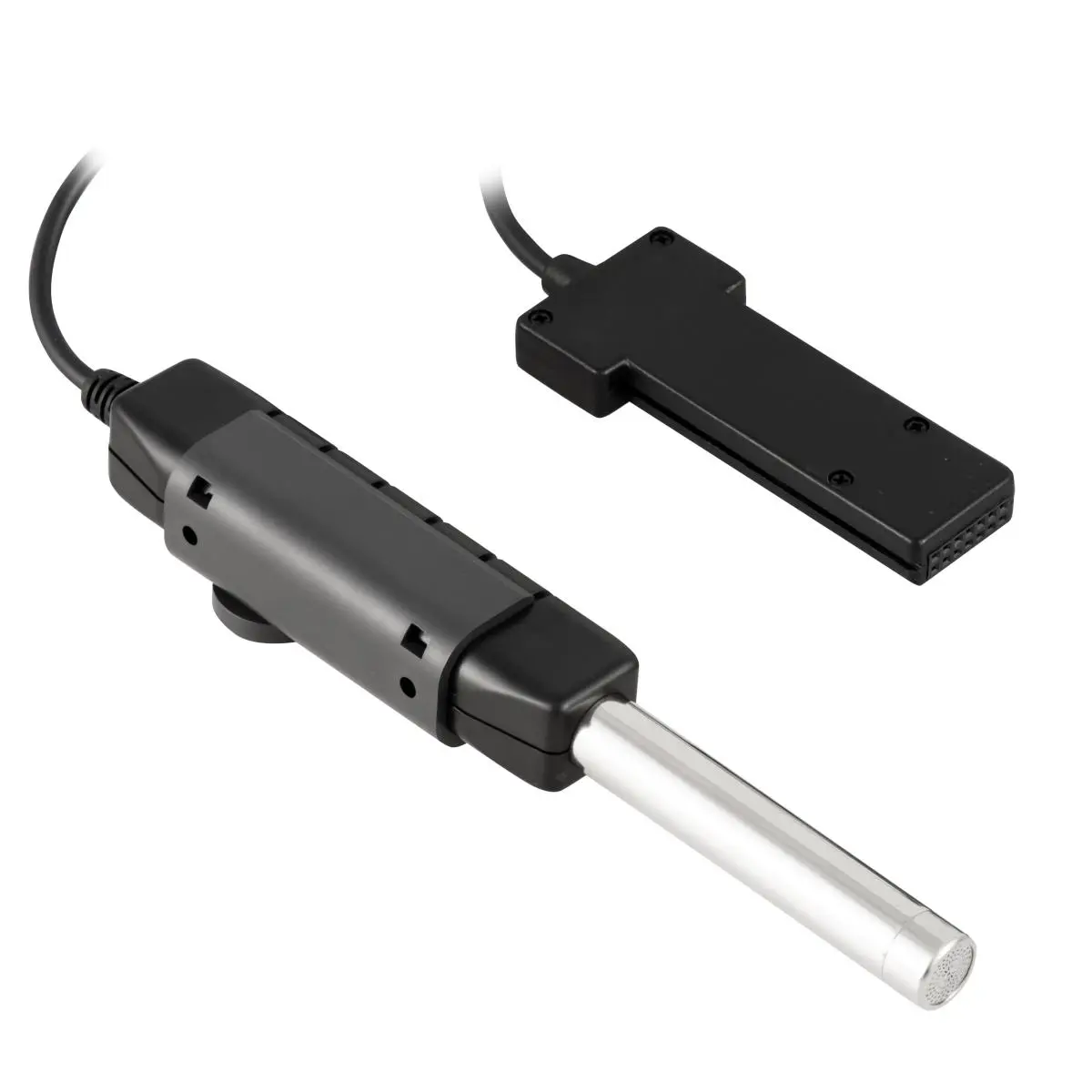

The sound sensor consists of a measuring microphone with handle, a wall bracket with 1.5 m / 4.9 ft cable, and a noise transmitter. The main field of application of these noise measuring devices is the continuous noise measurement and noise monitoring of factory halls, production areas and major events such as night clubs, folk festivals, or cart tracks.

Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The noise warning device is very easy to connect and can be operated via 240V mains current.

Highlights

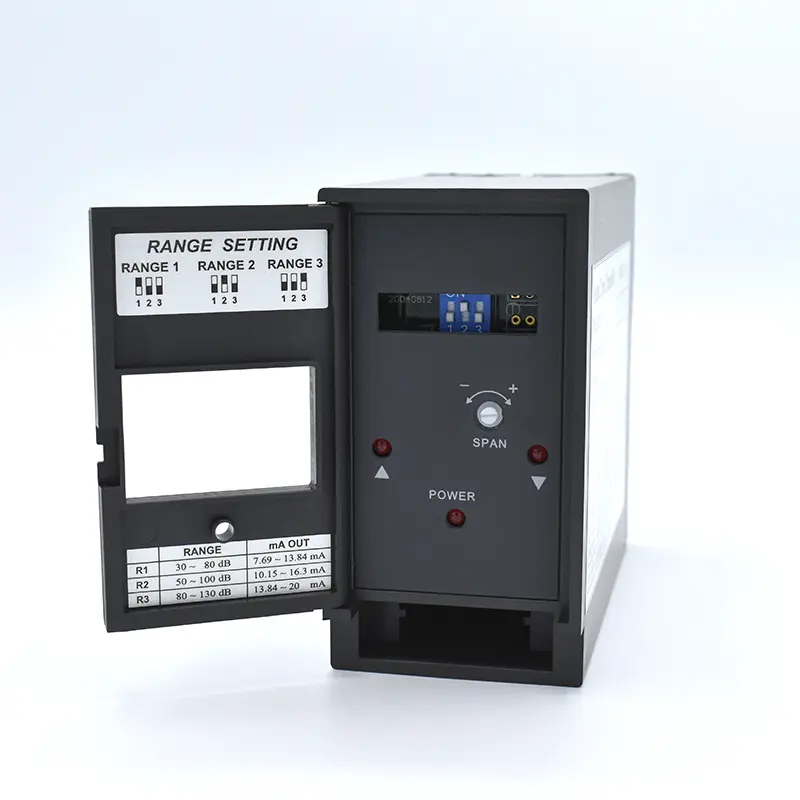

- Measuring range: 30 ... 130 dB in 3 ranges

- Resolution: 0.1 dB

- Accuracy: ± 1.5 dB

- IP 54

- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range	30 ... 80 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	50 ... 100 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	80 ... 130 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

General technical data

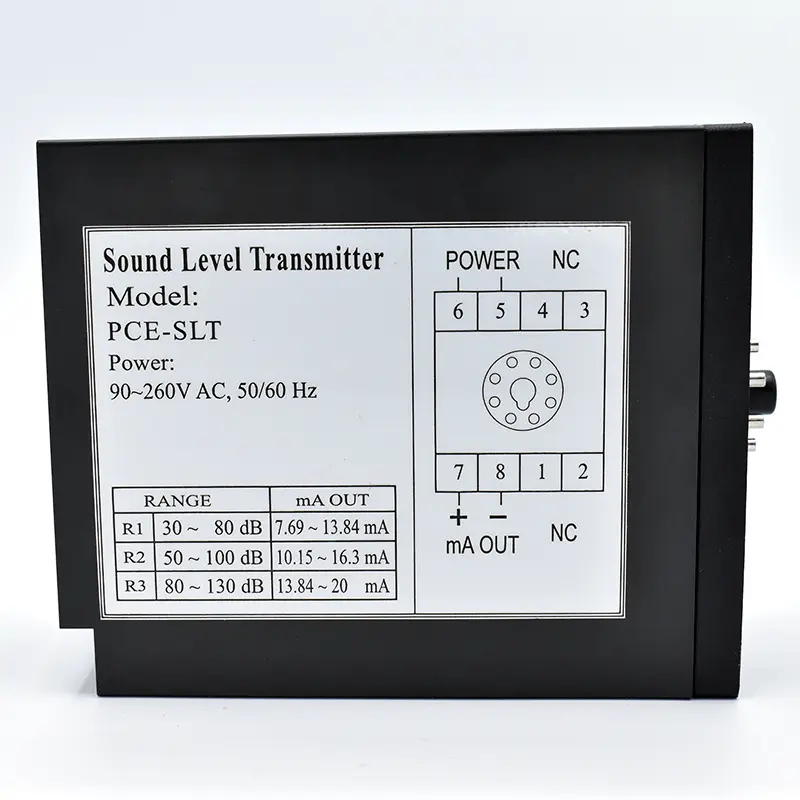

Outputs	4 ... 20 mA
Cable length	1,5 m
Connections	1/2 inch microphone
Frequency weighting	A
Microphone type	Electret capacitor
Standard(s)	IEC 61672-1 (Class II)
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)

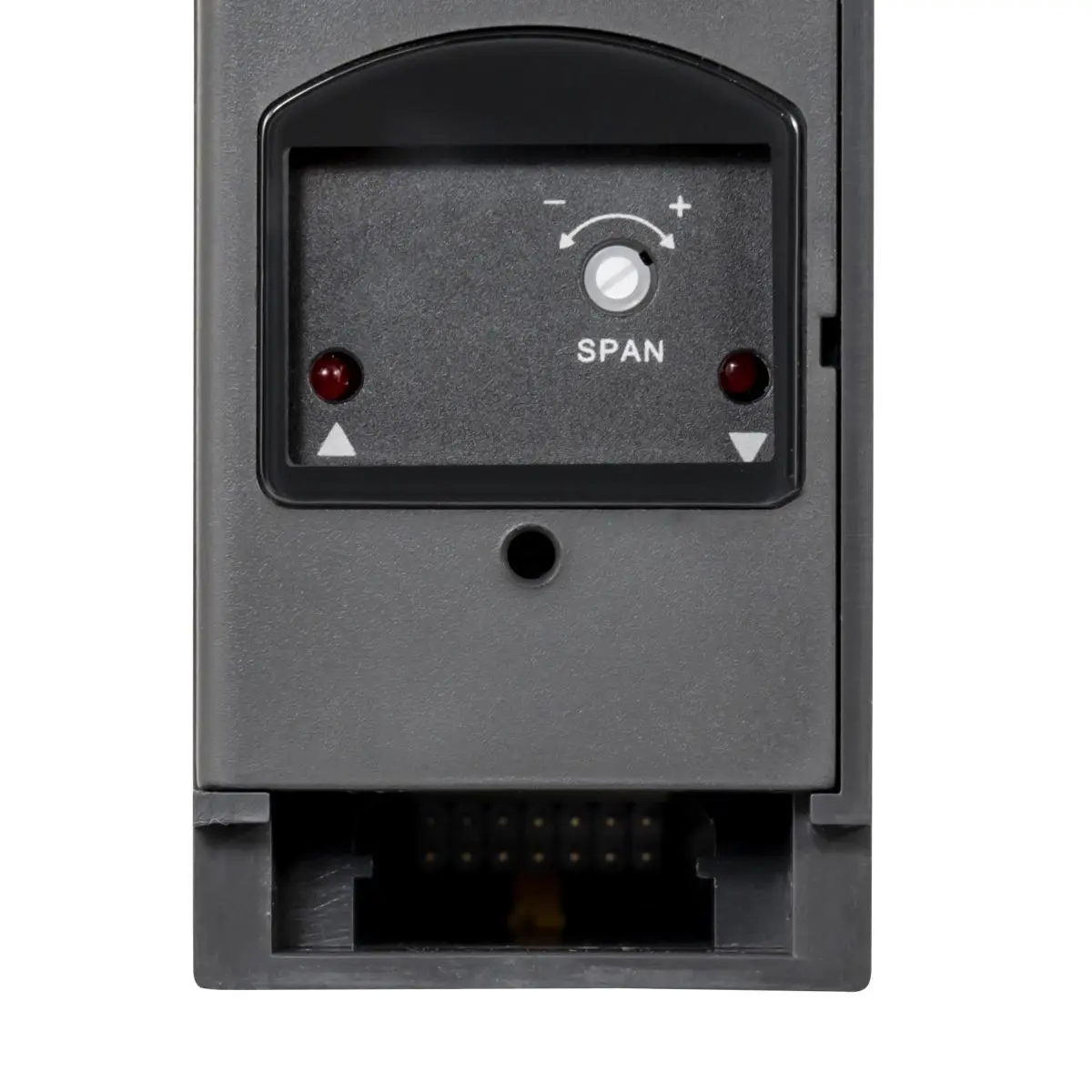

Calibration	adjustable via a grub screw
Weights	Sensor: 143 g
Protection class (device)	IP54, IP60
Power supply	Transmitter: 90 … 260V AC (max. 1.5 A) Digital display: 90 ... 260V AC / 50 ... 60 Hz
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	125 x 97 x 50 mm
Weight	315 g
