Sound Sensor PCE-SLT-TRM

Order no.: PCE-SLT-TRM
£ 272.00
£ 326.40
4250348713230
PCE-SLT-TRM
price ex. (VAT / delivery)
Delivery time: 1-2 working days

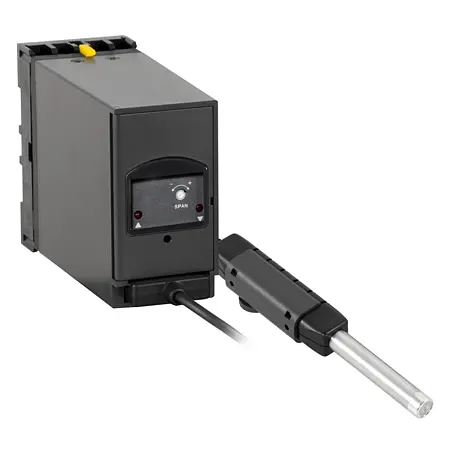

The sound sensor is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. The sound sensor is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.
- Measuring range: 30 ... 130 dB in 3 ranges
- Resolution: 0.1 dB
- Accuracy: ± 1.5 dB
- IP 54 ingress protection rating on transmitter offers limited protection against dust ingress (no harmful deposit) and protection against splashed water from any direction

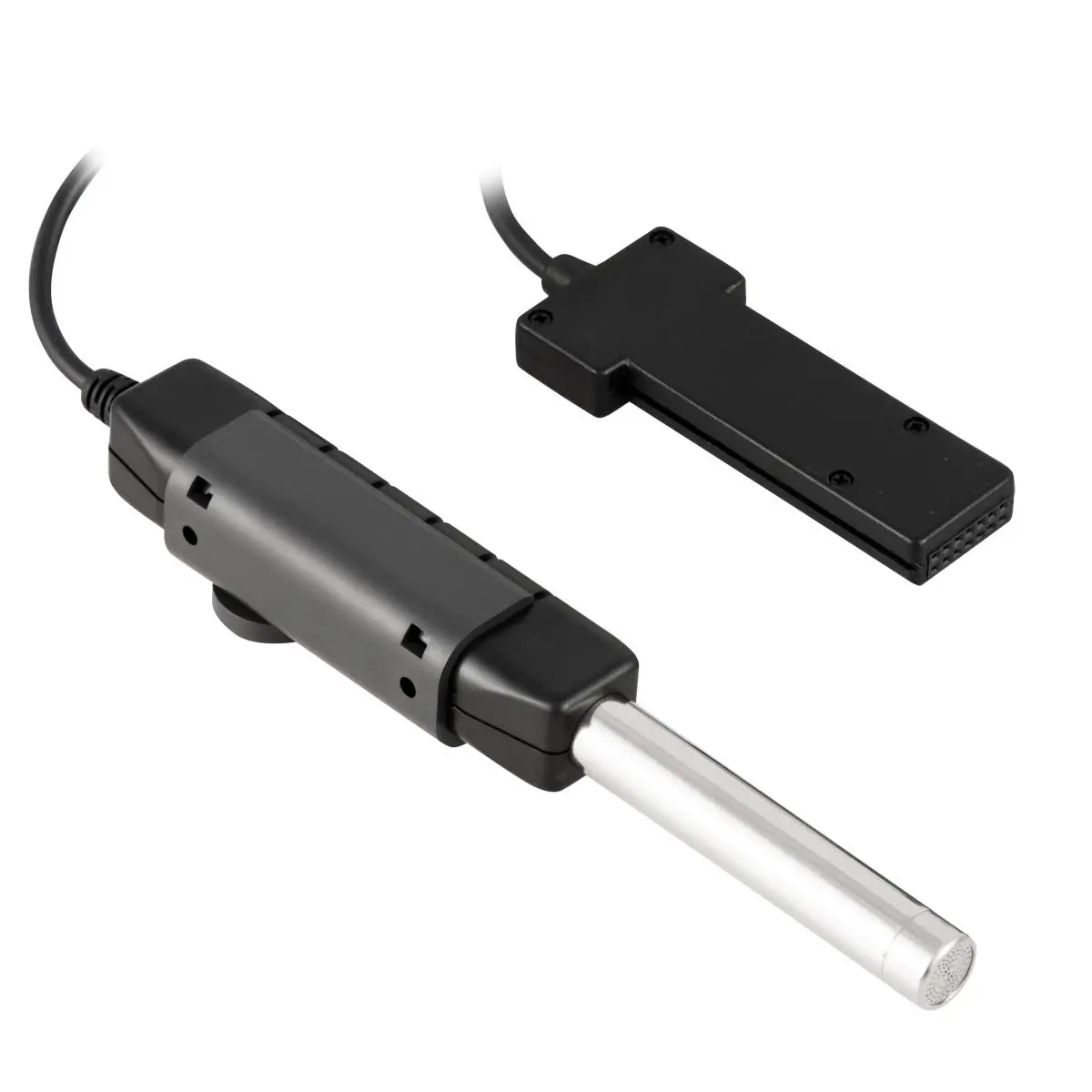

Sensor
Measuring range 30 ... 130 dB in 3 ranges:
I. 30 ... 80 dB(A)
II. 50 ... 100 dB(A)
III. 80 ... 130 dB(A)
Resolution 0.1 dB
Accuracy ±1.5 dB
Frequency weighting
 A
Power supply Via transmitter
Cable length (sensor to transmitter) 1.5 m / 4.92'
Operating conditions 0 ... +50 °C / +32 ... +122 °F, max. 85 % RH
Microphone 1/2" precision electret
Standard IEC 61 672 (Class II)

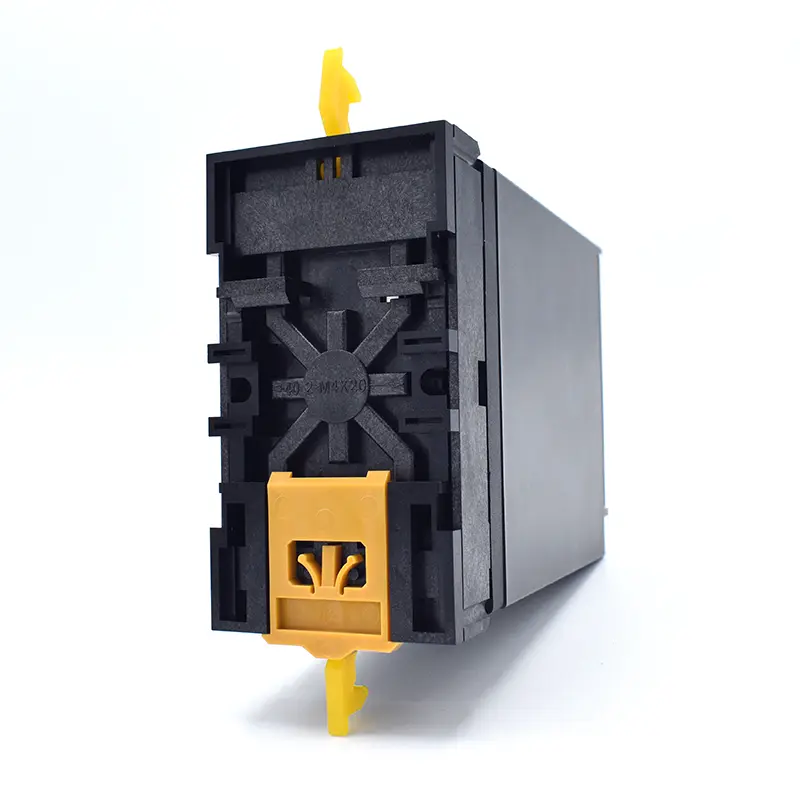

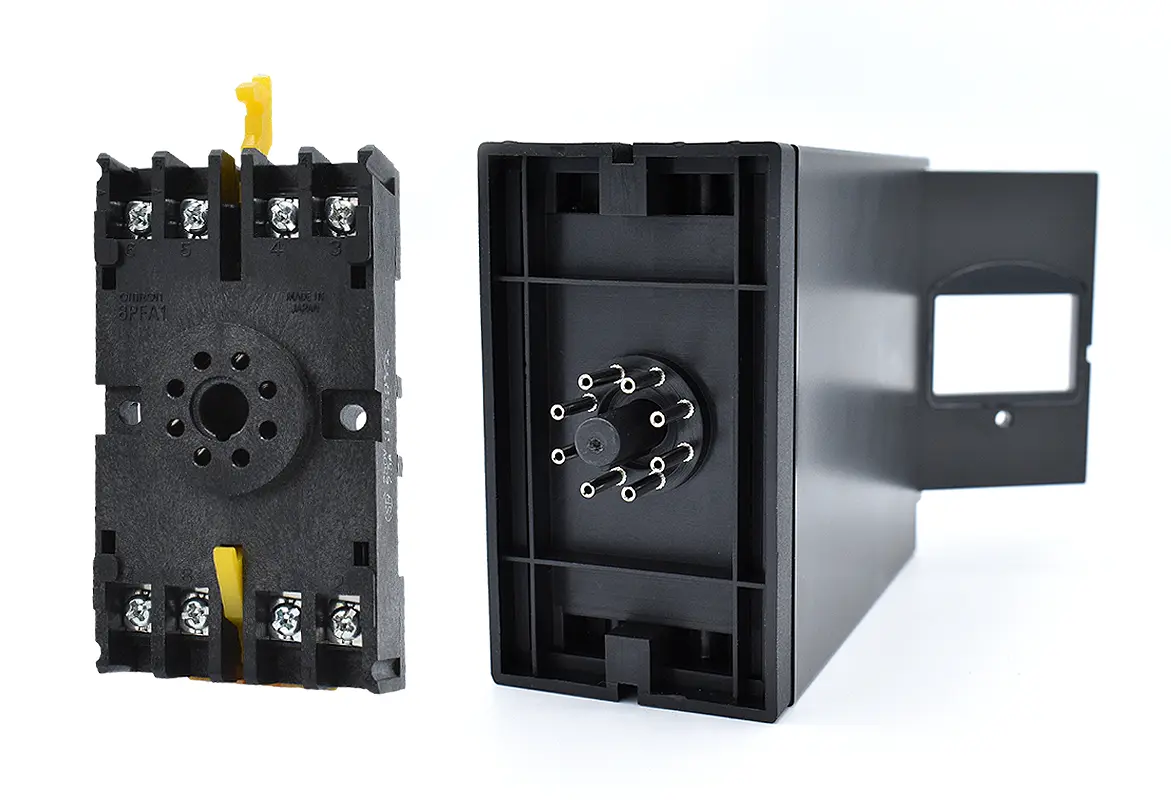

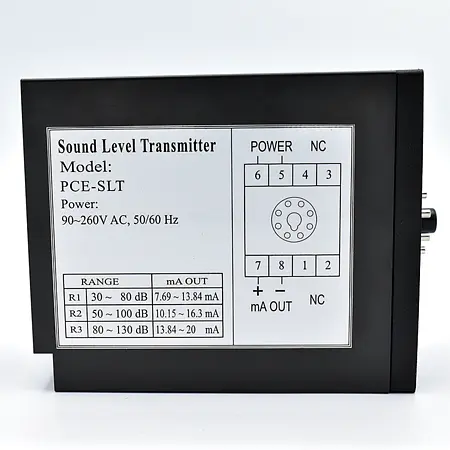

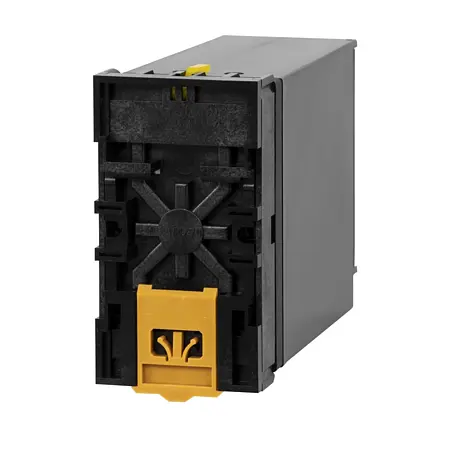

Transmitter

Housing

ABS plastic
Power supply 90 ... 260 AC V / 50 or 60 Hz

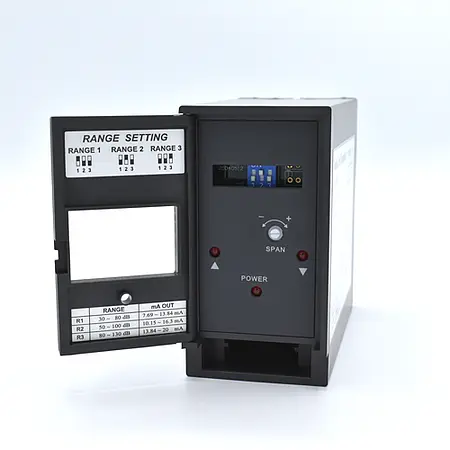

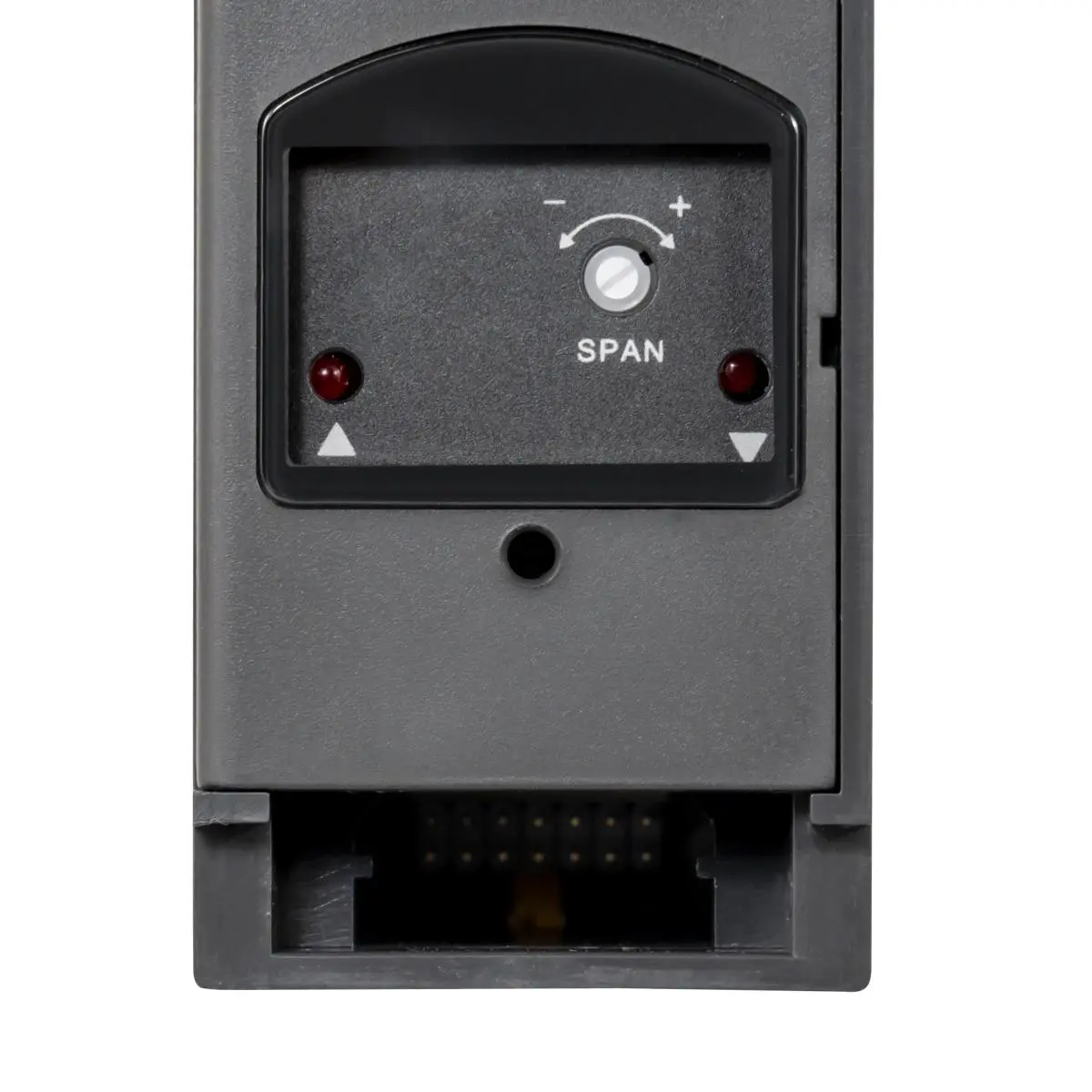

Calibration Adjustable by set screw
Output 4 ... 20 mA
Protection class IP 54 ingress protection rating
Operating conditions 0 ... +50 °C / +32 ... +122 °F, max. 85 % RH

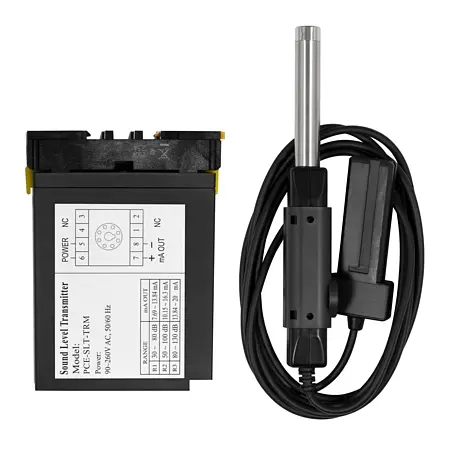

1 x Sound sensor PCE-SLT-TRM SPL (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
1 x wall-mounting bracket for sensor
1 x user manual
