Sound Sensor PCE-SLM 10

Sound Sensor PCE-SLM 10

Order no.: PCE-SLM 10
GTIN (EAN): 4250348717498
£ 246.00
£ 295.20
price ex. (VAT / delivery)
:
4250348717498
PCE-SLM 10
Delivery time:1-2 working days

Description

Sound sensor PCE-SLM 10
dB display with 75 mm digit height / 30 ... 130 dBA measuring range / LED display / Wall mounting / Integrated condenser microphone

The dB display PCE-SLM 10 is suitable for the continuous measurement and visualization of the sound pressure level. The PCE-SLM 10 dB display is used in schools, open-plan offices, bars, clubs and other event venues. Due to the large digits of the dB display, the measured value is always easy to read. Due to the LED display, this is also possible in dark environments without any problems. The dB display is powered by USB with the optional AC adapter or external battery pack.

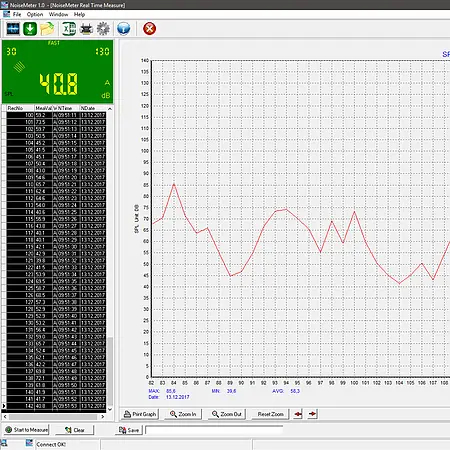

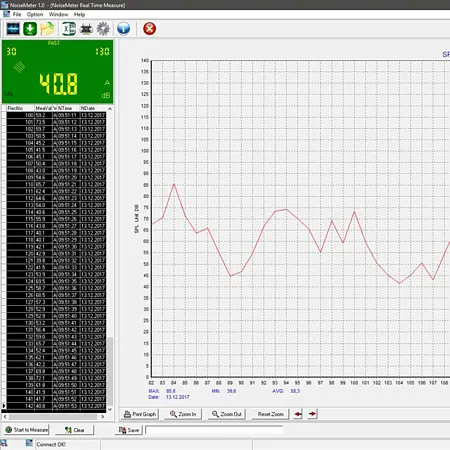

The measuring range of the dB display ranges from 30 ... 130 dB. The sound level meter displays the measured value A weighted. The time weighting of the dB display is always Fast. The frequency range of the 6 mm condenser microphone ranges from 31.5 Hz to 8.5 kHz. The dB interface can be connected to the PC via the USB interface. The software can be used to transmit live measurements to a computer. The dB display also has an internal memory, which can be read out with the software.

Highlights

- 75 mm / 3 in digit height
- 30 ... 130 dBA measuring range
- 0.1 dB or 1 dB resolution

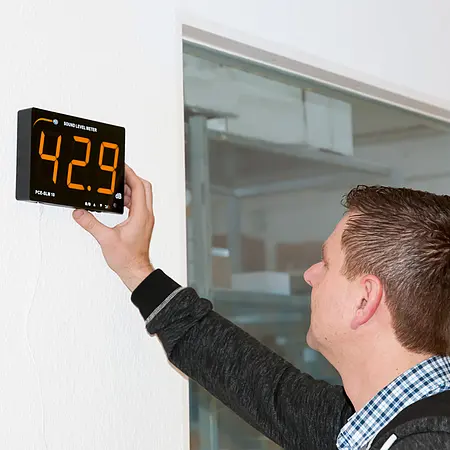

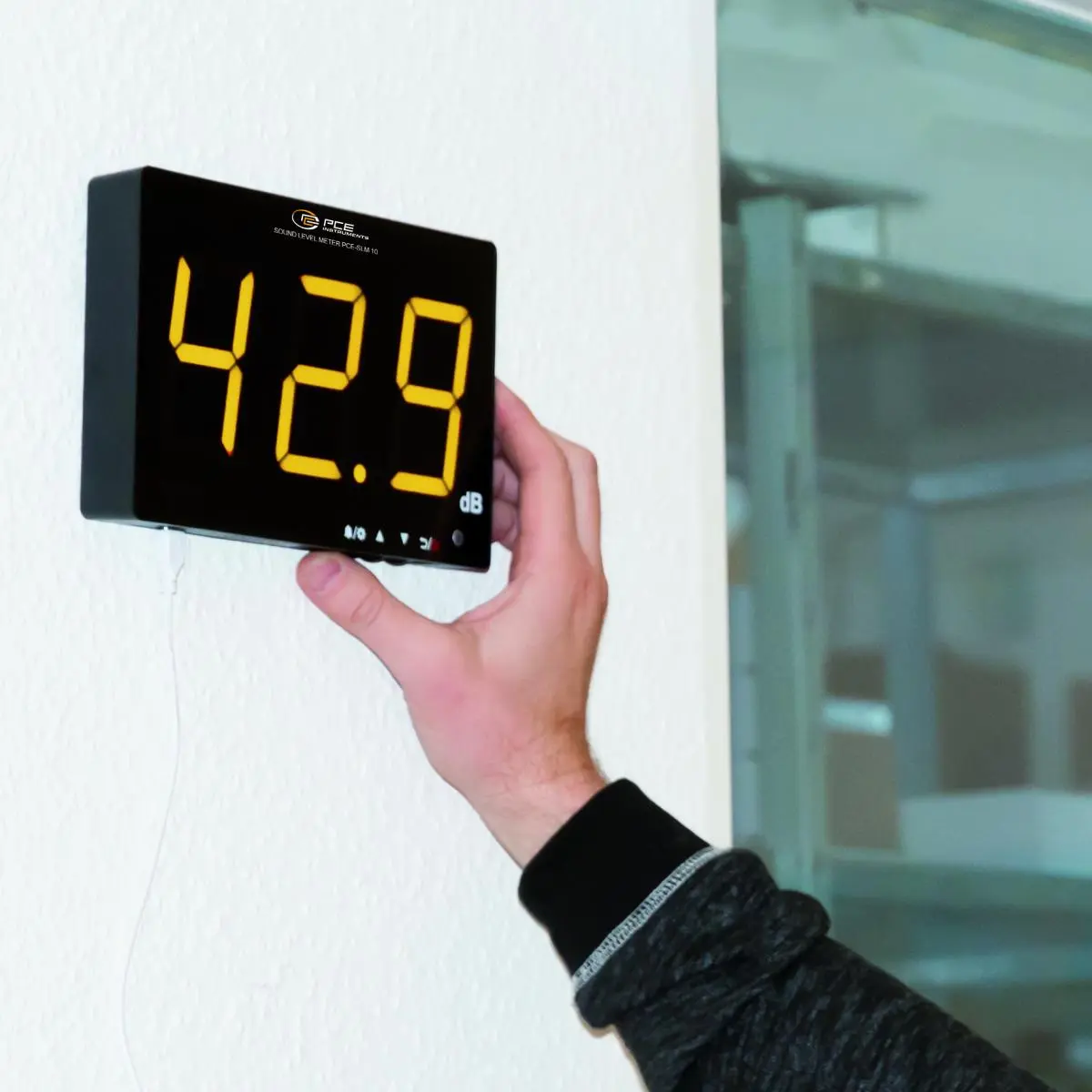

- Wall mounting
- Operation via micro USB charger or external battery
- Alarm function
- For offices, schools, event rooms
- Memory for 657,000 readings

Specification

Sound level
Measuring range  30 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB at 94 dB @ 1 kHz

General technical data
Measuring functions  ALARM
Time weighting  fast (125 ms)
Frequency weighting  A
Frequency  31.5 ... 8500 Hz
Display type  LED
Digit size [WxH]  H: 75 mm
Storage capacity  657000 Values
Storage interval from  2 s
Storage interval to  2 s
Microphone type  Electret capacitor
Interface  Micro-USB
Tripod thread  1/4 inch
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V / 1 A
Operating conditions  0 ... 40 °C , 10 ... 80 % RH
Storage conditions  -10 ... 60 °C , 10 ... 70 % RH
Dimensions ( L x W x H )  210 x 130 x 28 mm
Weight  435 g

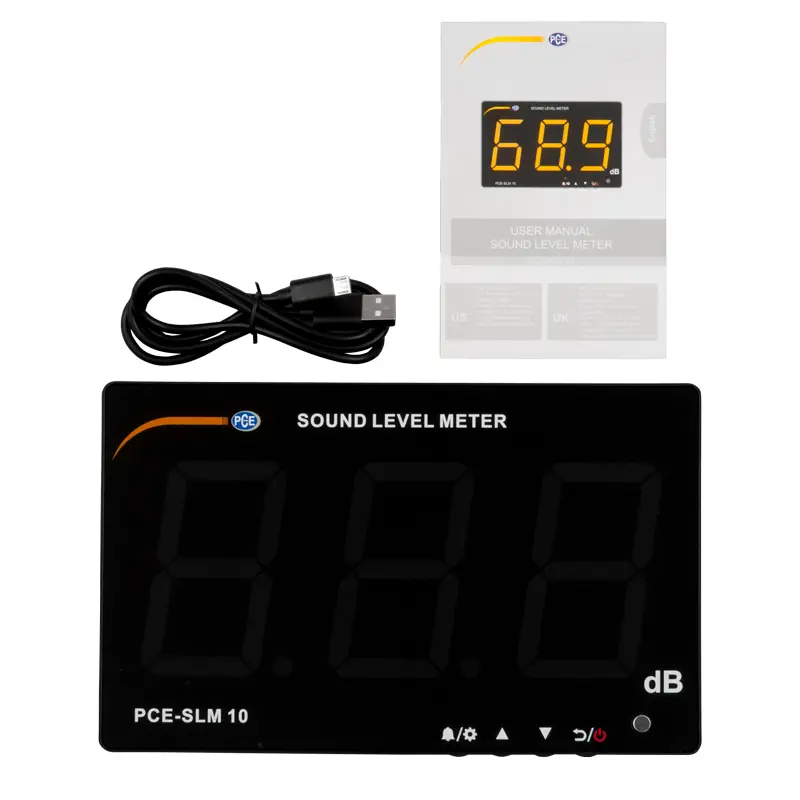

Delivery Scope

1 x Noise meter PCE-SLM 10
1 x Micro USB cable
1 x User manual
